12V Flat Round PCB 6 SMD 3528 LED 2700K(Soft White)

  • $3.50 USD
    Prix unitaire par
Frais de port calculés à l'étape de paiement.
SKU: 666561413491
Seulement 2806 restant!

Free shipping on orders over $49 USD (Check availability during checkout).


Product Description

Voltage 12V
Wattage 0.6 W
Current 110mA
Luminous Flux 48 lumens (8 lm/SMD)
Dimmable Yes
LED Quantity 6 SMD
LED Type 3528
Color Temperature 2700K (Soft White)
Material Metallic base

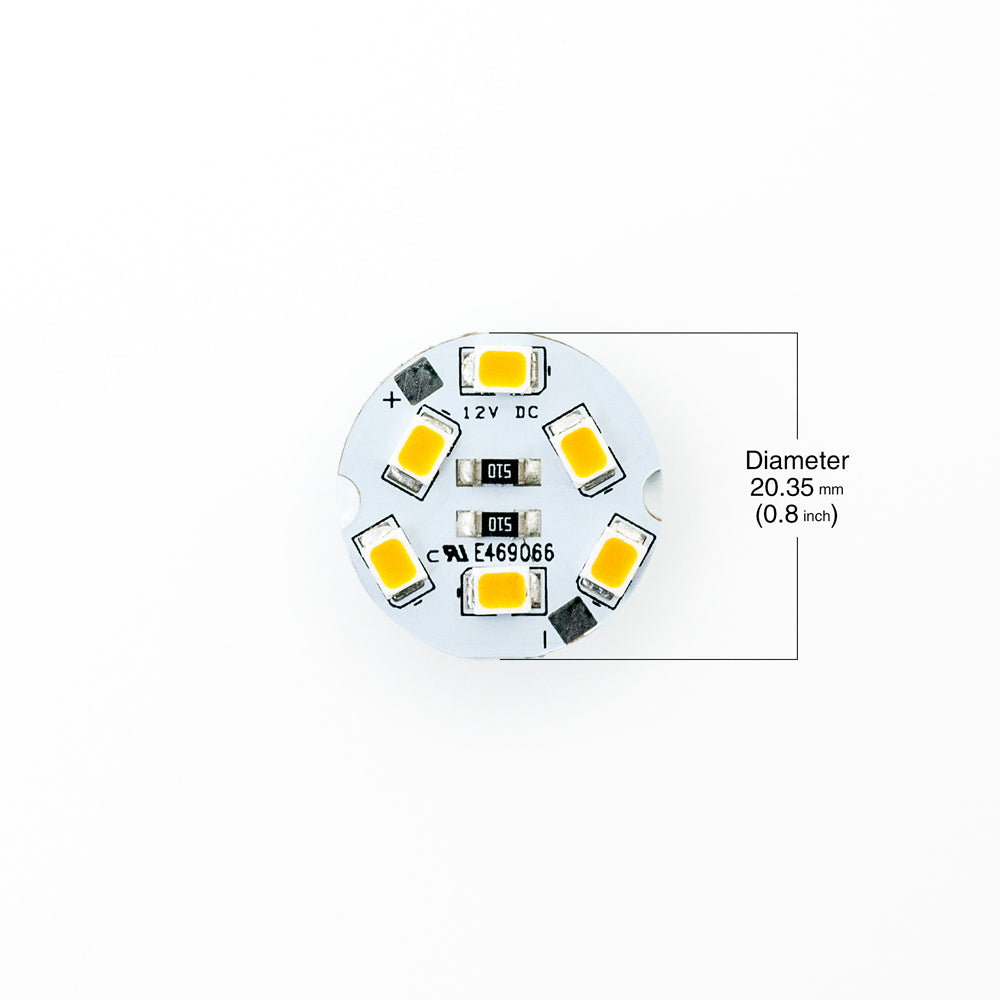

Dimensions Ø 20mm (0.78in)
H 2.6mm (0.1in)
Package Content  LED Module
Thermal Grease HY510 (5gr)
Certification



The 12V Flat Round PCB 6 SMD 3528 LED Soft White (2700K) is a small electronic device designed to emit soft white light. It has a voltage of 12V, wattage of 0.6W, and a current of 110mA. The LED module comes with 6 SMD 3528 LEDs, which provide a total luminous flux of 48 lumens, with 8 lumens per LED. The LED module is dimmable, making it easy to adjust the light output according to your needs.

The color temperature of the LED module is 2700K, which produces a warm and cozy ambiance. The material used for the metallic base of the module makes it sturdy and durable. The PCB size is ø20 mm (0.8 inches) in diameter, making it compact and easy to install. The package content includes the LED module and Thermal Grease HY510 (5gr) to aid in heat dissipation.

This LED module is low power consumption and highly energy-efficient, making it an eco-friendly lighting option. The LED module is an excellent DIY product for replacing damaged LED lights of the same voltage and wattage in any fixture. The module is certified with UR certification, ensuring it meets safety and quality standards.

Features:

  • Small electronic device designed to emit soft white light
  • Voltage of 12V, wattage of 0.6W, and current of 110mA
  • 6 SMD 3528 LEDs provide a total luminous flux of 48 lumens (8 lumens per LED)
  • Dimmable, making it easy to adjust light output
  • Color temperature of 2700K produces a warm and cozy ambiance
  • Metallic base material makes it sturdy and durable
  • PCB size of ø20 mm (0.8 inches) for easy installation
  • Package includes LED module and Thermal Grease HY510 (5gr) for heat dissipation
  • Low power consumption and highly energy-efficient for eco-friendly lighting
  • Excellent DIY product for replacing damaged LED lights of the same voltage and wattage in any fixture
  • Certified with UR certification for safety and quality standards.
  • Use Thermal Grease or Thermal Pad for installation.
