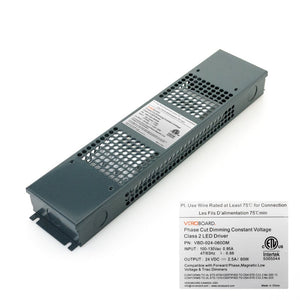

VBD-024-060DM Triac Dimmable Constant Voltage LED Driver, 24V 2.5A 60W
Product Description
Model | VBD-024-060DM |
Input Voltage | 100-130V AC |
Input Current | 0.95A |
Frequency | 47/63Hz |
Power Factor | 0.68 |
Output Voltage | 24V DC |
Output regulated Current | 2.5A |
Output Power | 60W max |
Dimmable | Yes (Phase/ Triac/ Magnetic Low Voltage) |
IP Rating | IP20 |
Class Certification | Class 2/ Class II |
Dimensions (Without Box) | 179 x 60 x 34.67mm (7.07 x 2.36 x 1.36 in) |
Dimensions (Box) | 331.72 x 78 x 38mm (13.06 x 3.07 x 1.5 in) |
Certifications | ![]() ![]() ![]() |
Applicable for Dry and Damp locations |
Compatible with Forward-Phase, Magnetic low Voltage & Triac Dimmers |
The VBD-024-060DM is a constant voltage LED driver designed for use with LED lighting systems. It operates with an input voltage of 100-130V AC and a frequency of 47/63Hz, with an input current of 0.95A and a power factor of 0.68. The driver is capable of delivering an output voltage of 24V DC and a regulated output current of 2.5A, providing a maximum output power of 60W.
One of the notable features of this driver is its Triac and phase-cut dimming capability, allowing for smooth and seamless dimming of LED lights. It also has an IP20 rating, indicating that it is suitable for use in indoor environments where it is not exposed to moisture and dust.
The driver has dimensions of 179 x 60 x 34.67mm (7.07 x 2.36 x 1.36 in) without the box and 331.72 x 78 x 38mm (13.06 x 3.07 x 1.5 in) with the box. It is Class 2/ Class II certified, indicating that it has a low output voltage and is safe to use in applications where electrical shock could be a hazard. It is also ETL certified, ensuring that it meets safety and performance standards for electrical products.
Features:
- The VBD-024-060DM is a constant voltage LED driver designed for use with LED lighting systems.
- It operates with an input voltage of 100-130V AC and a frequency of 47/63Hz, with an input current of 0.95A and a power factor of 0.68.
- The driver is capable of delivering an output voltage of 24V DC and a regulated output current of 2.5A, providing a maximum output power of 60W.
- The driver features Triac and phase-cut dimming capability, allowing for smooth and seamless dimming of LED lights.
- The device has an IP20 rating, making it suitable for use in indoor environments where it is not exposed to moisture and dust.
- The driver has dimensions of 179 x 60 x 34.67mm (7.07 x 2.36 x 1.36 in) without the box and 331.72 x 78 x 38mm (13.06 x 3.07 x 1.5 in) with the box.
- The driver is certified as Class 2/Class II, indicating that it has a low output voltage and is safe to use in applications where electrical shock could be a hazard.
- The device is also ETL certified, ensuring that it meets safety and performance standards for electrical products.
