B2WDR0157A 2 inch Round Recessed LED Inground Light, 24V 2.5W
Product Description
| Product | Inground Light |
| Model | B2WDR0157A |
| Operating Voltage | 24V DC |
| Lens type | Clear |
|
Light Source |
1x2W LED |
| Total Power Consumption | 2.5W |
| Bulb Type | Integrated LED |
| Color Temperature | 3000K (Warm White) |
| Housing Material | Die-cast Aluminum body |
| Beam Angle | 30° |
|
Cap Material |
Stainless Steel |
| IP Rating | IP67 (Outdoor Rated) |
| Dimmable | No |
| Cable Size |
Length: 55cm (1.8ft) Ø7.5mm (0.29in) 18AWG |
|
Dimensions with Housing
|
Diameter – 55 mm (2.1 inches) |
|
Dimensions without Housing |
Diameter – 55mm (2.16 inches) |
| Certification |  |

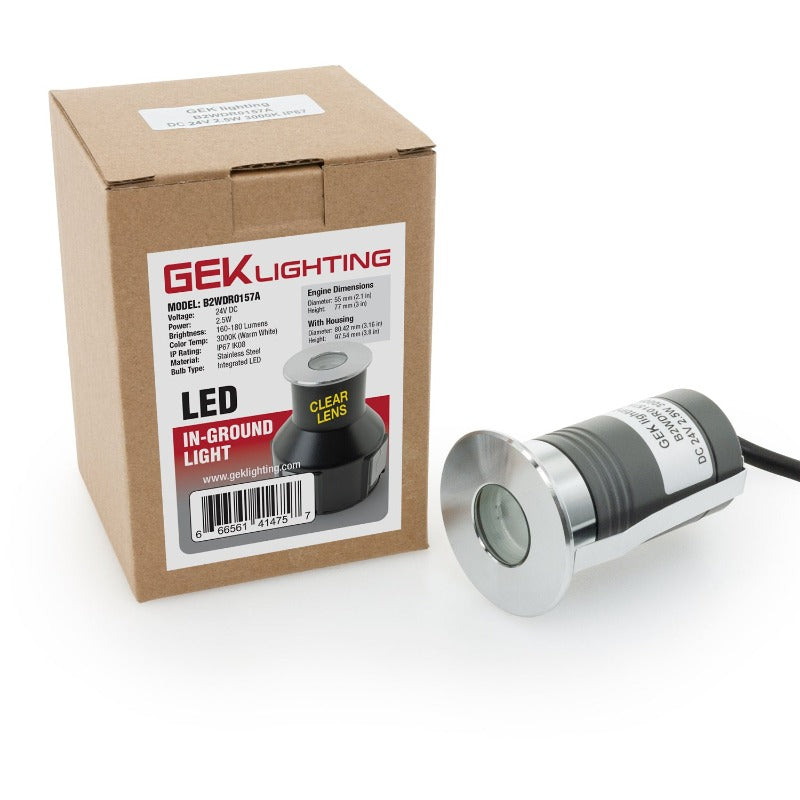

The B2WDR0157A is a 2-inch round recessed LED inground light designed for a variety of outdoor applications. It operates on 24V DC with a total power consumption of 2.5W, powered by a single 2W LED with a warm white color temperature of 3000K and a clear lens type. The housing material is made of die-cast aluminum body with a cap material of stainless steel.
This inground light has a beam angle of 30° and is not dimmable. The cable size is 55cm (1.8ft) in length and has a diameter of Ø7.5mm (0.29in) with 18AWG. With housing, the dimensions are 55mm in diameter, 97.43mm in height, and 80mm in base diameter, while without housing, the height is reduced to 77mm.
This recessed LED inground light creates a unique ambiance or offers functional illumination for walkways, garden lighting, and other desired applications. With its clear lens, it illuminates more light, making it suitable for various outdoor lighting needs. The B2WDR0157A also offers maximum flexibility in power options with single or multiple LED light transformers in both dimmable or non-dimmable transformers.
This light is certified for quality assurance and has an IP67 outdoor rating, making it suitable for all types of weather conditions and resilient to being stepped upon. It comes with housing, and the installation using the housing is optional. Its aesthetic appeal makes it a popular choice for LED pathway lights, pool deck lights, and patio lights.
Features:
- 2-inch round recessed LED inground light for various outdoor applications
- Operates on 24V DC with a total power consumption of 2.5W and single 2W LED
- Warm white color temperature of 3000K and clear lens type for more illumination
- Die-cast aluminum body with stainless steel cap material
- 30° beam angle and not dimmable
- Cable size is 55cm (3.2ft) in length and has a diameter of Ø7.5mm (0.29in) with 18AWG
- With housing, dimensions are 55mm in diameter, 97.43mm in height, and 80mm in base diameter, while without housing, the height is reduced to 77mm
- Creates a unique ambiance or offers functional illumination for walkways, garden lighting, and other desired applications
- Maximum flexibility in power options with single or multiple LED light transformers in both dimmable or non-dimmable transformers
- Certified for quality assurance with an IP67 outdoor rating, making it suitable for all types of weather conditions and resilient to being stepped upon
- Comes with housing, and the installation using the housing is optional
- Aesthetic appeal makes it a popular choice for LED pathway lights, pool deck lights, and patio lights.
