Square Diffuser Linear Aluminum LED Channel for LED Strips 1Meter(3.2ft) VBD-CH-S1

Veroboard

  • $62.50 USD
    Prix unitaire par
Frais de port calculés à l'étape de paiement.
SKU: 666561425203

Longer than 1 meter long(3.2ft) Ask for a Quote

Seulement 30 restant!

FREE Shipping over $49 USD



Product Description

Product LED Channel / LED Extrusion
Model VBD-CH-S1
Material Aluminum
Diffuser Material Polycarbonate (PC)
Fixture color Finish Silver Grey
Package content

1 meter Aluminum channel with frosted Diffuser (lens)
1 pair of Endcaps (with and without holes)
2 pieces of Mounting Brackets with mounting screws.
pair Suspension Kit (SKU: 666561417468)

Dimensions 1000mm x 50.21mm x 50.88mm
(39in x 1.96in x 1.96in)
Mounting
  • Direct screw or groove into the mounting surface.
  • Mount using mounting clips.
  • Suspended Mount using an aircraft cable
Accessories (Sold Separately) 1 pair Endcaps VBD-ENCH-S1 SKU:666561426743
4 pcs Mounting Clips VBD-CLCH-S1 SKU:66561429164

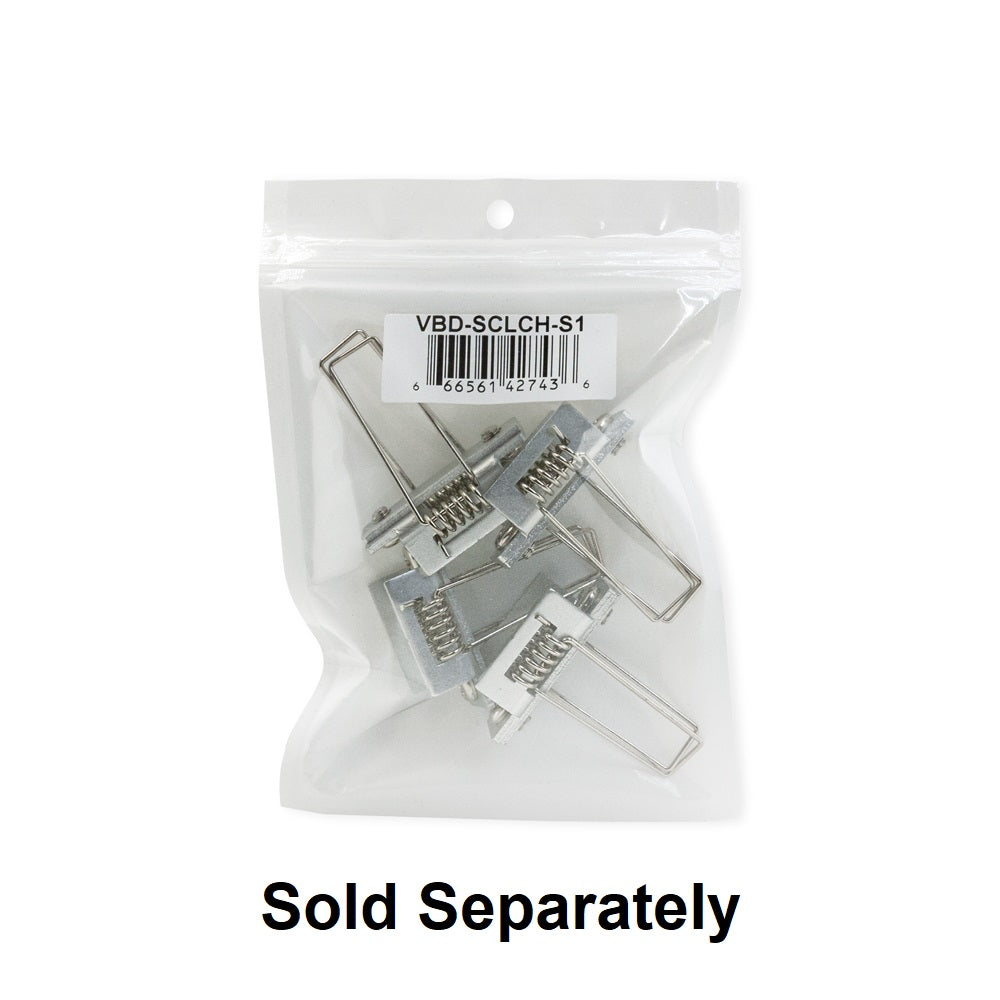

4 pcs Mounting Bracket VBD-SCLCH-S1 SKU: 666561427436
1
Pair Adjustable Suspension Kits SKU: 666561417468




VEROBOARD VBD-CH-S1 3-sided Diffuser Aluminum Channels are popular for downlighting applications like work lights, task lighting applications using LED Strips. These are popular for commercial and institutional applications looking for versatility and clean styling.

The VEROBOARD VBD-CH-S1 Square Diffuser Linear Aluminum LED Channel is an excellent choice for downlighting applications using LED strips. Made of high-quality aluminum with a sleek silver-grey finish and a frosted polycarbonate diffuser lens, this LED profile provides a wide range of interior lighting options.

Measuring 1000mm x 50.21mm x 50.88mm (39in x 1.96in x 1.96in), the VBD-CH-S1 comes with one meter of aluminum channel, a frosted diffuser lens made of polycarbonate (PC), and one pair of end caps with and without holes, as well as two mounting brackets with screws and one pair of suspension kits (SKU: 666561430016). Additionally, this product is compatible with several accessories sold separately, including the VBD-ENCH-S1 end caps, VBD-CLCH-S1 mounting clips, and VBD-SCLCH-S1 mounting brackets.

The VBD-CH-S1 can be easily cut into custom sizes using a regular hack saw and can be mounted using brackets or hung using aircraft cables. It can also be powder coated to any desired color, and several lengths can be positioned together for a continuous linear light effect. The aluminum channel is designed to hold the LED strip and act as a heat sink, increasing the lifetime of the LEDs.

The VBD-CH-S1 also comes with a frosted diffuser to reduce glare and protect the LEDs from dust and damage, while the end caps with wiring holes make installation clean and easy. Overall, the VBD-CH-S1 linear aluminum LED channel is a great choice for any downlighting application, providing a sleek and modern look with versatile lighting options.

Features:

  • High-quality aluminum construction with a silver-grey finish and frosted polycarbonate diffuser lens
  • Ideal for downlighting applications using LED strips in commercial and institutional settings
  • Comes with one meter of aluminum channel, frosted diffuser lens, and one pair of end caps with and without holes
  • Includes two mounting brackets with screws and one pair of suspension kits (SKU: 666561430016)
  • Compatible with several accessories sold separately, including end caps, mounting clips, and mounting brackets
  • Can be easily cut into custom sizes using a regular hack saw
  • Can be mounted using brackets or hung using aircraft cables
  • Can be powder coated to any desired color and positioned together for a continuous linear light effect
  • Aluminum channel acts as a heat sink to increase the lifetime of the LEDs
  • Frosted diffuser reduces glare and protects LEDs from dust and damage
  • End caps with wiring holes make installation clean and easy

Contact us for more details.
