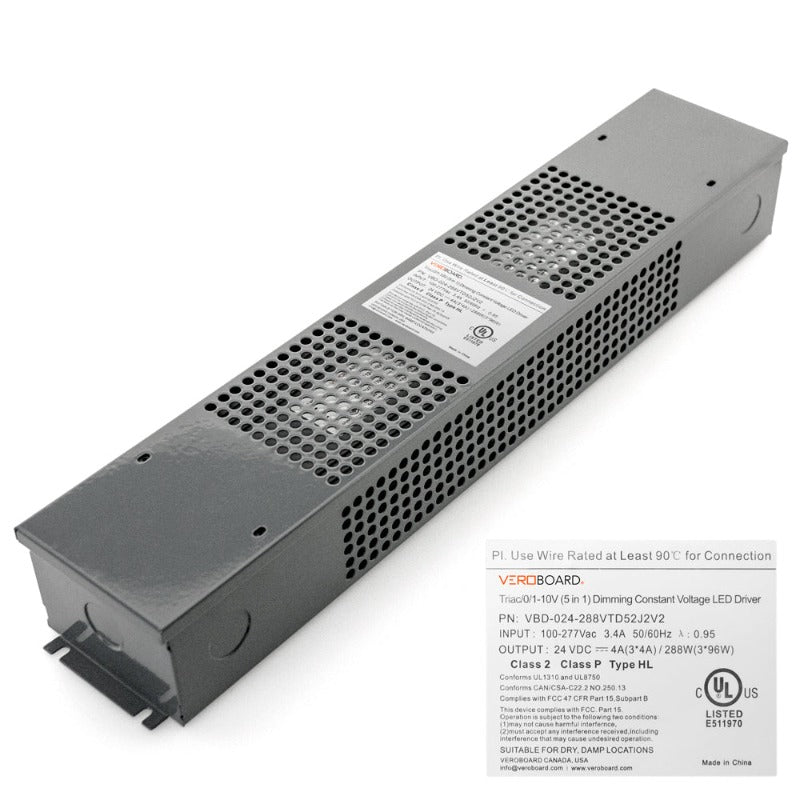

VBD-024-288VTD52J2V2 Triac/0-10V Dimmable LED Driver, 24V 288W(3x96W) 100-277V AC
Product Description
Model | VBD-024-288VTD52J2V2 |
Input Voltage | 100-277V AC |
Input Current | 3.4A |
Frequency | 50/60Hz |
Power Factor | 0.95 |
Output voltage | 24V DC |
Output regulated current | 12A (3x4A) |
Output max Power | 288W (3x96W) |
Dimmable |
Yes (Triac/0/10V Dimming) |
Class Certification | Class 2/ Class P/ Type HL/ SELV |
IP Rating | IP67 (Outdoor Rated) |
Dimensions (Without Box) | 280x 77.5x 45.5mm(11 x 3 x 1.8 in) |
Dimensions (Box) | 440 x 86 x 59.4mm (17.31 x 3.38 x 2.34 in) |
Certifications | ![]() ![]() ![]() |
Compatible with Forward-Phase, 0-10V, Magnetic low Voltage, ELV & Triac dimmers. |
Suitable for Dry, Damp, and Wet locations. |
The VBD-024-288VTD52J2V2 is a Triac/0-10V dimmable LED driver designed to power LED lights. It has an input voltage range of 100-277V AC and an input current of 3.4A with a frequency of 50/60Hz. The power factor of the driver is 0.95, which indicates high efficiency in converting AC power to DC power.
The output voltage of the driver is 24V DC, and it can regulate a maximum current of 12A (3x4A) with a maximum output power of 288W (3x96W). The driver is dimmable and supports 5 in 1 dimming. The class certification of the driver is Class 2/Class P/Type HL/SELV, indicating that it meets specific safety standards for LED lighting.
The driver has an IP67 rating, making it suitable for outdoor use, and its dimensions without the box are 280x77.5x45.5mm (11 x 3 x 1.8 in), while the dimensions with the box are 440 x 86 x 59.4mm (17.31 x 3.38 x 2.34 in). The driver is FCC and UL certified, indicating that it meets the safety standards set by these organizations.
Features:
- The VBD-024-288VTD52J2V2 is a Triac/0-10V dimmable LED driver for powering LED lights
- It has an input voltage range of 100-277V AC and an input current of 3.4A with a frequency of 50/60Hz
- The power factor is 0.95, indicating high efficiency in converting AC power to DC power
- Output voltage is 24V DC, and it can regulate a maximum current of 12A (3x4A) with a maximum output power of 288W (3x96W)
- The driver is dimmable and supports 5 in 1 dimming
- Class certification is Class 2/Class P/Type HL/SELV, meeting specific safety standards for LED lighting
- It has an IP67 rating, making it suitable for outdoor use
- Dimensions without the box: 280x77.5x45.5mm (11 x 3 x 1.8 in), with the box: 440 x 86 x 59.4mm (17.31 x 3.38 x 2.34 in)
- FCC and UL certified, meeting safety standards set by these organizations
