ES LD020H-CU07034-15 Constant Current LED Driver, 700mA 20-34V 20W max

Product Description
Product | Constant Current LED Driver |
Model | LD020H-CU07034-15 |
Input Voltage | 100-240V AC |
Input Current | 0.25A |
Frequency | 50/60Hz |
Output Voltage | 20-34V DC |
Output Regulated Current | 700mA |
Output Power | 14-20W Max. |
Dimmable | Yes |

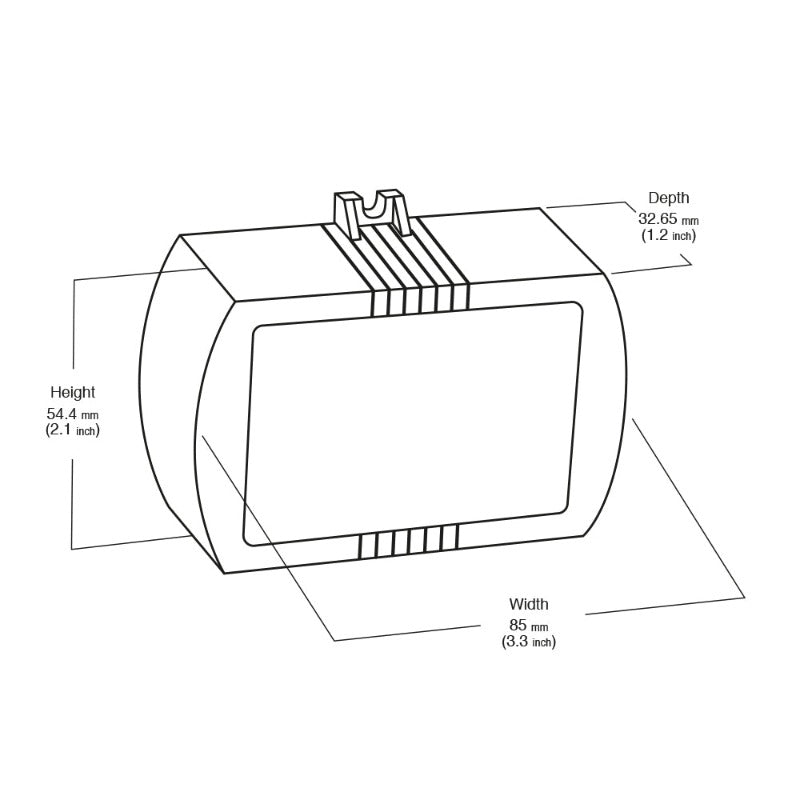

Dimensions | 85 x 55 x 32.65mm (3.3 x 2.1 x 1.2in) |
Class Certification | Class 2/ Class II |
Certification |
![]() ![]() |
The ES LD020H-CU07034-15 Constant Current LED Driver is a high-quality power supply designed for LED lighting applications. It offers a regulated current of 700mA and an output voltage range of 20-34V DC, making it suitable for a wide range of LED lighting fixtures.
The driver is designed to operate on an input voltage range of 100-240V AC and has a maximum input current of 0.25A at a frequency of 50/60Hz. It has a power factor of P.F>0.9, which means that it is highly efficient and can deliver maximum power to the load.
With a maximum output power of 14-20W, this LED driver can power a variety of LED lighting applications. It is also dimmable, allowing you to adjust the brightness of your LED lighting as needed. The driver is Class 2/Class II certified, ensuring that it is safe and reliable for use in your LED lighting applications.
The dimensions of the driver are 85 x 55 x 32.65mm (3.3 x 2.1 x 1.2in), making it compact and easy to install in a variety of applications. Overall, the ES LD020H-CU07034-15 is an excellent choice for powering your LED lighting projects with a reliable and efficient power supply.
Note: Never use constant voltage driver instead of constant current driver, even if Voltage and mA are equal.
Features:
- The ES LD020H-CU07034-15 is a high-quality constant current LED driver designed for LED lighting applications.
- It offers a regulated current of 700mA and an output voltage range of 20-34V DC, making it suitable for a wide range of LED lighting fixtures.
- The driver can operate on an input voltage range of 100-240V AC and has a maximum input current of 0.25A at a frequency of 50/60Hz.
- It has a high power factor of P.F>0.9, which ensures high efficiency and maximum power delivery to the load.
- The driver has a maximum output power of 14-20W and is dimmable, allowing users to adjust the brightness of their LED lighting as needed.
- It is Class 2/Class II certified, ensuring safety and reliability for use in LED lighting applications.
- The compact dimensions of the driver are 85 x 55 x 32.65mm (3.3 x 2.1 x 1.2in), making it easy to install in a variety of applications.
- Overall, the ES LD020H-CU07034-15 is an excellent choice for powering LED lighting projects with a reliable and efficient power supply.
How to Install ES LD020H-CU07034-15 Dimming Constant Current LED Driver?
-
Turn off the power: Before installing the LED driver, make sure to turn off the power to the circuit from the circuit breaker or the main electrical panel.
-
Choose the installation location: Select a suitable location to mount the driver. The location should be dry and free from any heat sources.
-
Mount the driver: Use screws to mount the driver on a solid surface.
-
Connect the input wires: Connect the input wires from the driver to the AC power source. Make sure to match the correct wires (hot and neutral) from the driver to the corresponding wires from the power source. (White color wire to Neutral (N) and the Black color Wire to Line (L))
-
Connect the output wires: Connect the output wires from the driver to the LED lighting fixture. Make sure to match the correct wires (positive and negative) from the driver to the corresponding wires from the fixture. ( Red color wire to the positive (+) and Black wire to the negative (-))
-
Test the installation: Once the connections are made, turn on the power to the circuit and test the LED fixture to ensure it is working properly.
-
Adjust dimming settings: If the driver is dimmable, follow the manufacturer's instructions to connect the dimming wires and adjust the dimming settings as required.
Note: It's important to follow the specific instructions provided by the manufacturer for your LED driver, as installation procedures may vary based on the model and manufacturer. If you are not comfortable with electrical installations, it is recommended to consult a licensed electrician for assistance.
