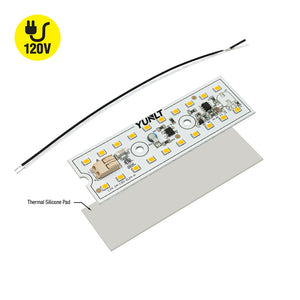

4 inch Linear ZEGA LED Module LIN 04-005W-930-120-S1-Z1A, 120V 5W 3000K(Warm White)
|Model No||LIN 04-005W-930-120-S1-Z1A|
|No of LEDs||20|
|Luminous Flux||400 lumens|
|Color Temperature||3000K (Warm White)|
|Package Components||LED Module
Thermal Silicon Pad
6inch Black and White power feed
|Dimensions||101mm (4 inch) x 32.38 mm (1.275 inch)|
|Diameter of the screw hole||3.9mm (0.15 in)|
|Distance between holes||30.5mm (1.2 in)|
The 4inch Linear LED Module Driverless Engine LIN 04-005W-930-120-S1-Z1A is an energy-efficient and high-quality lighting solution that provides warm white light with a color temperature of 3000K and a high rendering index of CRI>90, resulting in excellent color quality. With a wattage of 5W and operating on a voltage of 120V AC, this LED module produces a luminous flux of 400 lumens, providing powerful lighting while remaining energy-efficient.
This LED module is also dimmable, allowing for greater control over the lighting environment. Constructed with an aluminum base material, the LIN 04-005W-930-120-S1-Z1A has a compact size of 101mm (4 inch) x 32.38 mm (1.275 inch), making it easy to install in a variety of settings. It also includes a thermal silicon pad and a 6-inch black and white power feed for added convenience.
The LIN 04-005W-930-120-S1-Z1A LED Module is ETL certified, ensuring that it meets high safety and quality standards. The LED module has a diameter of 3.9mm (0.15 in) and a distance between holes of 30.5mm (1.2 in), making it easy to install using screws.
Overall, the LIN 04-005W-930-120-S1-Z1A LED Module by YUNLT is an excellent lighting solution that provides exceptional quality, energy efficiency, and convenience. Its low power consumption and high luminous flux make it suitable for a wide range of lighting applications, while its compact size and easy installation make it an ideal DIY product for replacing ceiling lights or bulb sources.
- Energy-efficient and high-quality lighting solution
- Warm white light with a color temperature of 3000K and CRI>90
- Wattage of 5W and operates on a voltage of 120V AC
- Luminous flux of 400 lumens, providing powerful lighting while remaining energy-efficient
- Dimmable, allowing for greater control over the lighting environment
- Constructed with an aluminum base material for durability
- Compact size of 101mm (4 inch) x 32.38 mm (1.275 inch), making it easy to install in a variety of settings
- Includes a thermal silicon pad and a 6-inch black and white power feed for added convenience
- ETL certified, ensuring high safety and quality standards
- Easy to install using screws with a diameter of 3.9mm (0.15 in) and a distance between holes of 30.5mm (1.2 in)
- A premier quality light engine. It produces up to 400 lumens of exceptional light.
- Low power consumption, high energy efficiency.
- It is a good DIY product for the replacement of a ceiling light/ Bulb source.
- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
