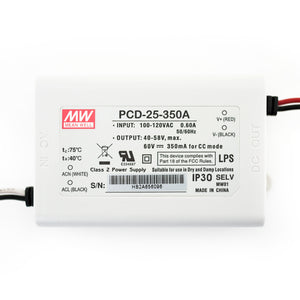

Mean Well PCD-25-350A Constant Current LED Driver, 350mA 40-58V 20W
|Product||Constant Current LED Driver|
|Input Voltage||100-120V AC|
|Output Voltage||40-58V DC (60V max)|
|Output Regulated Current:||350mA|
|IP Rating||IP30 (Indoor Rated)|
|Ambient Temperature (Tc)||75°C|
|Case Temperature (Ta)||40°C|
|Dimensions||83 x 56.84 x 29.30mm (3.26 x 2.23 x 1.15 in)|
|Class Certification||Class 2/ Class II|
The Mean Well PCD-25-350A Constant Current LED Driver is a product designed to provide a regulated current of 350mA and an output power of 20.3W for LED lighting applications. The input voltage range is between 100-120V AC and the input current is 0.60A with a frequency of 50/60Hz. The output voltage range is between 40-58V DC (with a maximum of 60V DC).
The driver is not dimmable and has an IP30 rating, making it suitable for indoor use only. It has an ambient temperature rating of 40°C and a case temperature rating of 75°C. The dimensions of the driver are 83 x 56.84 x 29.30mm (3.26 x 2.23 x 1.15 in), and it is certified as Class 2/Class II.
Note: Never use constant voltage driver instead of constant current driver, even if Voltage and mA are equal.
- Designed for LED lighting applications
- Provides regulated current of 350mA and output power of 20.3W
- Input voltage range: 100-120V AC, input current: 0.60A, frequency: 50/60Hz
- Output voltage range: 40-58V DC (with a maximum of 60V DC)
- Not dimmable and has an IP30 rating for indoor use only
- Ambient temperature rating: 40°C, case temperature rating: 75°C
- Dimensions: 83 x 56.84 x 29.30mm (3.26 x 2.23 x 1.15 in)
- Certified as Class 2/Class II product
How to Install Mean Well PCD-25-350A Dimming Constant Current LED Driver?
Turn off the power: Before installing the LED driver, make sure to turn off the power to the circuit from the circuit breaker or the main electrical panel.
Choose the installation location: Select a suitable location to mount the driver. The location should be dry and free from any heat sources.
Mount the driver: Use screws to mount the driver on a solid surface.
Connect the input wires: Connect the input wires from the driver to the AC power source. Make sure to match the correct wires (hot and neutral) from the driver to the corresponding wires from the power source. (White color wire to Neutral (N) and the Black color Wire to Line (L))
Connect the output wires: Connect the output wires from the driver to the LED lighting fixture. Make sure to match the correct wires (positive and negative) from the driver to the corresponding wires from the fixture. ( Red color wire to the positive (+) and Black wire to the negative (-))
Test the installation: Once the connections are made, turn on the power to the circuit and test the LED fixture to ensure it is working properly.
Adjust dimming settings: If the driver is dimmable, follow the manufacturer's instructions to connect the dimming wires and adjust the dimming settings as required.
Note: It's important to follow the specific instructions provided by the manufacturer for your LED driver, as installation procedures may vary based on the model and manufacturer. If you are not comfortable with electrical installations, it is recommended to consult a licensed electrician for assistance.
