OTM-TD30-24 0-10V Dimmable Constant Voltage LED Driver, 24V 1.25A 30W

  • $49.00 USD
    Prix unitaire par
Frais de port calculés à l'étape de paiement.
SKU: 666561425548
Title:
Seulement 136 restant!

Free shipping on orders over $99 USD (Check availability during checkout).





Product Description

Model OTM-TD30-24
Input Voltage 100-130V AC
Input Current 0.24A
Frequency 50-60Hz
Efficiency >85%
Output Voltage 24V DC
Output regulated Current 1.25A
Output Power 30W max
Power Factor >0.95
Dimmable Yes (0-10V Dimming)
IP Rating IP20
Ambient Temperature (Ta) 40°C
Case Temperature (Tc) 80°C
Class Certification Class II/ SELV

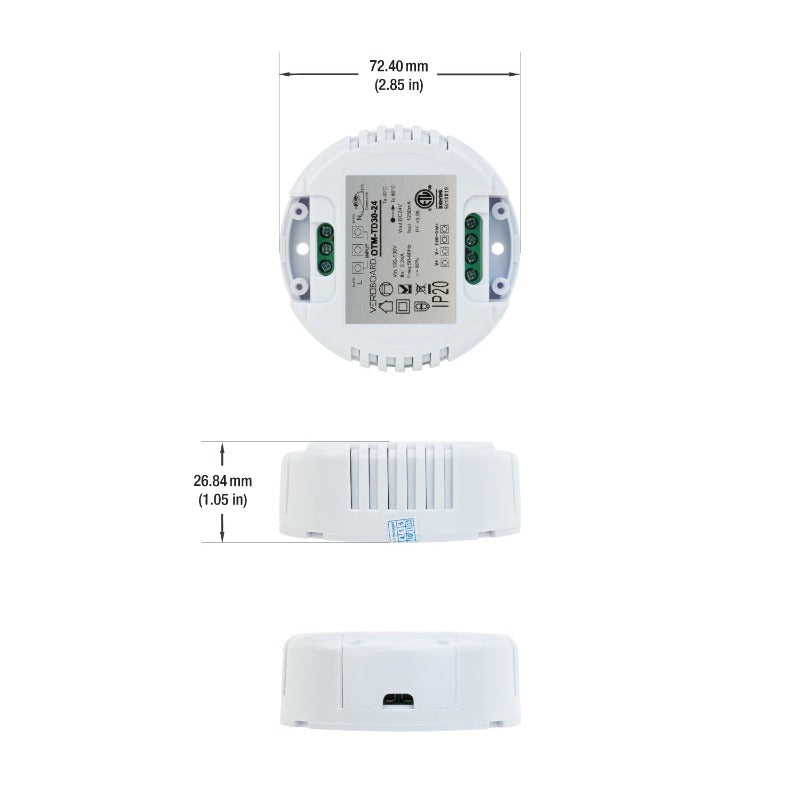

Dimensions Ø72.40mm (2.85 in)
Depth 26.84mm (1.05 in)
Certification
Compatible with 0-10V Dimmers
Applicable for Dry and Damp locations
Short circuit and Overload Protected
Class II Power Supply, Double-layer insulation
Easily fits in a 1-Gang Standard Box or Single Gang Box



The OTM-TD30-24 LED driver is a dimmable constant voltage driver designed for use with LED lighting systems. It has an input voltage range of 100-130V AC, an input current of 0.24A, and a frequency of 50-60Hz. The driver has an efficiency rating of greater than 85% and an output voltage of 24V DC. It can regulate output current up to 1.25A and has a maximum output power of 30W. The power factor is greater than 0.95, indicating high power efficiency. The driver is dimmable, allowing for 0-10V dimming control. The driver is rated IP20 for indoor use only and can operate in ambient temperatures up to 40°C, with a case temperature limit of 80°C. It is Class II/SELV certified for electrical safety and has dimensions of 72.40 mm x 26.84mm (2.85 in) diameter x (1.05 in) depth, making it a compact driver. The driver is ETL certified, indicating it has met relevant safety standards.

Features:

  • Dimmable constant voltage LED driver
  • Input voltage range: 100-130V AC, input current: 0.24A, frequency: 50-60Hz
  • Efficiency rating: >85%, output voltage: 24V DC
  • Output current regulation up to 1.25A, maximum output power: 30W
  • Power factor: >0.95, indicating high power efficiency
  • Dimming control: 0-10V
  • Rated IP20 for indoor use only, operating temperature: up to 40°C, case temperature limit: 80°C
  • Class II/SELV certified for electrical safety
  • Compact dimensions: 72.40mm x 26.84mm (2.85 in) diameter x (1.05 in) depth
  • ETL certified, meeting relevant safety standards.
