Linear Aluminum LED Channel for LED Strips 1Meter(3.2ft) VBD-CH-RF3
Product Description
| Product | LED Channel / LED Extrusion |
| Model |
VBD-CH-RF3 |
| Material | Aluminum |
| Diffuser Material | Opal |
| Fixture color Finish | Silver Grey |
| Package content |
1 meter Aluminum channel with frosted Diffuser (lens) |
| Dimensions |
1000mm x 20mm x 27mm (39.3in x 0.78in x 0.43in) |
| Mounting |
|

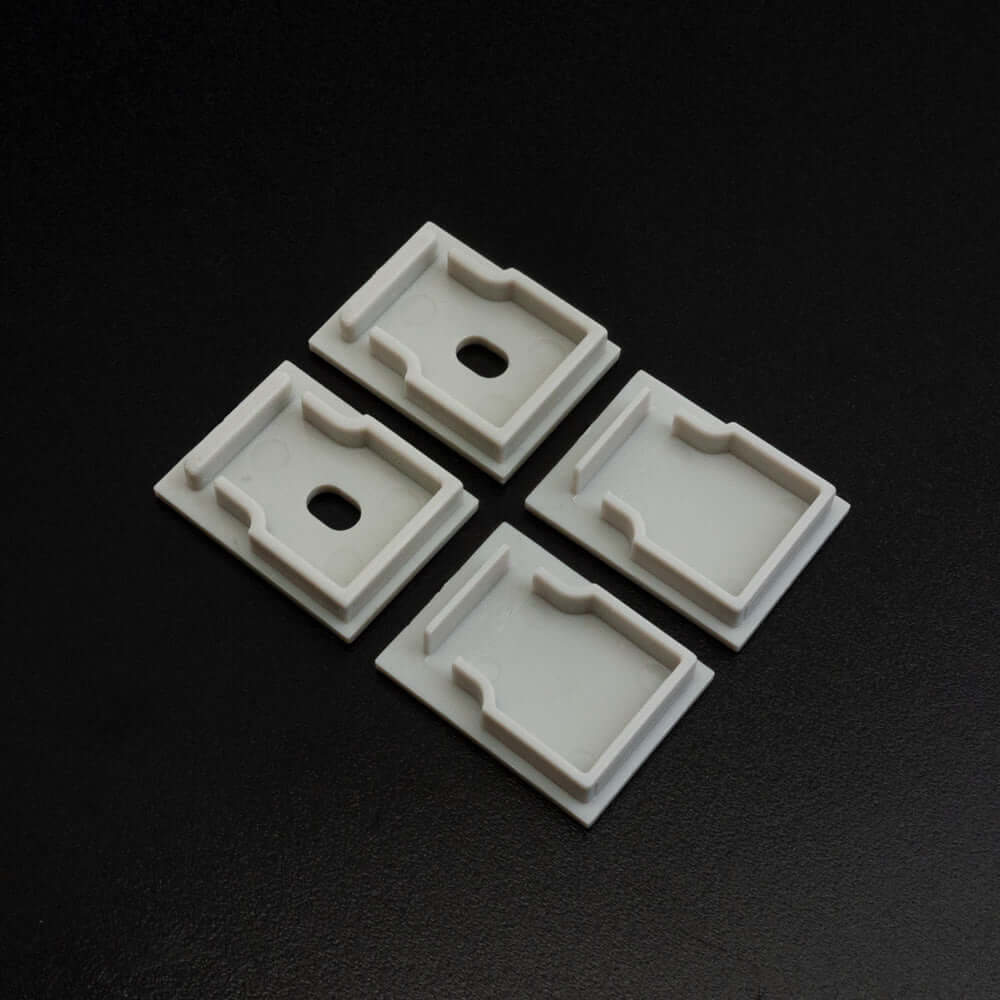

| Accessories (Sold Separately) | 2 pairs Endcaps VBD-ENCH-RF3 SKU:666561426804 4 pcs Mounting clips VBD-CLCH-RF3 SKU:666561427221 1 Pair Adjustable Suspension Kits SKU: 666561417468 |
The VEROBOARD VBD-CH-RF3 Linear Aluminum LED Channel for LED Strips is a versatile and elegant lighting solution for various indoor applications, such as over kitchen islands, billiard areas, cabinets, shelves, closets, and more. This product comes with one meter of aluminum channel with a frosted diffuser lens, one pair of end caps (with and without holes), and two mounting brackets with mounting screws, along with a suspension kit.

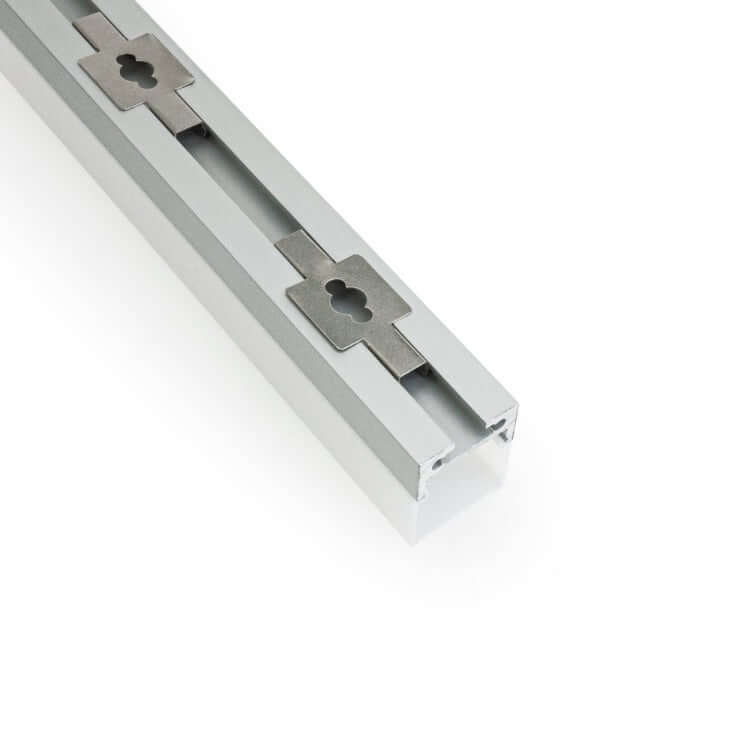

Installation is versatile and can be done using mounting clips, spring brackets, or suspended using aircraft cables. The aluminum channel acts as a heat sink for the LED strip installed in it, increasing the lifetime of the LEDs. The frosted diffuser helps reduce glare and protect the LEDs from dust and damage, while the end caps with wiring holes make installation clean and easy.
With its 20mm width and 3-side diffuser, this linear LED profile provides a wide and even illumination spread, making it perfect for task lighting or ambiance applications. The channel can be cut to the desired length using a regular hacksaw, and several lengths can be positioned together for a continuous linear light effect.
The VBD-CH-RF3 is suitable for LED strips with a width of 8mm or less, and with an inside width of 17mm, two layers of strips can be installed for even greater brightness. The diffuser material is resistant to UV rays and also protects from moisture, making it suitable for indoor and outdoor applications.
Overall, this product offers a modern and elegant look with versatile lighting options, providing a smooth and even illumination while protecting the LEDs from dust and damage.
Features:
- Versatile and elegant lighting solution for various indoor applications
- Comes with one meter of aluminum channel, frosted diffuser lens, end caps, and mounting brackets
- Can be installed using mounting clips, spring brackets, or suspended using aircraft cables
- Acts as a heat sink for the LED strip, increasing the lifetime of the LEDs
- Frosted diffuser helps reduce glare and protect LEDs from dust and damage
- 3-side diffuser provides a wide and even illumination spread
- Suitable for LED strips with a width of 8mm or less and can be cut to desired length using a regular hacksaw
- Inside width of 17mm allows for two layers of strips to be installed for greater brightness
- Resistant to UV rays and protects from moisture, suitable for indoor and outdoor applications.
Contact us for more details.
