Product Description

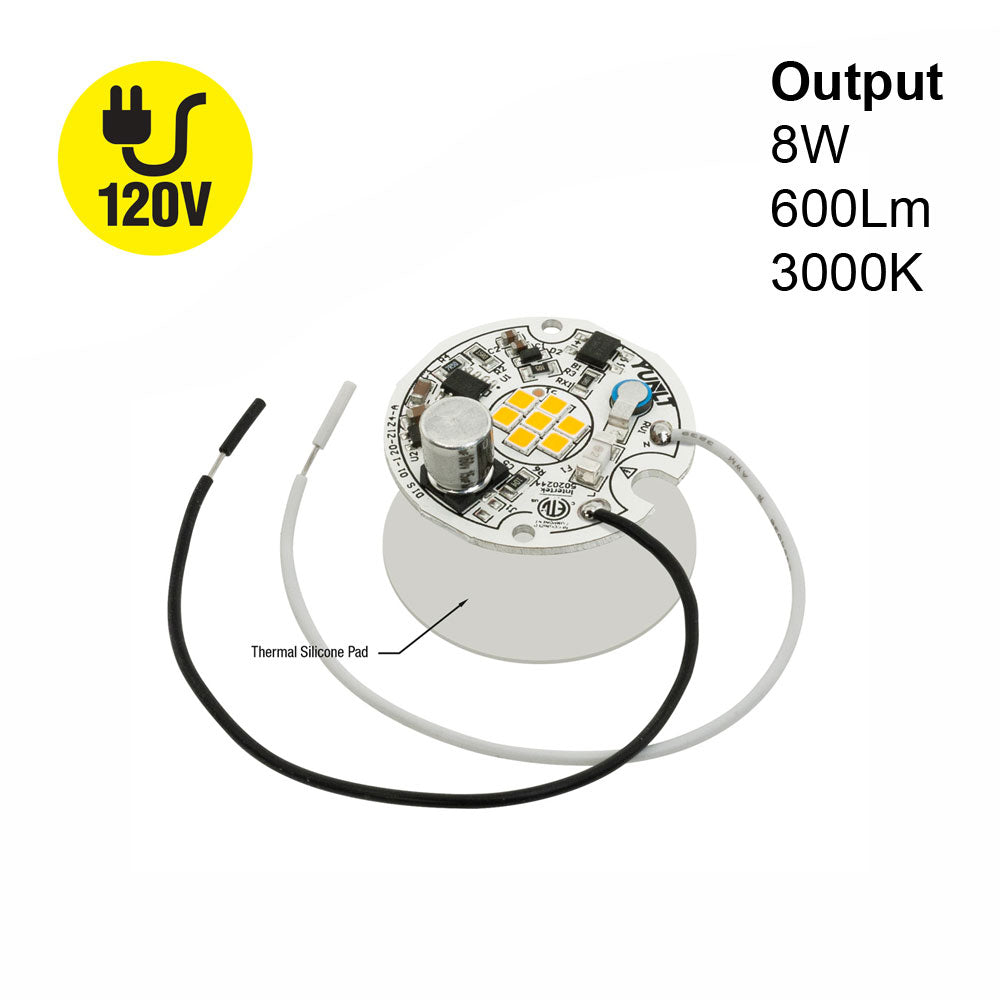

| Product | LED Module |
| Model No | DIS 01-008W-930-120-S1-Z4A |
| Brand | YUNLT |
| No of LEDs | 7 |
| Wattage | 8W |
| Voltage | 120V AC |
| Luminous Flux | 600 lumens |
| Color Temperature | 3000K (Warm White) |
| Rendering Index | CRI>90 |
| Power Source | AC |
| Dimmable | Yes |
| Base Material | Aluminum (Metallic Base) |
| Weight | 0.009 kg |
| Package Components | LED Module Thermal Silicon Pad 6inch Black and White power feed |
|

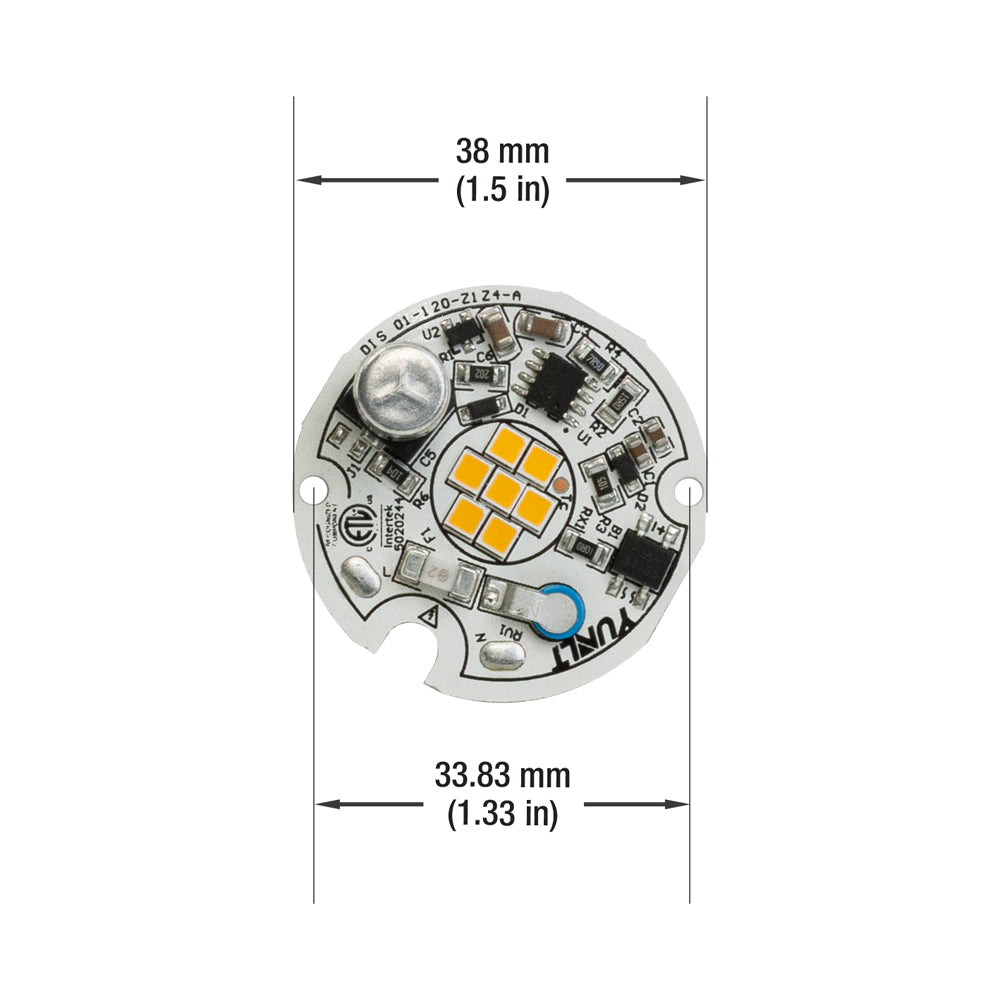

Outer Diameter |
∅38mm (1.5 in) |
| Diameter of the screw hole | ∅2.5 mm (0.1 in) |
| Distance between holes | 33mm (1.3 in) |
| Height | 12mm (0.47 in) |
| Certification |  |
Features:
- High-quality lighting solution with 7 high-quality LEDs
- Produces powerful 600 lumens of warm white light with a color temperature of 3000K
- Low power consumption of 8W for energy efficiency and cost savings
- Operates on a voltage of 120V AC and is dimmable for greater flexibility in lighting control
- Constructed with aluminum (metallic base) material and has an outer diameter of ∅38mm (1.5 in) for ease of installation

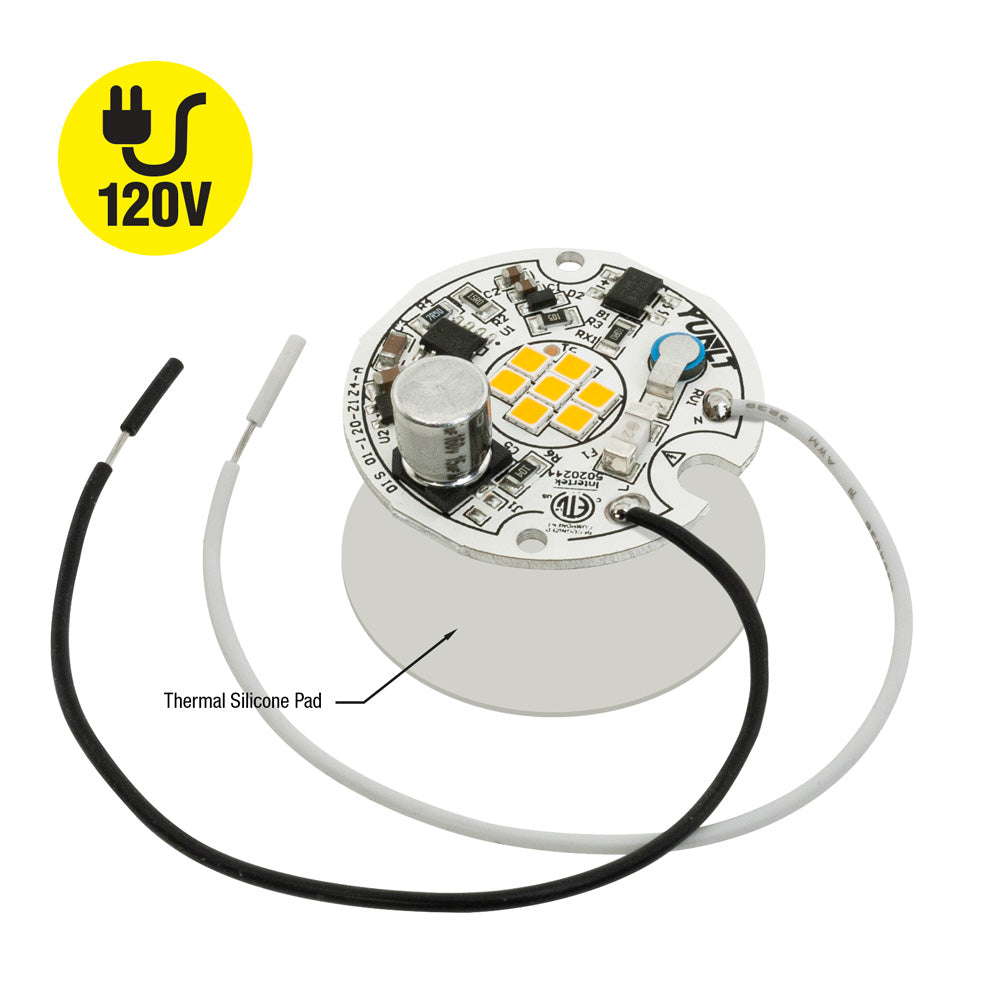

- Includes a thermal silicon pad and a 6-inch black and white power feed for added convenience
- 1.5 inch Round Disc ZEGA LED Module 120V 8W 3000K
- Features a high rendering index of CRI>90 for vibrant and true-to-life colors
- Ideal for a wide range of general lighting applications
- A premier quality light engine. It produces up to 600 lumens of exceptional light.
- Low power consumption, high energy efficiency.
- It is a good DIY product for the replacement of a ceiling light/ Bulb source.

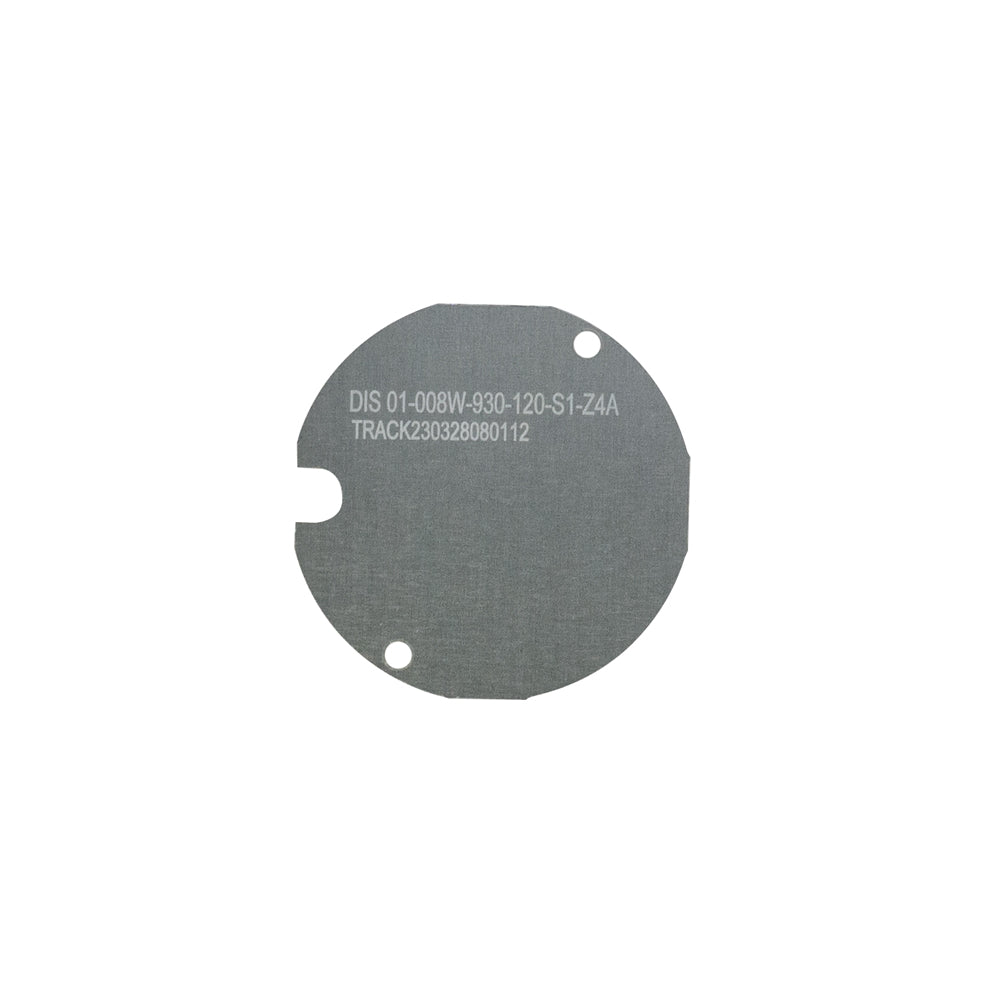

- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
