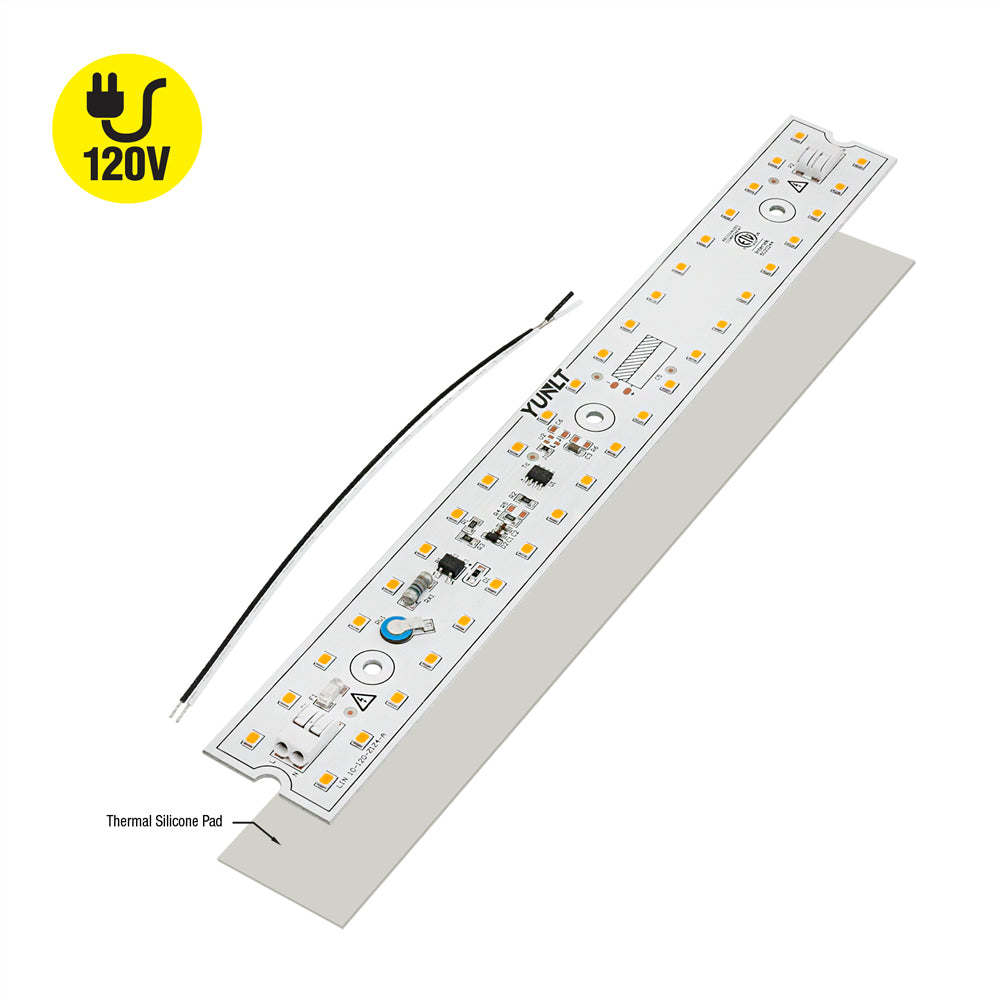

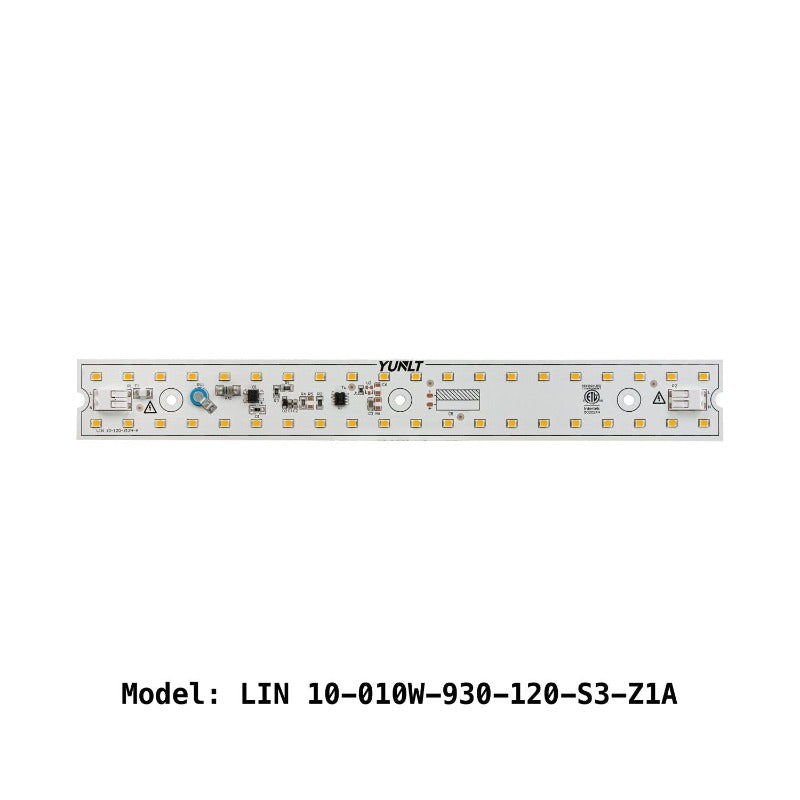

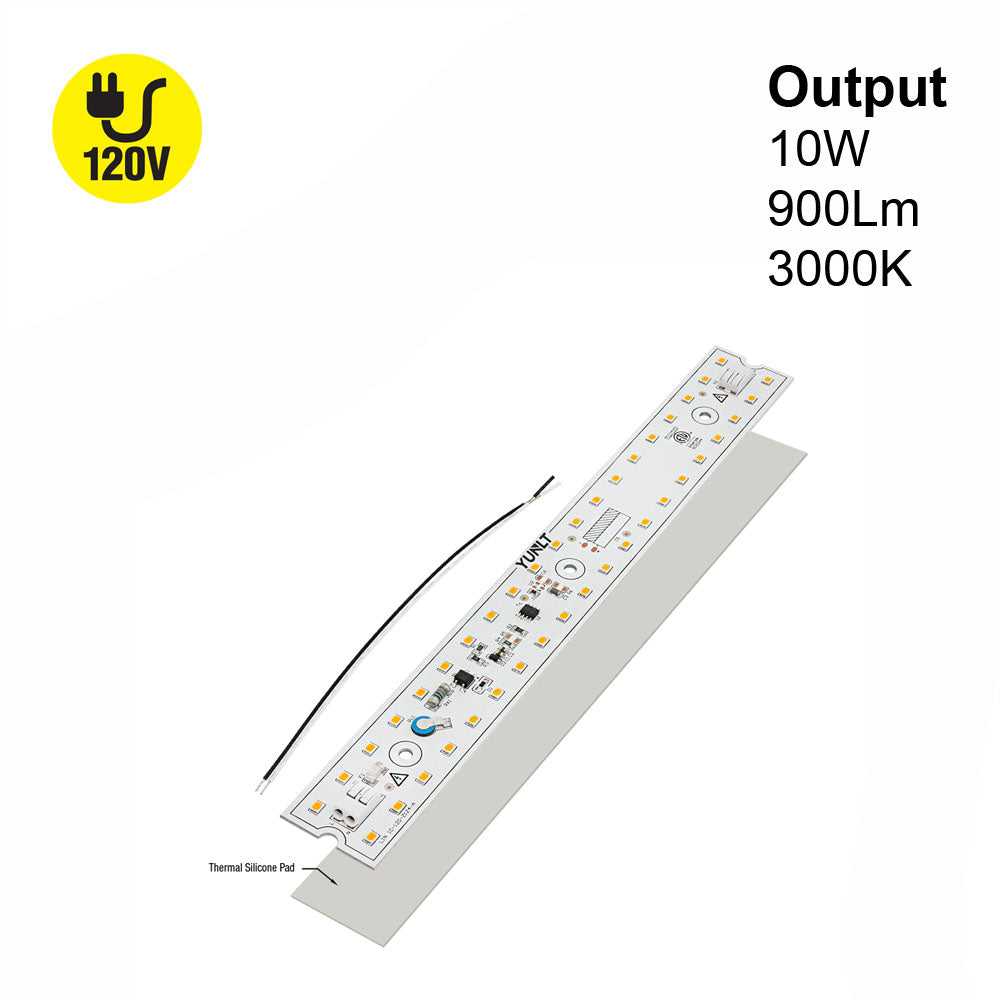

10inch Linear LED Module Driverless Engine LIN 10-010W-930-120-S3-Z1A, 120V 10W 3000K(Warm White)
|Model No||LIN 10-010W-930-120-S3-Z1A|
|No of LEDs||40|
|Luminous Flux||900 lumens|
|Color Temperature||3000K (Warm White)|
|Package Components||LED Module
Thermal Silicon Pad
6inch Black and White power feed

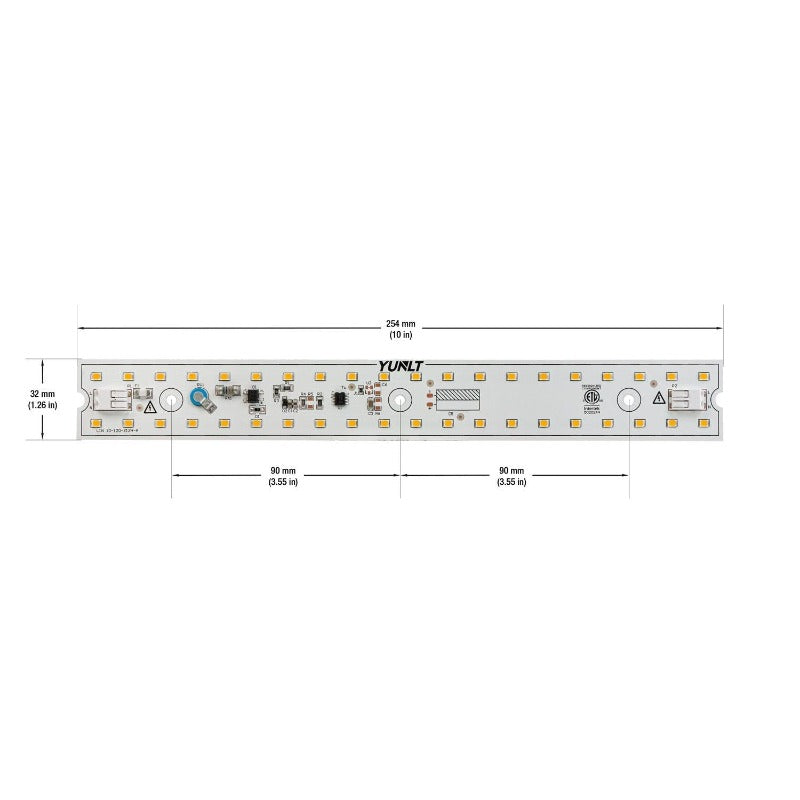

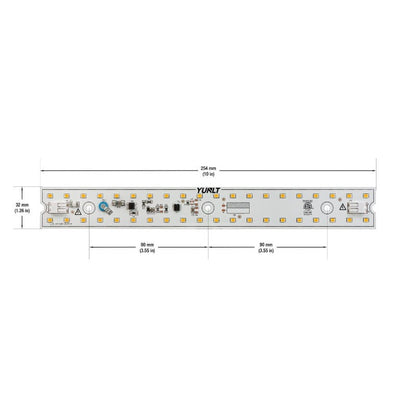

|Dimensions||254.0mm (10 inch) x 32.0 mm (1.25 inch)|
|Diameter of the screw hole||3.5mm (0.13 in)|
The LIN 10-010W-930-120-S3-Z1A is a linear LED module with a length of 10 inches (254mm) and a width of 1.25 inches (32mm). It contains 40 LEDs and has a wattage of 10W, powered by 120V AC. The module emits warm white light at a color temperature of 3000K, with a high color rendering index (CRI) of over 90, meaning that the colors appear natural and vibrant.
The LED module is made of aluminum and comes with a thermal silicon pad for heat dissipation. It also includes a 6-inch black and white power feed. The diameter of the screw hole is 3.5mm (0.13 in). This LED module is dimmable and ETL certified, indicating that it meets certain safety standards set by the electrical testing laboratory.
Overall, this LED module is suitable for use in a variety of lighting applications, such as task lighting, under cabinet lighting, and display lighting. It provides high-quality lighting with energy efficiency and is designed for easy installation.
- Linear LED module with dimensions of 10 inches (254mm) in length and 1.25 inches (32mm) in width
- Contains 40 LEDs with a wattage of 10W and powered by 120V AC
- Emits warm white light with a color temperature of 3000K and a high color rendering index (CRI) of over 90, providing natural and vibrant colors
- Made of aluminum and comes with a thermal silicon pad for efficient heat dissipation
- Includes a 6-inch black and white power feed and has a screw hole diameter of 3.5mm (0.13 in)
- Dimmable and ETL certified, indicating that it meets certain safety standards set by the electrical testing laboratory
- Suitable for various lighting applications such as task lighting, under cabinet lighting, and display lighting
- Provides high-quality lighting with energy efficiency and designed for easy installation
- A premier quality light engine. It produces up to 900 lumens of exceptional light.
- Low power consumption, high energy efficiency.
- It is a good DIY product for the replacement of a ceiling light/ Bulb source.
- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
