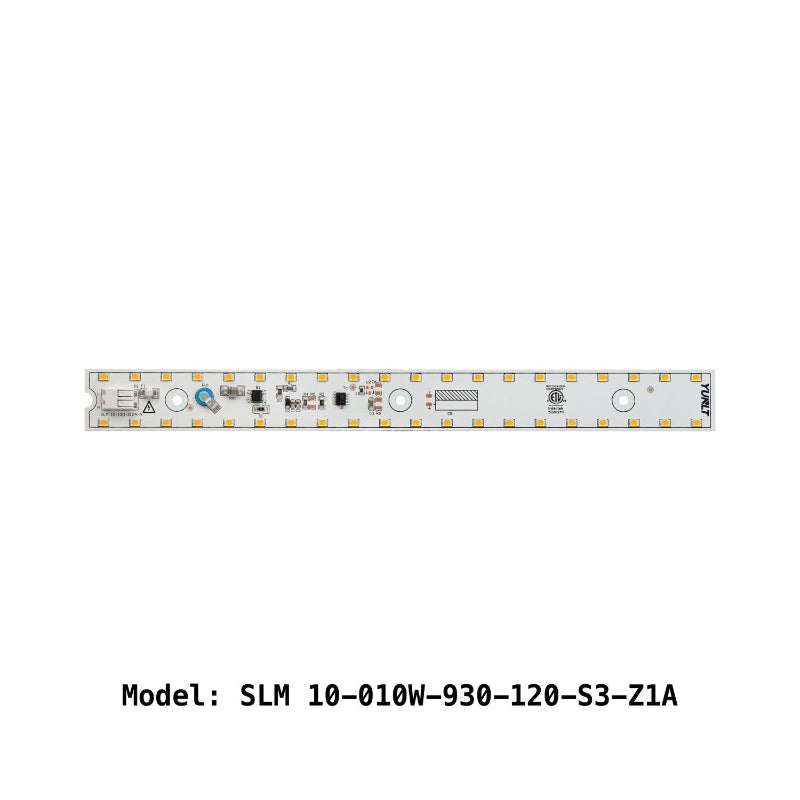

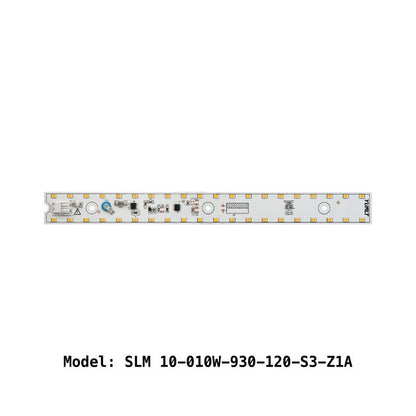

10 inch Slim ZEGA LED Module SLM 10-010W-930-120-S3-Z1A, 120V 10W 3000K(Warm White)
|Model No||SLM 10-010W-930-120-S3-Z1A|
|No of LEDs||40|
|Luminous Flux||900 lumens|
|Color Temperature||3000K (Warm White)|

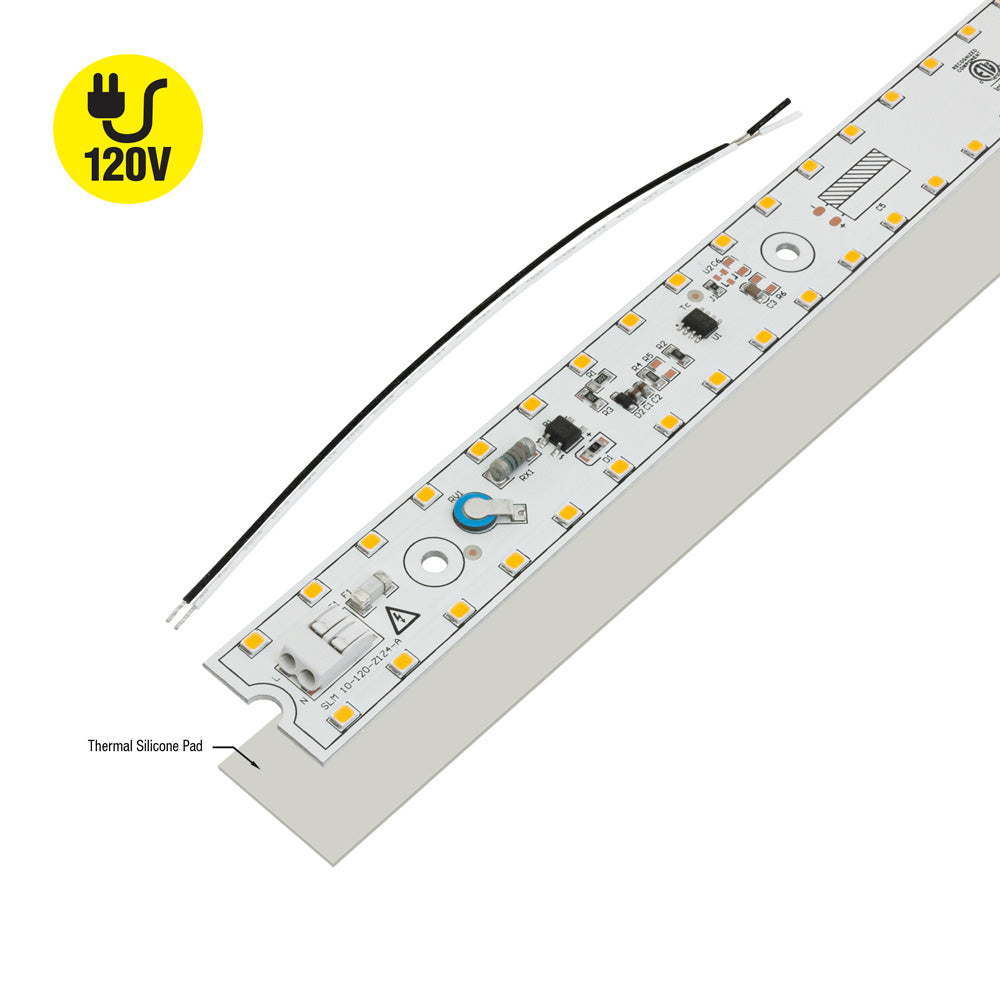

Thermal Silicon Pad
6inch Black and White power feed

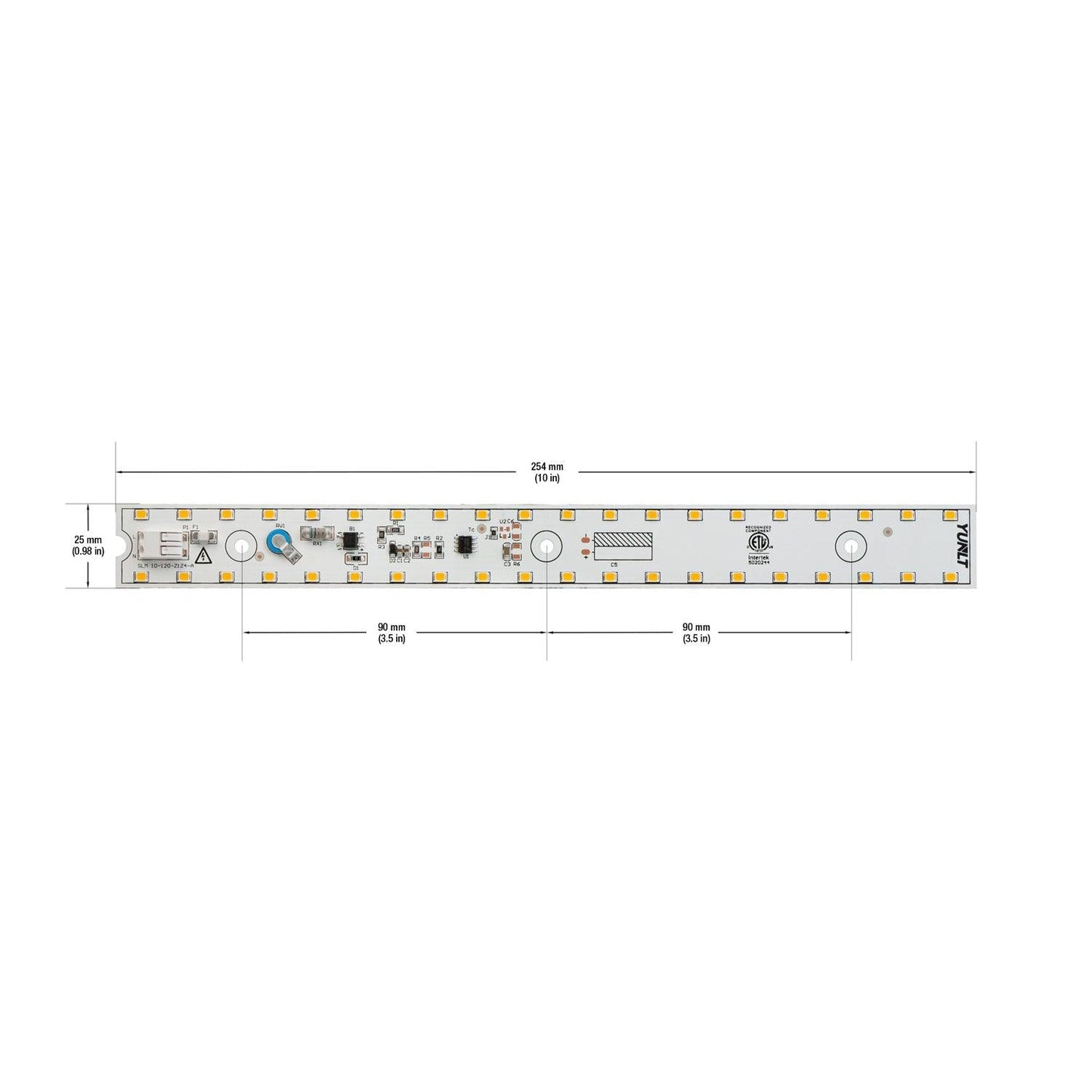

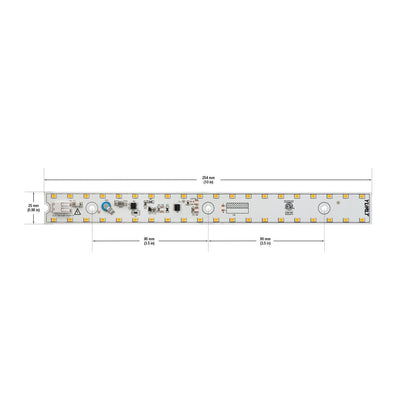

|Dimensions||254.0mm (10 inch) x 25.0 mm (1 inch)|
|Diameter of the screw hole||3.5mm (0.13 in)|

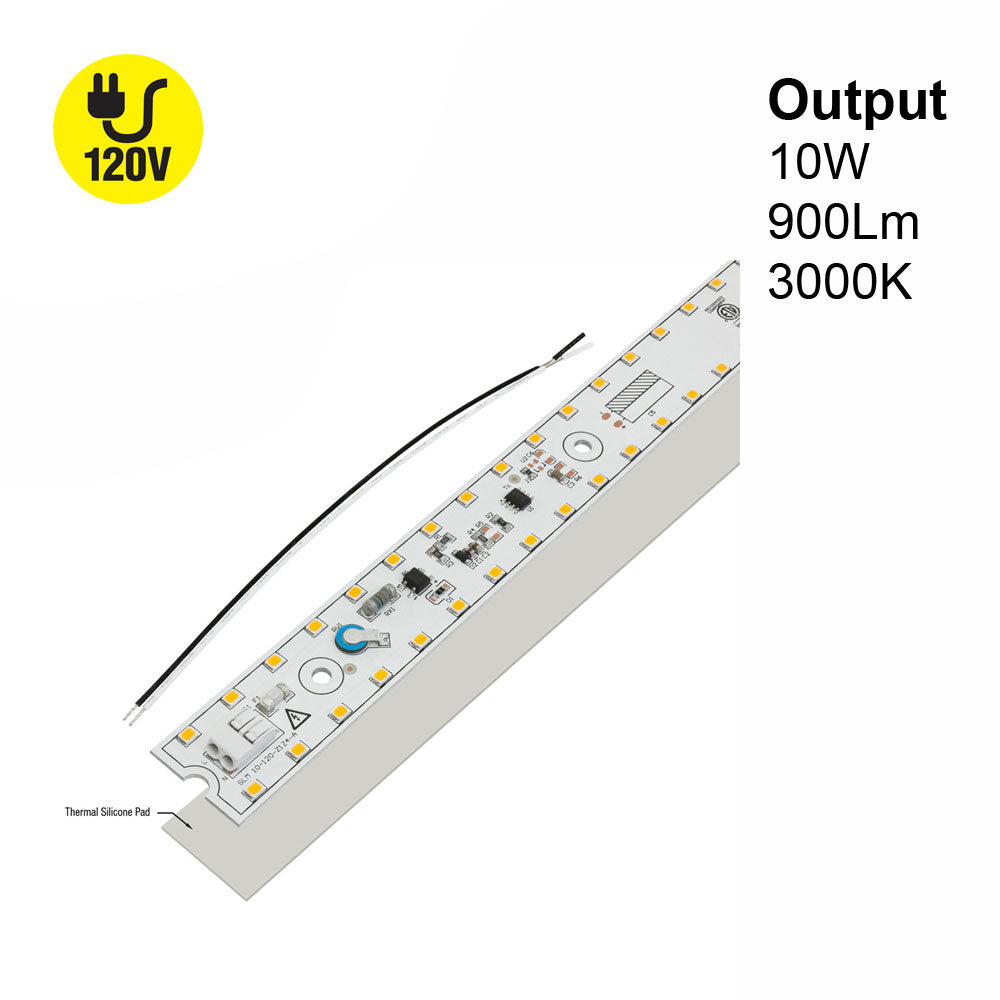

The 10-inch Slim LED Module Driverless Engine SLM 10-010W-930-120-S3-Z1A is a high-quality and energy-efficient LED lighting product suitable for a wide range of applications. It consists of 40 individual LED lights that collectively provide a total wattage of 10W and a luminous flux of 900 lumens. The voltage input is 120V AC.
The product emits a warm white color temperature of 3000K, which creates a comfortable and inviting environment, and has a high color rendering index (CRI) of over 90, ensuring that colors appear accurate and vibrant. The LED module is dimmable, allowing you to adjust the brightness to suit your needs, and it is powered by AC.
The base material of the module is made of aluminum, which provides efficient heat dissipation, ensuring that the product stays cool even after prolonged use. The package components include the LED module, a thermal silicon pad, and a 6-inch black and white power feed. The dimensions of the LED module are 254.0mm (10 inches) in length and 25.0mm (1 inch) in width, and the diameter of the screw hole is 3.5mm (0.13 inches).
The product is ETL certified, meaning that it meets North American safety standards for electrical products. Overall, the 10-inch Slim LED Module Driverless Engine SLM 10-010W-930-120-S3-Z1A is a reliable and efficient LED lighting solution that is ideal for a variety of applications.
- Consists of 40 individual LED lights, providing a total wattage of 10W and a luminous flux of 900 lumens
- Warm white color temperature of 3000K and high CRI of over 90 for accurate and vibrant colors
- Dimmable and powered by AC
- Made with aluminum base material for efficient heat dissipation, ensuring product stays cool even after prolonged use
- Package includes LED module, thermal silicon pad, and 6-inch black and white power feed
- Dimensions of 254.0mm (10 inches) in length and 25.0mm (1 inch) in width, with a screw hole diameter of 3.5mm (0.13 inches)
- ETL certified, meeting North American safety standards for electrical products
- A premier quality light engine. It produces up to 900 lumens of exceptional light.
- Low power consumption, high energy efficiency.
- It is a good DIY product for the replacement of a ceiling light/ Bulb source.
- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
