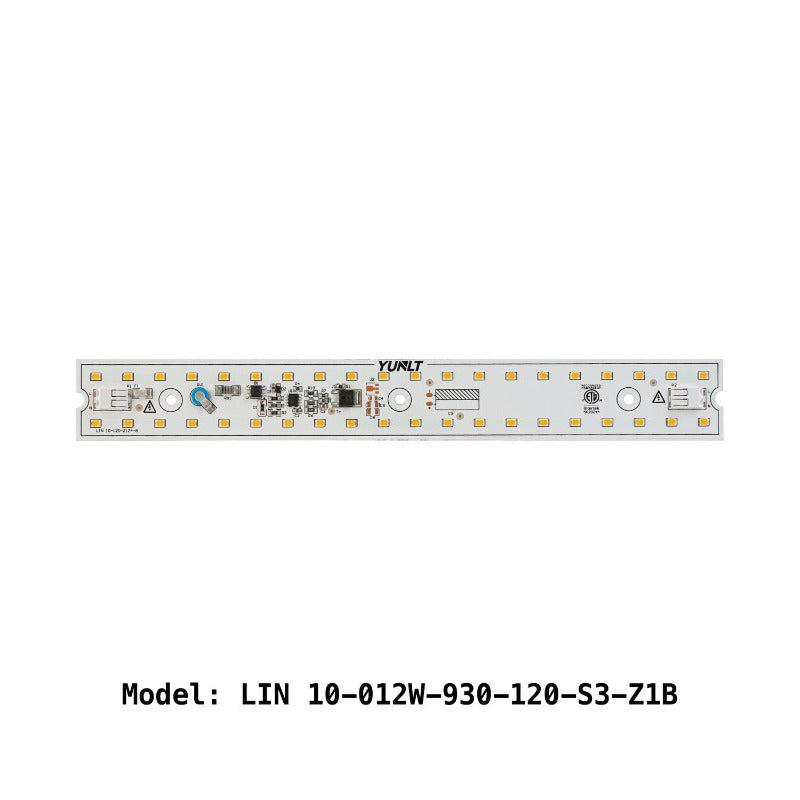

10 inch Linear ZEGA LED Module LIN 10-012W-930-120-S3-Z1B, 120V 12W 3000K(Warm White)
|Model No||LIN 10-012W-930-120-S3-Z1B|
|No of LEDs||40|

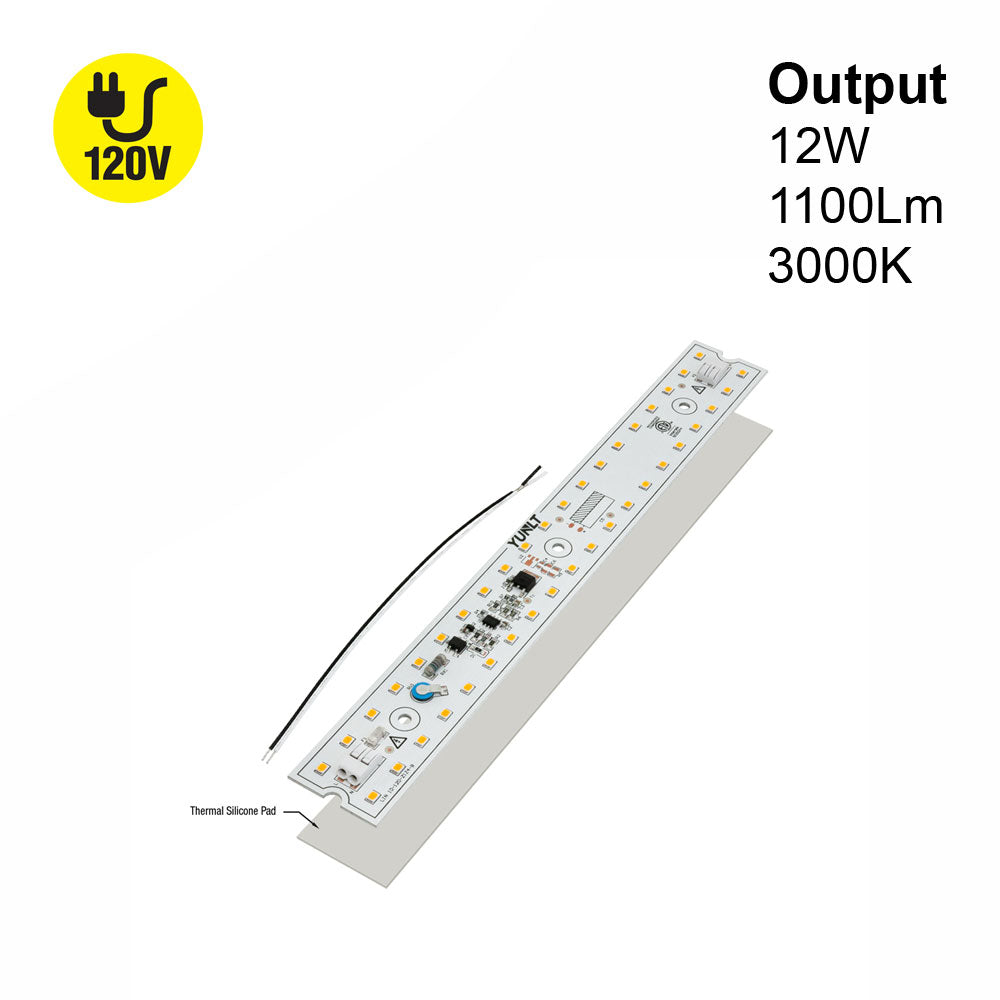

|Luminous Flux||1100 lumens|
|Color Temperature||3000K (Warm White)|
|Package Components||LED Module
Thermal Silicon Pad
6inch Black and White power feed

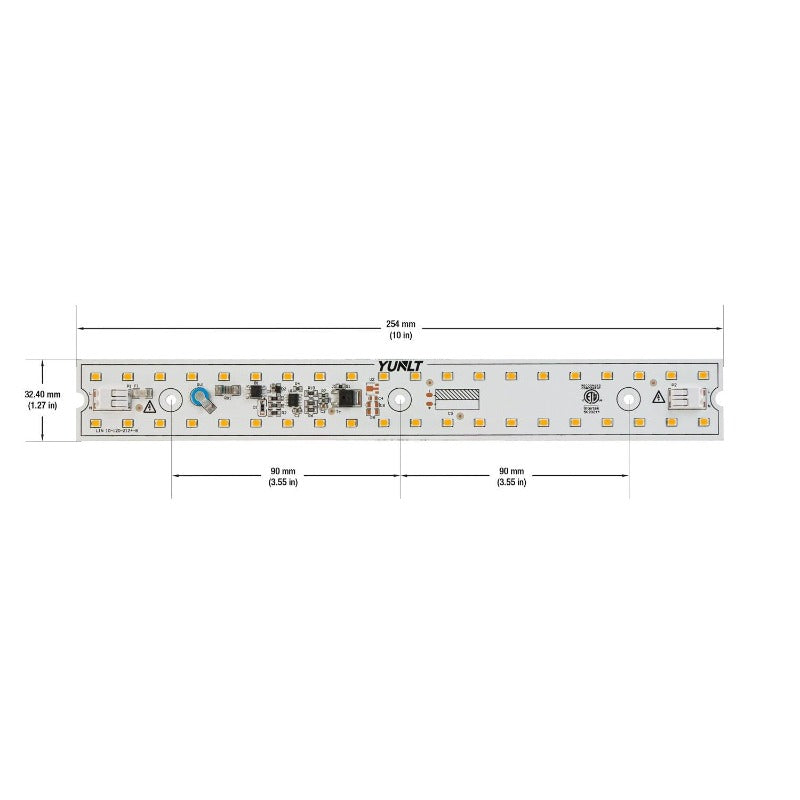

|Dimensions||254.0mm (10 inch) x 32.0 mm (1.25 inch)|
|Diameter of the screw hole||3.5mm (0.13 in)|
The LIN 10-012W-930-120-S3-Z1B is a driverless linear LED module that is 10 inches (254mm) in length and 1.25 inches (32mm) in width. It contains 40 LEDs and has a wattage of 12W, powered by 120V AC. The module emits warm white light at a color temperature of 3000K, with a high color rendering index (CRI) of over 90, meaning that the colors appear natural and vibrant.
The LED module is made of aluminum and includes a thermal silicon pad for efficient heat dissipation. It also comes with a 6-inch black and white power feed, and the diameter of the screw hole is 3.5mm (0.13 in). This LED module is dimmable and ETL certified, indicating that it meets certain safety standards set by the electrical testing laboratory.
With a luminous flux of 1100 lumens, this LED module provides bright and high-quality lighting, suitable for a variety of lighting applications, such as task lighting, under cabinet lighting, and display lighting. It is designed for easy installation and provides energy-efficient lighting that can help reduce electricity costs while providing a long-lasting, reliable lighting solution.
- 10-inch (254mm) driverless linear LED module with 40 LEDs
- 12W wattage powered by 120V AC
- Warm white light with a color temperature of 3000K
- High color rendering index (CRI) of over 90 for natural and vibrant colors
- Made of aluminum with a thermal silicon pad for efficient heat dissipation
- 6-inch black and white power feed included
- Dimmable for adjustable lighting options
- ETL certified for meeting safety standards
- Luminous flux of 1100 lumens for bright and high-quality lighting
- Suitable for various lighting applications such as task lighting, under cabinet lighting, and display lighting
- Energy-efficient lighting solution that can help reduce electricity costs
- Designed for easy installation and reliable performance
- Low power consumption, high energy efficiency.
- It is a good DIY product for the replacement of a ceiling light/ Bulb source.

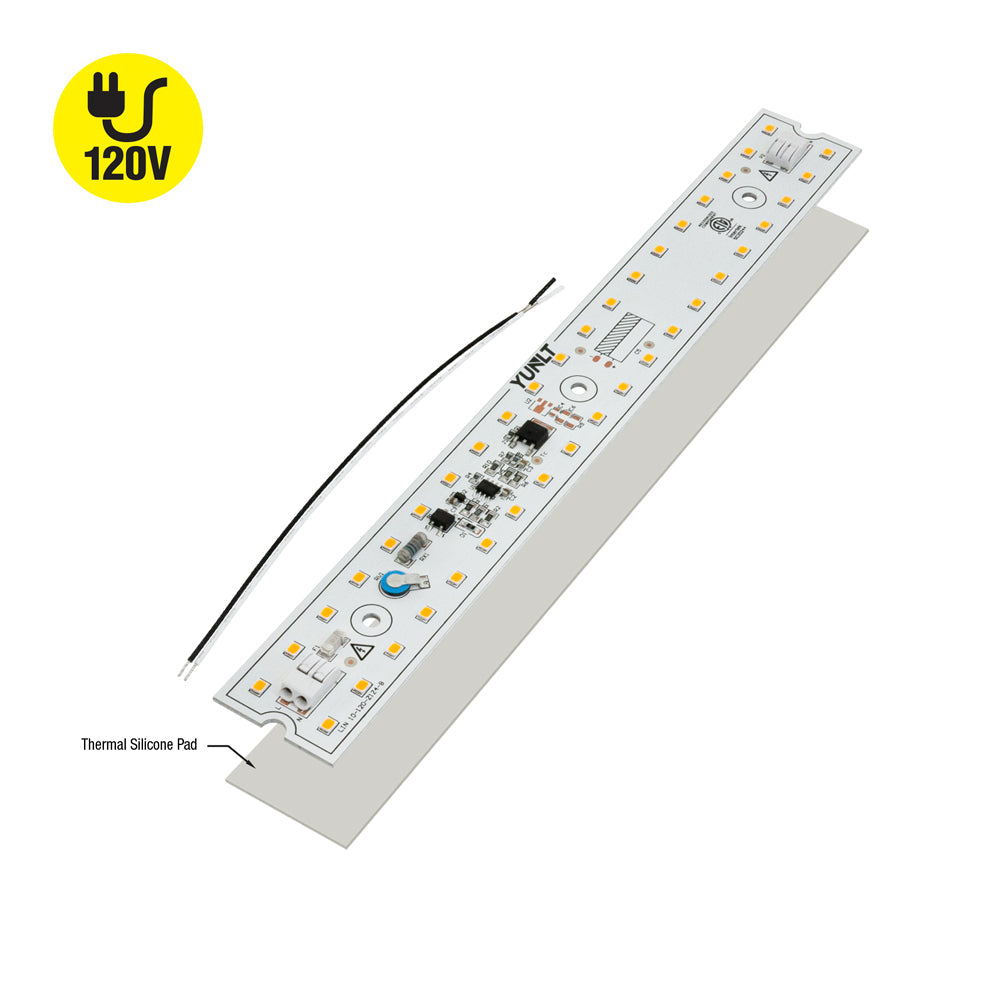

- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
