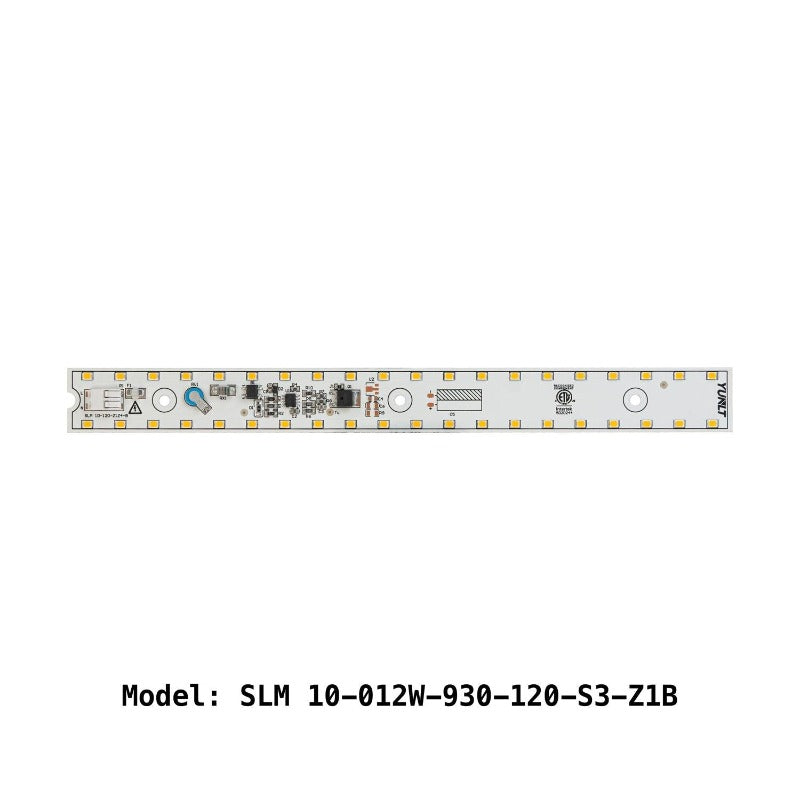

10 inch Slim ZEGA LED Module SLM 10-012W-930-120-S3-Z1B, 120V 12W 3000K(Warm White)
Product Description
| Product | LED Module |
| Model No | SLM 10-012W-930-120-S3-Z1B |
| No of LEDs | 40 |
| Wattage | 12W |
| Voltage | 120V AC |
| Luminous Flux | 1100 lumens |
| Color Temperature | 3000K (Warm White) |
| Rendering Index | CRI>90 |
| Power Source | AC |
| Dimmable | Yes |
| Base Material | Aluminum |

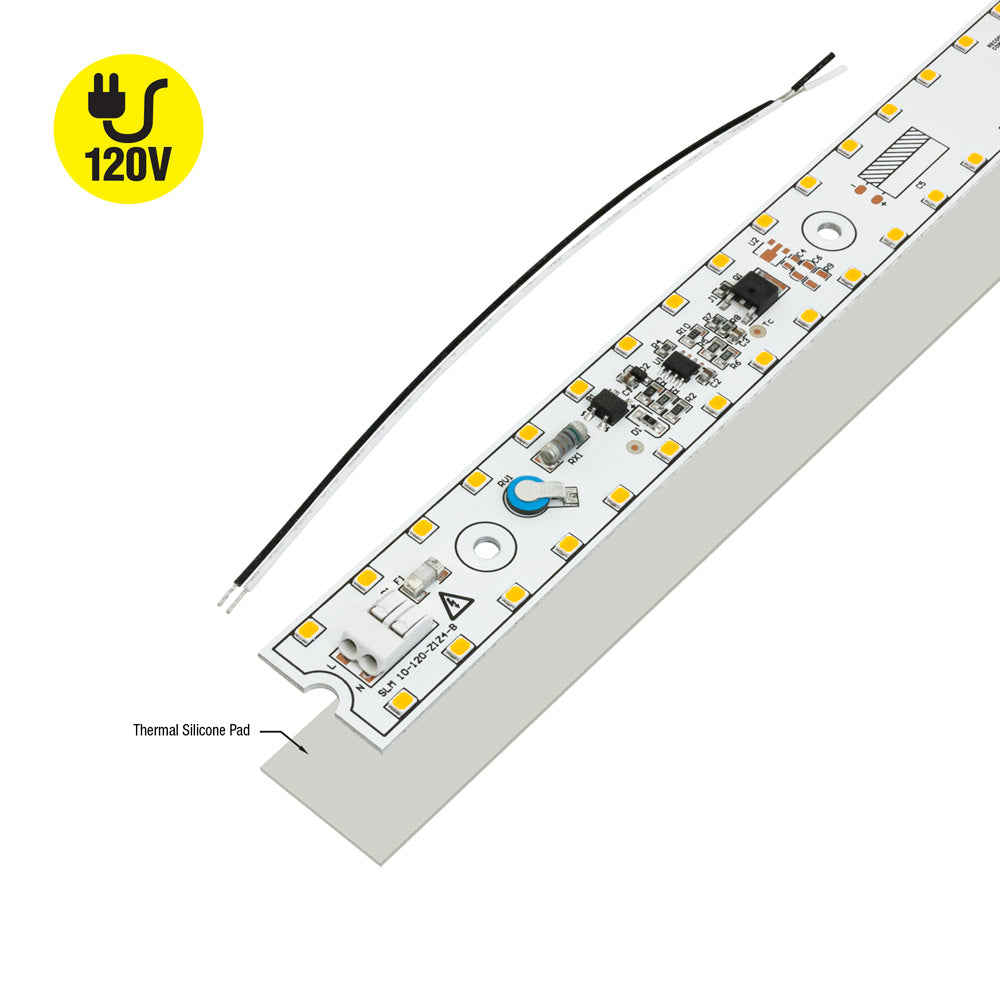

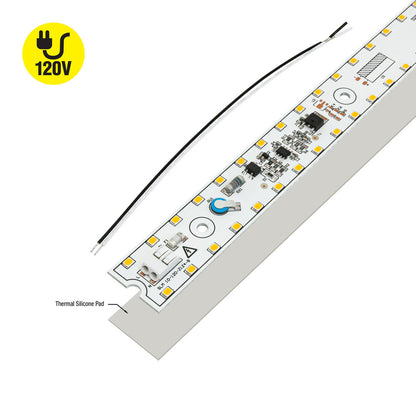

| Package Components | LED Module Thermal Silicon Pad 6inch Black and White power feed |

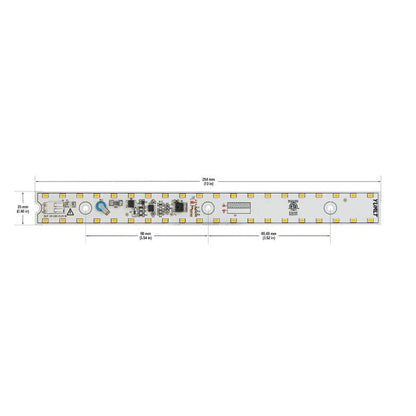

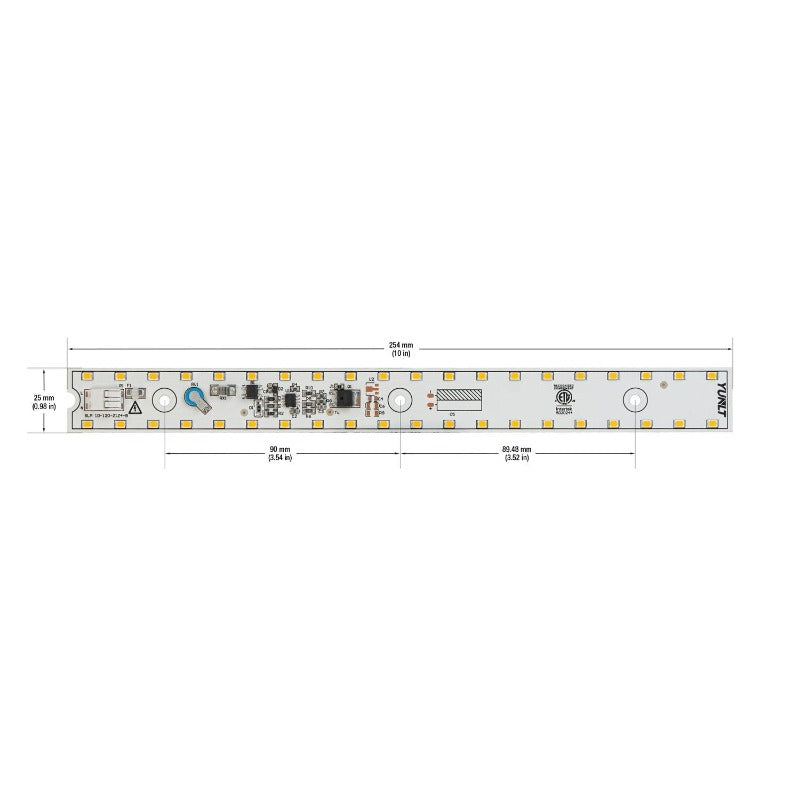

| Dimensions | 254.0mm (10 inch) x 25.0 mm (1 inch) |
| Diameter of the screw hole | 3.5mm (0.13 in) |
| Height | 6mm (0.23in) |
| Certification |
 |
The 10-inch Slim LED Module Driverless Engine SLM 10-012W-930-120-S3-Z1B is a high-quality and energy-efficient LED lighting product suitable for a wide range of applications. It consists of 40 individual LED lights that collectively provide a total wattage of 12W and a luminous flux of 1100 lumens. The voltage input is 120V AC.
The product emits a warm white color temperature of 3000K, which creates a comfortable and inviting environment, and has a high color rendering index (CRI) of over 90, ensuring that colors appear accurate and vibrant. The LED module is dimmable, allowing you to adjust the brightness to suit your needs, and it is powered by AC.
The base material of the module is made of aluminum, which provides efficient heat dissipation, ensuring that the product stays cool even after prolonged use. The package components include the LED module, a thermal silicon pad, and a 6-inch black and white power feed. The dimensions of the LED module are 254.0mm (10 inches) in length and 25.0mm (1 inch) in width, and the diameter of the screw hole is 3.5mm (0.13 inches).
The product is ETL certified, meaning that it meets North American safety standards for electrical products. Overall, the 10-inch Slim LED Module Driverless Engine SLM 10-012W-930-120-S3-Z1B is a reliable and efficient LED lighting solution that is ideal for a variety of applications.
Features:
- High-quality and energy-efficient LED lighting product
- Consists of 40 individual LED lights

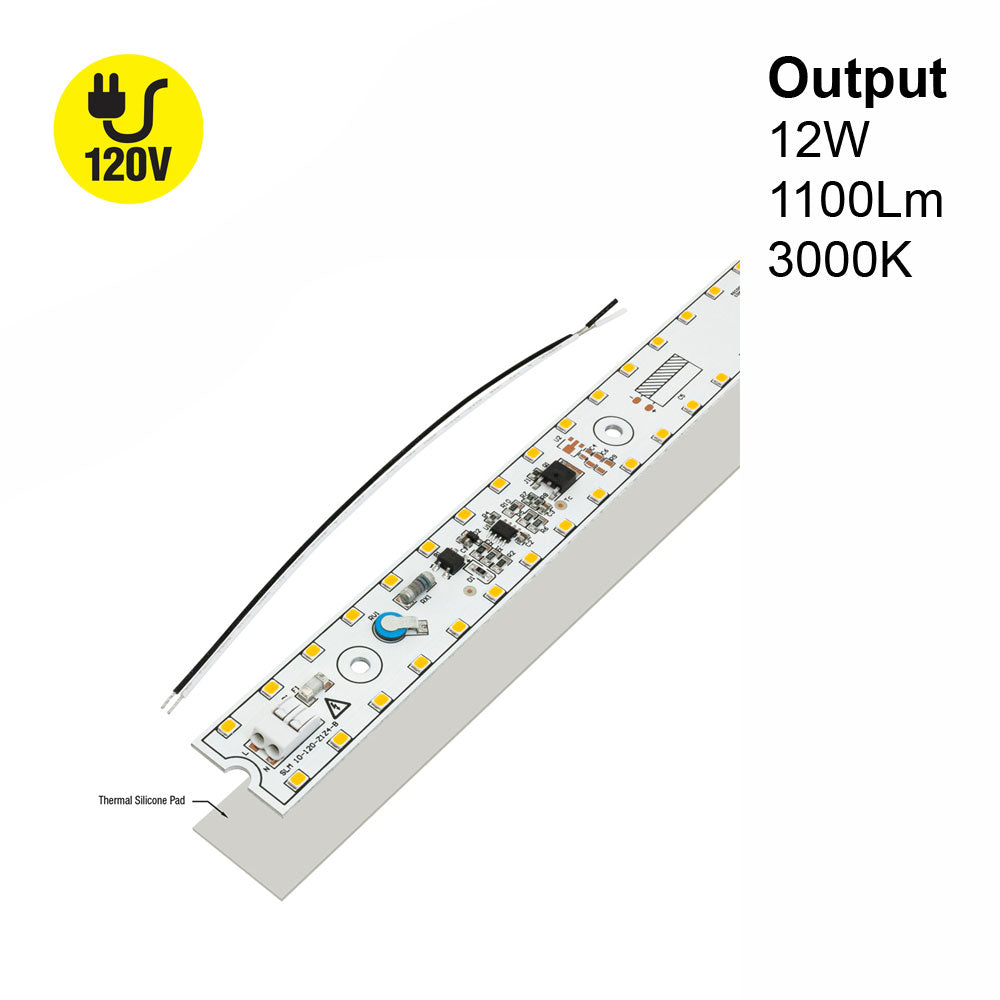

- Total wattage of 12W and a luminous flux of 1100 lumens
- Voltage input of 120V AC
- Emits warm white color temperature of 3000K
- High color rendering index (CRI) of over 90
- Dimmable LED module
- Powered by AC
- Base material made of aluminum for efficient heat dissipation
- Package includes LED module, thermal silicon pad, and 6-inch black and white power feed
- LED module dimensions: 254.0mm (10 inches) in length and 25.0mm (1 inch) in width
- Screw hole diameter: 3.5mm (0.13 inches)
- ETL certified for North American safety standards.
- A premier quality light engine. It produces up to 1100 lumens of exceptional light.
- Low power consumption, high energy efficiency.
- It is a good DIY product for the replacement of a ceiling light/ Bulb source.
- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
