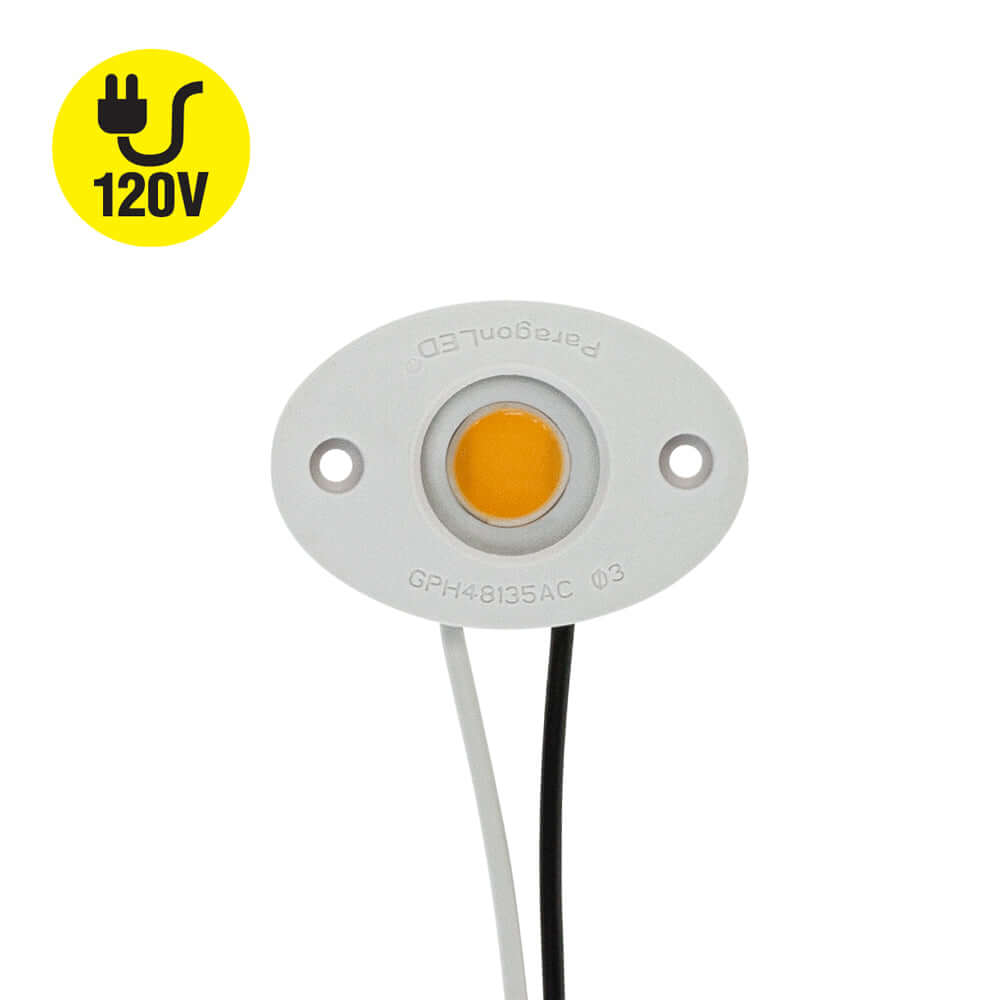

CDAC-20-30135-120V-30 COB Paragon LED Module with GPH48135AC LED Holder, 120V 6W 3000K (Warm White)
CDAC-20-30135-120V-30 COB Paragon LED Module with GPH48135AC LED Holder, 120V 6W 3000K (Warm White)
SKU: SKU:666561425845
Free Shipping
Free Shipping
- Get free shipping on purchases over $99!
Available Discounts
Available Discounts
- 10% off for a minimum qty of 10
- 15% off on purchases over $200
Shipping & Return Policy
Shipping & Return Policy
- 30 Days Return Policy
How do we ship our product?
GekPower will ship via the most reliable and time-efficient courier available depending on the location of the delivery.
Customers may provide GekPower with their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at the time of checkout.
How do we calculate the shipping cost?
Our prices are based on US dollars and are as follows:
Free Shipping
For orders totalling $99 USD or above.
Free shipping is Not available for specific products; please check availability during checkout.
Why is there a shipping cost, even after exceeding the flat rate for a few products?
Product shipping costs are charged based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.
When do we ship our products?
All orders are shipped through different couriers based on the priority you selected at checkout. All orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Any orders placed on Saturday or Sunday will be shipped the following week.
What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.
How does our Return or Exchange Policy work?
- All returned products must be in new, resellable condition and in original packaging to be accepted as a valid return or exchange.
- The customer is responsible for return shipping fees.
- Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
- A 15% restocking fee will apply.
- Two week processing time.
- To Return any product, make sure to use USPS for the United States, Other shipping companies are NOT acceptable.
- To submit a request for a return or exchange, please email sales@gekpower.com
Return Duty Charge:
- The customer is responsible for any duty charges incurred on a returned product by the carrier, if applicable.
Undelivered Orders:
- If an order is undelivered due to refusal, no mailbox, or customs issues, return shipping costs will be deducted from your refund.
Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25
Product Description
| Product | Paragon LED Module |
| Model No | CDAC-20-30135-120V-30 |
| COB Holder Model No | GPH48135AC |
|
LED Type |
COB LED |
| No LED chips | 20 |

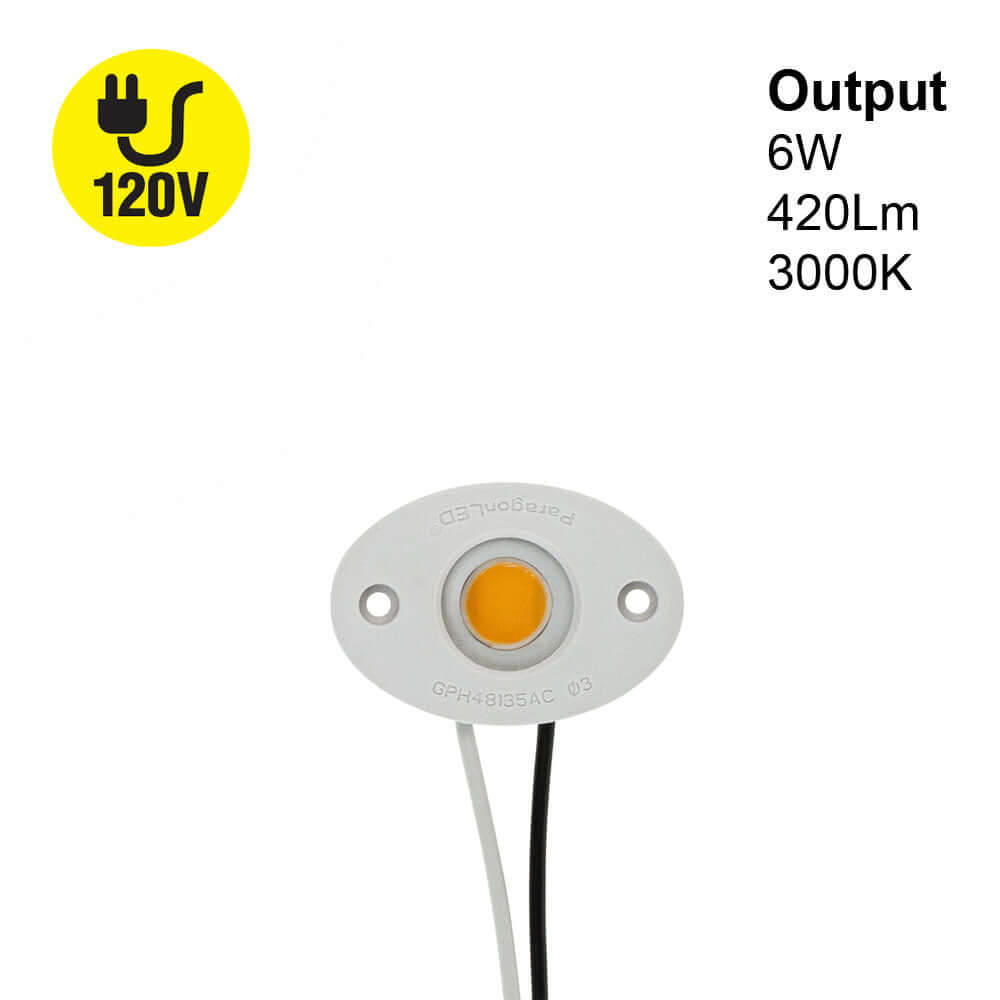

| Wattage | 6W |
| Voltage | 120V AC |
| Luminous Intensity | 420 lumens |

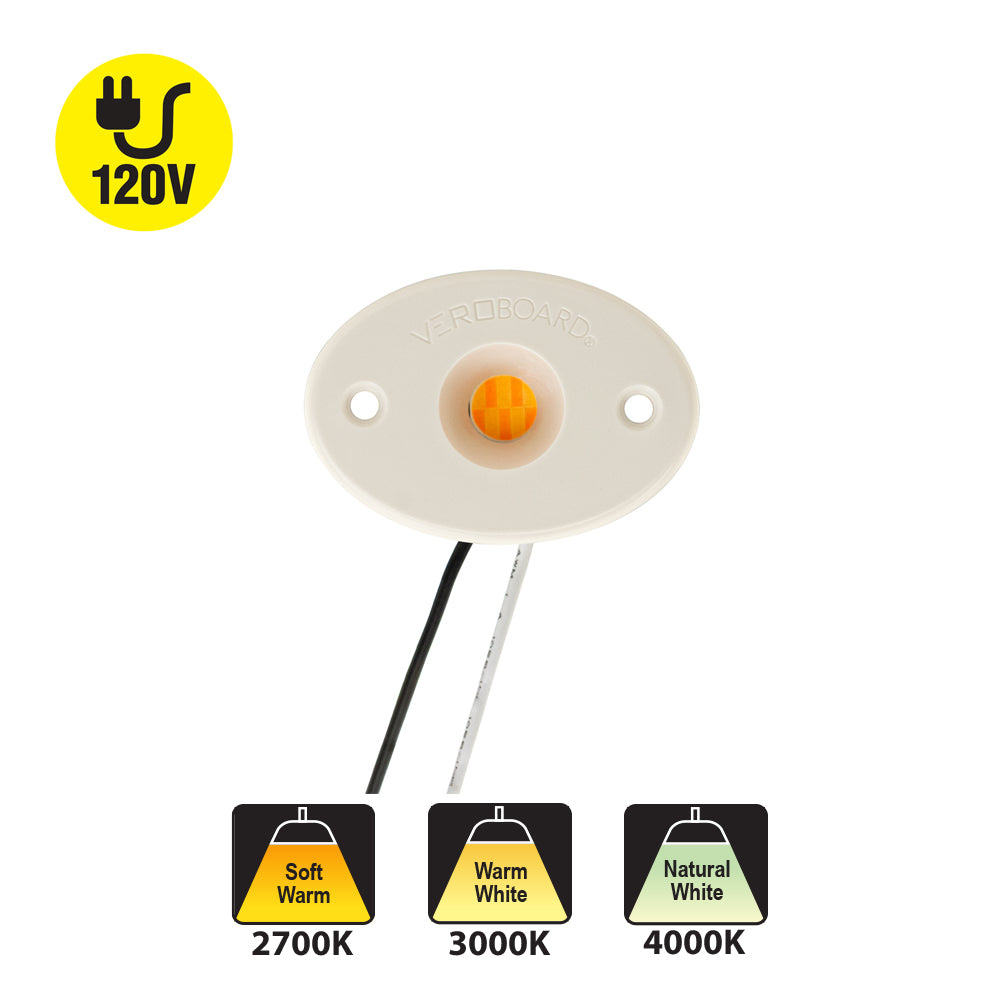

| Color Temperature | 3000K (Warm White) |
| Dimmable | Yes |
| Rendering Index | CRI>90 |
| IP Rating | IP20 (Indoor rated) |

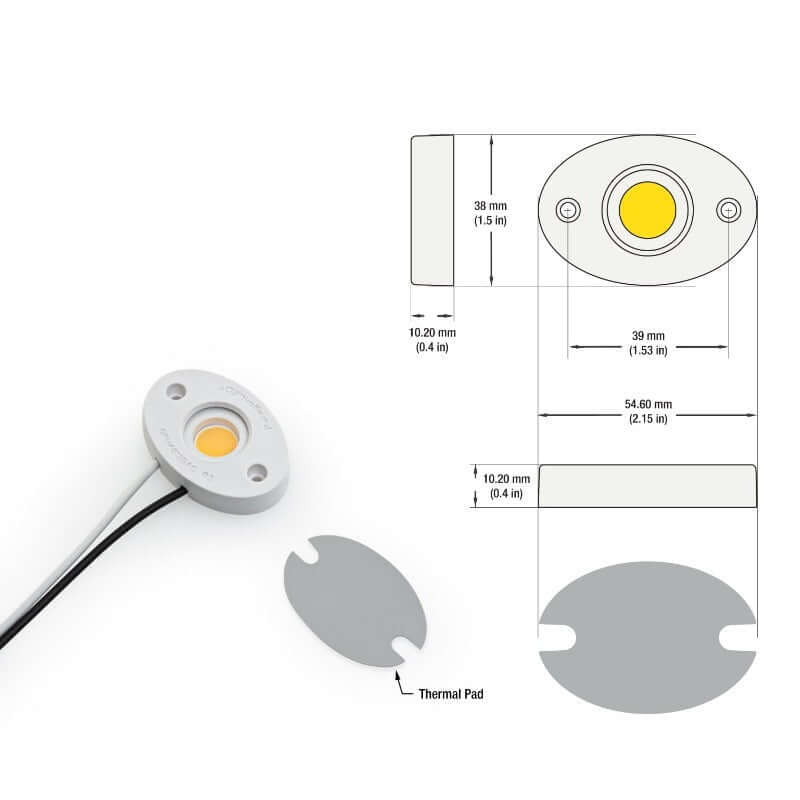

| COB Holder Dimensions | ∅54.6 x ∅38 x H10.20 mm (2.15 x 1.5 x 0.4 in) |
| COB Module Outer Diameter | ∅27mm (1.06 in) |
| Operating Temperature | -60 ~ +105℃ |
| Storage Temperature | -60 ~ +105℃ |
| Assembly process Temperature | <300℃ |
| Solder joint point | <105℃ |
| Dielectric Breakdown Voltage of Thermal Pad | >4KV |

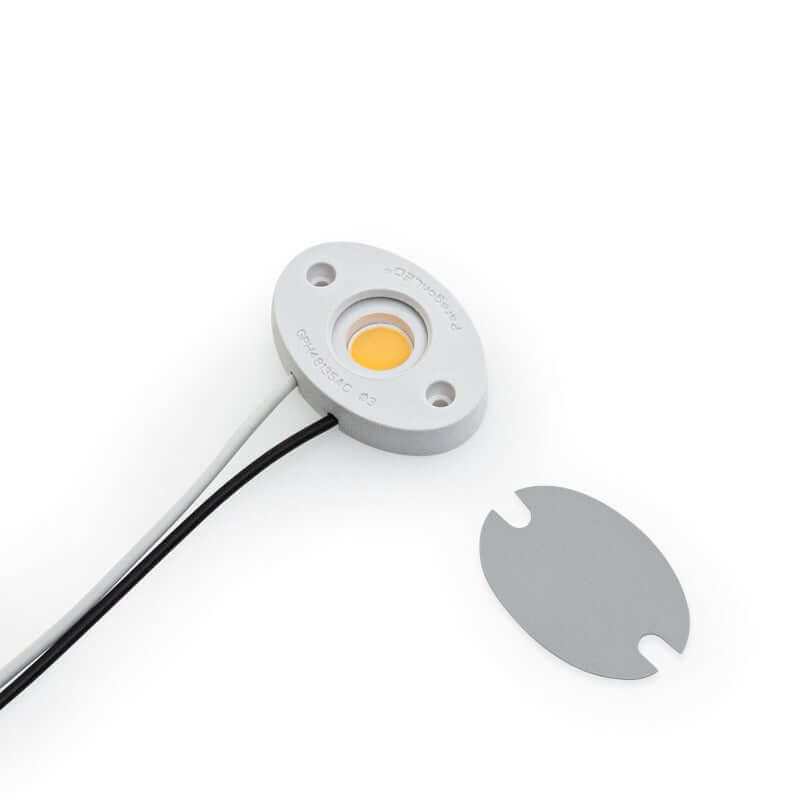

| Included Content | COB Module, COB Holder with Thermal Pad |
| Certifications |  |
The CDAC-20-30135-120V-30 Paragon LED Module is a high-quality COB LED module with 20 LED chips. The module is designed to be used with the GPH48135A LED Holder and operates on 120V AC with a power consumption of 6W. The module produces a warm white light with a color temperature of 3000K and a high rendering index of CRI>90, making it suitable for use in a wide range of indoor lighting applications.
The CDAC-20-30135-120V-30 module is dimmable, making it ideal for use in applications where the light output needs to be adjusted. It has an IP20 rating, indicating that it is suitable for use in damp locations. However, it is essential to use an aluminum heat sink to prevent overheating, which may cause luminous decay.
The COB LED technology used in the CDAC-20-30135-120V-30 module is more energy-efficient and produces brighter and higher quality beam output than older LED technologies. It is suitable for use in almost every kind of luminaire. The module comes with a COB Holder with Thermal Pad, and is UL certified.

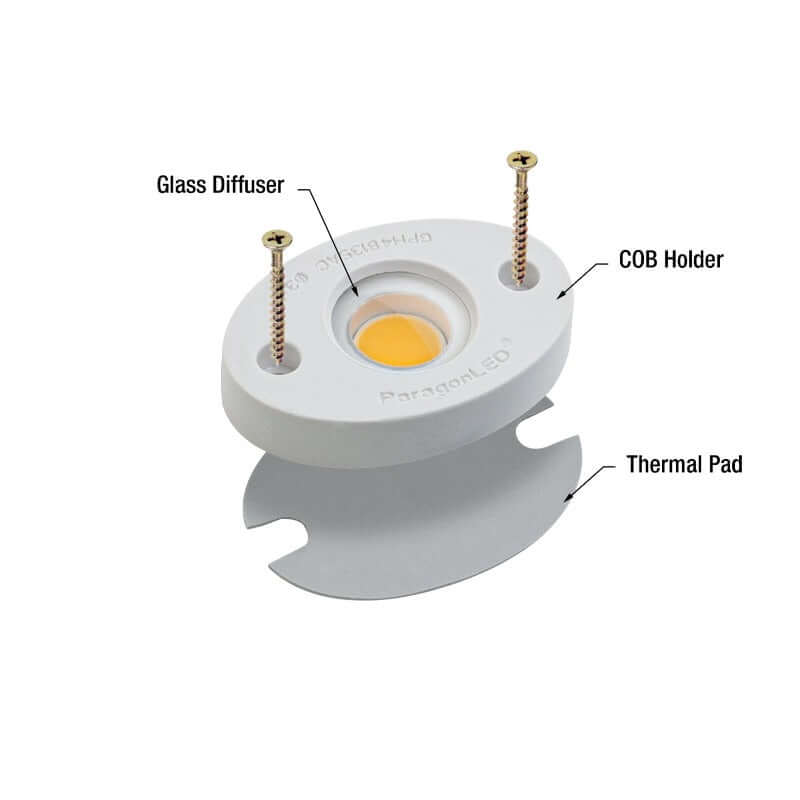

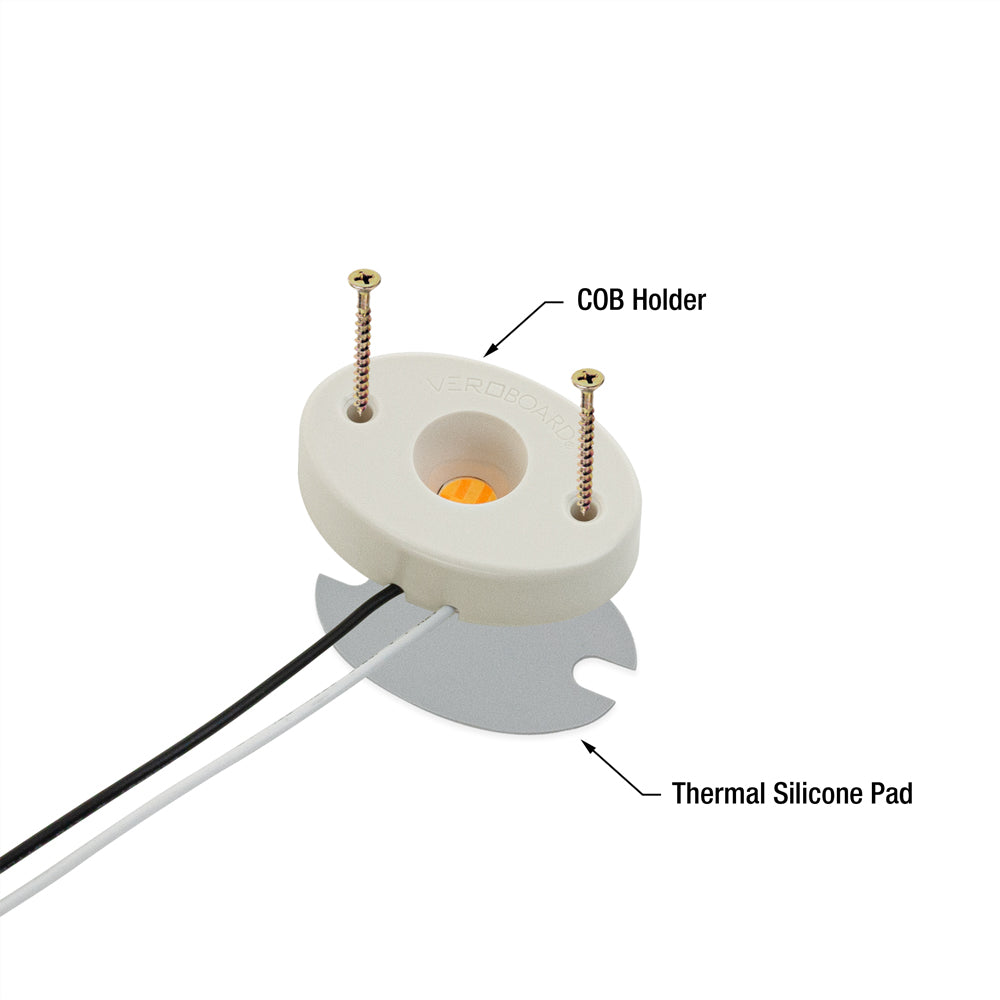

To ensure the safe and efficient operation of the CDAC-20-30135-120V-30 module, it is essential to ground the light fixtures while designing lamps. The COB LED holder allows the module to be mechanically secured, electrically connected and pressed to a heat sink. The silicone grease thermal pad provides a heat sink and helps in better heat dissipation, thereby increasing the lifespan of the module. The module can operate at temperatures ranging from -60 ~ +105℃, and the solder joint point should be kept below 105℃. The dielectric breakdown voltage of the thermal pad is greater than 4KV.
Features:
- High-quality COB LED module with 20 LED chips
- Designed to be used with GPH48135A LED Holder
- Operates on 120V AC with a power consumption of 6W
- Produces warm white light with color temperature of 3000K and CRI>90
- Dimmable and suitable for use in damp locations (IP20 rating)
- Requires aluminum heat sink to prevent overheating and luminous decay
- More energy-efficient and produces brighter and higher quality beam output than older LED technologies
- Suitable for use in almost every kind of luminaire
- Comes with COB Holder, Thermal Pad, and is UL certified
- Grounding light fixtures is essential for safe and efficient operation
- Silicone grease thermal pad provides heat sink and better heat dissipation
- Operates at temperatures ranging from -60 ~ +105℃, and solder joint point should be kept below 105℃
- Dielectric breakdown voltage of thermal pad is greater than 4KV.
