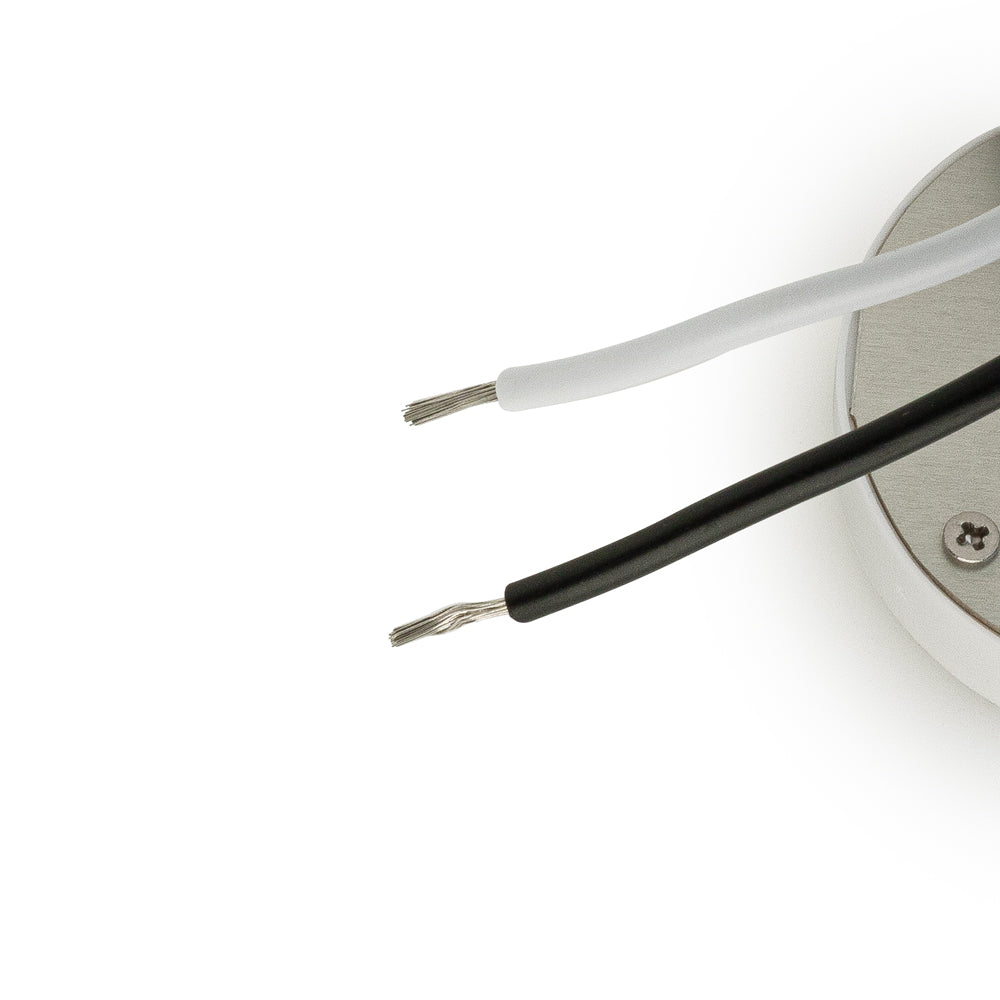

CBHT-42-30135-120V-30-G02 COB Paragon LED Module with GHH36135AC LED Holder, 120V 4W 3000K(Warm White)
CBHT-42-30135-120V-30-G02 COB Paragon LED Module with GHH36135AC LED Holder, 120V 4W 3000K(Warm White)
SKU: SKU:666561425869
Free Shipping
Free Shipping
- Get free shipping on purchases over $99!
Available Discounts
Available Discounts
- 10% off for a minimum qty of 10
- 15% off on purchases over $200
Shipping & Return Policy
Shipping & Return Policy
- 30 Days Return Policy
How do we ship our product?
GekPower will ship via the most reliable and time-efficient courier available depending on the location of the delivery.
Customers may provide GekPower with their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at the time of checkout.
How do we calculate the shipping cost?
Our prices are based on US dollars and are as follows:
Free Shipping
For orders totalling $99 USD or above.
Free shipping is Not available for specific products; please check availability during checkout.
Why is there a shipping cost, even after exceeding the flat rate for a few products?
Product shipping costs are charged based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.
When do we ship our products?
All orders are shipped through different couriers based on the priority you selected at checkout. All orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Any orders placed on Saturday or Sunday will be shipped the following week.
What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.
How does our Return or Exchange Policy work?
- All returned products must be in new, resellable condition and in original packaging to be accepted as a valid return or exchange.
- The customer is responsible for return shipping fees.
- Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
- A 15% restocking fee will apply.
- Two week processing time.
- To Return any product, make sure to use USPS for the United States, Other shipping companies are NOT acceptable.
- To submit a request for a return or exchange, please email sales@gekpower.com
Return Duty Charge:
- The customer is responsible for any duty charges incurred on a returned product by the carrier, if applicable.
Undelivered Orders:
- If an order is undelivered due to refusal, no mailbox, or customs issues, return shipping costs will be deducted from your refund.
Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25
Product Description
| product | Paragon LED Module |
| Model No | CBHT-042-30135-120V-30-G02 |

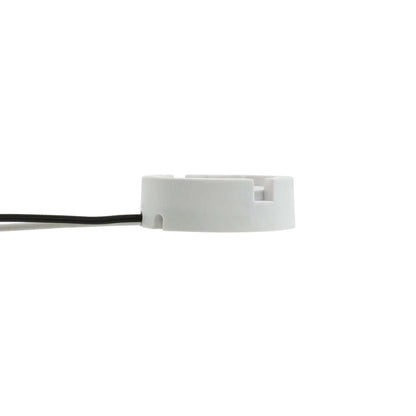

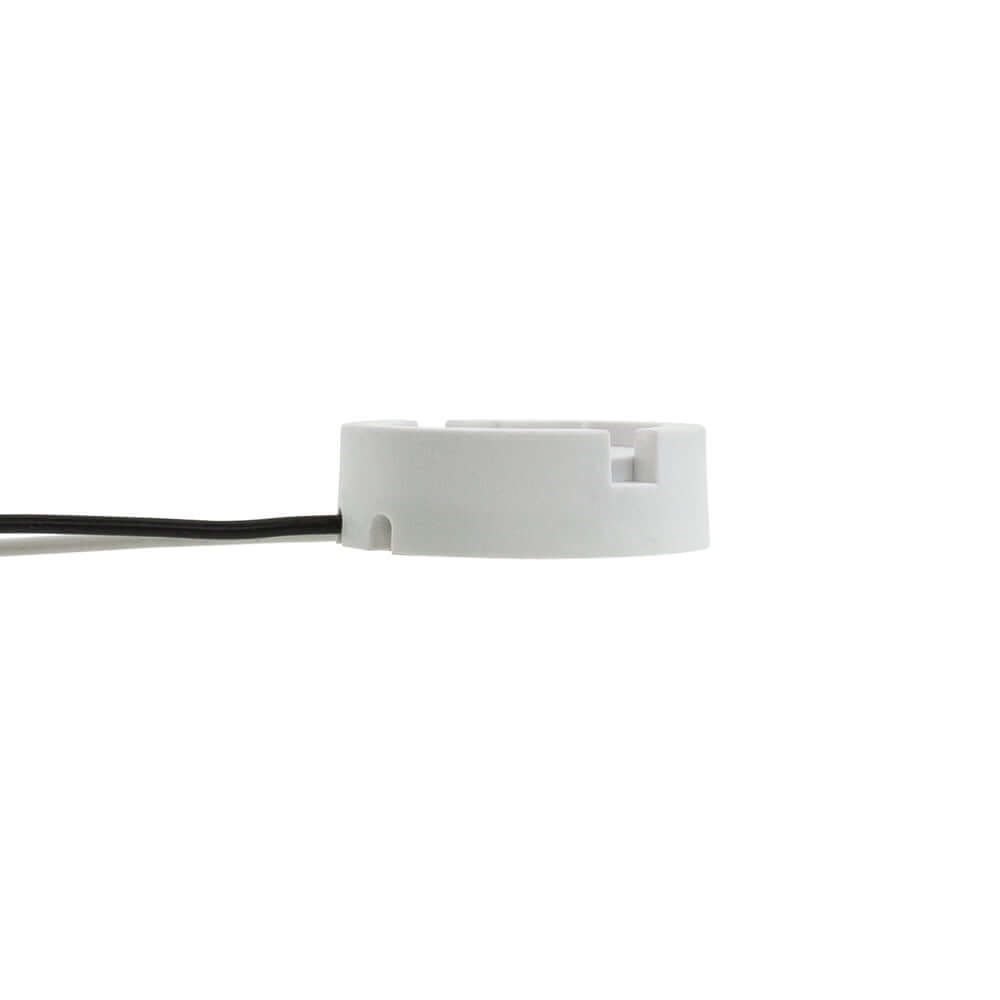

| COB Holder Model No | GHH36135AC |
|
LED Type |
COB LED |
| No LED chips | 42 |
| Wattage | 4W |
| Voltage | 120 VAC |
| Power Factor | PF>0.98 |
| Luminous Intensity | 280 lumens |
| Color Temperature | 3000K (Warm White) |
| Dimmable | Yes |
| Rendering Index | CRI>90 |
| IP Rating | IP20 (Indoor rated) |

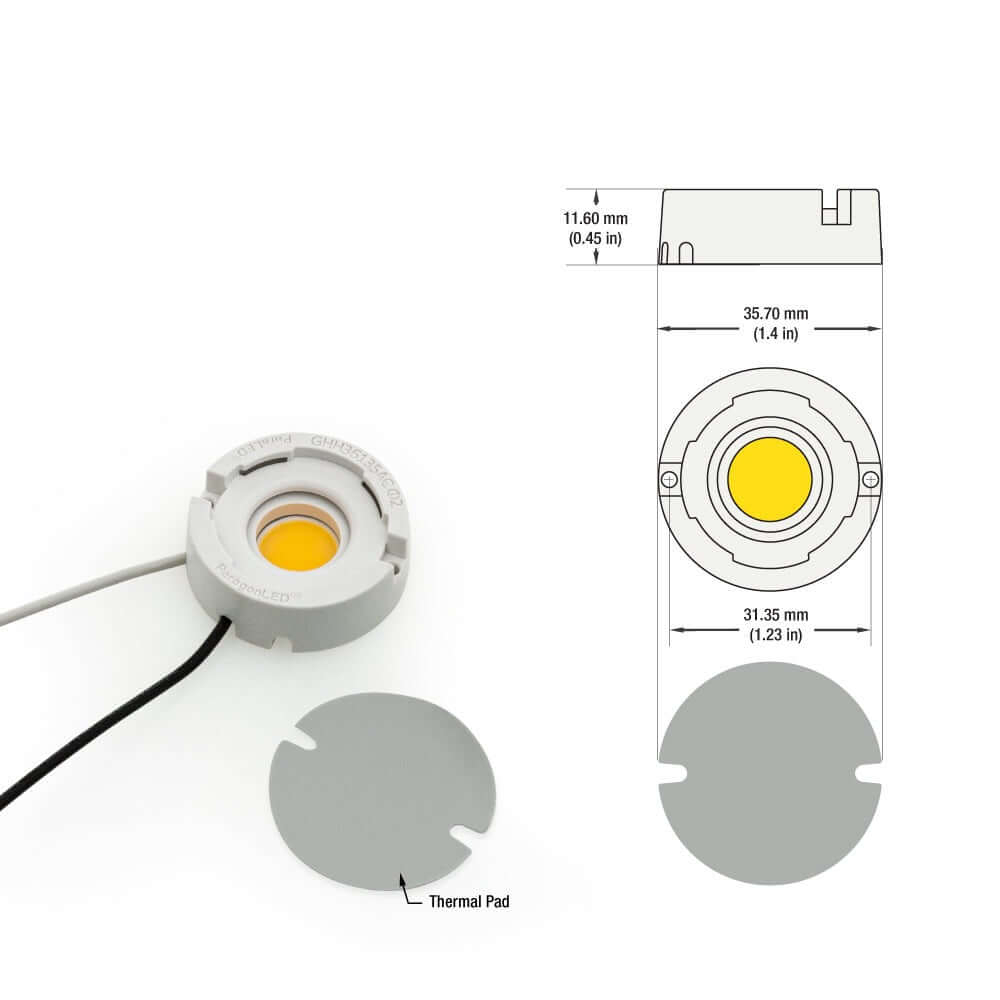

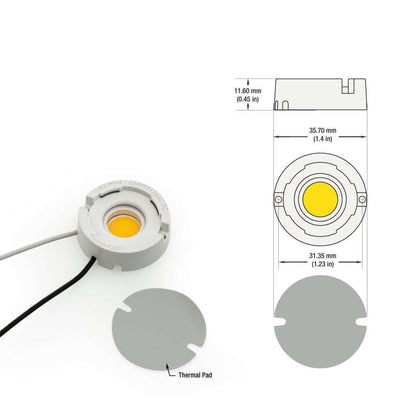

| COB Holder Dimensions | ∅35.7mm (1.4 in) x H11.60mm (0.45 in) |
| COB Module Outer Diameter | ∅27 mm (1.06 in) |
| Operating Temperature | -40 ~ +105℃ |
| Storage Temperature | -40 ~ +105℃ |
| Assembly process Temperature | <300℃ |
| Solder joint point | <105℃ |
| Dielectric Breakdown Voltage of Thermal Pad | >4KV |
| Included Content | COB Module, COB LED array Holder, Thermal Pad |
| Certifications |  |

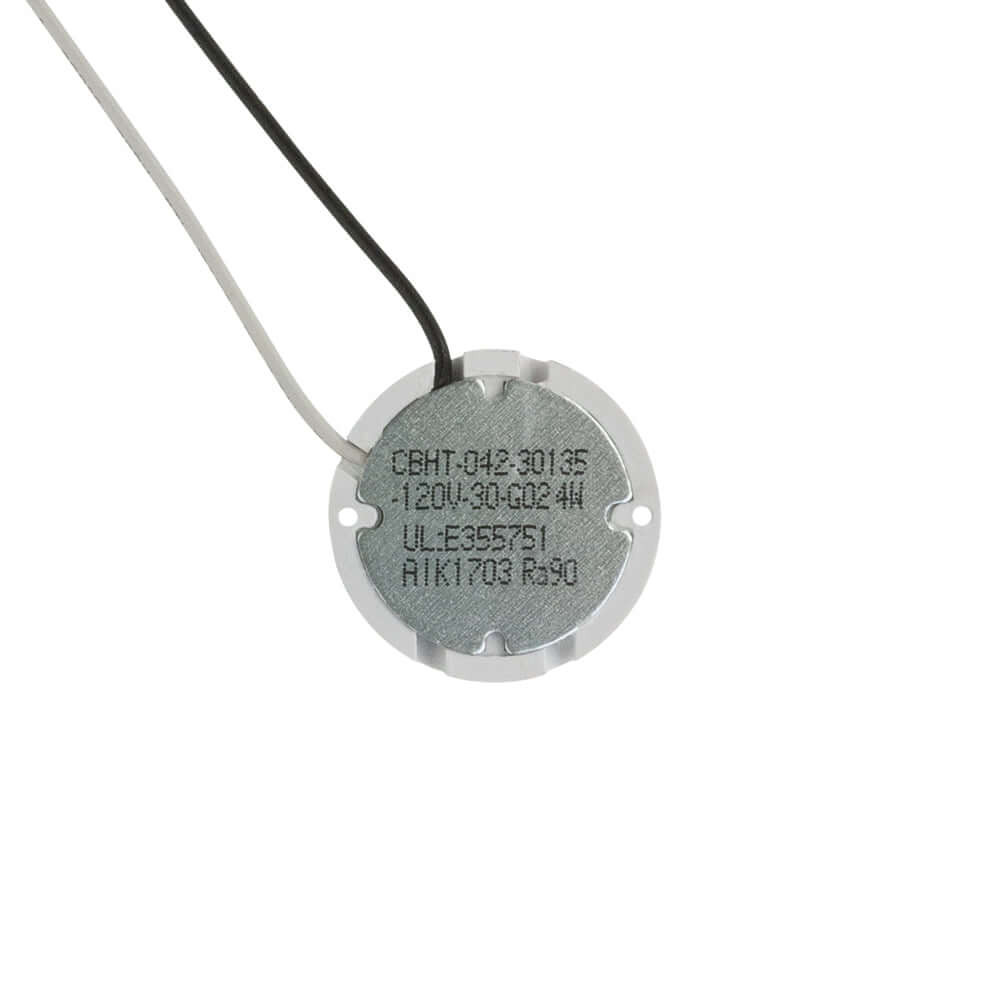

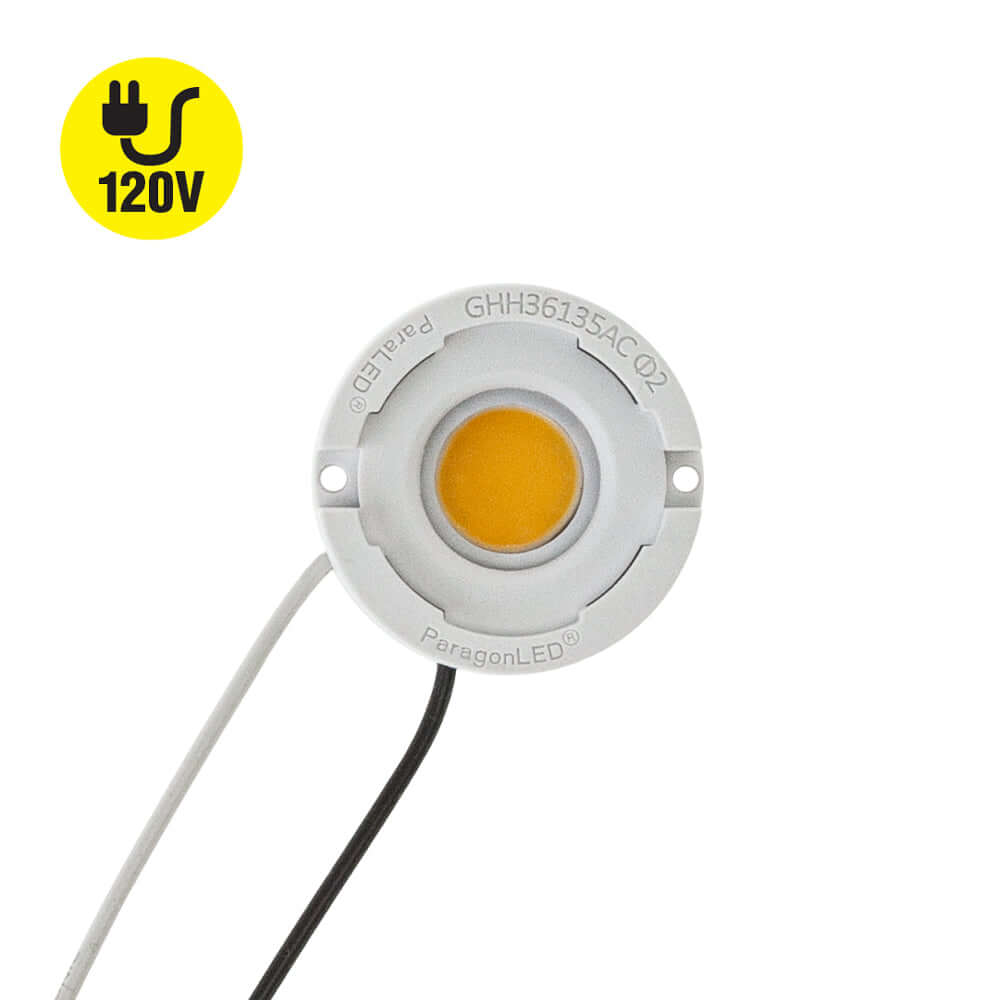

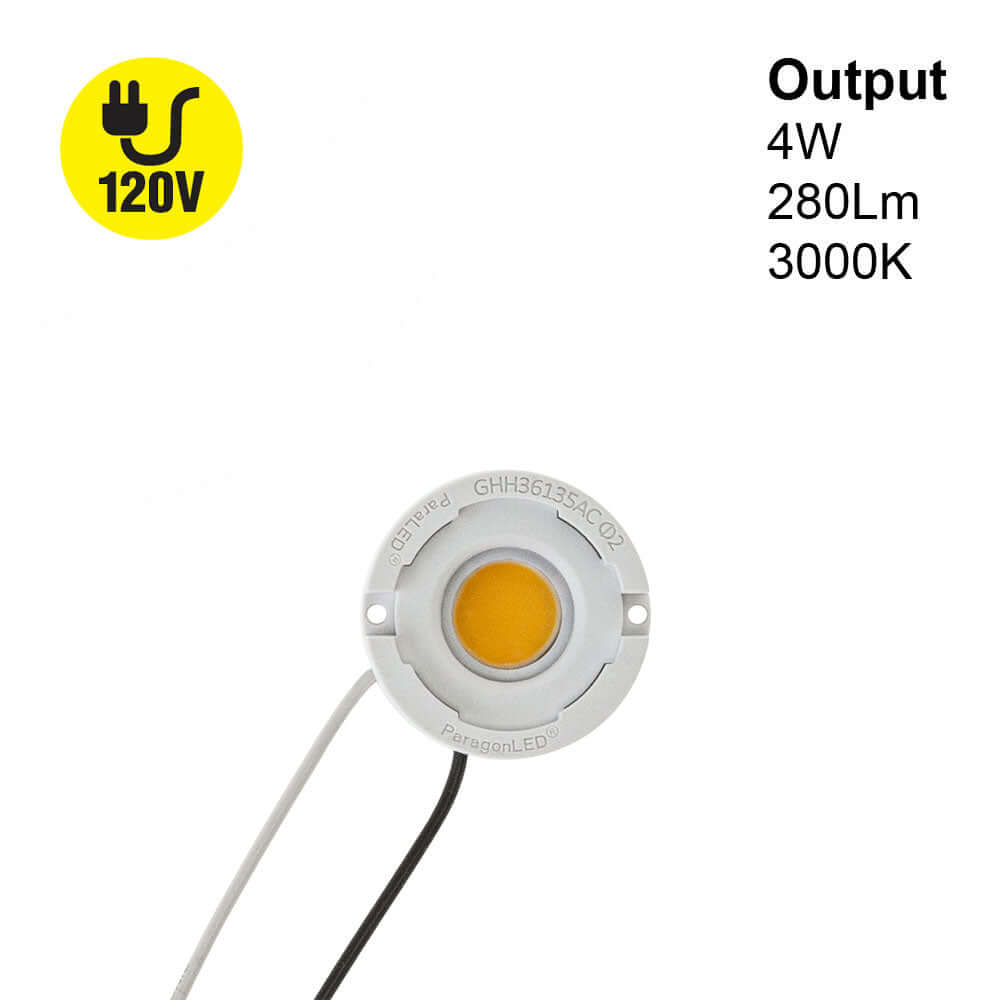

The CBHT-42-30135-120V-30-G02 is a Paragon LED Module that uses a COB LED technology with 42 LED chips, producing a warm white light with a color temperature of 3000K. It has a low power consumption of 4W and operates at a voltage of 120V AC. The module has a high power factor of PF>0.98 and a luminous intensity of 280 lumens with a high color rendering index of CRI>90.

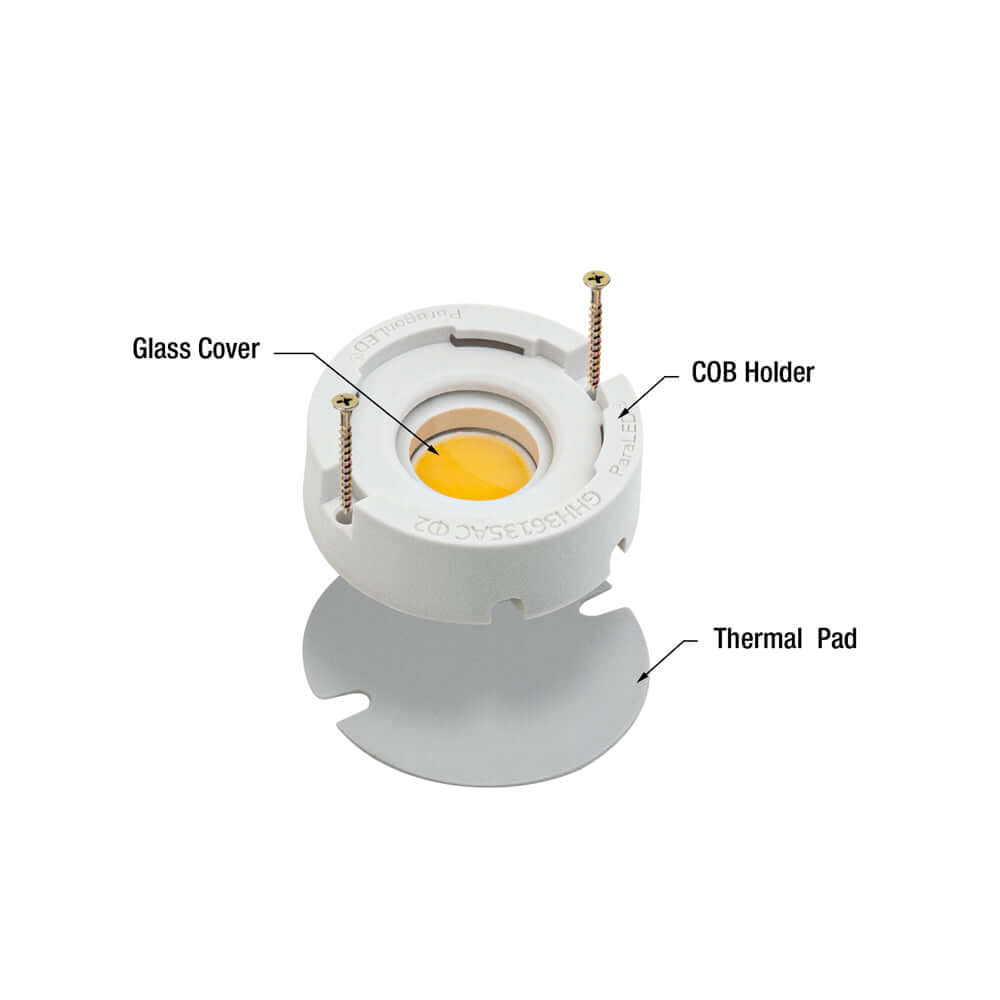

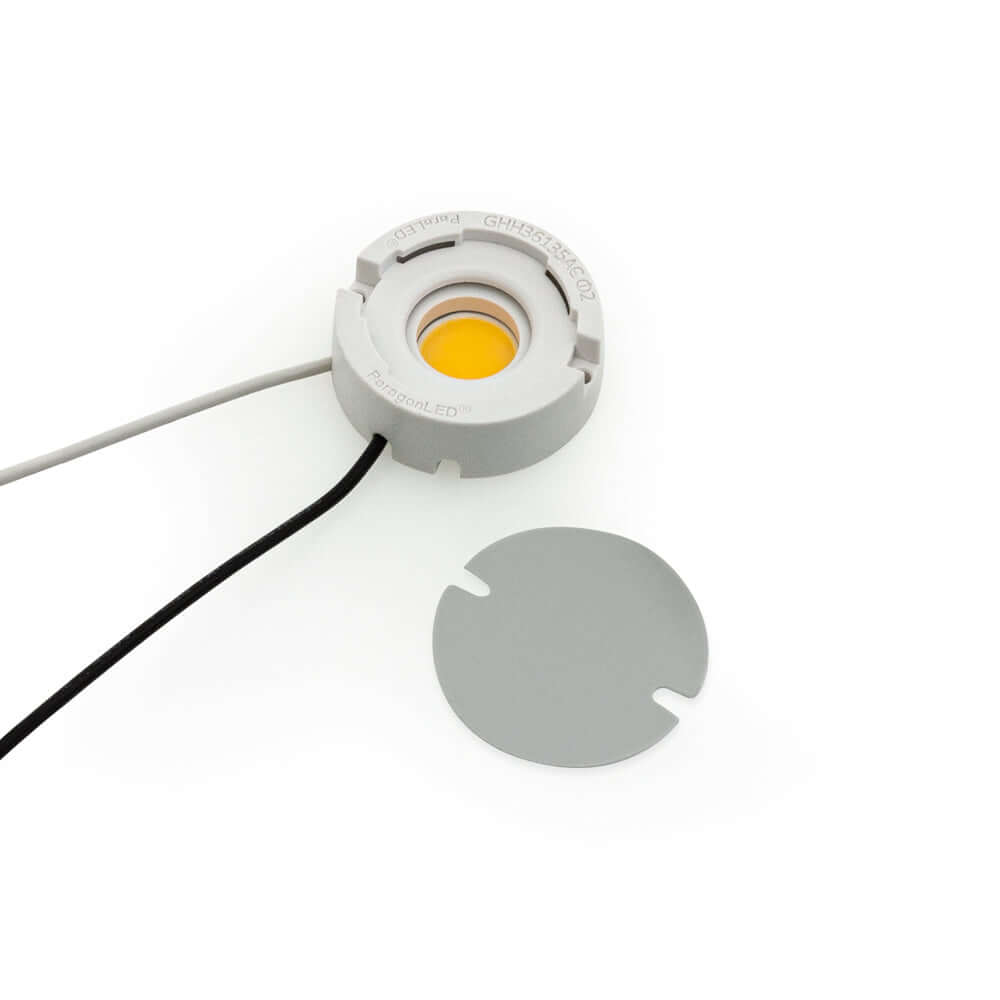

The module comes with a GHH36135AC LED holder and a polycarbonate lampshade that can be easily attached or detached. The COB holder is designed to mechanically secure, electrically connect and press the module to an aluminum heat sink. It also includes a silicone grease thermal pad that helps in better heat dissipation and increases the lifespan of the module.
Features:
- Power consumption: 4W
- Operating voltage: 120V AC
- Power factor: PF>0.98
- Luminous intensity: 280 lumens
- Color rendering index: CRI>90
- Accessories: GHH36135AC LED holder, polycarbonate lampshade
- COB holder: Secures, connects and presses module to heat sink
- Thermal pad: Helps in heat dissipation and increases lifespan
- Location suitability: Damp locations, IP20 rating
- Grounding recommendation: While designing lamps
- Certification: UL certified
- Application: Suitable for use in a wide range of luminaires
