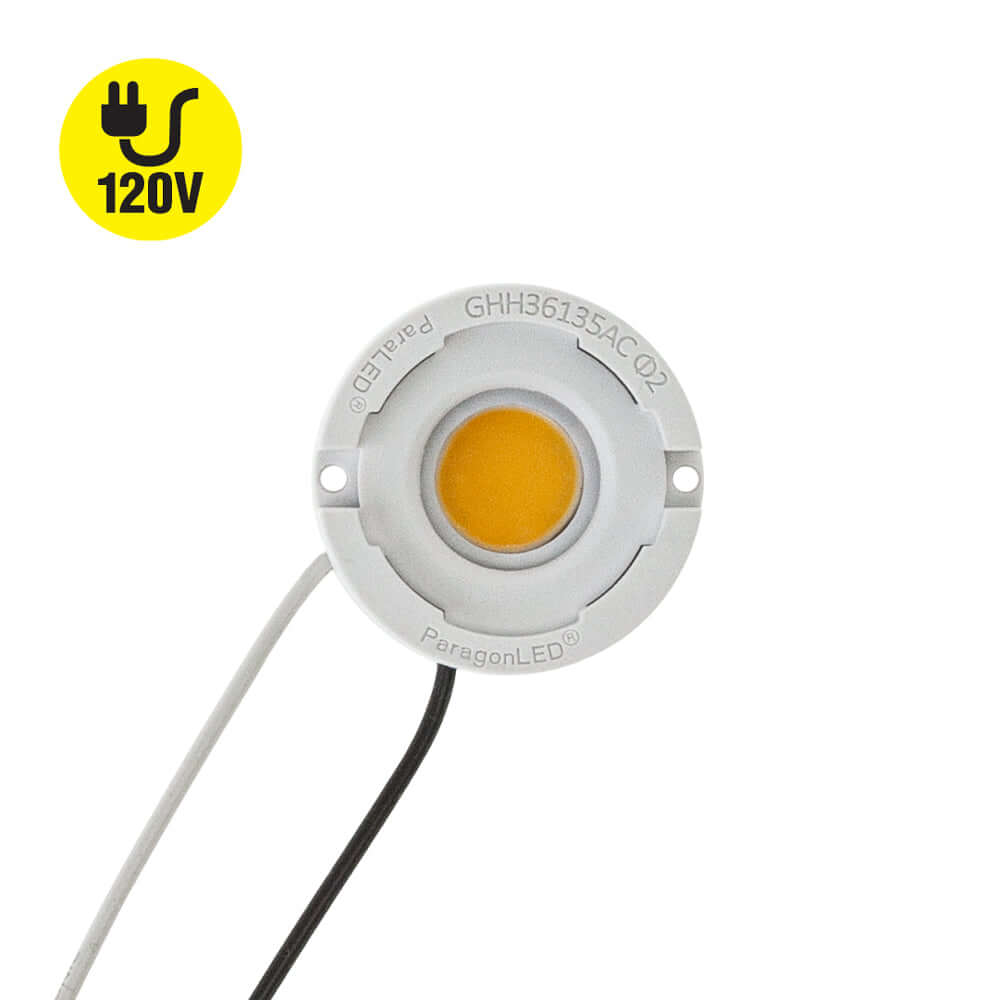

CBHT-42-30135-120V-30-G03 COB Paragon LED Module with GHH36135AC LED Holder, 120V 6W 3000K

Product Description

Product	Paragon LED Module

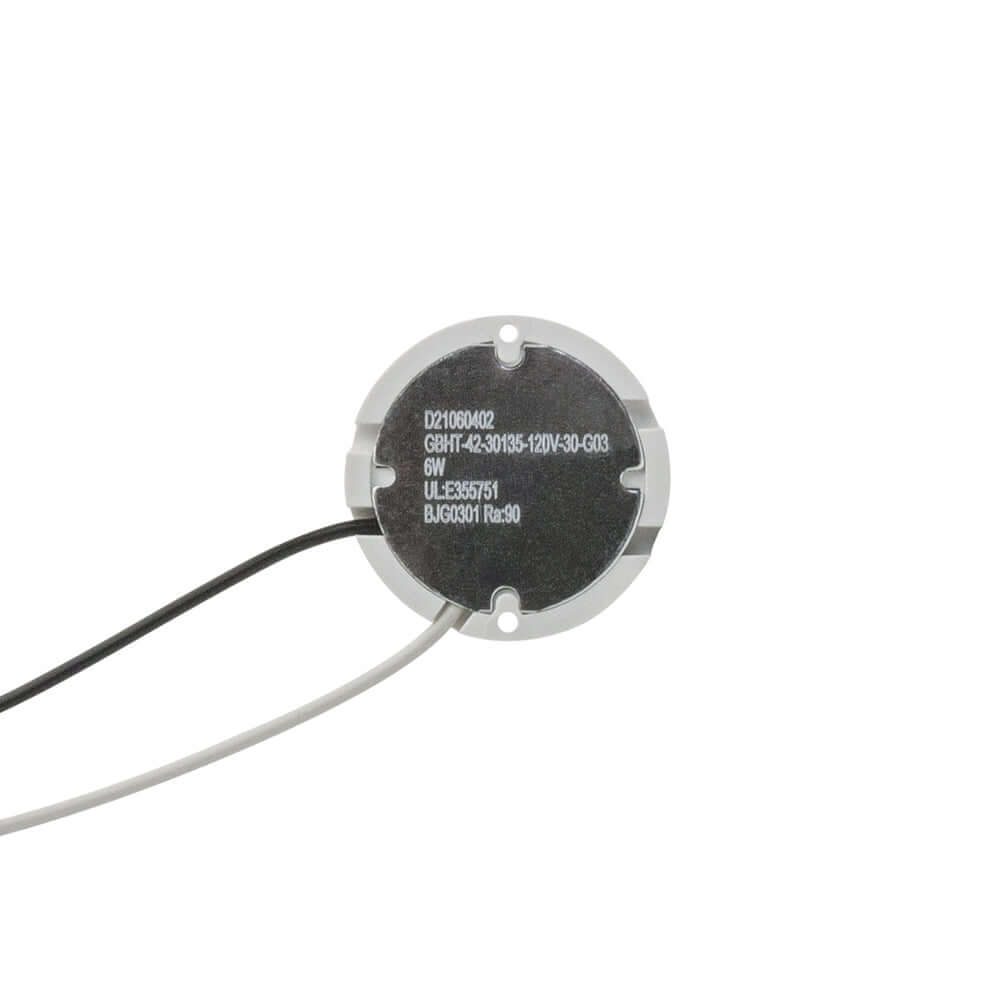

Model No	CBHT-42-30135-120V-30-G03
COB Holder Model No	GHH36135AC
LED Type	COB LED
No LED chips	42

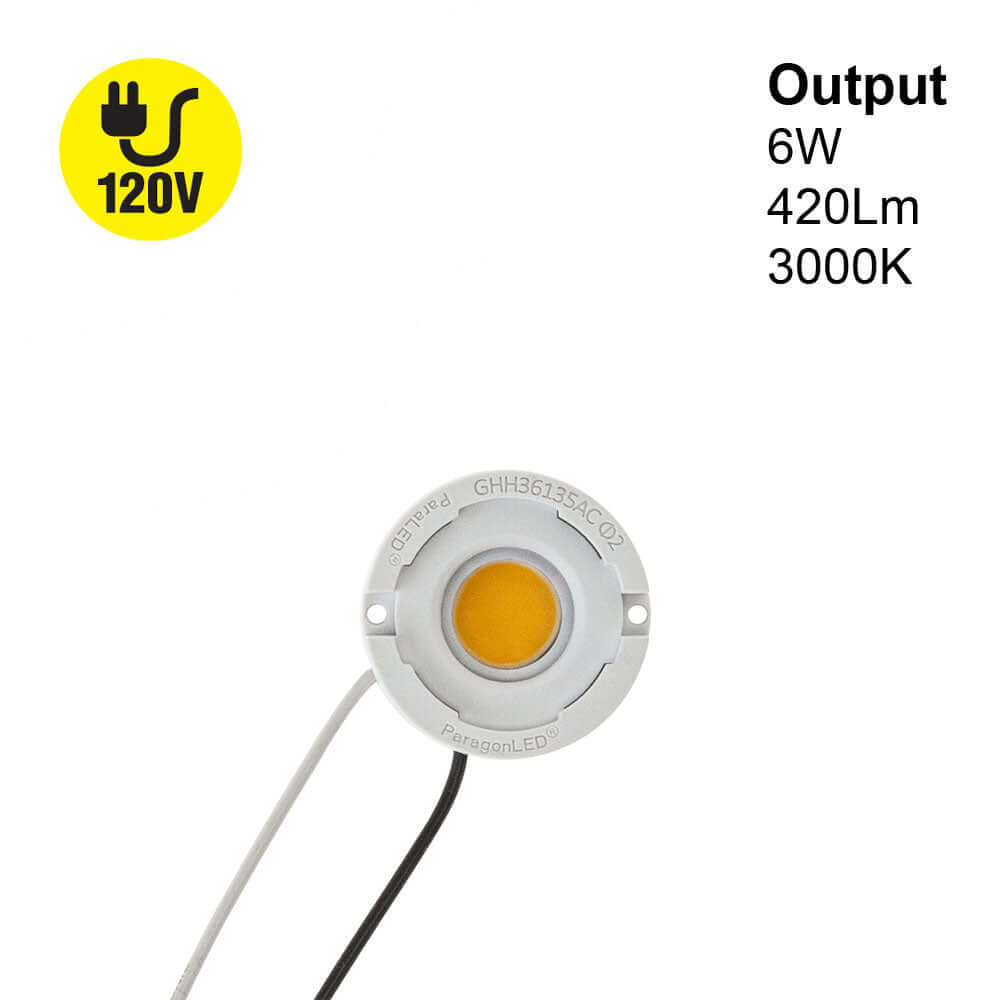

Wattage	6W
Voltage	120V AC
Power Factor	PF>0.98
Luminous Intensity	420 lumens
Color Temperature	3000K (Warm White)
Dimmable	Yes
Rendering Index	CRI>90
IP Rating	IP20 (Indoor rated)

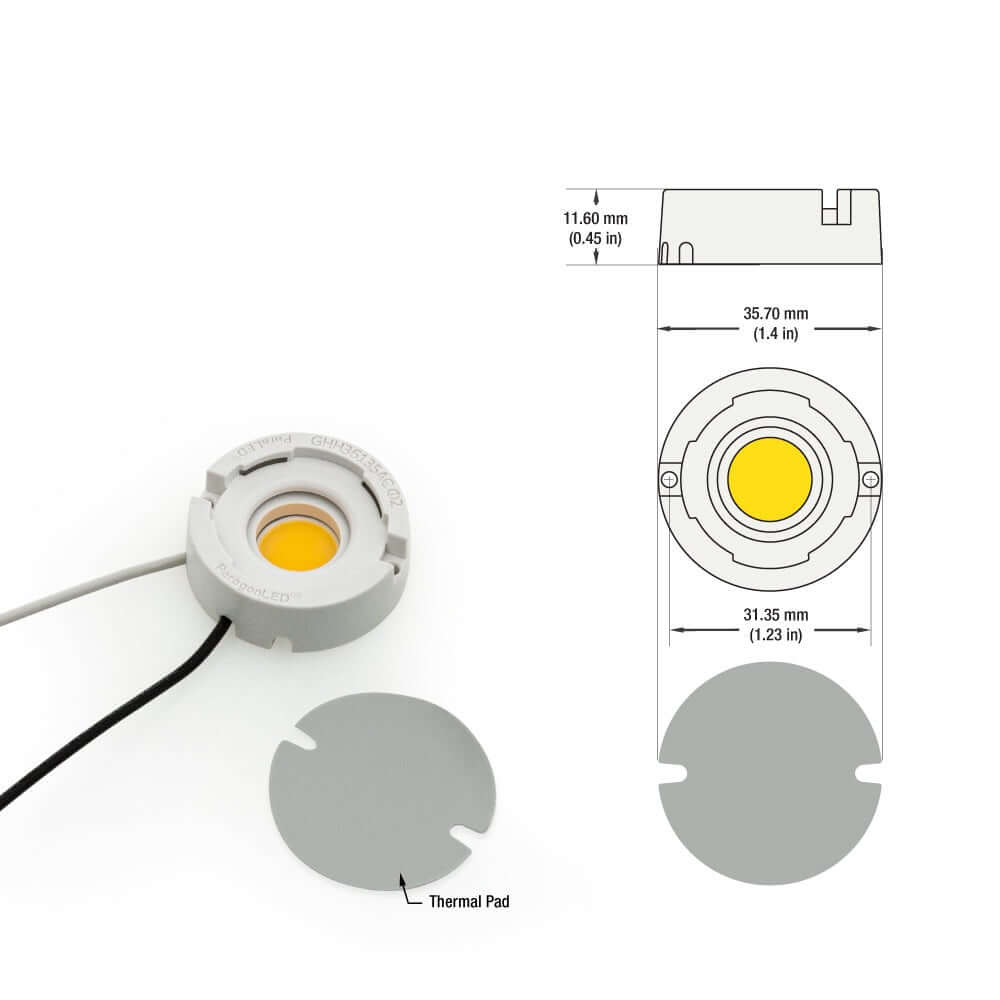

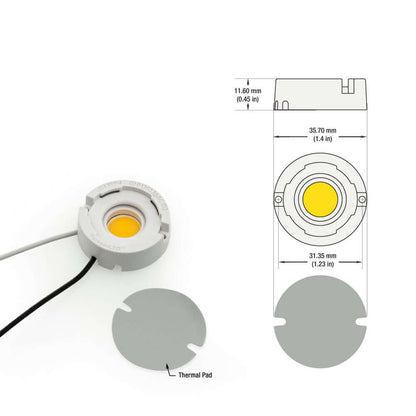

COB Holder Dimensions	∅35.7mm (1.4 in) x H11.60mm (0.45 in)
COB Module Outer Diameter	∅27 mm (1.06 in)
Operating Temperature	-40 ~ +105℃
Storage Temperature	-40 ~ +105℃
Assembly process Temperature	<300℃
Solder joint point	<105℃
Dielectric Breakdown Voltage of Thermal Pad	>4KV

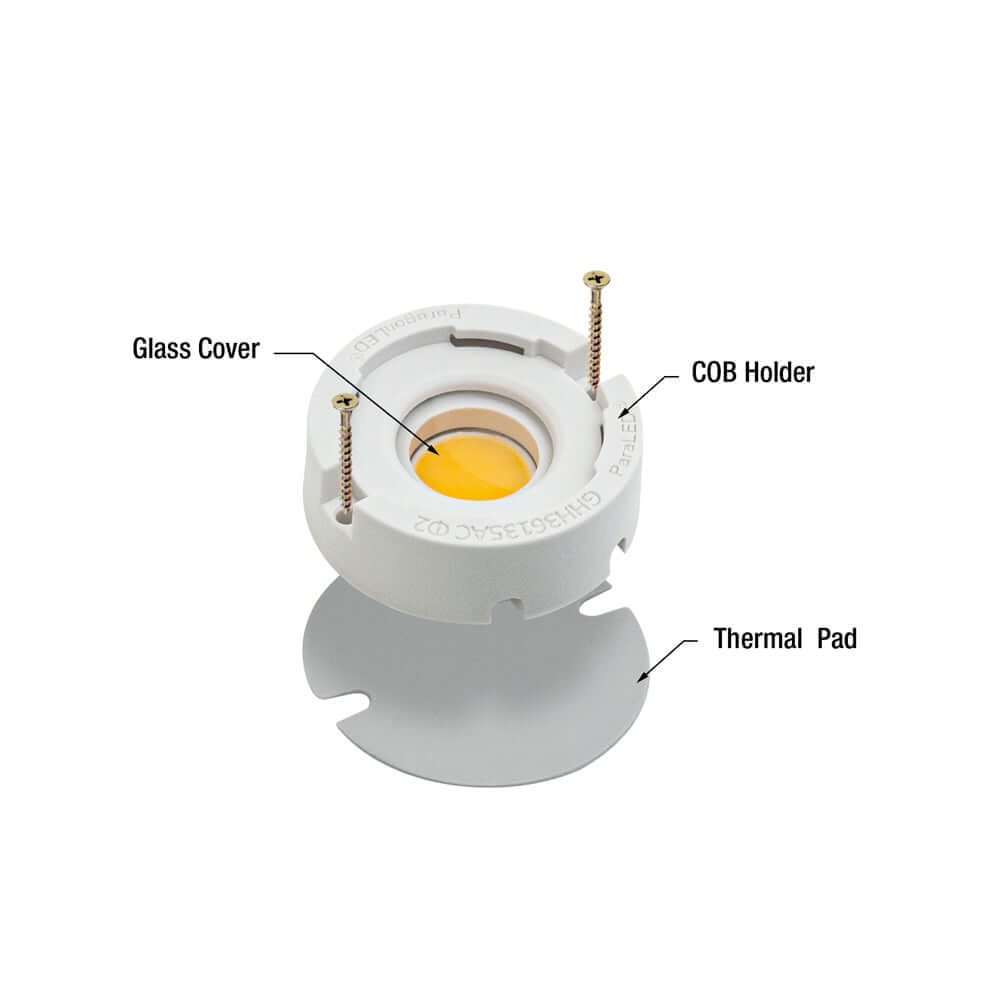

Included Content	COB Module, PC lampshade (Diffuser), COB LED Array Holder, Thermal Pad
Certifications

The CBHT-42-30135-120V-30-G03 Paragon LED Module is a high-quality LED lighting component designed for indoor use. It contains 42 COB LED chips that produce a warm white light with a color temperature of 3000K and a high color rendering index (CRI>90) which enhances the quality of light by providing true colors. It operates on 120V AC power and has a power consumption of 6 watts, making it energy-efficient and cost-effective.

The module is equipped with a GHH36135AC COB LED array holder that provides mechanical and electrical connections to the heat sink, which is essential to prevent the module from overheating. The holder has dimensions of ∅35.7mm (1.4 in) x H11.60mm (0.45 in) and is suitable for use with an aluminum heat sink.

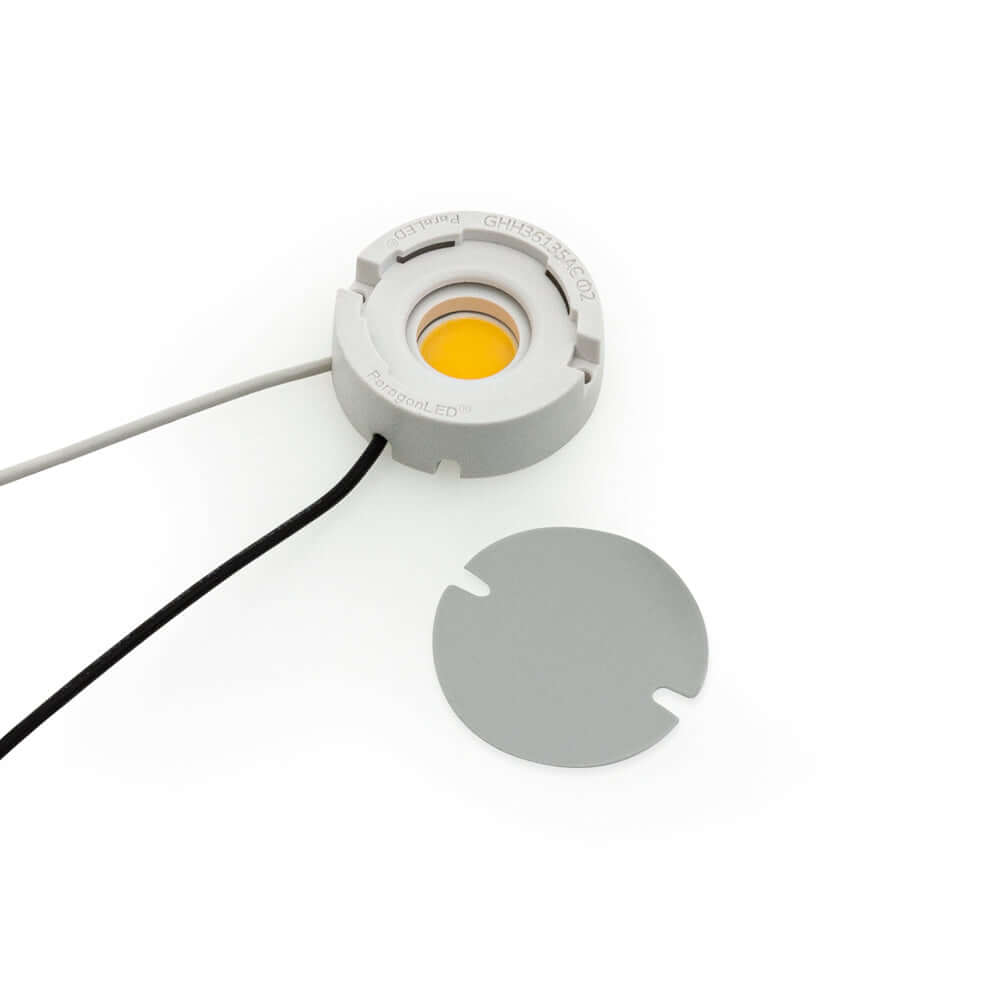

To enhance its heat dissipation, the module comes with a silicone grease thermal pad that can withstand temperatures up to 300℃ and has a dielectric breakdown voltage of over 4KV. This pad increases the life span of the module and improves its overall performance.

The CBHT-42-30135-120V-30-G03 Paragon LED Module is dimmable and has an IP20 rating, making it suitable for indoor use in damp locations. It is also certified by UL, indicating that it has undergone testing and meets safety standards.

This LED module also includes a polycarbonate lampshade (diffuser) that can easily be attached or detached to the module. The diffuser not only protects the module but also helps reduce glare and refracts the light in a wider beam.

When designing lamps with this module, it is important to ground the light fixtures to ensure safety. Overall, this LED module is a high-quality lighting component that provides energy efficiency, reliability, and superior performance, making it an ideal choice for indoor lighting applications.

Features:

• Contains 42 COB LED chips
• Color temperature of 3000K
• High color rendering index (CRI>90)
• Operates on 120V AC power
• Power consumption of 6 watts
• GHH36135AC COB LED array holder provides mechanical and electrical connections to the heat sink
• Suitable for use with an aluminum heat sink
• Silicone grease thermal pad enhances heat dissipation and can withstand temperatures up to 300℃
• Dielectric breakdown voltage of over 4KV
• Dimmable feature
• IP20 rating, suitable for indoor use in damp locations
• Certified by UL
• Polycarbonate lampshade (diffuser) included
• Diffuser reduces glare and refracts light in a wider beam
• Grounding light fixtures is important when designing lamps with this module
• Provides energy efficiency, reliability, and superior performance for indoor lighting applications.
