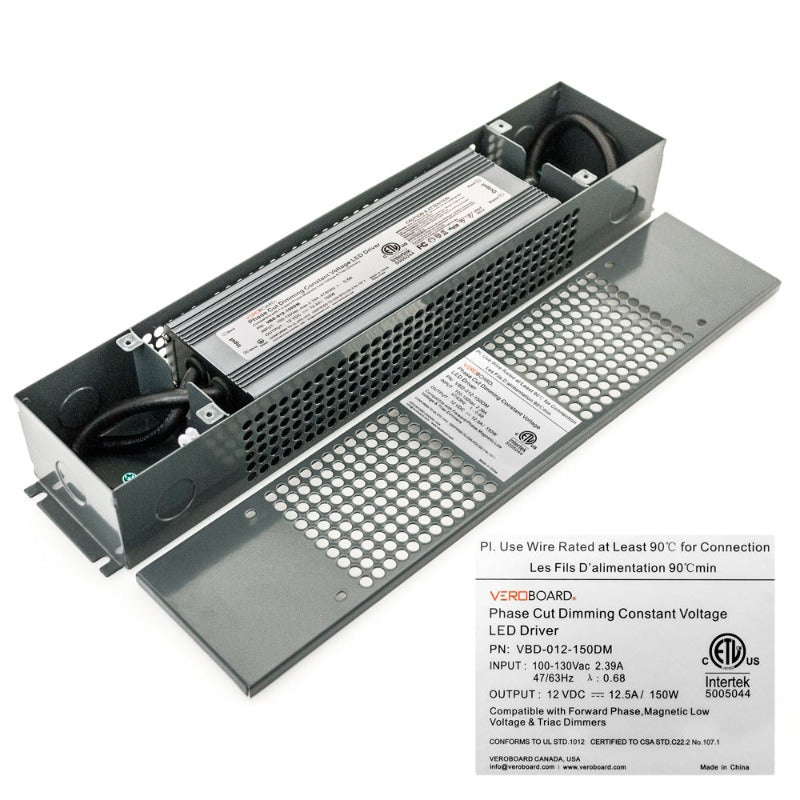

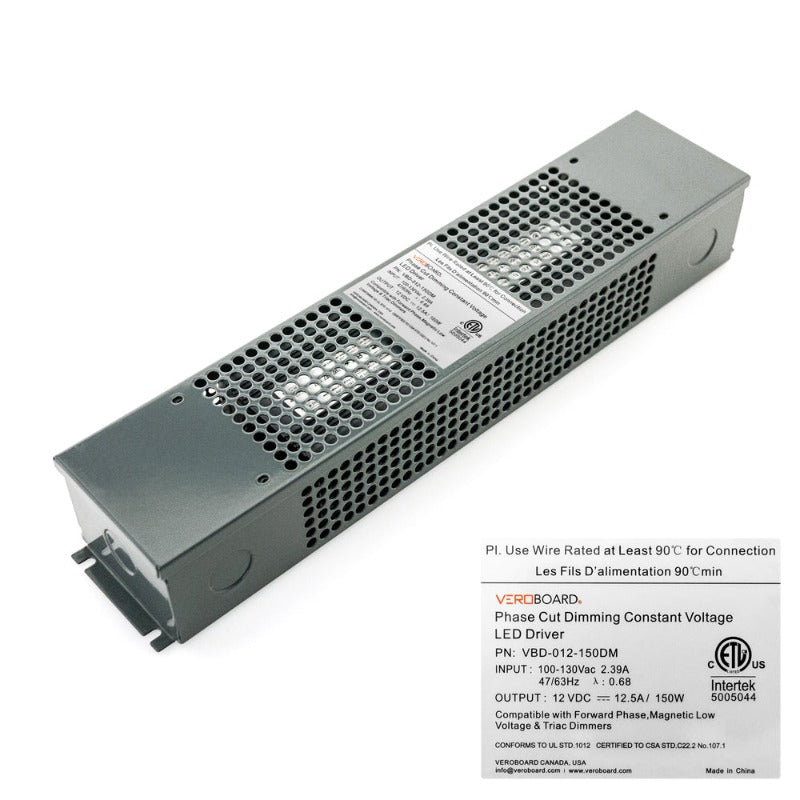

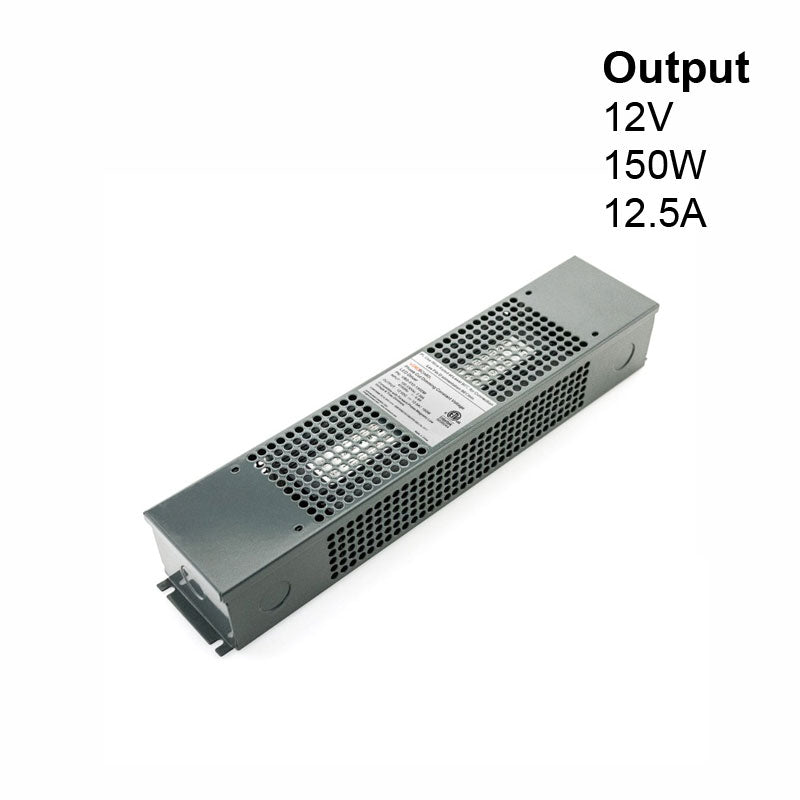

VBD-012-150DM Triac Dimmable Constant Voltage LED Driver, 12V 12.5A 150W
Product Description
| Model | VBD-012-150DM |
| Input Voltage | 100-130V AC |
| Input Current | 2.39A |
| Frequency | 47/63Hz |
| Power Factor | 0.68 |
| Output Voltage | 12V DC |
| Output regulated Current | 12.5A |
| Output Power | 150W max |
| Dimmable |
Yes (Phase/ Triac/Magnetic Low Voltage Dimming) |
| IP Rating | IP67 (Outdoor rated) |

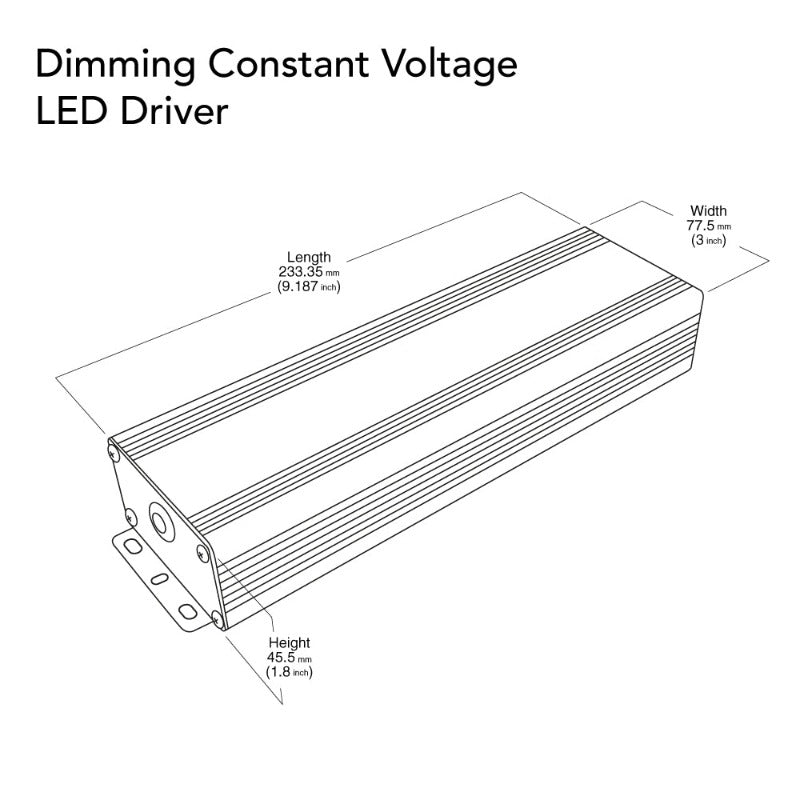

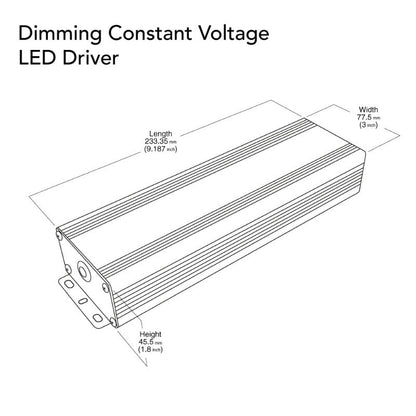

| Dimensions (Without Box) | 233.35 x 77.5 x 45.5mm (9.18 x 3 x 1.8 in) |

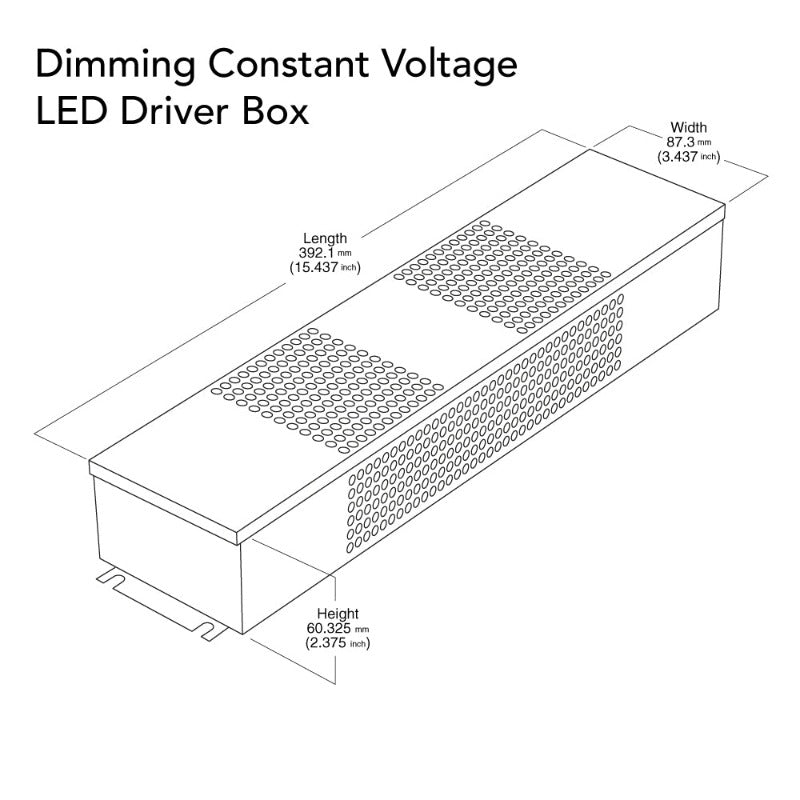

| Dimensions (Box) | 392.1 x 87.3 x 60.32mm (15.4 x 3.43 x 2.37 in) |
| Certifications |    |
| Applicable for dry, damp, and wet locations |
|
Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers |
The VBD-012-150DM is a constant voltage LED driver designed to power LED lighting systems. It operates with an input voltage of 100-130V AC and a frequency of 47/63Hz, with an input current of 2.39A and a power factor of 0.68. The driver is capable of delivering an output voltage of 12V DC and a regulated output current of 12.5A, providing a maximum output power of 150W.
One of the notable features of this driver is its Triac dimming capability, which allows for smooth and seamless dimming of LED lights. It also has an IP67 rating, indicating that it is suitable for use in outdoor environments where it may be exposed to moisture and dust.
The LED driver has dimensions of 233.35 x 77.5 x 45.5mm (9.18 x 3 x 1.8 in) without the box and 392.1 x 87.3 x 60.32mm (15.4 x 3.43 x 2.37 in) with the box. It is ETL certified, ensuring that it meets safety and performance standards for electrical products.
Features:
- The VBD-012-150DM is a constant voltage LED driver designed for powering LED lighting systems.
- It has an input voltage of 100-130V AC, a frequency of 47/63Hz, an input current of 2.39A, and a power factor of 0.68.
- The driver can deliver an output voltage of 12V DC and a regulated output current of 12.5A, providing a maximum output power of 150W.
- The driver has Triac dimming capability, allowing for smooth and seamless dimming of LED lights.
- It has an IP67 rating, indicating that it is suitable for outdoor use and can withstand exposure to moisture and dust.
- The dimensions of the driver are 233.35 x 77.5 x 45.5mm (9.18 x 3 x 1.8 in) without the box and 392.1 x 87.3 x 60.32mm (15.4 x 3.43 x 2.37 in) with the box.
- The driver is ETL certified, ensuring that it meets safety and performance standards for electrical products.
