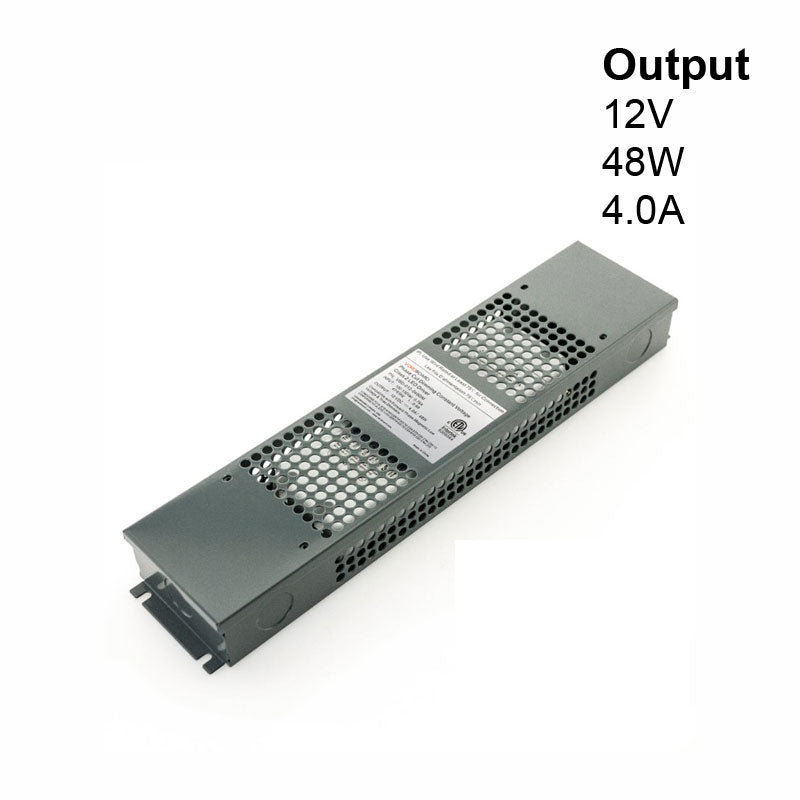

VBD-012-048DM Triac Dimmable Constant Voltage LED Driver, 12V 4.0A 48W
Product Description
Model | VBD-012-048DM |
Input Voltage | 100-130V AC |
Input Current | 0.76A |
Efficiency | 47/63Hz |
Output Voltage | 12V DC |
Output regulated Current | 4.0A |
Output Power | 48W max |
Power Factor | 0.68 |
Dimmable | Yes (Phase/ Triac/ Magnetic Low Voltage Dimming) |
IP Rating | IP20 |
Class Certification | Class2/ Class II/ SELV |

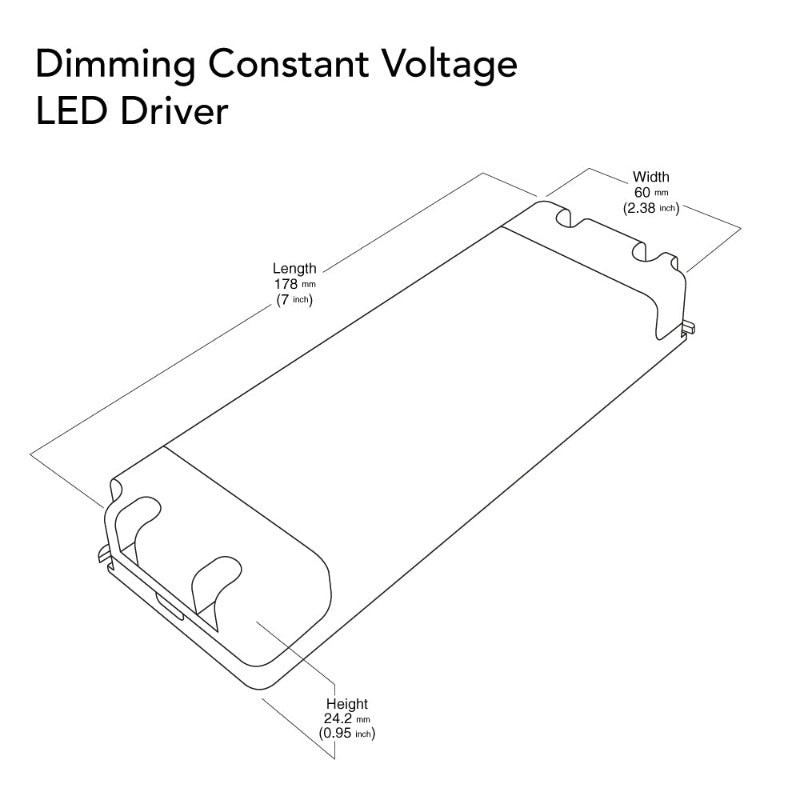

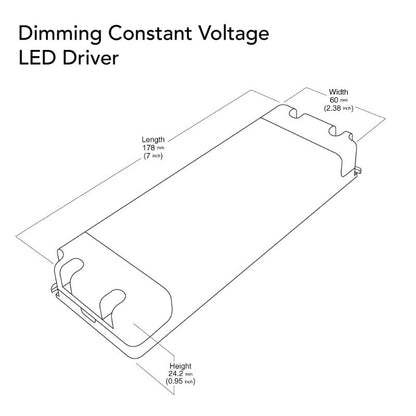

Dimensions (Without Box) | 178x 60x 24.2mm (7 x 2.38 x 0.95 in) |

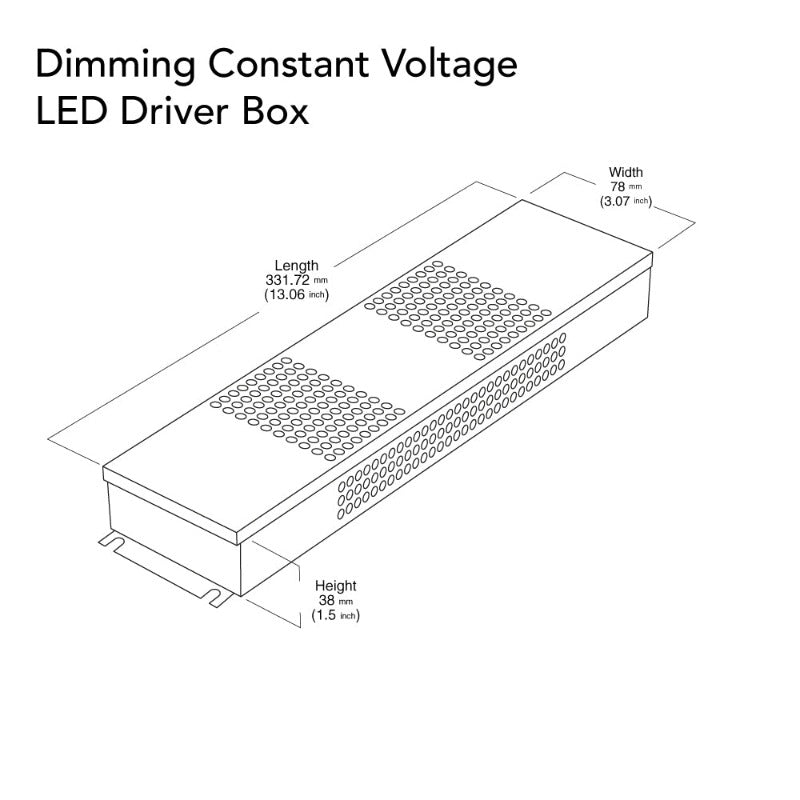

Dimensions (Box) | 331.72 x 78 x 38mm (13.06x3.07x1.5 in) |
Certification | ![]() ![]() ![]() |
Applicable for Dry and Damp locations |
Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers |

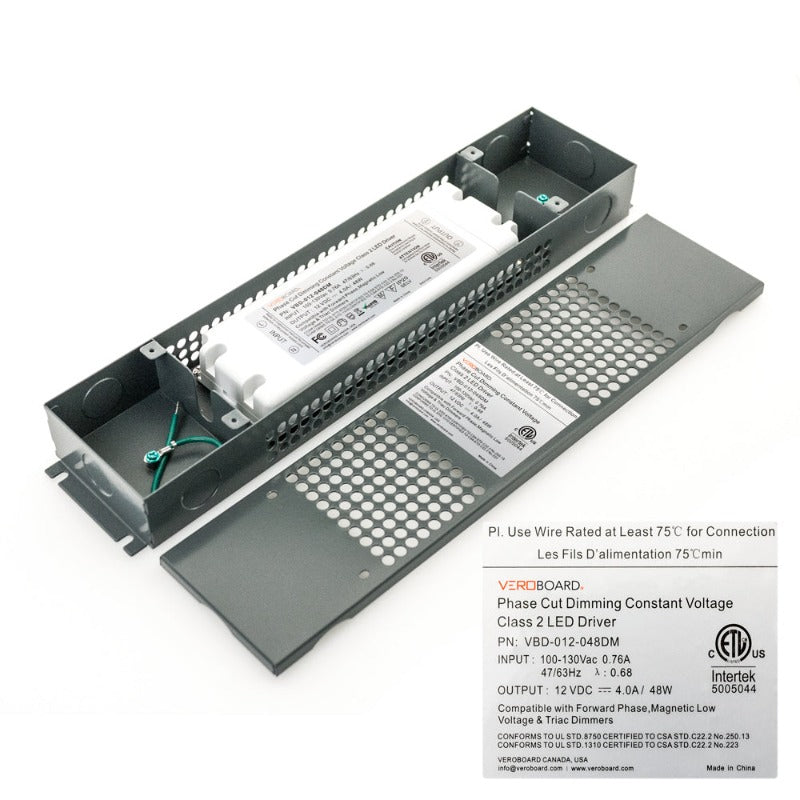

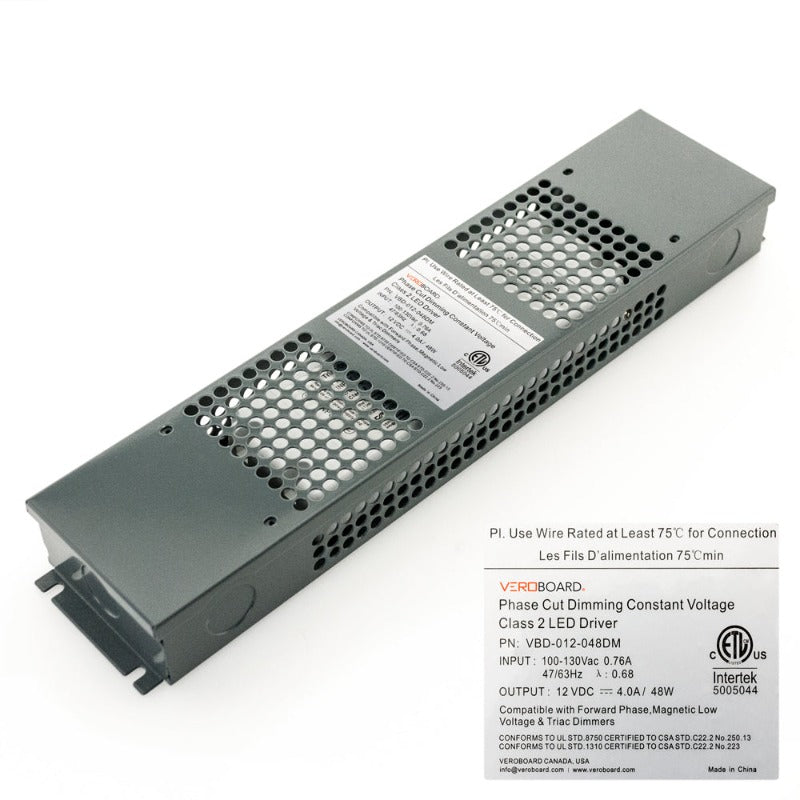

The VBD-012-048DM Dimmable Triac Constant Voltage LED Driver is designed to power LED lighting systems with a constant output voltage of 12 volts and output current of 4.0 amps, which delivers a maximum output power of 48 watts. The driver is dimmable using a Triac dimmer, with an input voltage range of 100-130V AC, making it suitable for a wide range of lighting applications.
The Constant voltage LED Driver is designed with a Triac dimmer that uses phase-cutting to regulate the power delivered to the LED lighting system. The input voltage required for the driver to operate is 100-130V AC. It is classified as a Class 2 power supply, indicating that it is a low voltage power supply with limited power output.
Furthermore, the VBD-012-048DM LED driver is certified by ETL, indicating that it meets safety standards and compliance regulations set by the testing organization. This certification assures users that the device is safe to use and meets quality standards for electrical devices.
Features:
- The VBD-012-048DM Dimmable Triac Constant Voltage LED Driver is designed for LED lighting systems.
- It provides a constant output voltage of 12 volts and output current of 4.0 amps.
- The maximum output power of the device is 48 watts.
- It is dimmable using a Triac dimmer, with an input voltage range of 100-130V AC.
- The driver uses phase-cutting to regulate the power delivered to the LED lighting system.
- The input voltage required for the driver to operate is 100-130V AC.
- It is classified as a Class 2 power supply with limited power output.
- The VBD-012-048DM LED driver is certified by ETL, ensuring that it meets safety standards and compliance regulations.
