Product Description
| Model | VBD-012-060DM |
| Input Voltage | 100-130V AC |
| Input Current | 0.95A |
| Frequency | 47/63Hz |
| Power Factor | 0.68 |
| Output Voltage | 12V DC |
| Output regulated Current | 5.0A |
| Output Power | 60W max |
| Dimmable | Yes (Phase-cut and Triac Dimming) |
| IP Rating | IP20 |
| Class Certifications | Class 2/ Class II |

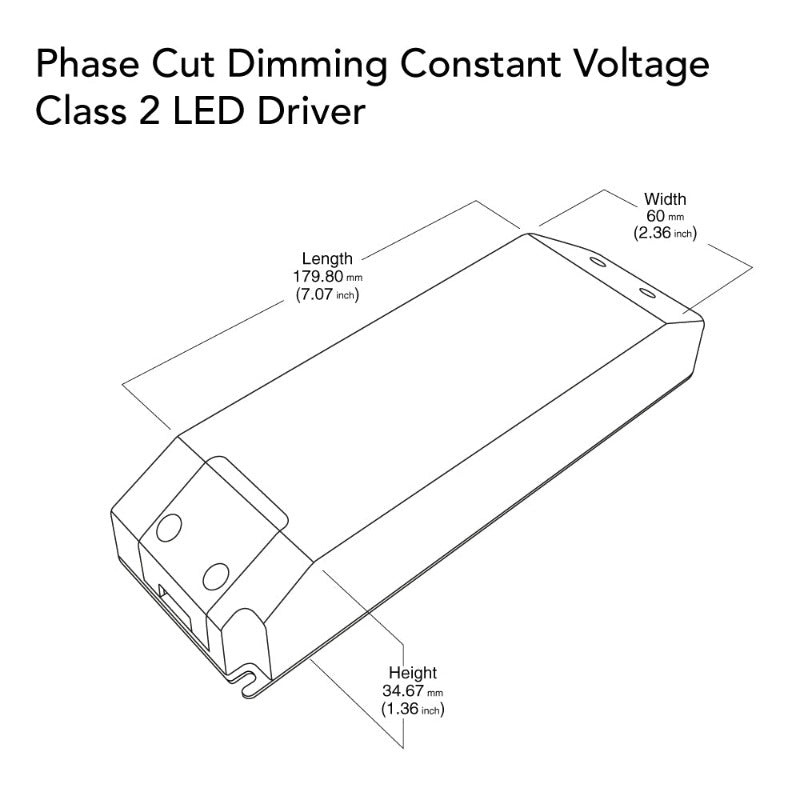

| Dimensions (Without Box) | 180 x 60 x 34.67mm (7.07 x 2.36 x 1.36 in) |

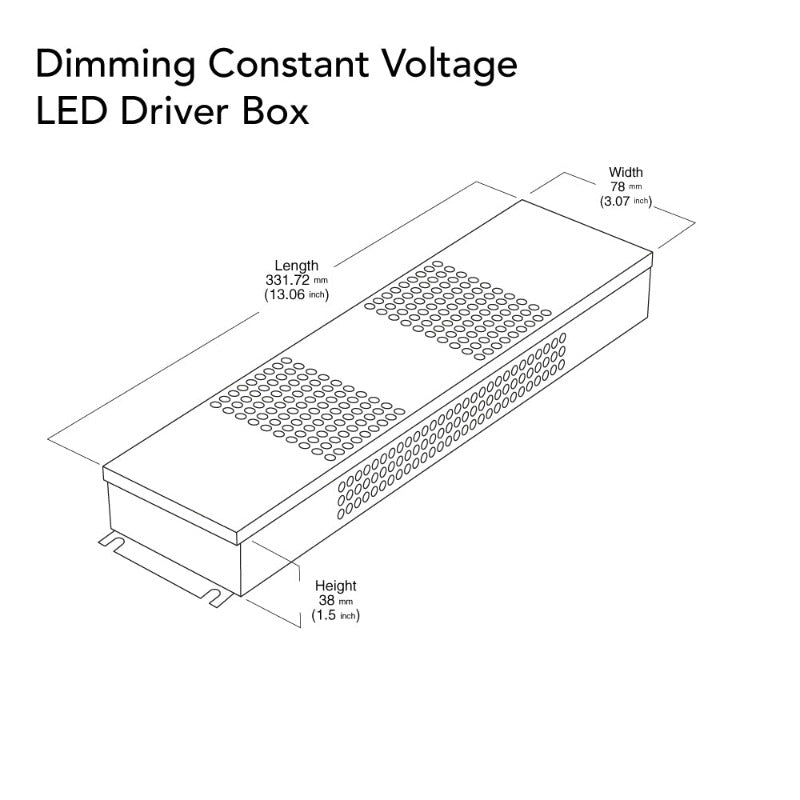

| Dimensions (Box) | 331.72 x 78 x 38mm (13.06 x 3.07 x 1.5 in) |
| Certifications |    |
| Applicable for dry and damp locations |
|
Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers |
The VBD-012-060DM Triac Dimmable Constant Voltage LED Driver is designed to power LED lighting systems with a constant output voltage of 12 volts and output current of 5.0 amps, which delivers a maximum output power of 60 watts. The Triac constant voltage LED Driver is dimmable using both Phase-cut and Triac dimming methods, providing flexibility in lighting control.
The driver operates with an input voltage range of 100-130V AC and an input current of 0.95A. It has a frequency range of 47/63Hz and a power factor of 0.68. The Triac Dimmable Constant Voltage LED Driver is designed to regulate output voltage at 12V DC and provide a constant output current of 5.0 amps, delivering a maximum output power of 60W.
The VBD-012-060DM LED driver is IP20 rated, indicating it is suitable for indoor use. It is classified as Class 2/Class II, indicating it is a low voltage power supply with limited power output.
Features:
- The VBD-012-060DM Triac Dimmable Constant Voltage LED Driver is designed for LED lighting systems.
- It provides a constant output voltage of 12 volts and output current of 5.0 amps.
- The maximum output power of the device is 60 watts.
- The driver is dimmable using both Phase-cut and Triac dimming methods, providing flexibility in lighting control.
- The driver operates with an input voltage range of 100-130V AC and an input current of 0.95A.
- It has a frequency range of 47/63Hz and a power factor of 0.68.
- The VBD-012-060DM LED driver is IP20 rated, indicating it is suitable for indoor use.
- It is classified as Class 2/Class II, indicating it is a low voltage power supply with limited power output.
- The dimensions of the driver are 180 x 60 x 34.67mm (7.07 x 2.36 x 1.36 in) without the box and 331.72 x 78 x 38mm (13.06 x 3.07 x 1.5 in) with the box.
- The driver is designed to meet safety standards and compliance regulations, ensuring it is safe to use and meets quality standards for electrical devices.
