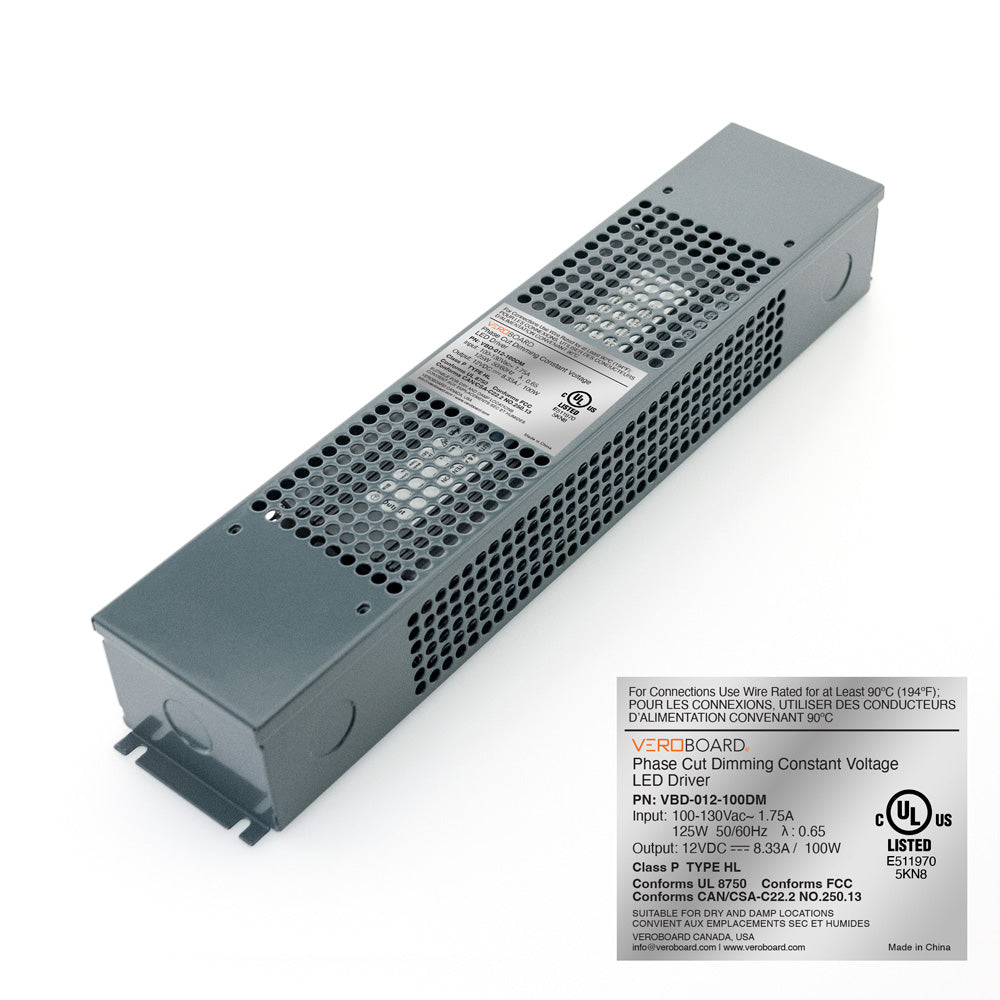

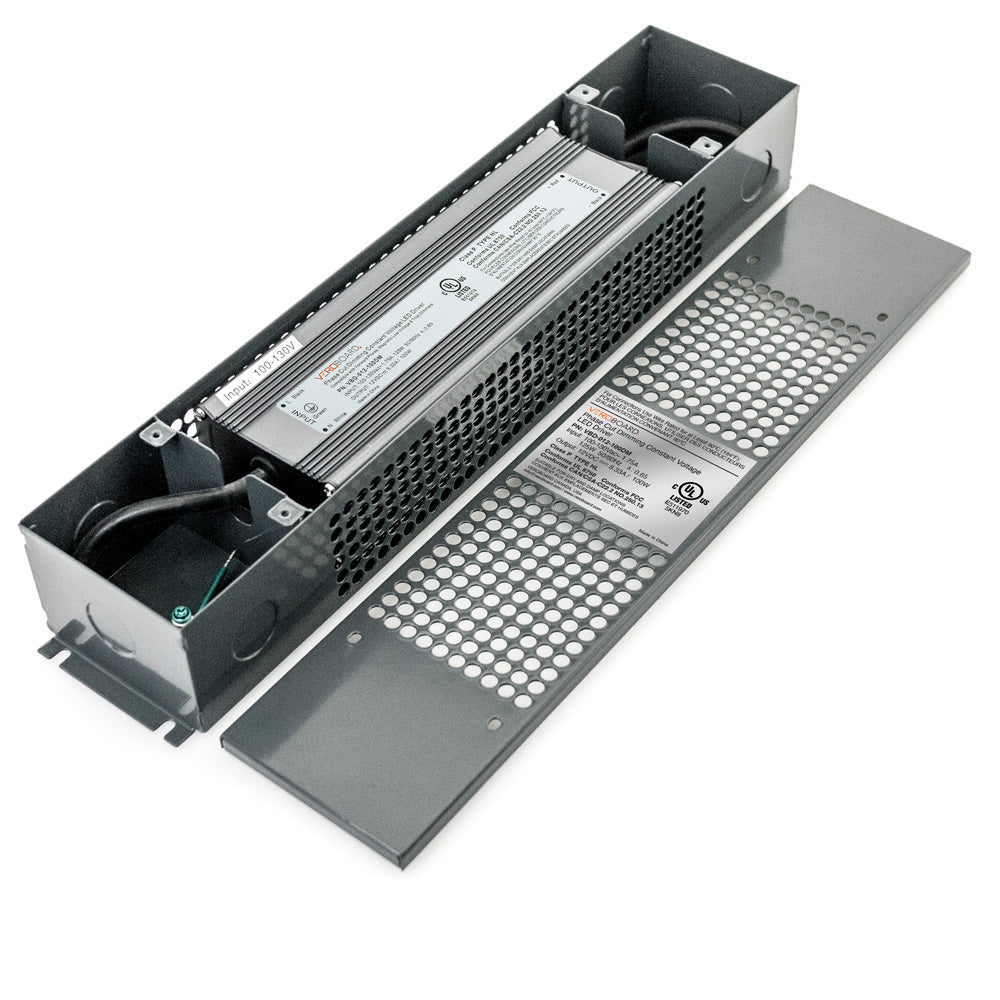

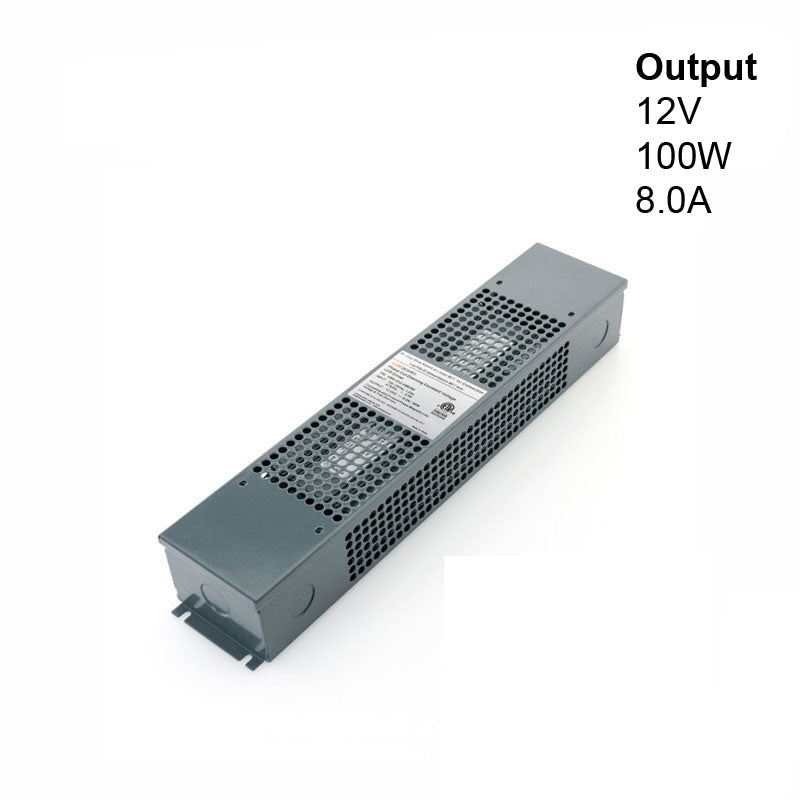

Triac Dimmable Constant Voltage LED Driver - 12V 8.0A 100W, VBD-012-100DM

Triac Dimmable Constant Voltage LED Driver - 12V 8.0A 100W, VBD-012-100DM

Ask Question!

SKU: SKU:666561415730

Regular price $154.20 USD
Regular price Sale price $154.20 USD
Sale Sold out
Shipping calculated at checkout.

BUY MORE, SAVE MORE

The more you buy, the more you save!

MIX & MATCH — ALL PRODUCTS COUNT!

Combine different products in your cart to unlock bigger discounts.

5 LED modules + 5 LED drivers = 10 items → 15% off your order.

Cart-wide bulk pricing · estimated savings

Estimated cart subtotal after adding—
Bulk-tier savings estimate—

Estimates only; other offers may give a better price. Your cart and checkout confirm the final discount.

Checking your cart quantity…

Free Shipping

Free shipping on eligible orders of $99 USD or more. Some products are excluded; oversized-item surcharges may apply. Availability is confirmed at checkout.

Available Discounts

Buy more, save more across your cart:

  • 10–24 items: 15% off
  • 25–49 items: 18% off
  • 50+ items: 20% off

Shipping & Return Policy

Please allow an additional 3–4 days beyond the estimated delivery date shown at checkout.

Eligible returns and exchanges are accepted within 30 days of purchase. Items must be new, resellable and in original packaging. A 30% restocking fee applies; shipping charges and product exclusions also apply.

Complete shipping, return and exclusion policies

View full details



Product Description

Model VBD-012-100DM
Input Voltage 100-130V AC
Input Current 1.53A
Frequency 47/63Hz
Power Factor 0.68
Output voltage 12V DC
Output regulated current 8.33A
Output max Power 100W max
Dimmable Yes (Phase-Cut and Triac Dimming)
Weight  1.8 kg
IP Rating IP67 (Outdoor rated)
Dimensions (Without Box) 203 x 70.41 x 42mm (8 x 2.77 x 1.65 in)
Dimensions (Box) 361.95 x 78.74 x 56.3mm (14.25 x 3.1 x 2.21 in)
Certifications
Applicable for dry, damp, and wet locations.
Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers



Features:

  • The VBD-012-100DM Triac Dimmable Constant Voltage LED Driver is designed for LED lighting systems with a constant output voltage of 12 volts and output current of 8.0 amps, delivering a maximum output power of 96 watts.
  • The Triac Dimmable Constant Voltage LED Driver can be dimmed using both Phase-cut and Triac dimming methods, providing flexibility in lighting control.
  • The driver operates with an input voltage range of 100-130V AC and an input current of 1.53A, with a frequency range of 47/63Hz and a power factor of 0.68.
  • The LED driver is designed to regulate output voltage at 12V DC and provide a constant output current of 8.0 amps, delivering a maximum output power of 100W.
  • Triac Dimmable Constant Voltage LED Driver - 12V 8.0A 100W, VBD-012-100DM
