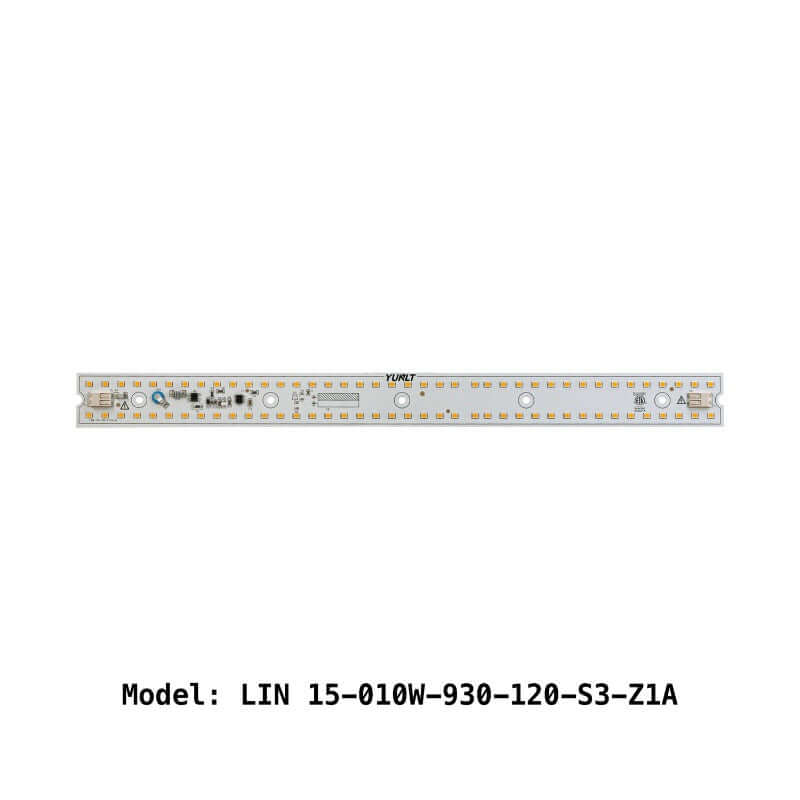

15 inch Linear ZEGA LED Module LIN 15-010W-930-120-S3-Z1A, 120V 10W 3000K(Warm White)
|Model No||LIN 15-010W-930-120-S3-Z1A|
|No of LEDs||80|
|Luminous Flux||1000 lumens|
|Color Temperature||3000K (Warm White)|
|Package Components||LED Module
Thermal Silicon Pad
6inch Black and White power feed

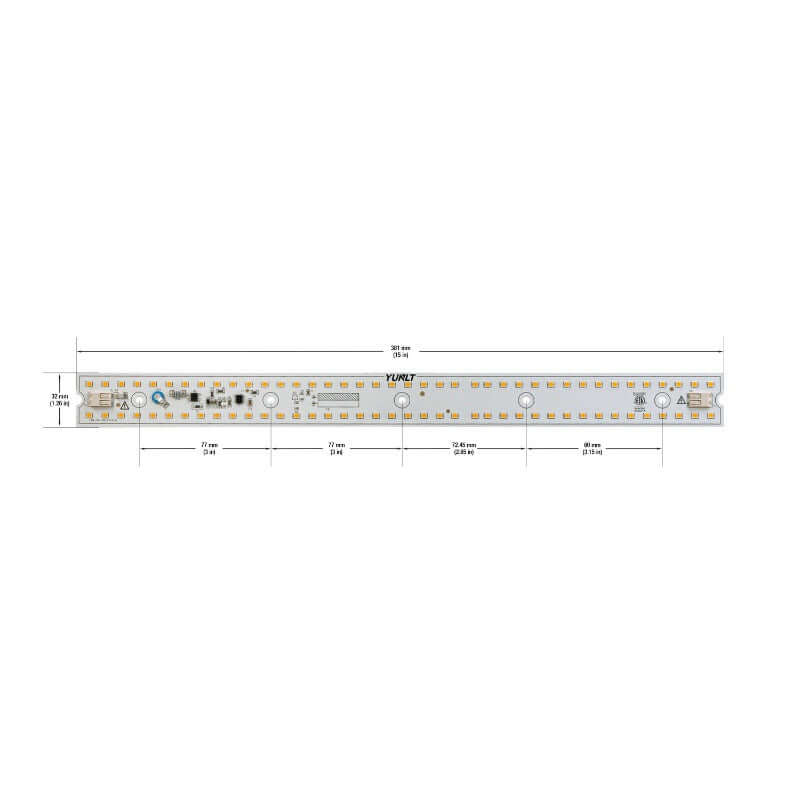

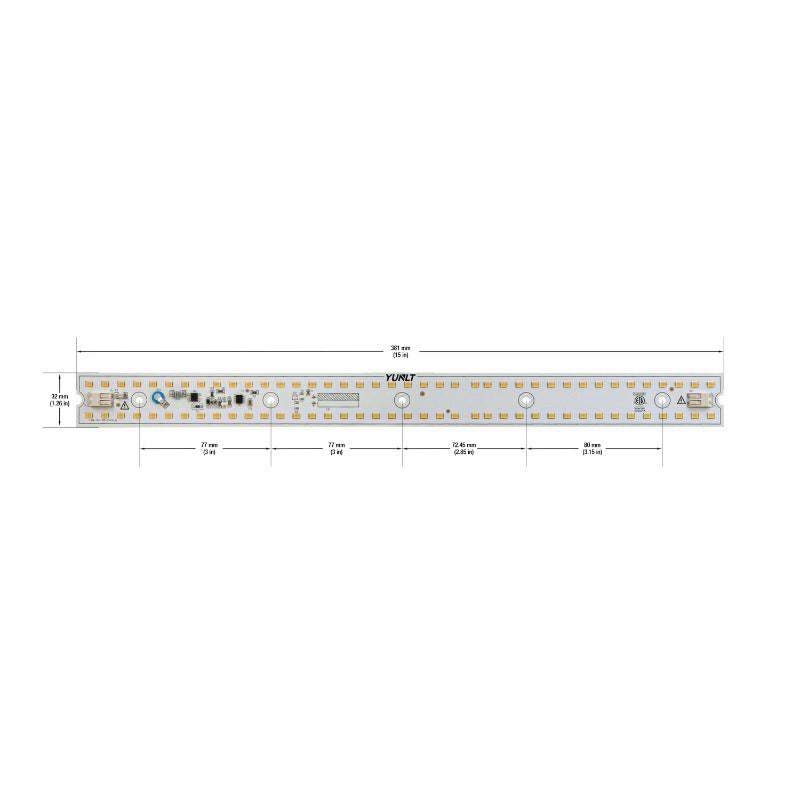

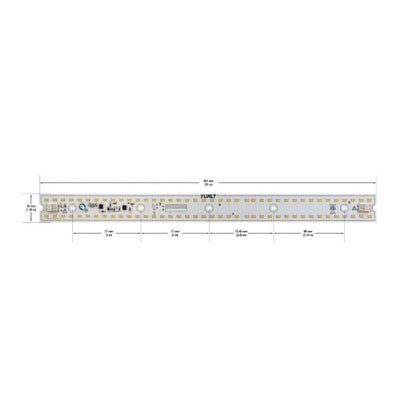

|Dimensions||380.50mm (15 inch) x 32.0 mm (1.25 inch)|
|Diameter of the screw hole||3.5mm (0.14 in)|

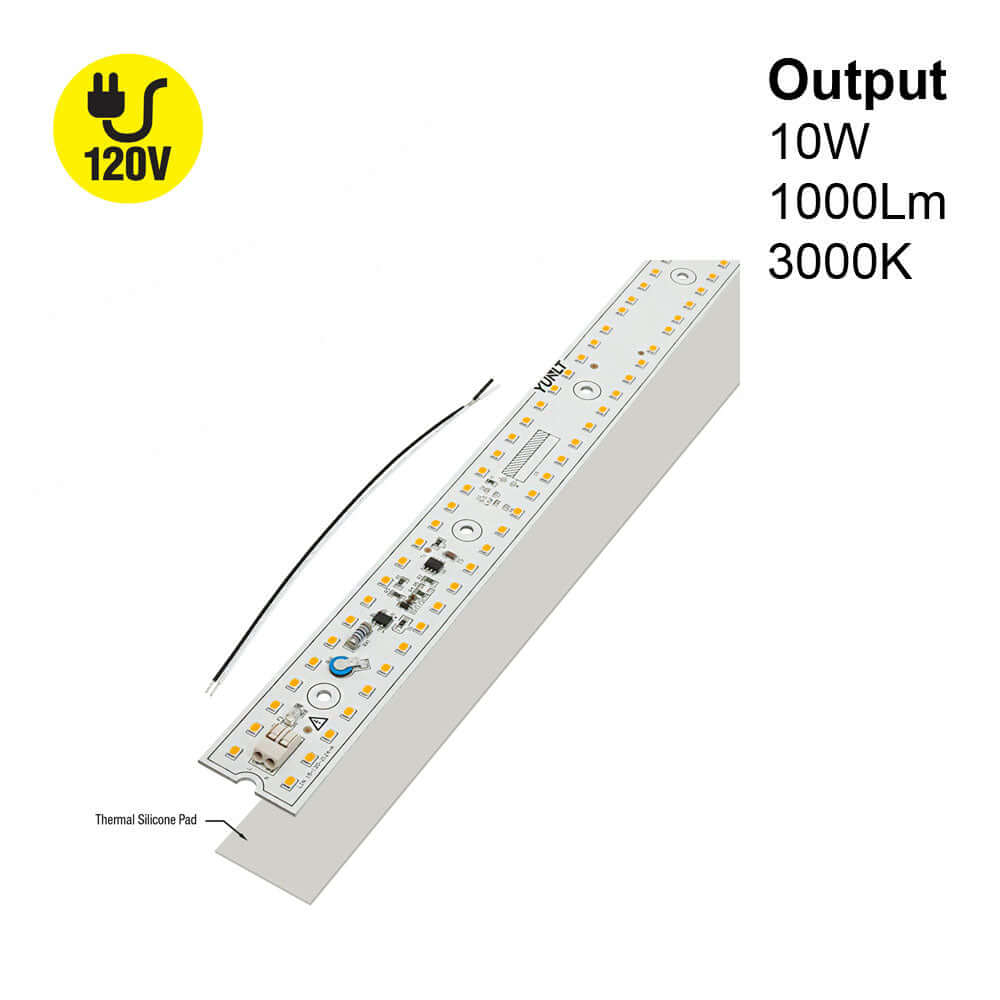

The LIN 15-010W-930-120-S3-Z1A is a 15-inch linear LED module driverless engine that provides high-quality, energy-efficient lighting suitable for a variety of applications. It contains 80 LEDs and has a wattage of 10W, powered by 120V AC.
The module emits warm white light at a color temperature of 3000K, with a high color rendering index (CRI) of over 90, which means colors appear natural and vibrant. With a luminous flux of 1000 lumens, this LED module provides bright and efficient lighting suitable for various applications such as under-cabinet lighting, task lighting, and display lighting.
The dimensions of the module are 380.50mm (15 inch) in length and 32.0 mm (1.25 inch) in width. The diameter of the screw hole is 3.5mm (0.14 in). This LED module is also dimmable and comes with a thermal silicon pad for even heat distribution, which helps to prolong the life of the module.
In addition, the LIN 15-010W-930-120-S3-Z1A comes with a 6-inch black and white power feed for easy installation. It is certified by ETL for safe and reliable use. This LED module is an excellent choice for anyone looking for a high-quality, energy-efficient, and long-lasting LED lighting solution.
- 15-inch linear LED module driverless engine
- Made of aluminum for excellent heat dissipation
- Contains 80 LEDs and has a wattage of 10W, powered by 120V AC
- Emits warm white light at a color temperature of 3000K with CRI>90
- Provides bright and efficient lighting suitable for various applications
- Dimensions: 380.50mm (15 inch) in length and 32.0 mm (1.25 inch) in width
- Dimmable and comes with a thermal silicon pad for even heat distribution
- Includes a 6-inch black and white power feed for easy installation
- Certified by ETL for safe and reliable use.
- It is a good DIY product for the replacement of a ceiling light/ Bulb source.

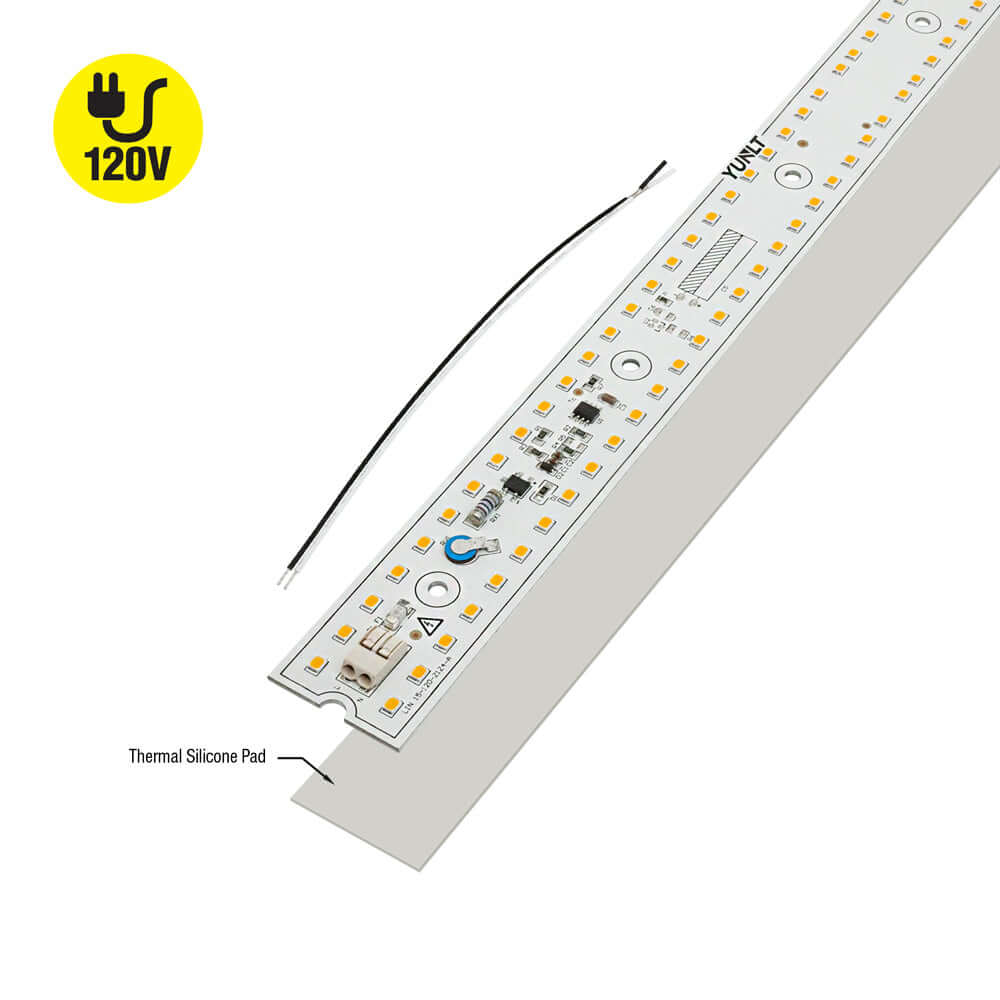

- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
