15 inch Linear ZEGA LED Module LIN 15-015W-930-120-S3-Z1B, 120V 15W 3000K(Warm White)

  • $36.50 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561427856
Title:
We only have 34 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).


Product Description

Product LED Module

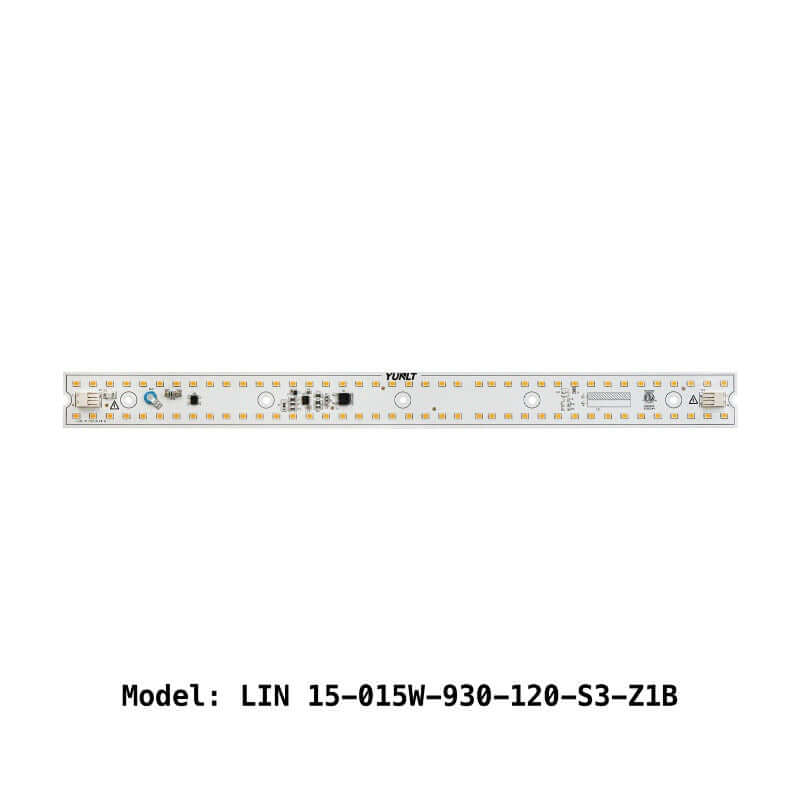

Model No LIN 15-015W-930-120-S3-Z1B
No of LEDs 80
Wattage 15W
Voltage 120V AC
Luminous Flux 1500 lumens
Color Temperature 3000K (Warm White)
Rendering Index CRI>90
Power Source AC
Dimmable Yes
Base Material Aluminum
Package Components  LED Module
Thermal Silicon Pad
6inch Black and White power feed

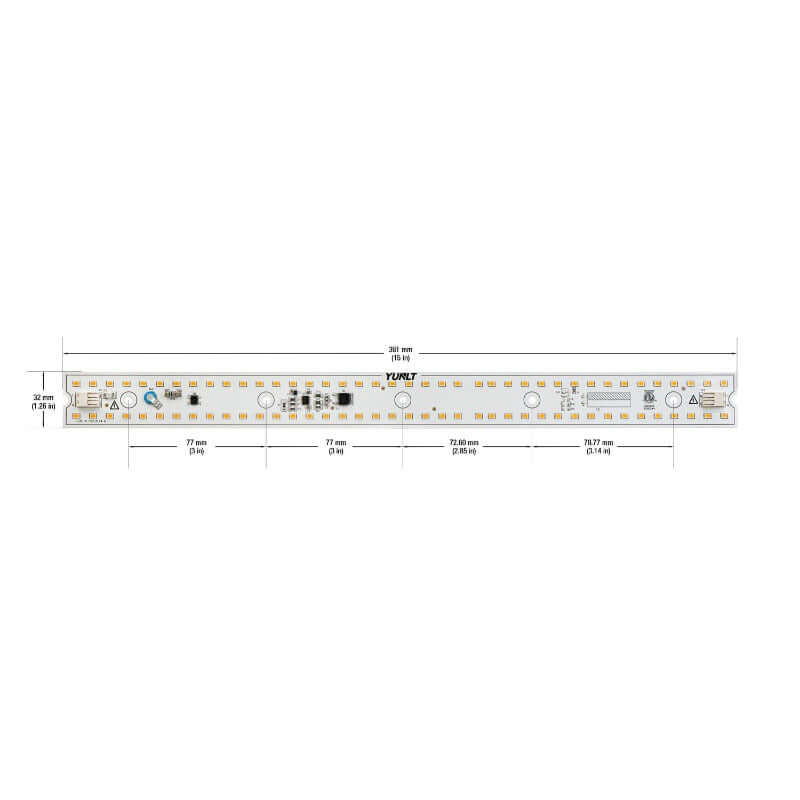

Dimensions 380.50mm (15 inch) x 32.0 mm (1.25 inch)
Diameter of the screw hole 3.5mm (0.13 in)
Height 6mm (0.23in)
Certification


The LIN 15-015W-930-120-S3-Z1B is a 15-inch linear LED module driverless engine that offers high-quality, energy-efficient lighting suitable for various applications. It contains 80 LEDs and has a wattage of 15W, powered by 120V AC.

The module emits warm white light at a color temperature of 3000K, with a high color rendering index (CRI) of over 90, which means colors appear natural and vibrant. With a luminous flux of 1500 lumens, this LED module provides bright and efficient lighting suitable for various applications such as under-cabinet lighting, task lighting, and display lighting.

The dimensions of the module are 380.50mm (15 inch) in length and 32.0 mm (1.25 inch) in width. The diameter of the screw hole is 3.5mm (0.13 in). This LED module is also dimmable and comes with a thermal silicon pad for even heat distribution, which helps to prolong the life of the module.

In addition, the LIN 15-015W-930-120-S3-Z1B comes with a 6-inch black and white power feed for easy installation. It is certified by ETL for safe and reliable use. This LED module is an excellent choice for anyone looking for a high-quality, energy-efficient, and long-lasting LED lighting solution.

Features:

  • 15-inch linear LED module driverless engine with 80 LEDs
  • 15W wattage, powered by 120V AC
  • Warm white light at a color temperature of 3000K and CRI>90
  • Luminous flux of 1500 lumens for bright and efficient lighting

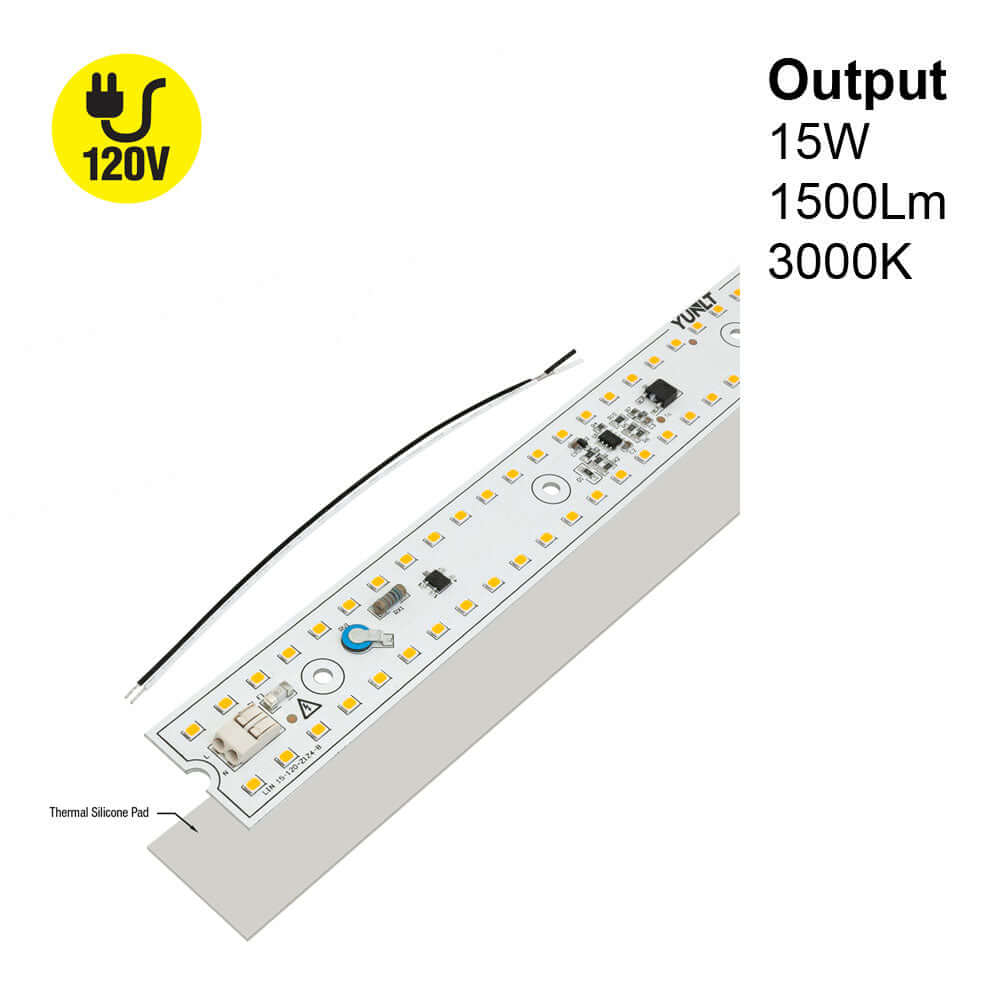

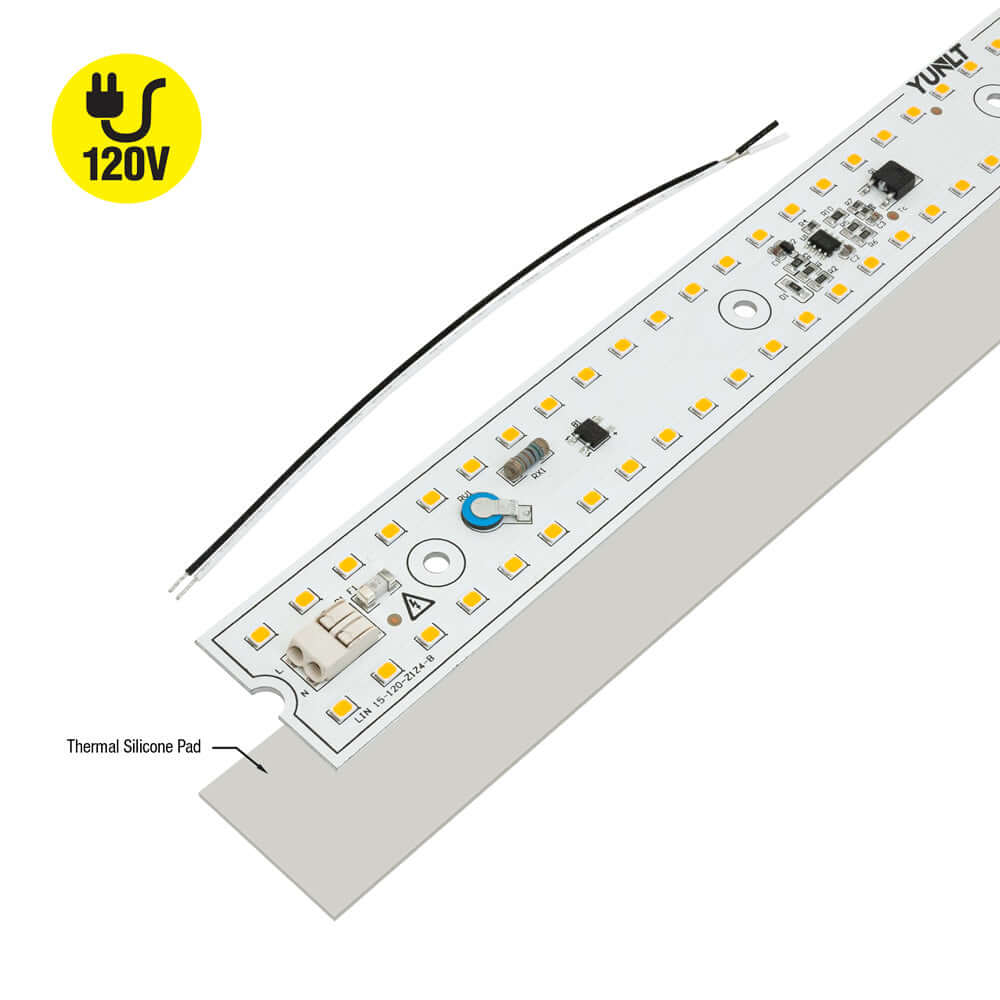

  • Dimmable and comes with a thermal silicon pad for even heat distribution
  • Includes 6-inch black and white power feed for easy installation
  • Dimensions of 380.50mm (15 inch) in length and 32.0 mm (1.25 inch) in width
  • Certified by ETL for safe and reliable use
  • It is a good DIY product for the replacement of a ceiling light/ Bulb source.
  • Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
