15 inch Linear ZEGA LED Module LIN 15-020W-930-120-S3-Z1B, 120V 20W 3000K(Warm White)

  • $36.40 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561427870
We only have 44 left! Get it now before it's completely gone.

FREE Shipping over $49 USD (Canada and US Only)


Product Description

Product LED Module

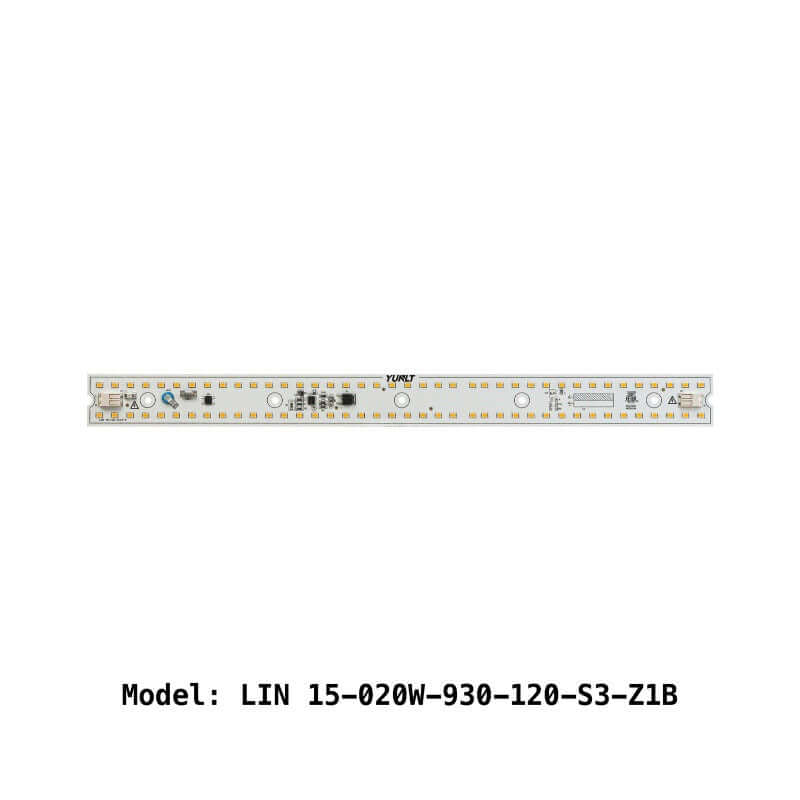

Model No LIN 15-020W-930-120-S3-Z1B
No of LEDs 80
Wattage 20W
Voltage 120V AC
Luminous Flux 1900 lumens
Color Temperature 3000K (Warm White)
Rendering Index CRI>90
Power Source AC
Dimmable Yes
Base Material Aluminum
Package Components  LED Module
Thermal Silicon Pad
6inch Black and White power feed

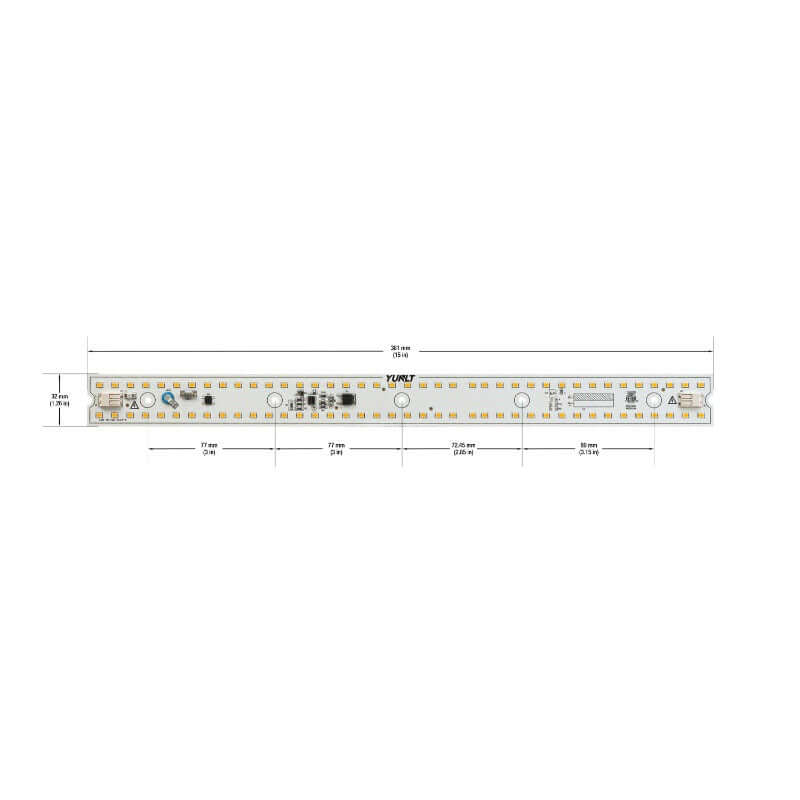

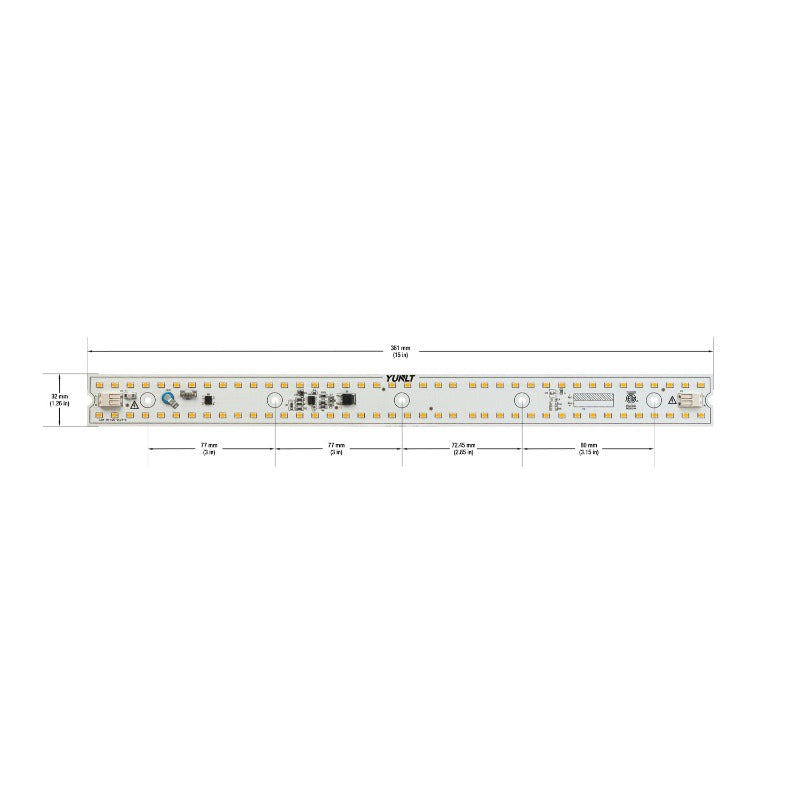

Dimensions 380.50mm (15 inch) x 32.0 mm (1.25 inch)
Diameter of the screw hole 3.5mm (0.14 in)
Height 6mm (0.23in)
Certification

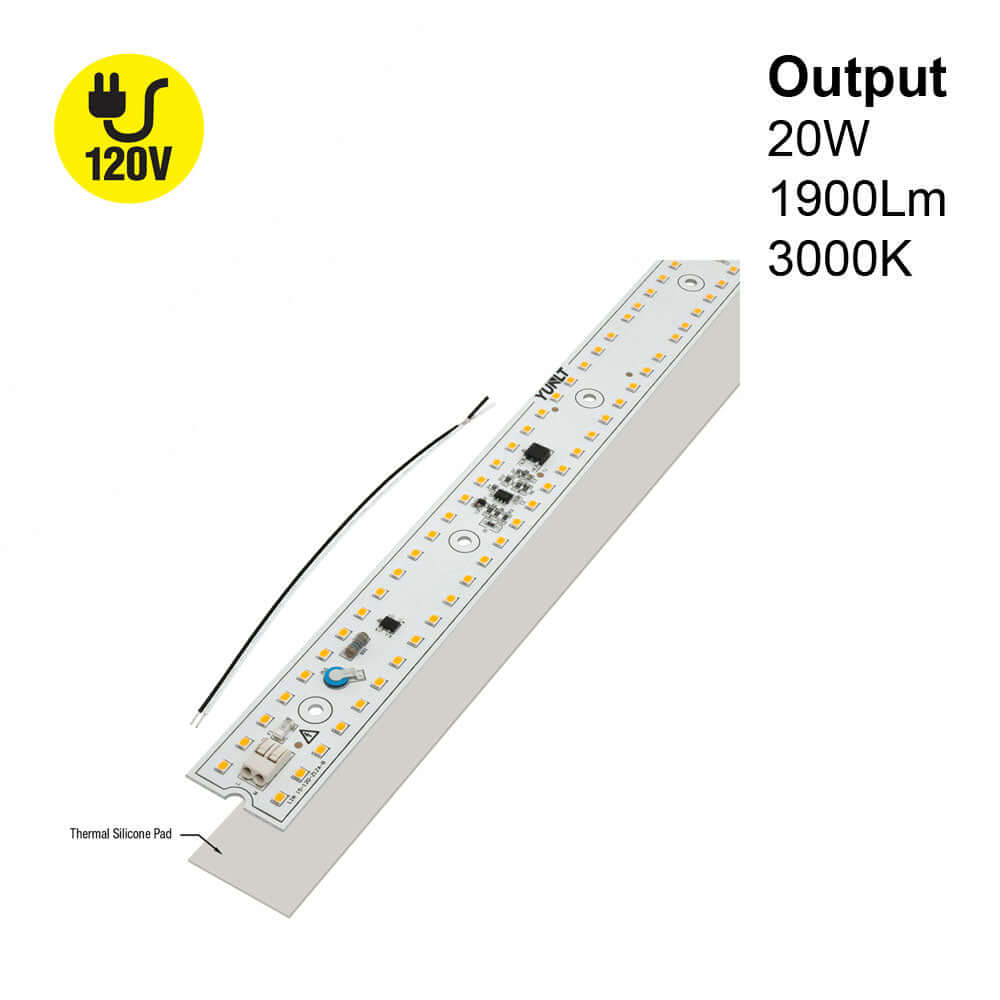

The LIN 15-020W-930-120-S3-Z1B is a 15-inch linear LED module driverless engine that provides high-quality, energy-efficient lighting suitable for various applications. It contains 80 LEDs and has a wattage of 20W, powered by 120V AC.

The module emits warm white light at a color temperature of 3000K, with a high color rendering index (CRI) of over 90, which means colors appear natural and vibrant. With a luminous flux of 1900 lumens, this LED module provides bright and efficient lighting suitable for various applications such as under-cabinet lighting, task lighting, and display lighting.

The dimensions of the module are 380.50mm (15 inch) in length and 32.0 mm (1.25 inch) in width. The diameter of the screw hole is 3.5mm (0.14 in). This LED module is also dimmable and comes with a thermal silicon pad for even heat distribution, which helps to prolong the life of the module.

In addition, the LIN 15-020W-930-120-S3-Z1B comes with a 6-inch black and white power feed for easy installation. It is certified by ETL for safe and reliable use. This LED module is an excellent choice for anyone looking for a high-quality, energy-efficient, and long-lasting LED lighting solution.

Features:

  • 15-inch linear LED module driverless engine
  • Made of aluminum for excellent heat dissipation
  • Contains 80 LEDs and has a wattage of 20W
  • Emits warm white light at 3000K with a CRI of over 90
  • Luminous flux of 1900 lumens for bright and efficient lighting
  • Suitable for under-cabinet lighting, task lighting, and display lighting
  • Dimmable and comes with a thermal silicon pad for even heat distribution
  • 6-inch black and white power feed included for easy installation
  • Certified by ETL for safe and reliable use.
  • It is a good DIY product for the replacement of a ceiling light/ Bulb source.

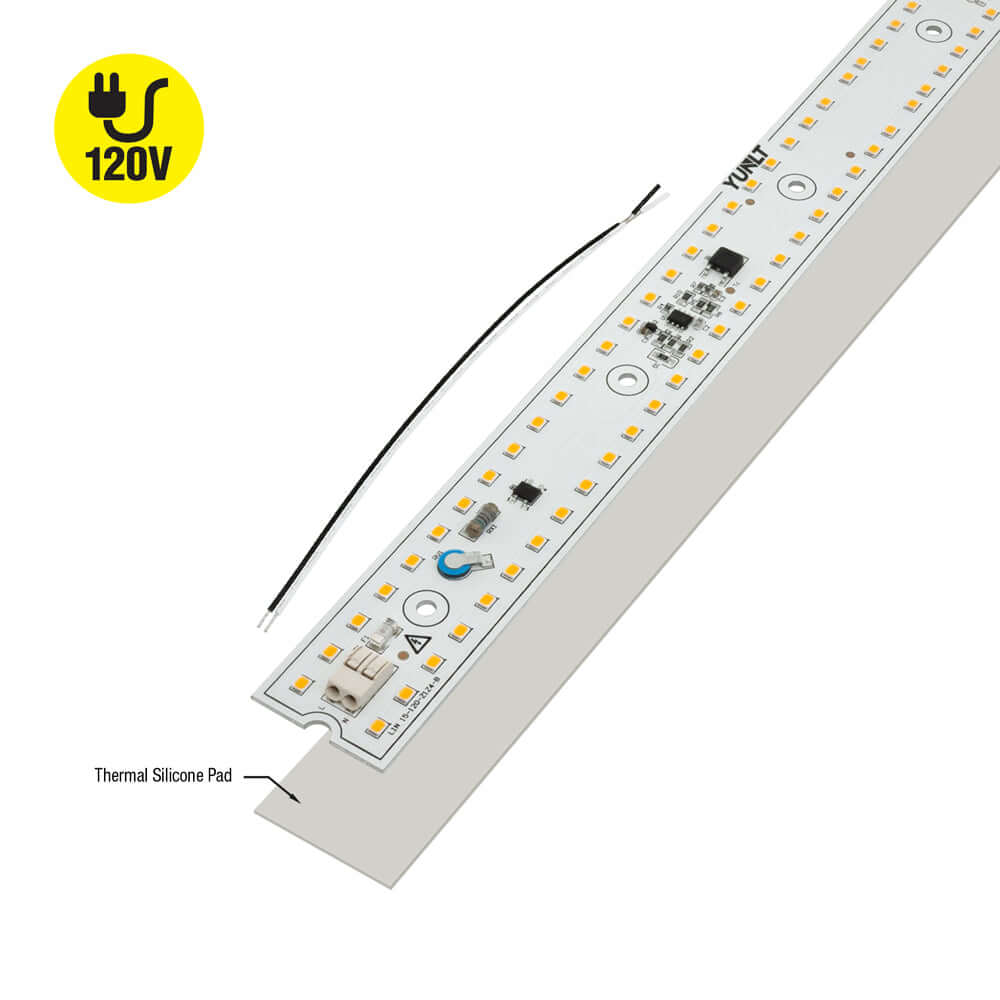

  • Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
