15 inch Slim ZEGA LED Module SLM 15-010W-930-120-S3-Z1A, 120V 10W 3000K(Warm White)

  • $30.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561428105
Title:
We only have 33 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).


Product Description

product LED Module

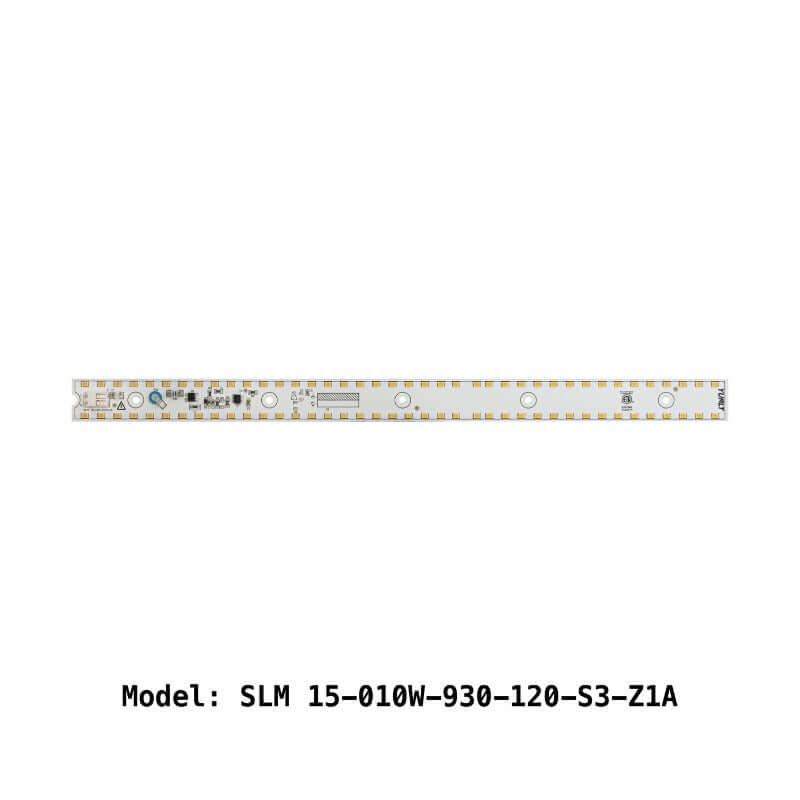

Model No SLM 15-010W-930-120-S3-Z1A
No of LEDs 80
Wattage 10W
Voltage 120V AC
Luminous Flux 950 lumens
Color Temperature 3000K (Warm White)
Rendering Index CRI>90
Power Source AC
Dimmable Yes
Base Material Aluminum
Package Components  LED Module
Thermal Silicon Pad
6inch Black and White power feed

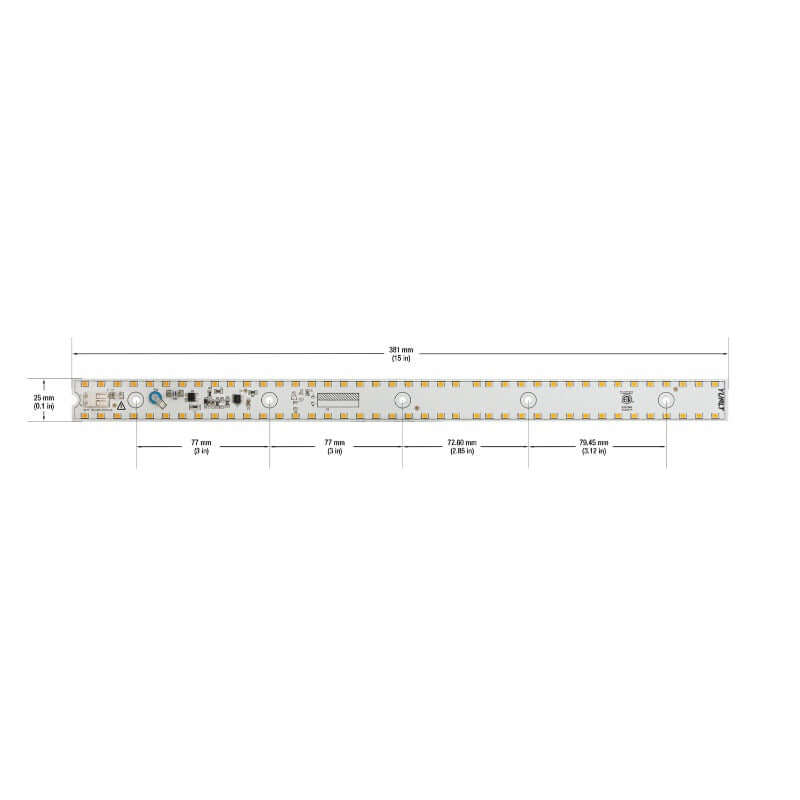

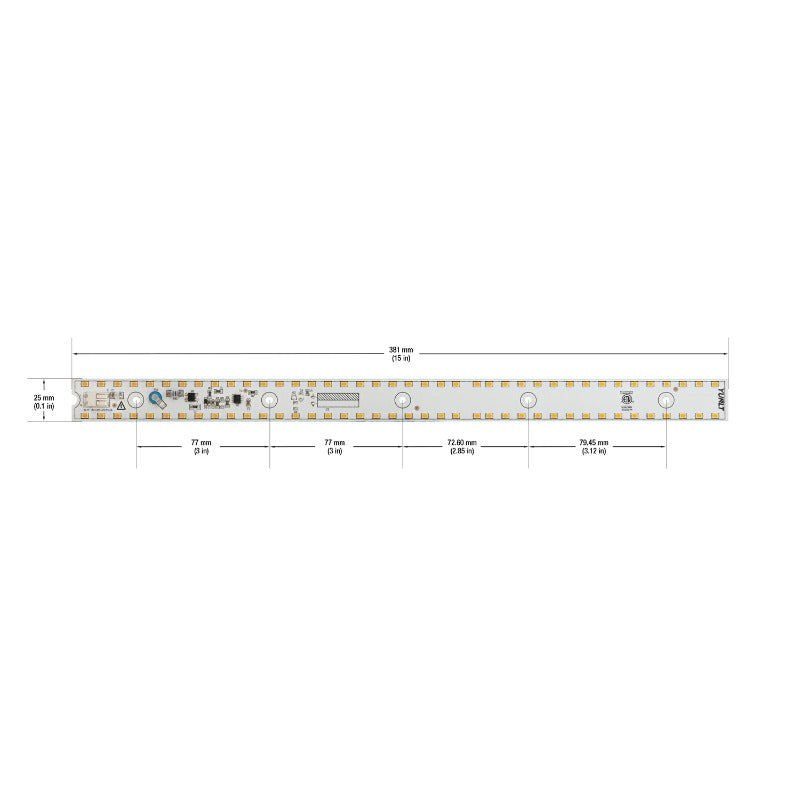

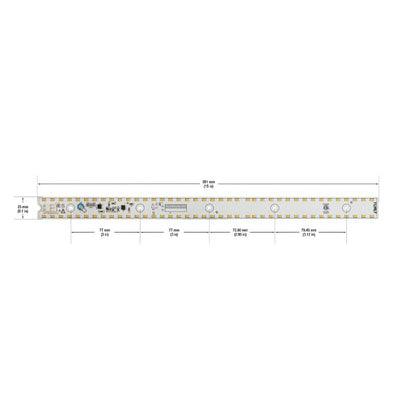

Dimensions 380.50mm (15 inch) x 25.0 mm (1 inch)
Diameter of the screw hole 3.5mm (0.13 in)
Height 6mm (0.23in)
Certification

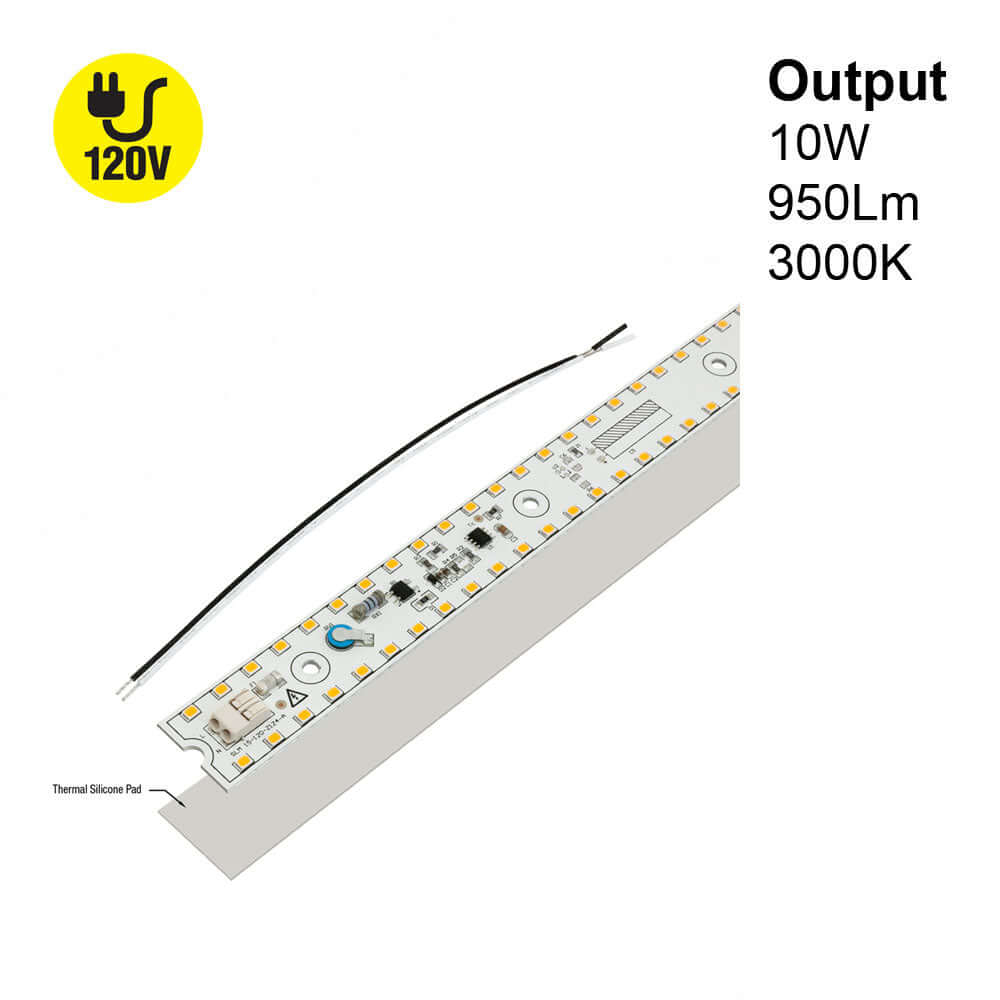

The SLM 15-010W-930-120-S3-Z1A is a 15-inch slim linear LED module driverless engine that provides high-quality and efficient lighting for various applications. It contains 80 LEDs and has a wattage of 10W, powered by 120V AC.

The module emits warm white light at a color temperature of 3000K, with a high color rendering index (CRI) of over 90, which means colors appear natural and vibrant. With a luminous flux of 950 lumens, this LED module provides bright and efficient lighting suitable for various applications such as under-cabinet lighting, task lighting, and display lighting.

The dimensions of the module are 380.50mm (15 inch) in length and 25.0 mm (1 inch) in width. The diameter of the screw hole is 3.5mm (0.13 in). This LED module is also dimmable and comes with a thermal silicon pad for even heat distribution, which helps to prolong the life of the module.

In addition, the SLM 15-010W-930-120-S3-Z1A comes with a 6-inch black and white power feed for easy installation. It is certified by ETL for safe and reliable use. This LED module is an excellent choice for anyone looking for a high-quality, energy-efficient, and long-lasting LED lighting solution.

Features:

  • 15-inch slim linear LED module driverless engine
  • Made of aluminum for excellent heat dissipation
  • Contains 80 LEDs with 10W wattage, powered by 120V AC
  • Emits warm white light at a color temperature of 3000K
  • High color rendering index (CRI) of over 90 for natural and vibrant colors
  • Luminous flux of 950 lumens for bright and efficient lighting
  • Suitable for various applications such as under-cabinet lighting, task lighting, and display lighting
  • Dimmable and comes with a thermal silicon pad for even heat distribution
  • Dimensions of 380.50mm (15 inch) in length and 25.0 mm (1 inch) in width
  • Diameter of the screw hole is 3.5mm (0.13 in)
  • Comes with a 6-inch black and white power feed for easy installation
  • Certified by ETL for safe and reliable use
  • It is a good DIY product for the replacement of a ceiling light/ Bulb source.

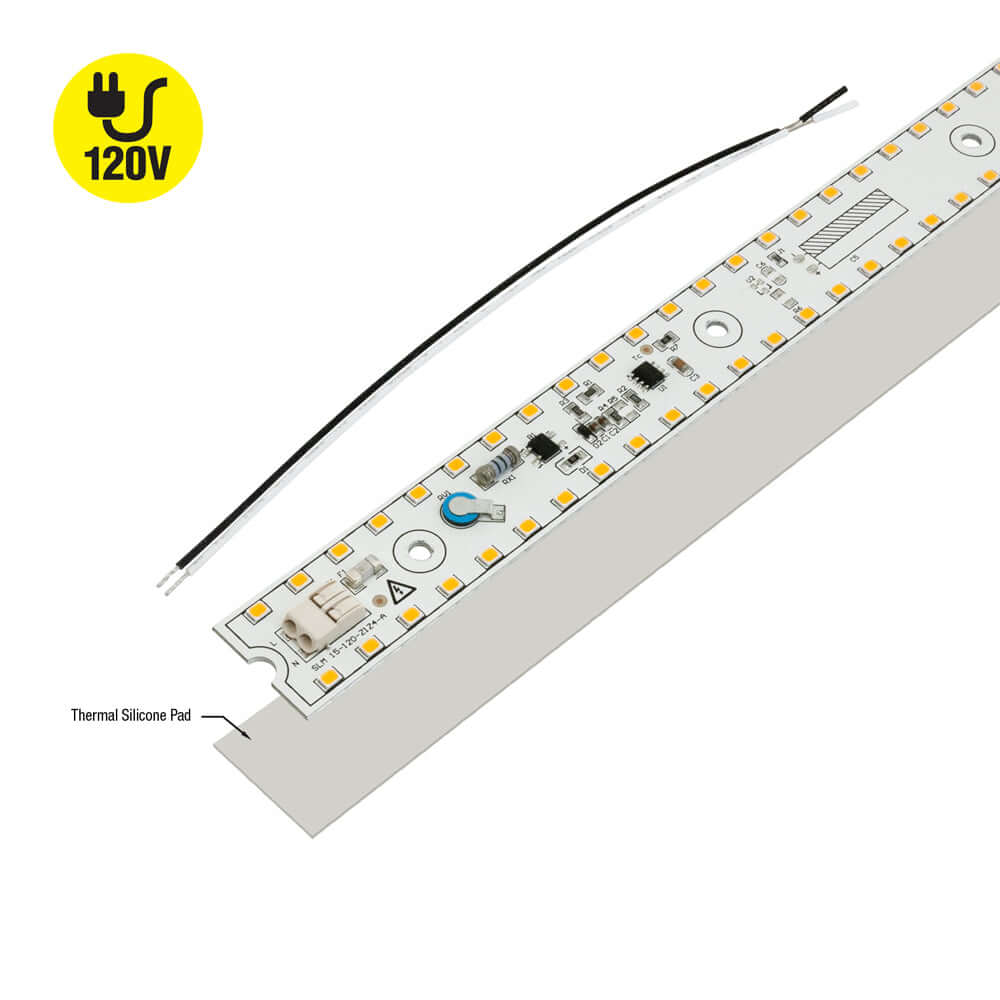

  • Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
