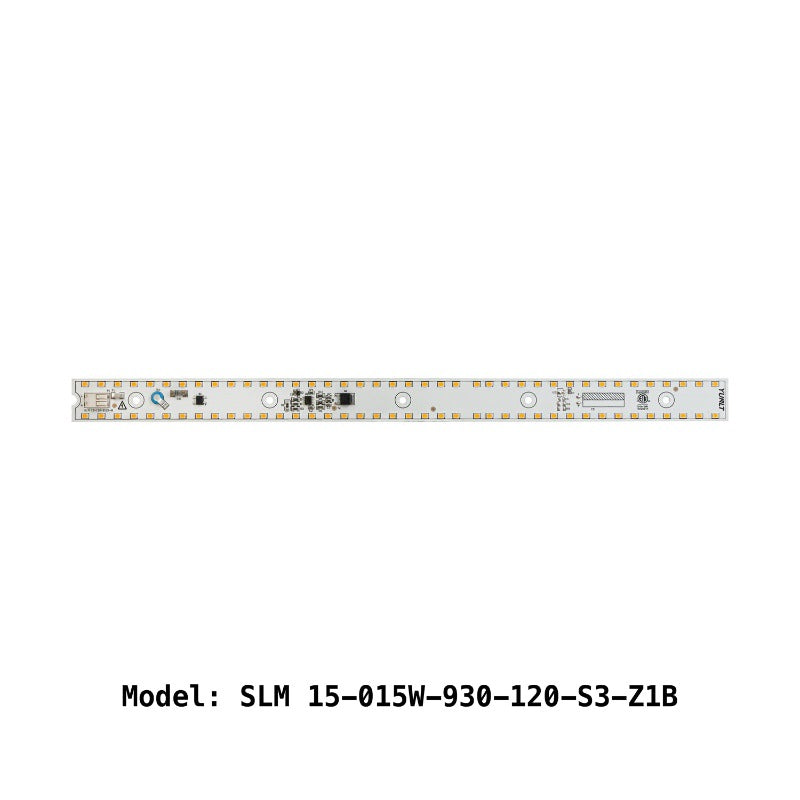

15 inch Slim ZEGA LED Module SLM 15-015W-930-120-S3-Z1B, 120V 15W 3000K(Warm White)
|Model No||SLM 15-015W-930-120-S3-Z1B|
|No of LEDs||80|
|Luminous Flux||1400 lumens|
|Color Temperature||3000K (Warm White)|
|Package Components||LED Module
Thermal Silicon Pad
6inch Black and White power feed

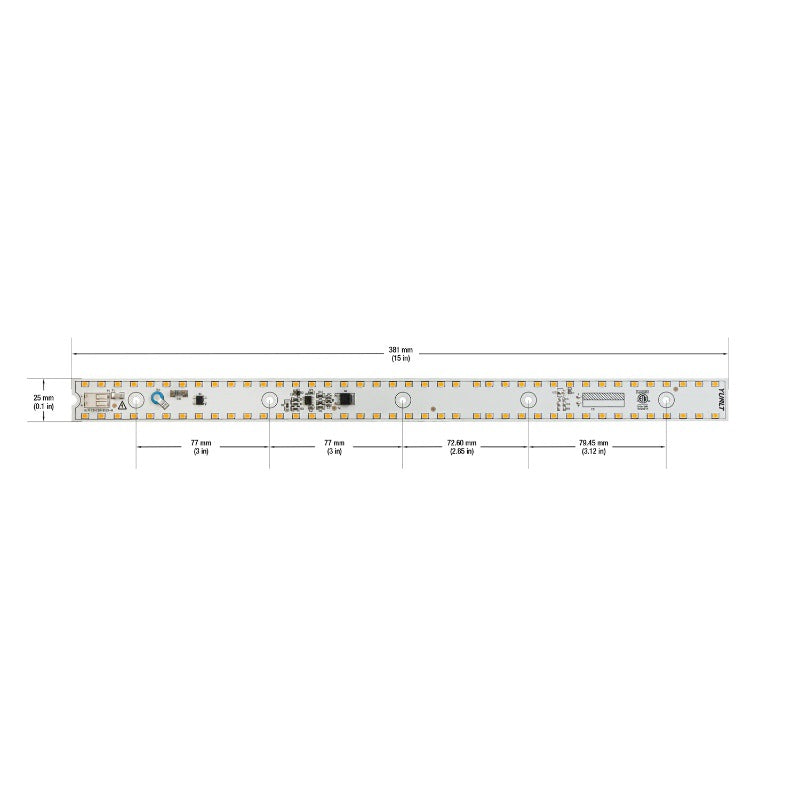

|Dimensions||380.50mm (15 inch) x 25.0 mm (1 inch)|
|Diameter of the screw hole||3.5mm (0.13 in)|

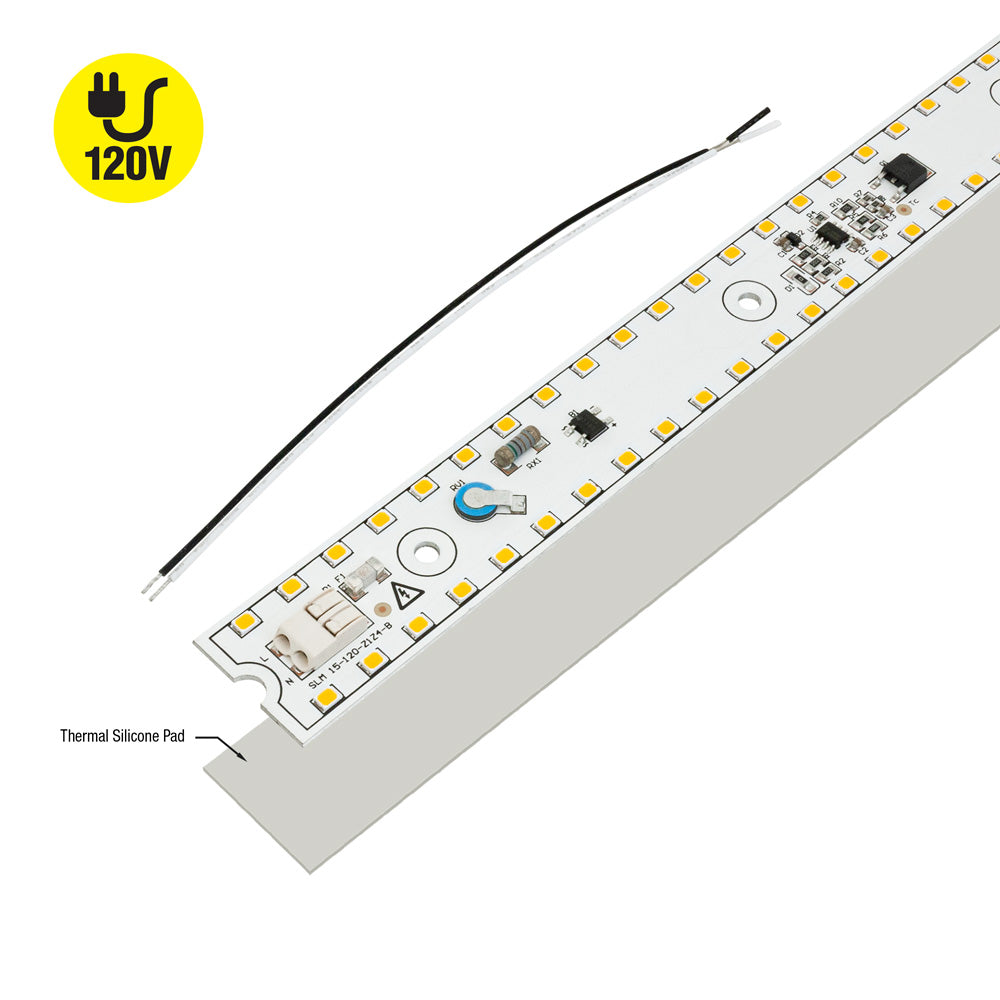

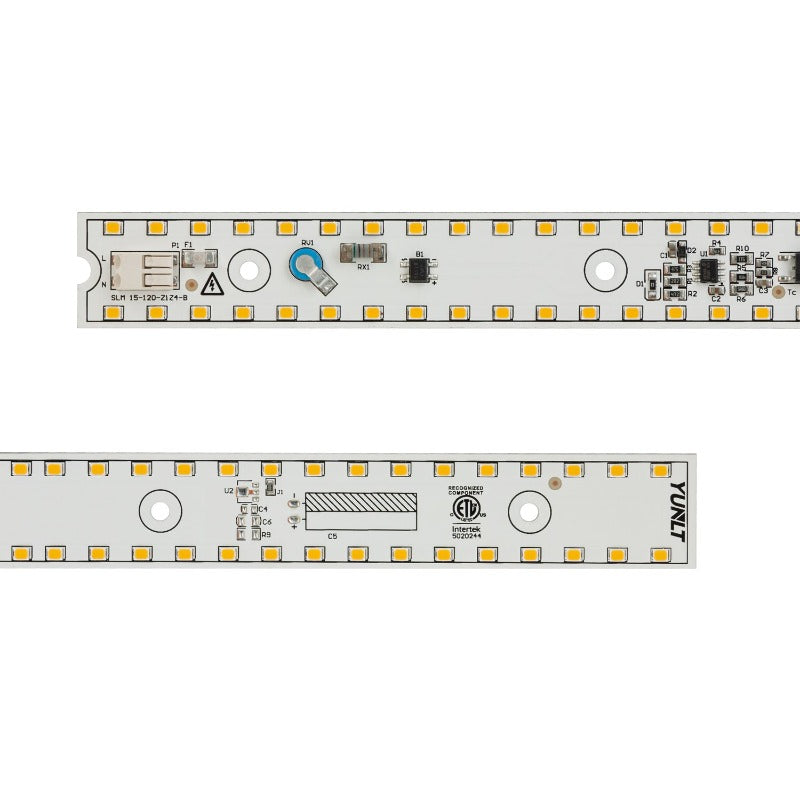

The SLM 15-015W-930-120-S3-Z1B is a 15-inch slim linear LED module driverless engine that provides high-quality and efficient lighting for various applications. It contains 80 LEDs and has a wattage of 15W, powered by 120V AC.
The module emits warm white light at a color temperature of 3000K, with a high color rendering index (CRI) of over 90, which means colors appear natural and vibrant. With a luminous flux of 1400 lumens, this LED module provides bright and efficient lighting suitable for various applications such as under-cabinet lighting, task lighting, and display lighting.
The dimensions of the module are 380.50mm (15 inch) in length and 25.0 mm (1 inch) in width. The diameter of the screw hole is 3.5mm (0.13 in). This LED module is also dimmable and comes with a thermal silicon pad for even heat distribution, which helps to prolong the life of the module.
In addition, the SLM 15-015W-930-120-S3-Z1B comes with a 6-inch black and white power feed for easy installation. It is certified by ETL for safe and reliable use. This LED module is an excellent choice for anyone looking for a high-quality, energy-efficient, and long-lasting LED lighting solution.
- 15-inch slim linear LED module driverless engine
- Contains 80 LEDs and has a wattage of 15W, powered by 120V AC
- Emits warm white light at a color temperature of 3000K
- High color rendering index (CRI) of over 90 for natural and vibrant colors
- Luminous flux of 1400 lumens for bright and efficient lighting
- Suitable for various applications such as under-cabinet lighting, task lighting, and display lighting
- Dimensions: 380.50mm (15 inch) in length and 25.0 mm (1 inch) in width, with a 3.5mm (0.13 in) diameter screw hole
- Dimmable and comes with a thermal silicon pad for even heat distribution to prolong module life
- Comes with a 6-inch black and white power feed for easy installation
- Certified by ETL for safe and reliable use
- It is a good DIY product for the replacement of a ceiling light/ Bulb source.
- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
