15 inch Slim ZEGA LED Module SLM 15-018W-930-120-S3-Z1B, 120V 18W 3000K(Warm White)

  • $34.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561428129
Title:
We only have 41 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).


Product Description

Product LED Module

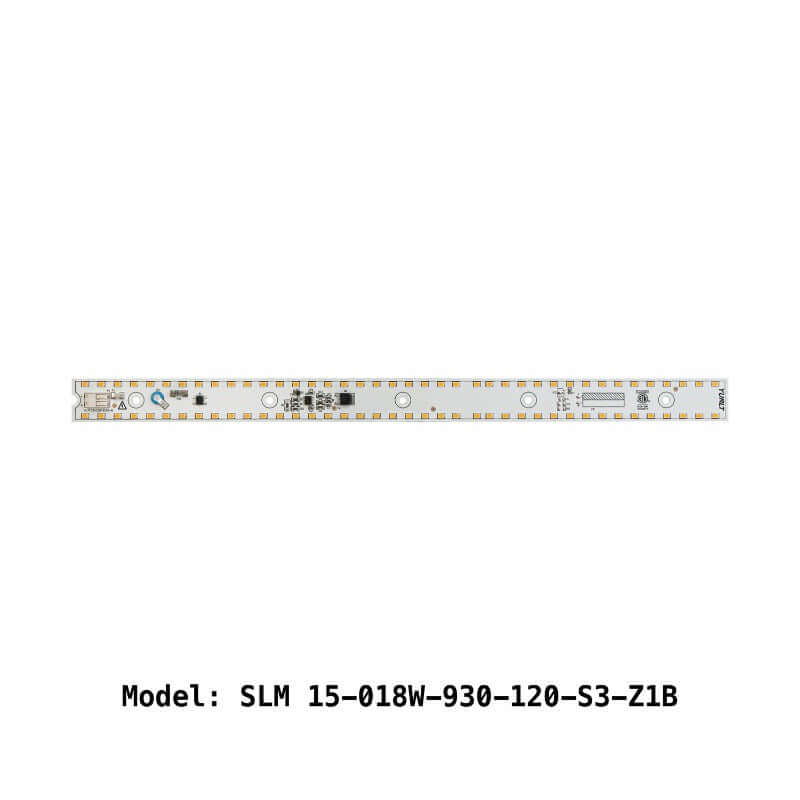

Model No SLM 15-018W-930-120-S3-Z1B
No of LEDs 80
Wattage 18W
Voltage 120V AC
Luminous Flux 1700 lumens
Color Temperature 3000K (Warm White)
Rendering Index CRI>90
Power Source AC
Dimmable Yes
Base Material Aluminum
Package Components  LED Module
Thermal Silicon Pad
6inch Black and White power feed

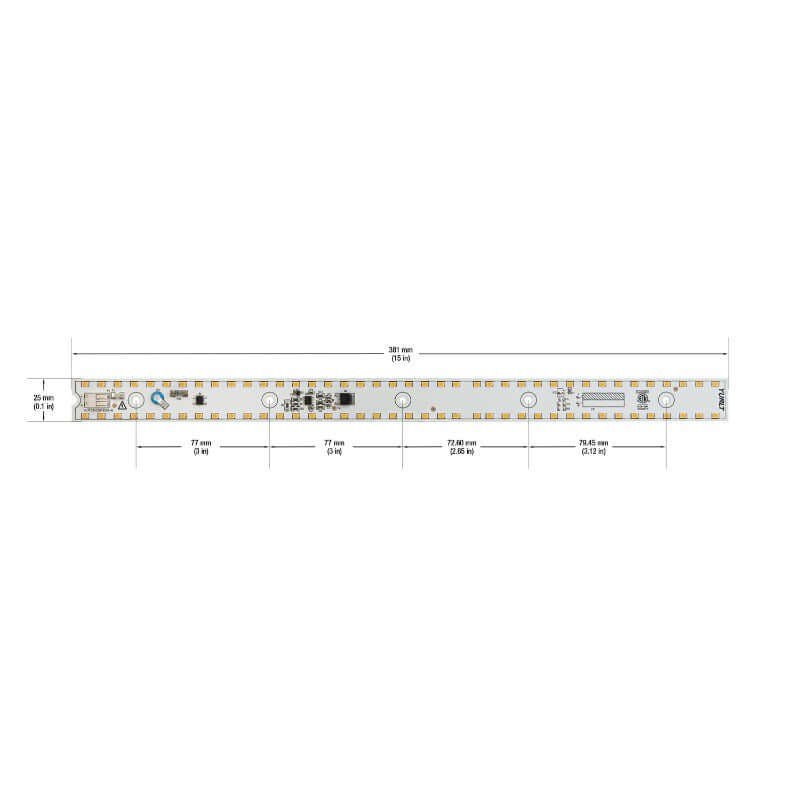

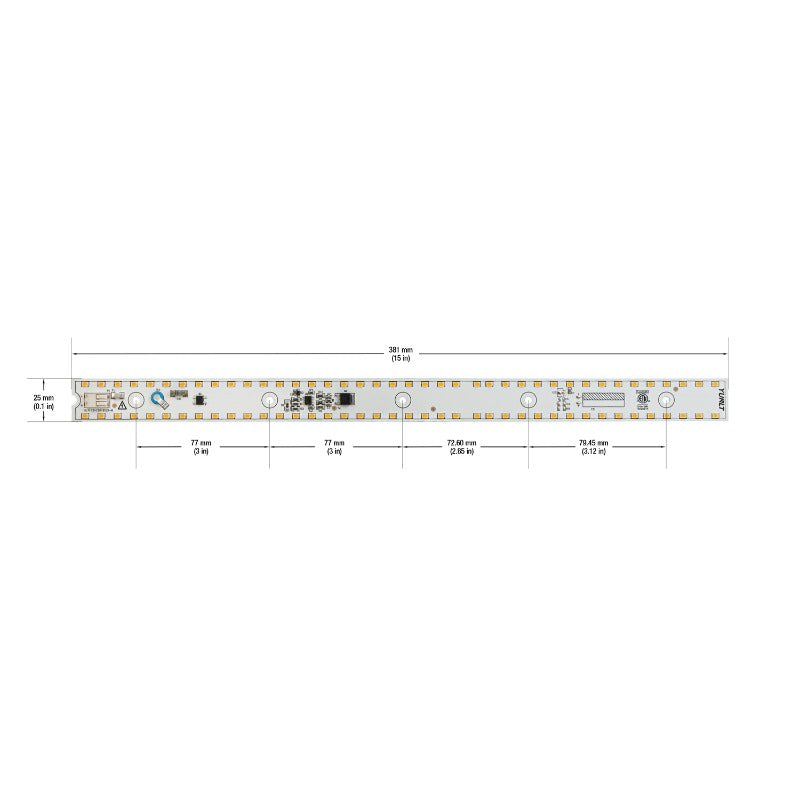

Dimensions 380.50mm (15 inch) x 25.0 mm (1 inch)
Diameter of the screw hole 3.5mm (0.13 in)
Height 6mm (0.23in)
Certification

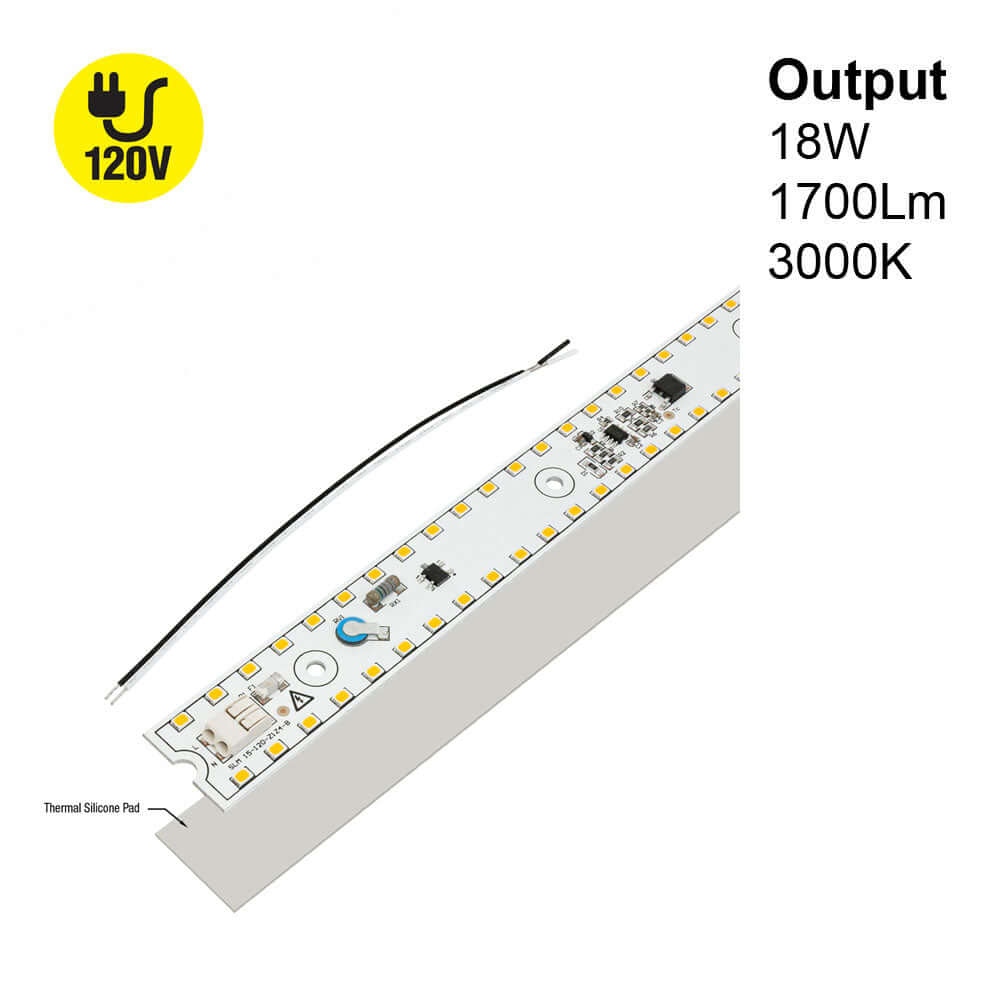

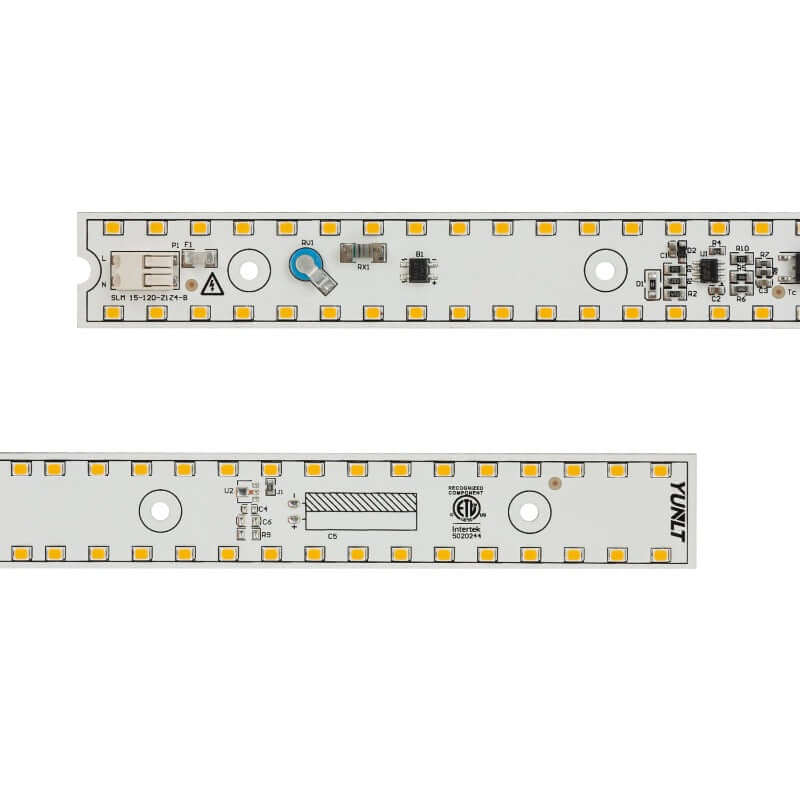

The SLM 15-018W-930-120-S3-Z1B is a 15-inch slim linear LED module driverless engine that offers high-quality, energy-efficient lighting for a variety of applications. contains 80 LEDs and has a wattage of 18W, powered by 120V AC.

The module emits warm white light at a color temperature of 3000K, with a high color rendering index (CRI) of over 90, which means colors appear natural and vibrant. With a luminous flux of 1700 lumens, this LED module provides bright and efficient lighting suitable for various applications such as under-cabinet lighting, task lighting, and display lighting.

The dimensions of the module are 380.50mm (15 inch) in length and 25.0 mm (1 inch) in width. The diameter of the screw hole is 3.5mm (0.13 in). This LED module is also dimmable and comes with a thermal silicon pad for even heat distribution, which helps to prolong the life of the module.

In addition, the SLM 15-018W-930-120-S3-Z1B comes with a 6-inch black and white power feed for easy installation. It is certified by ETL for safe and reliable use. This LED module is an excellent choice for anyone looking for a high-quality, energy-efficient, and long-lasting LED lighting solution.

Features:

  • 15-inch slim linear LED module driverless engine
  • Contains 80 LEDs with a wattage of 18W, powered by 120V AC
  • Emits warm white light at a color temperature of 3000K with a high CRI of over 90, making colors appear natural and vibrant
  • Provides bright and efficient lighting with a luminous flux of 1700 lumens, suitable for various applications such as under-cabinet lighting, task lighting, and display lighting
  • Dimensions: 380.50mm (15 inch) in length and 25.0 mm (1 inch) in width, with a screw hole diameter of 3.5mm (0.13 in)
  • Dimmable with a thermal silicon pad for even heat distribution, helping to prolong the life of the module
  • Comes with a 6-inch black and white power feed for easy installation
  • Certified by ETL for safe and reliable use
  • Ideal for anyone looking for a high-quality, energy-efficient, and long-lasting LED lighting solution.
  • It is a good DIY product for the replacement of a ceiling light/ Bulb source.

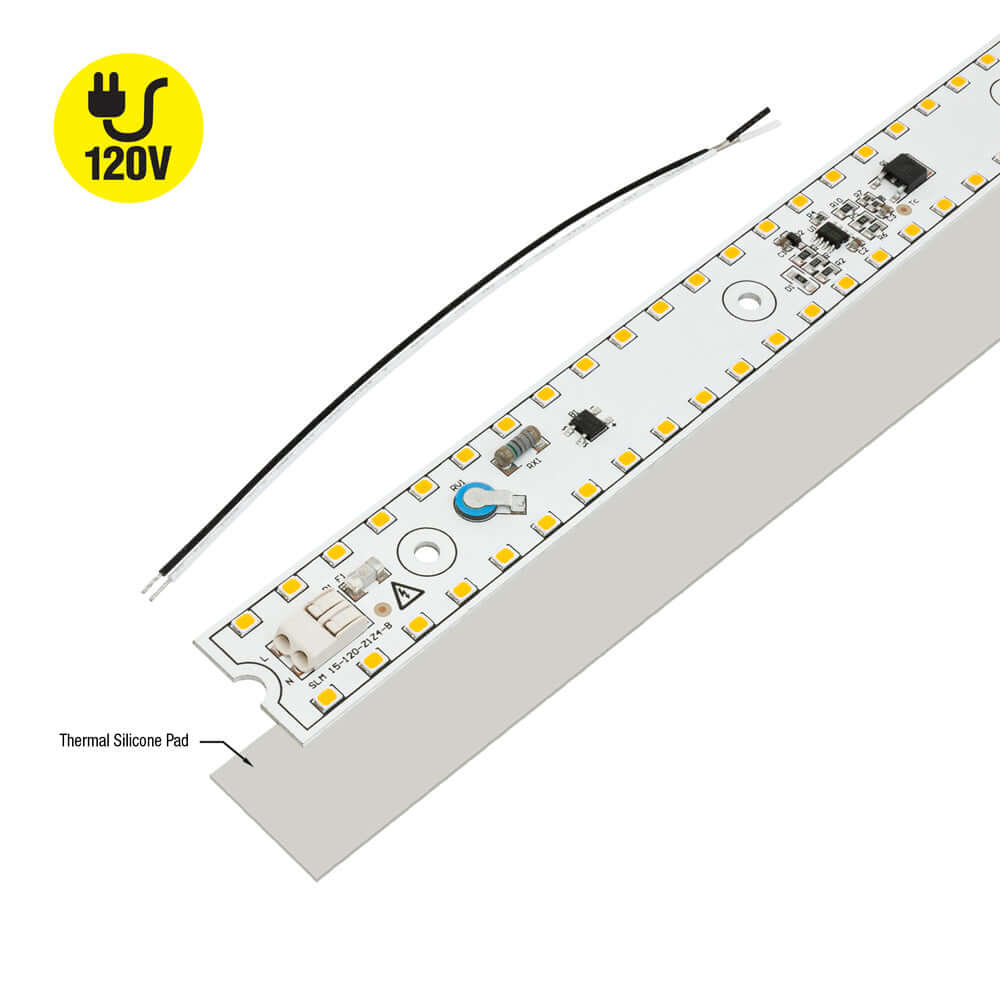

  • Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
