Product Description
| Product | LED Module |

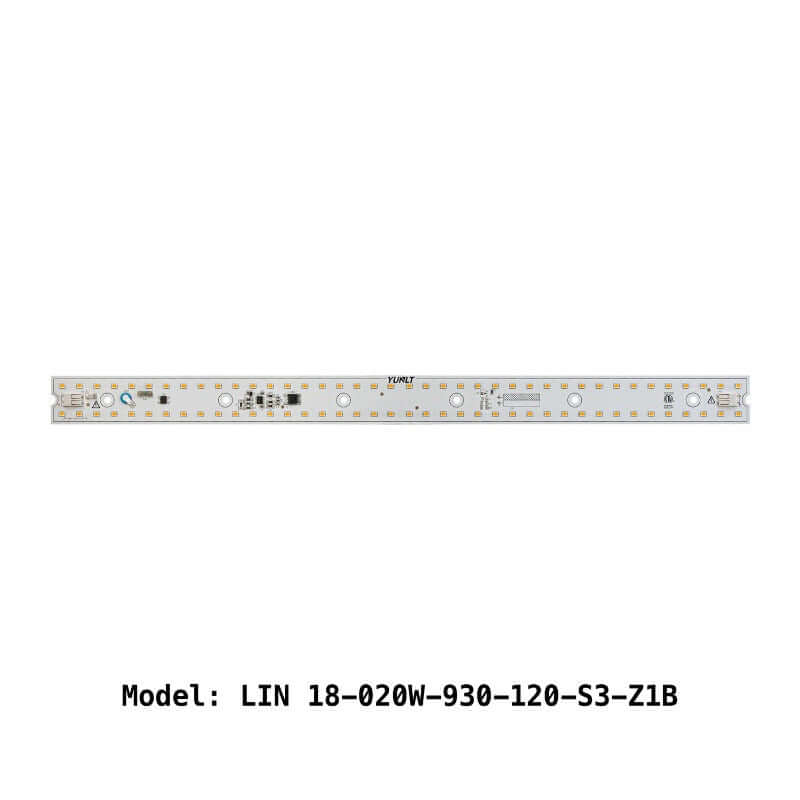

| Model No | LIN 18-020W-930-120-S3-Z1B |
| No of LEDs | 80 |
| Wattage | 20W |
| Voltage | 120V AC |
| Luminous Flux | 1800 lumens |
| Color Temperature | 3000K (Warm White) |
| Rendering Index | CRI>90 |
| Power Source | AC |
| Dimmable | Yes |
| Base Material | Aluminum |
| Weight | 0.06 kg |
| Package Components | LED Module Thermal Silicon Pad 6inch Black and White power feed |

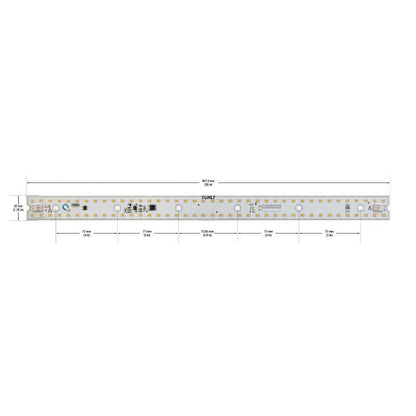

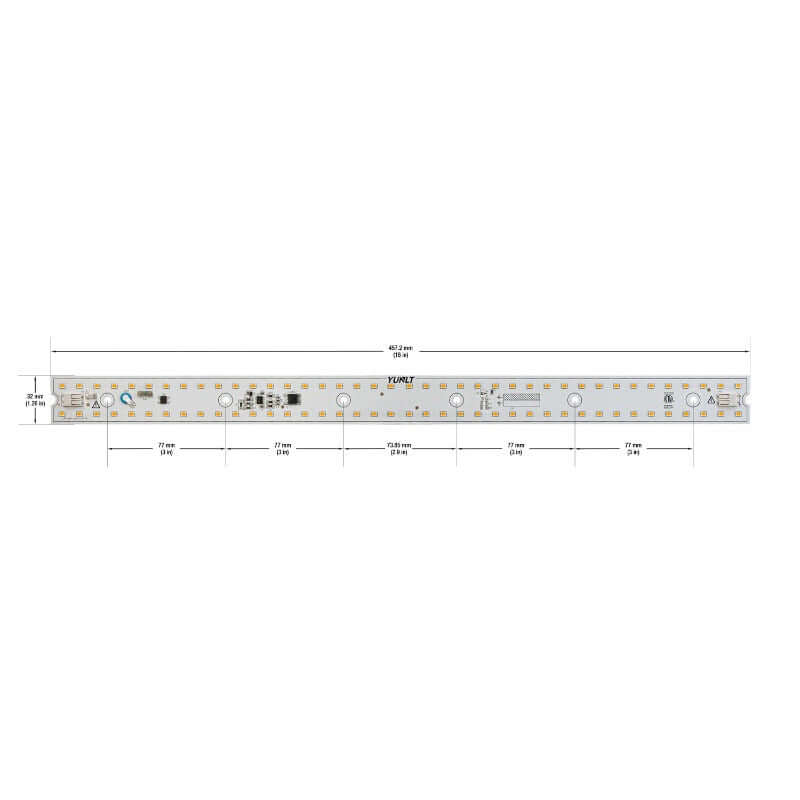

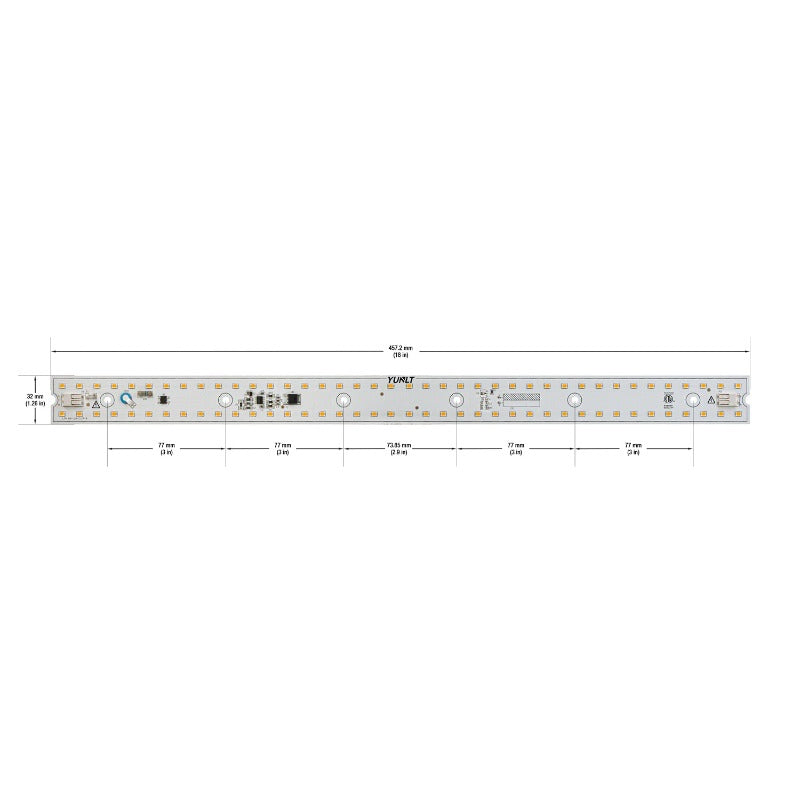

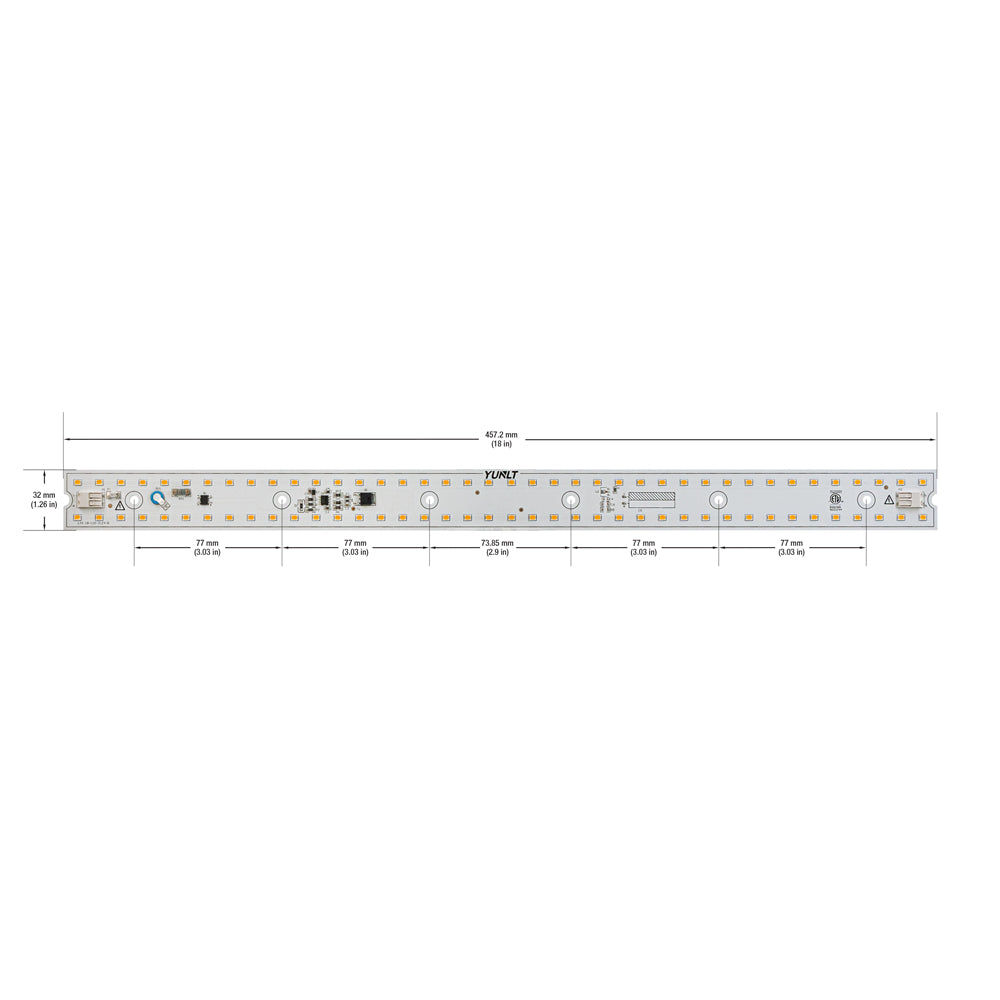

| Dimensions | 457.0mm (18 inch) x 32 mm (1.25 inch) |
| Diameter of the screw hole | 3.5mm (0.14 in) |
| Height | 6mm (0.23in) |
| Certification |
|
Features:
- 18-inch linear LED module driverless engine
- Contains 80 LEDs with a wattage of 20W, powered by 120V AC
- Emits warm white light at 3000K with a high CRI of over 90 for natural and vibrant colors
- Provides a luminous flux of 1800 lumens for bright and efficient lighting suitable for various applications
- Dimensions of 457.0mm (18 inch) in length and 32 mm (1.25 inch) in width with a screw hole diameter of 3.5mm (0.14 in)
- Dimmable and comes with a thermal silicon pad for even heat distribution, prolonging the module's life
- Includes a 6-inch black and white power feed for easy installation
- 18 inch Linear ZEGA LED Module 120V 20W 3000K

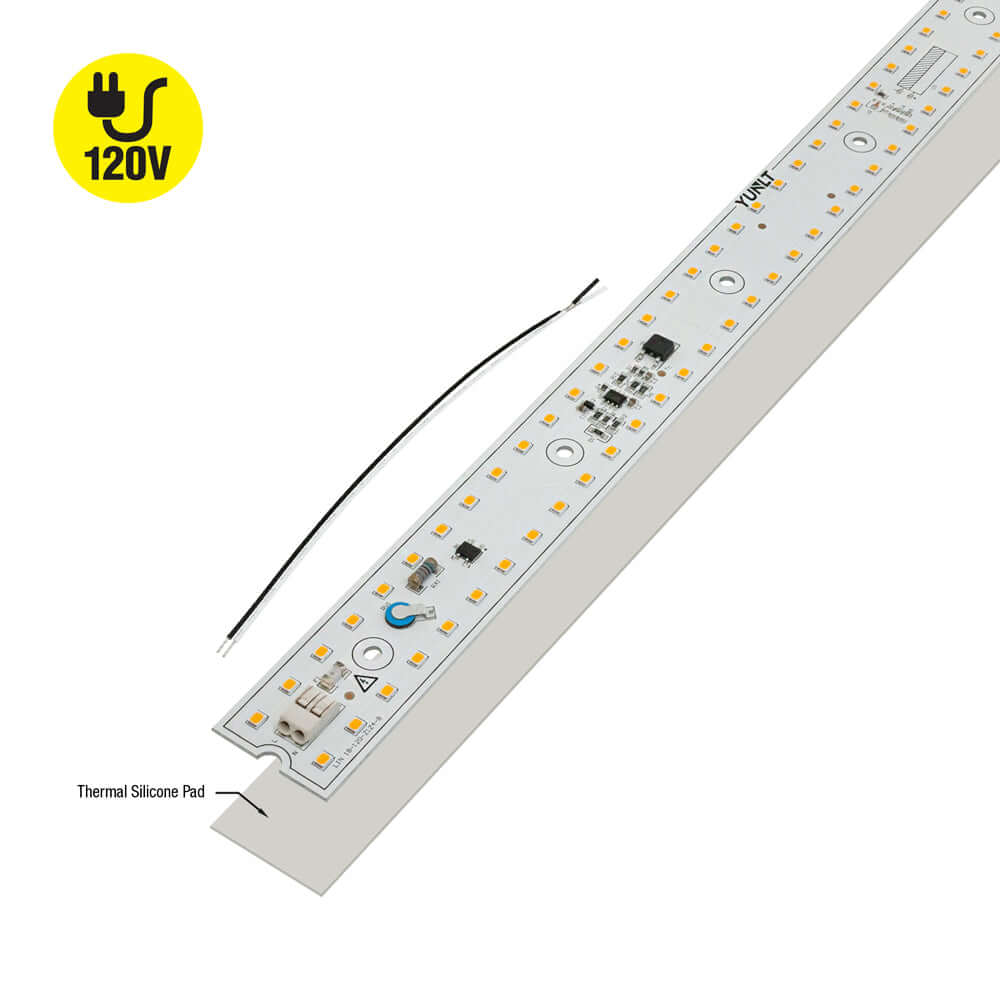

- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
