Product Description

Product	LED Module
Model No	SLM 18-015W-930-120-S3-Z1B
No of LEDs	80
Wattage	15W
Voltage	120V AC
Luminous Flux	1400 lumens
Color Temperature	3000K (Warm White)
Rendering Index	CRI>90
Power Source	AC
Dimmable	Yes
Base Material	Aluminum
Package Components	LED Module Thermal Silicon Pad 6inch Black and White power feed
Dimensions	457.0mm (18 inch) x 25 mm (1.0 inch)
Diameter of the screw hole	3.5mm (0.13 in)
Certification

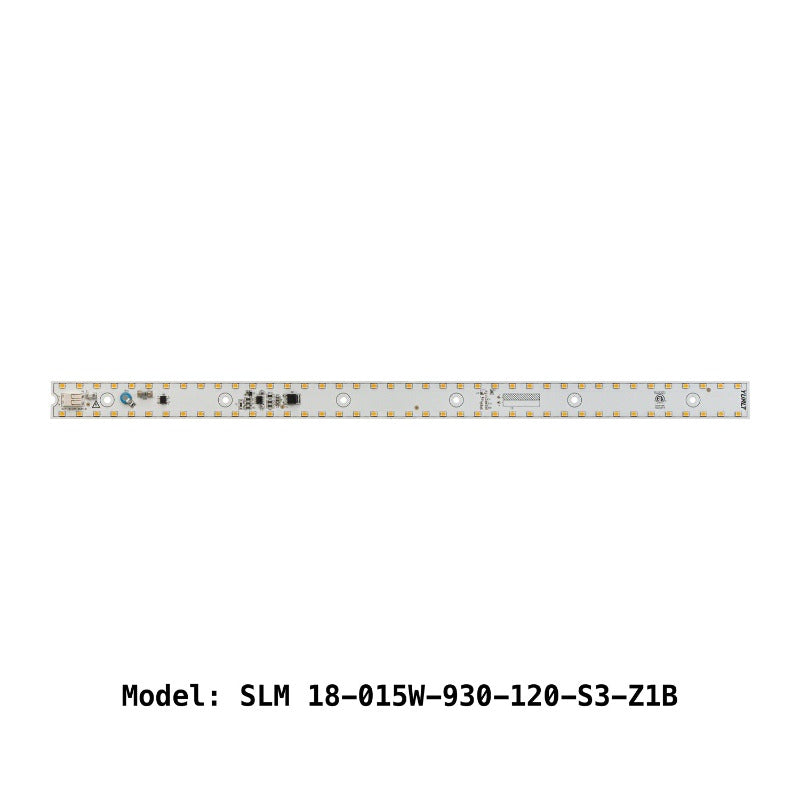

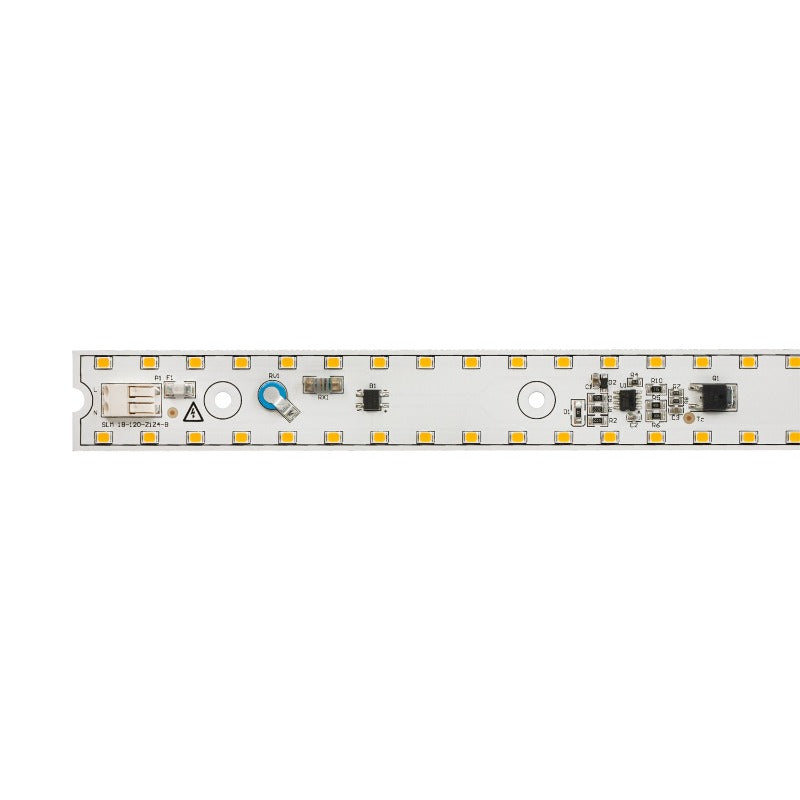

The SLM 18-015W-930-120-S3-Z1B is an 18-inch slim LED module driverless engine that offers high-quality, energy-efficient lighting suitable for various applications. This LED module is made of aluminum, which provides excellent heat dissipation and eliminates the need for an extra heat sink. It contains 80 LEDs and has a wattage of 15W, powered by 120V AC.

The module emits warm white light at a color temperature of 3000K, with a high color rendering index (CRI) of over 90, which means colors appear natural and vibrant. With a luminous flux of 1400 lumens, this LED module provides bright and efficient lighting suitable for various applications such as under-cabinet lighting, task lighting, and display lighting.

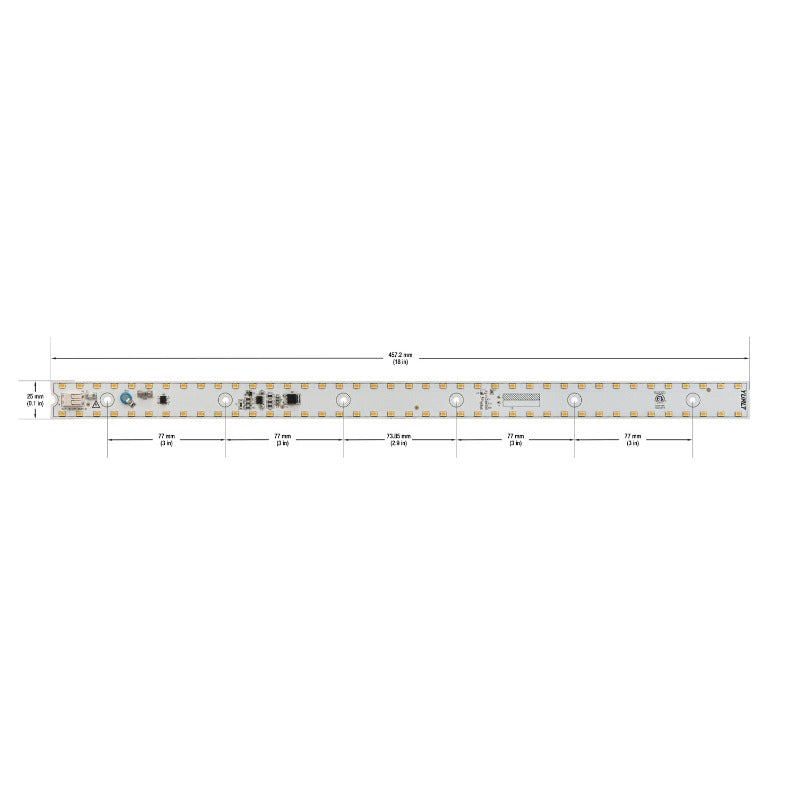

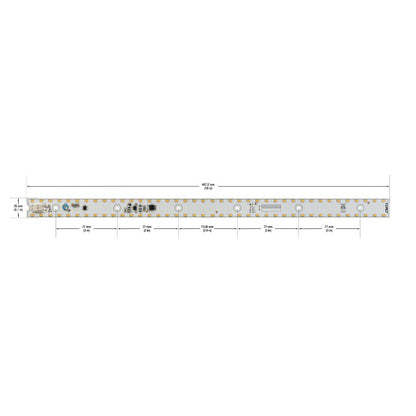

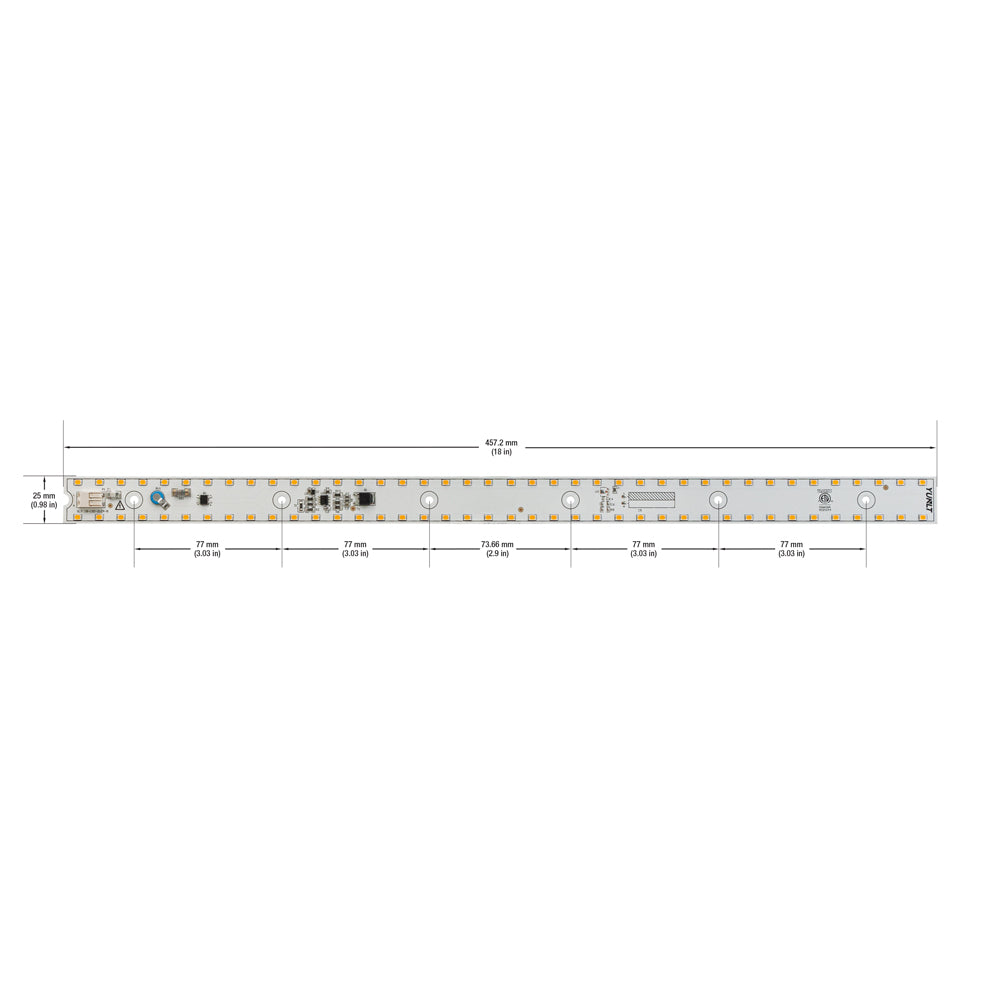

The dimensions of the module are 457.0mm (18 inch) in length and 25 mm (1.0 inch) in width. The diameter of the screw hole is 3.5mm (0.13 in). This LED module is also dimmable and comes with a thermal silicon pad for even heat distribution, which helps to prolong the life of the module.

In addition, the SLM 18-015W-930-120-S3-Z1B comes with a 6-inch black and white power feed for easy installation. It is certified by ETL for safe and reliable use. This LED module is an excellent choice for anyone looking for a high-quality, energy-efficient, and long-lasting LED lighting solution in a slim profile.

Features:

• 18-inch slim LED module driverless engine
• Made of aluminum for excellent heat dissipation
• Contains 80 LEDs with 15W wattage and 120V AC power source
• Emits warm white light at 3000K color temperature with CRI>90
• Provides 1400 lumens of bright and efficient lighting
• Suitable for various applications such as under-cabinet, task, and display lighting
• Dimmable and comes with a thermal silicon pad for even heat distribution
• Dimensions: 457.0mm (18 inch) x 25 mm (1.0 inch)
• Diameter of the screw hole: 3.5mm (0.13 in)
• Comes with a 6-inch black and white power feed for easy installation
• Certified by ETL for safe and reliable use
• It is a good DIY product for the replacement of a ceiling light/ Bulb source.

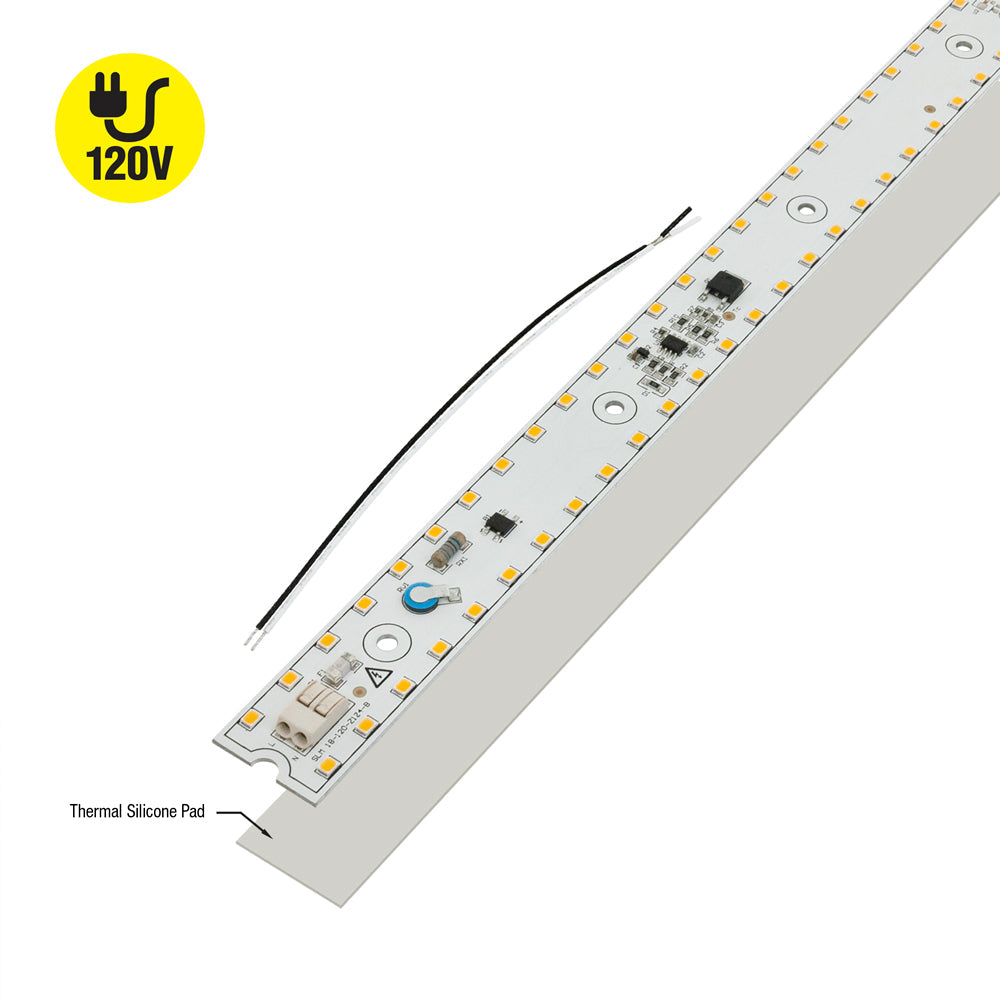

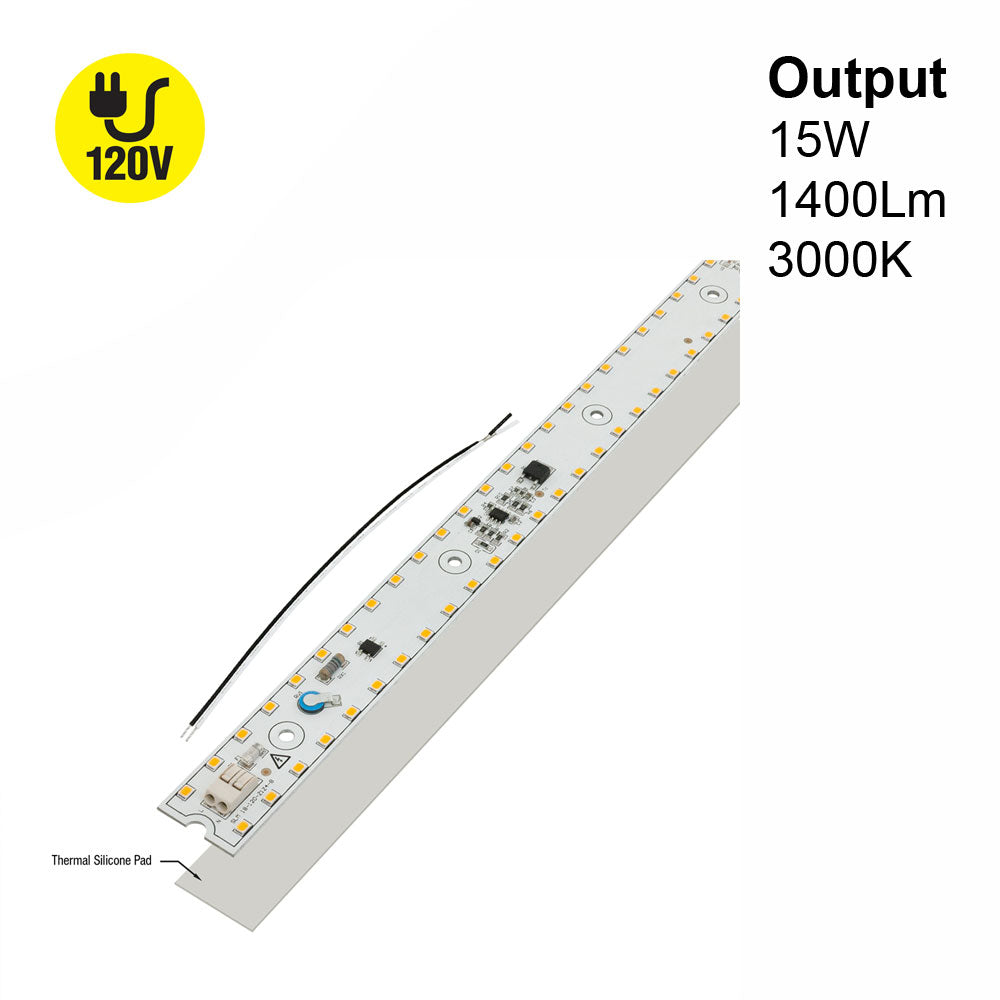

• Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
