18 inch Slim ZEGA LED Module SLM 18-020W-930-120-S3-Z1B, 120V 20W 3000K(Warm White)
Product Description
| Product | LED Module |

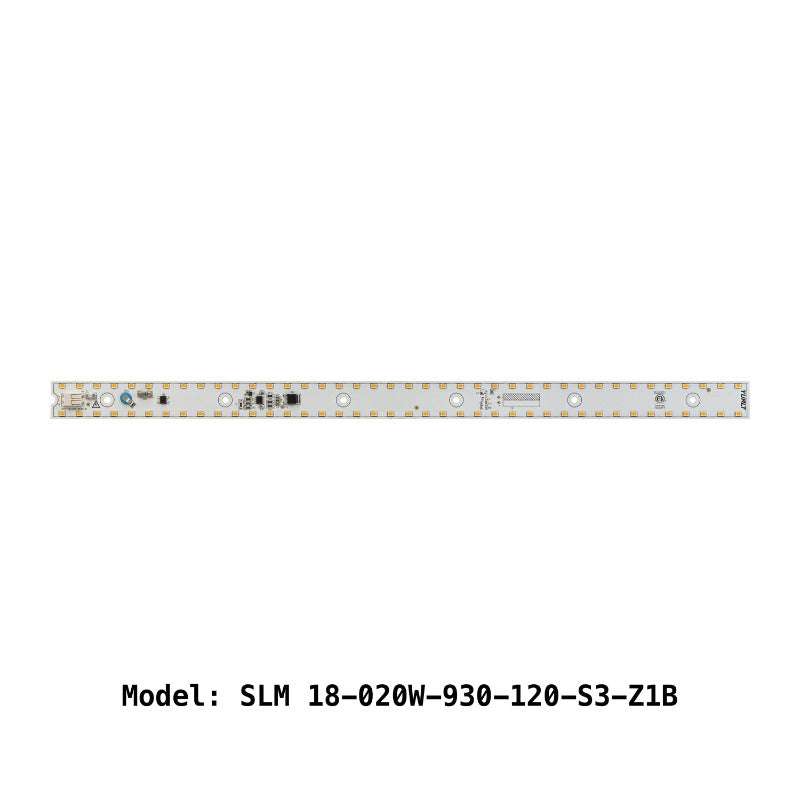

| Model No | SLM 18-020W-930-120-S3-Z1B |
| No of LEDs | 80 |
| Wattage | 20W |
| Voltage | 120V AC |

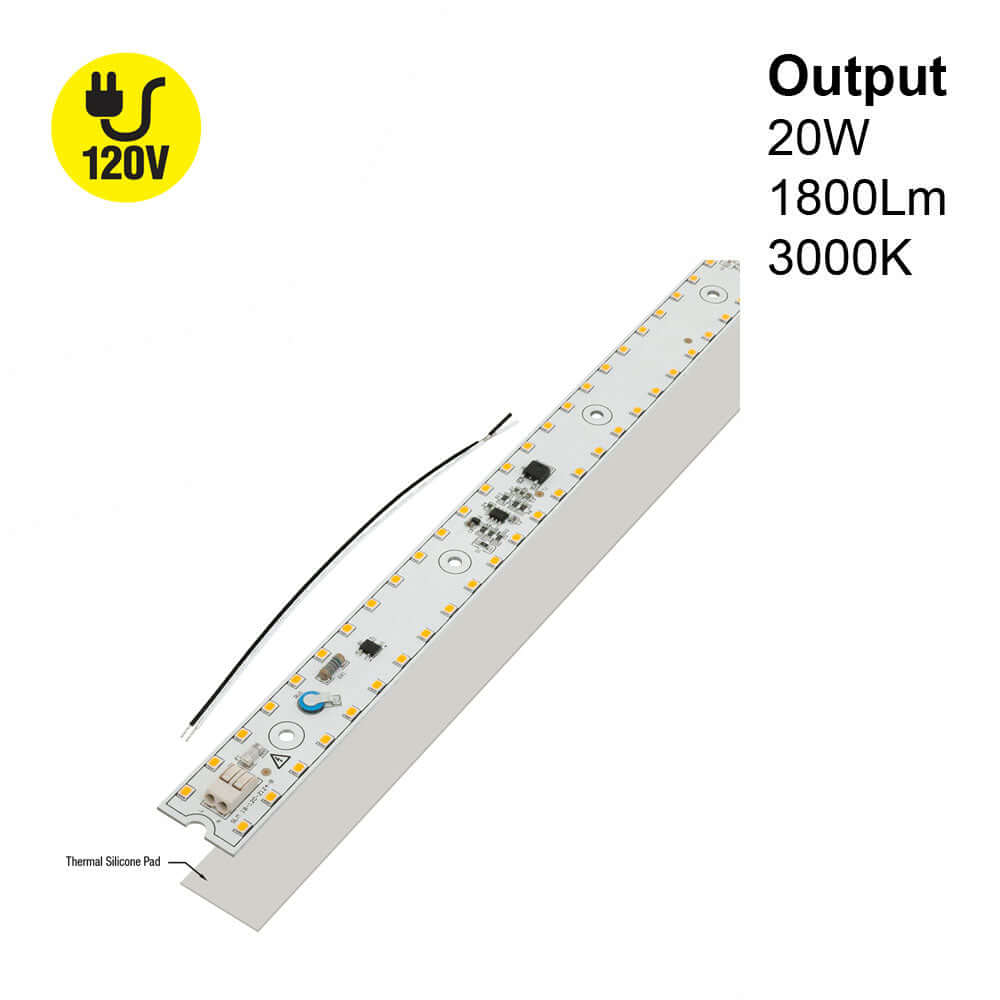

| Luminous Flux | 1800 lumens |
| Color Temperature | 3000K (Warm White) |
| Rendering Index | CRI>90 |
| Power Source | AC |
| Dimmable | Yes |
| Base Material | Aluminum |

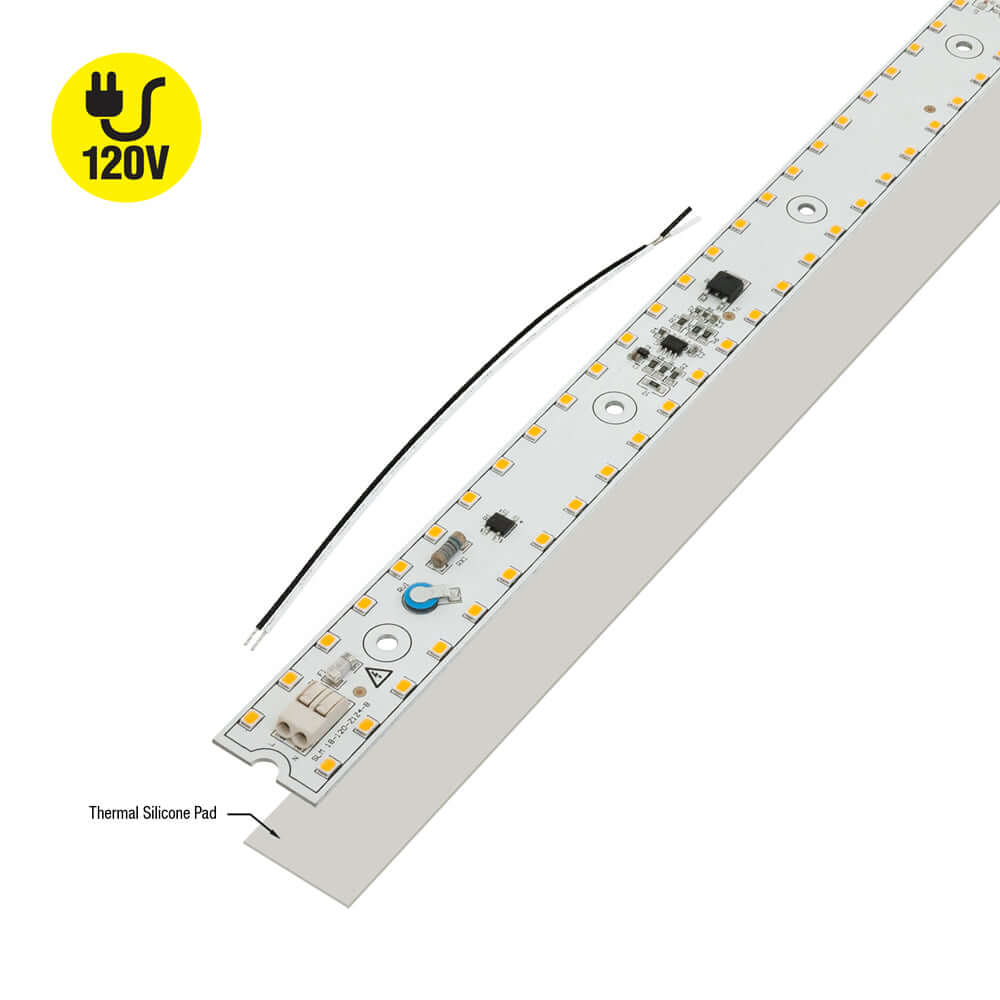

| Package Components | LED Module Thermal Silicon Pad 6inch Black and White power feed |

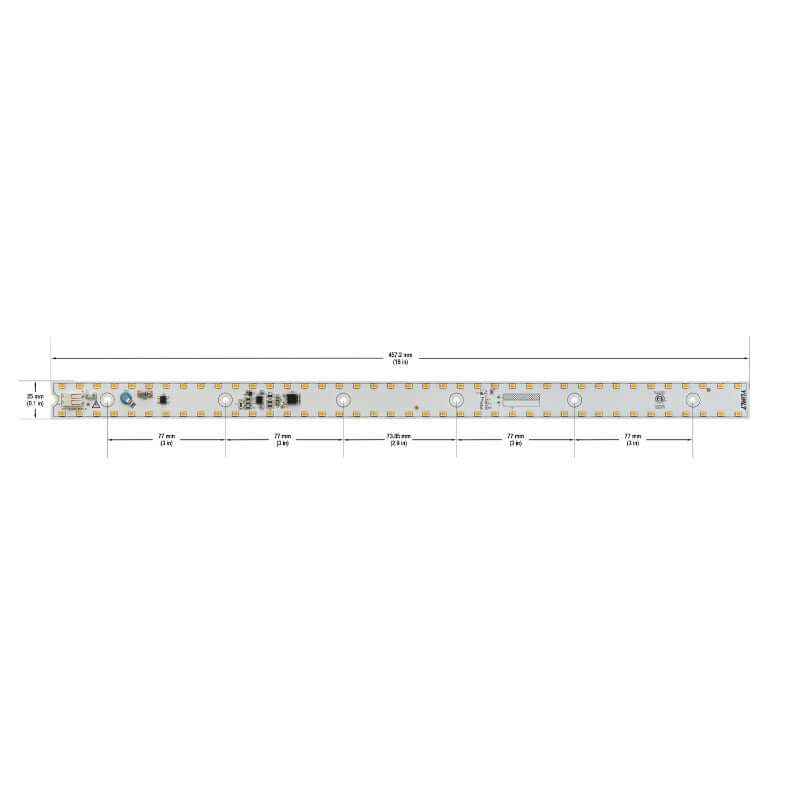

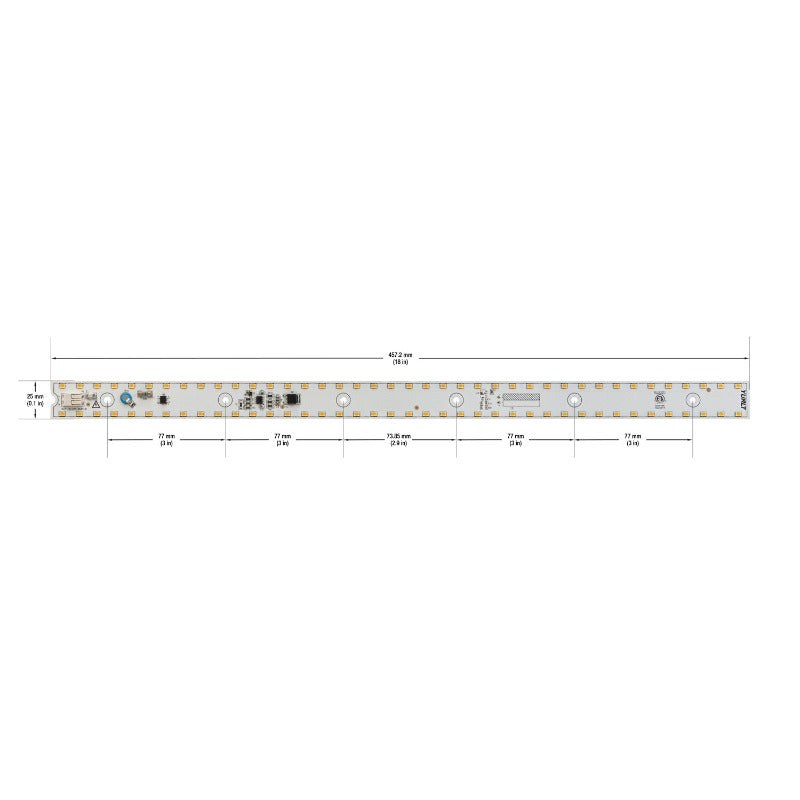

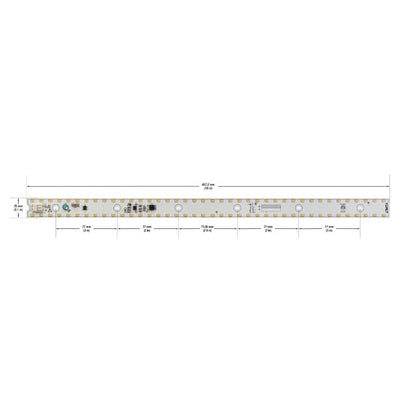

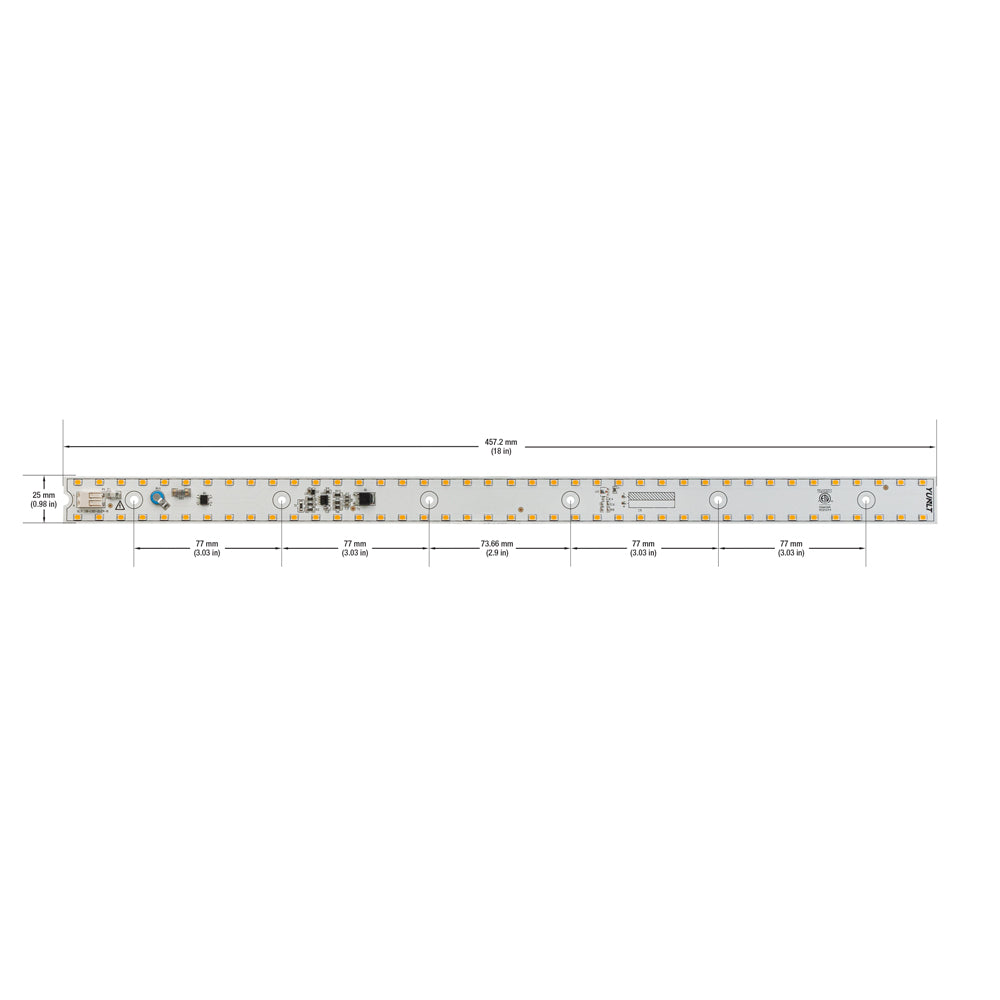

| Dimensions | 457.0mm (18 inch) x 25 mm (1.0 inch) |
| Diameter of the screw hole | 3.5mm (0.13 in) |
| Height | 6mm (0.23in) |
| Certification |
 |
The SLM 18-020W-930-120-S3-Z1B is an 18-inch slim LED module driverless engine that provides high-quality, energy-efficient lighting suitable for various applications. It contains 80 LEDs and has a wattage of 20W, powered by 120V AC.
The module emits warm white light at a color temperature of 3000K, with a high color rendering index (CRI) of over 90, which means colors appear natural and vibrant. With a luminous flux of 1800 lumens, this LED module provides bright and efficient lighting suitable for various applications such as under-cabinet lighting, task lighting, and display lighting.
The dimensions of the module are 457.0mm (18 inch) in length and 25 mm (1.0 inch) in width. The diameter of the screw hole is 3.5mm (0.13 in). This LED module is also dimmable and comes with a thermal silicon pad for even heat distribution, which helps to prolong the life of the module.
In addition, the SLM 18-020W-930-120-S3-Z1B comes with a 6-inch black and white power feed for easy installation. It is certified by ETL for safe and reliable use. This LED module is an excellent choice for anyone looking for a high-quality, energy-efficient, and long-lasting LED lighting solution in a slim profile, with even higher brightness than the 15W variant.
Features:
- 18-inch slim LED module driverless engine suitable for various applications
- Contains 80 LEDs and has a wattage of 20W, powered by 120V AC
- Emits warm white light at a color temperature of 3000K with a high CRI of over 90
- Provides bright and efficient lighting with a luminous flux of 1800 lumens
- Dimmable and comes with a thermal silicon pad for even heat distribution
- Dimensions are 457.0mm (18 inch) in length and 25 mm (1.0 inch) in width
- Diameter of the screw hole is 3.5mm (0.13 in)
- Comes with a 6-inch black and white power feed for easy installation
- Certified by ETL for safe and reliable use
- It is a good DIY product for the replacement of a ceiling light/ Bulb source.
- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
