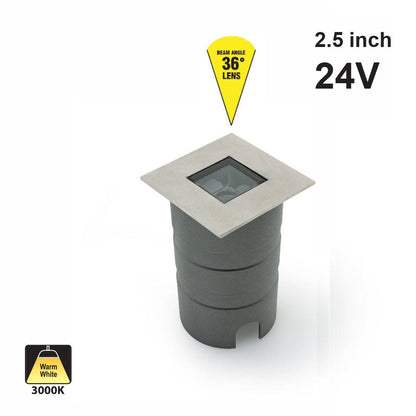

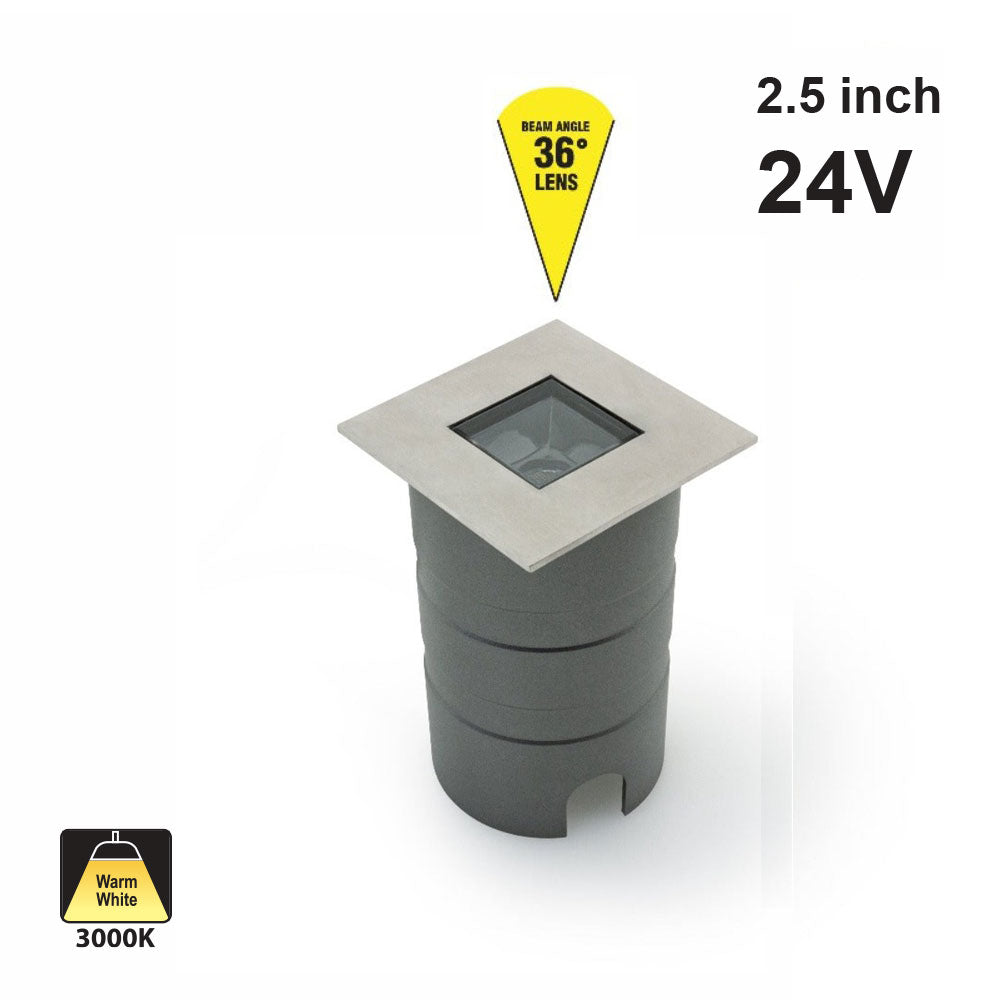

UL-1020-0500-A 2.5 Inch Square Inground light, 24V 5W 36° lens
|Operating Voltage||24V DC|
|Light Source||1 x 5W|
|Total Power Consumption||5W|
|Color Temperature||3000K (Warm White)|
|Bulb Type||Integrated COB LED|
|Housing Material||Die-cast Aluminum body|
Cap Color Finish
||316 Stainless Steel|
||Primary optics (Fresnel lens)|
|Beam Angle||36° lens|
Length: 1m (39.3in)
Dimensions with Housing
Side – 65 mm (2.5 inches)
Dimensions without Housing
Side – 65 mm (2.5 inches)

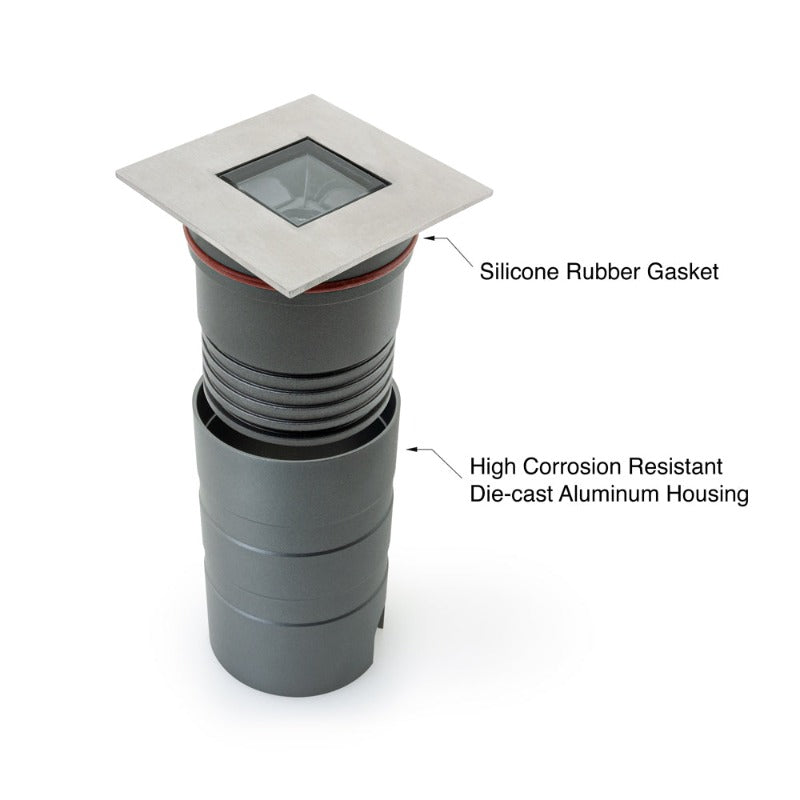

The UL-1020-0500-A is a high-quality 2.5 inch square recessed inground light fixture designed for outdoor applications. It features a powerful integrated COB LED bulb that produces a warm white (3000K) light with a total power consumption of 5W, making it energy-efficient and cost-effective. The housing of this fixture is made of a sturdy die-cast aluminum body with a cap material of 316 stainless steel, ensuring durability and longevity.

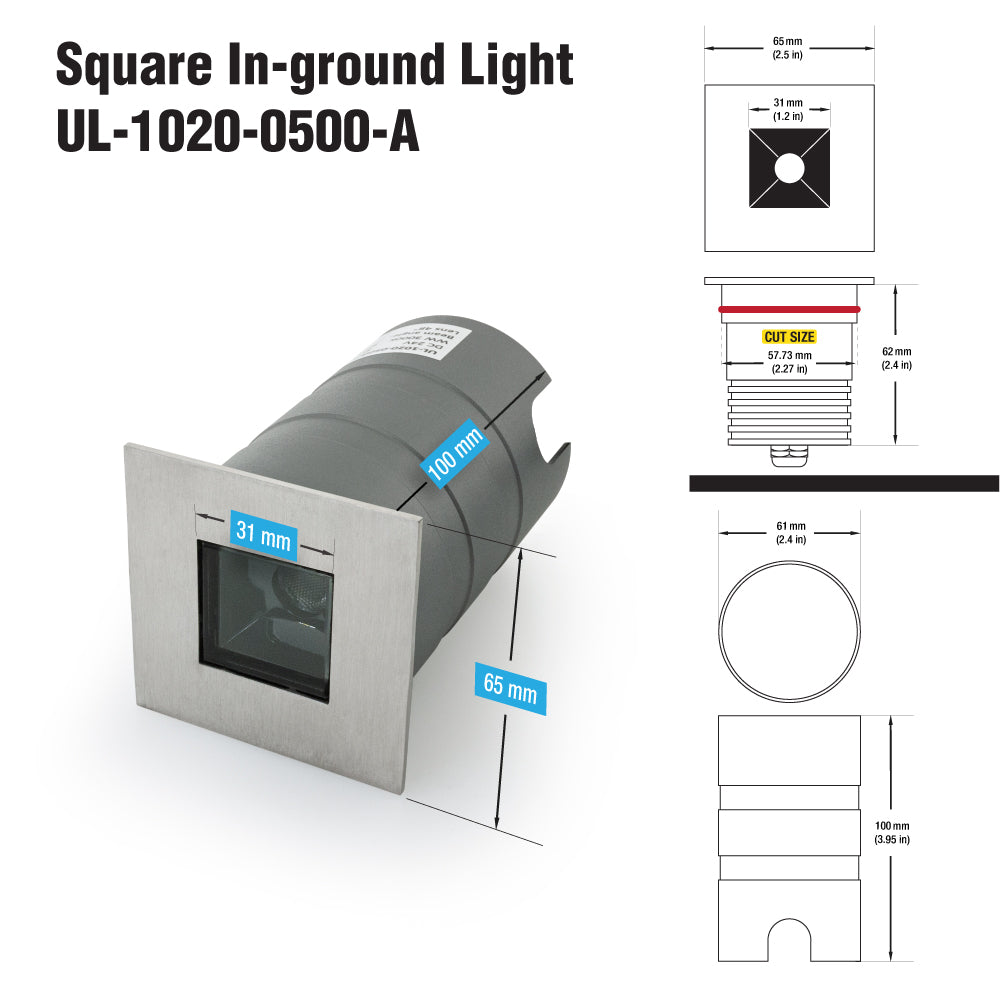

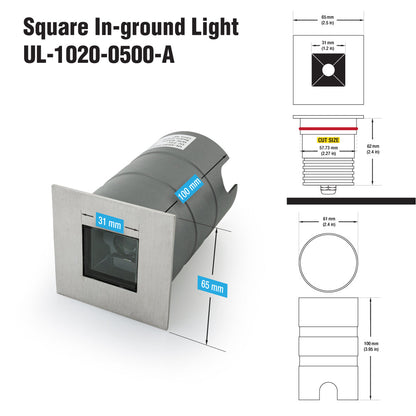

This inground light fixture is rated IP67, which makes it suitable for use in all weather conditions and is resilient to being stepped upon. It is also dimmable, allowing you to adjust the brightness to your desired level. The cable size of this fixture is Ø7.5mm (0.29in) with a length of 1m (39.3in) and 18AWG. The dimensions of this fixture with housing are 65mm in side, 100mm in height, and with a base diameter of 61mm. Without the housing, the dimensions are 65mm in side and 61mm in height.

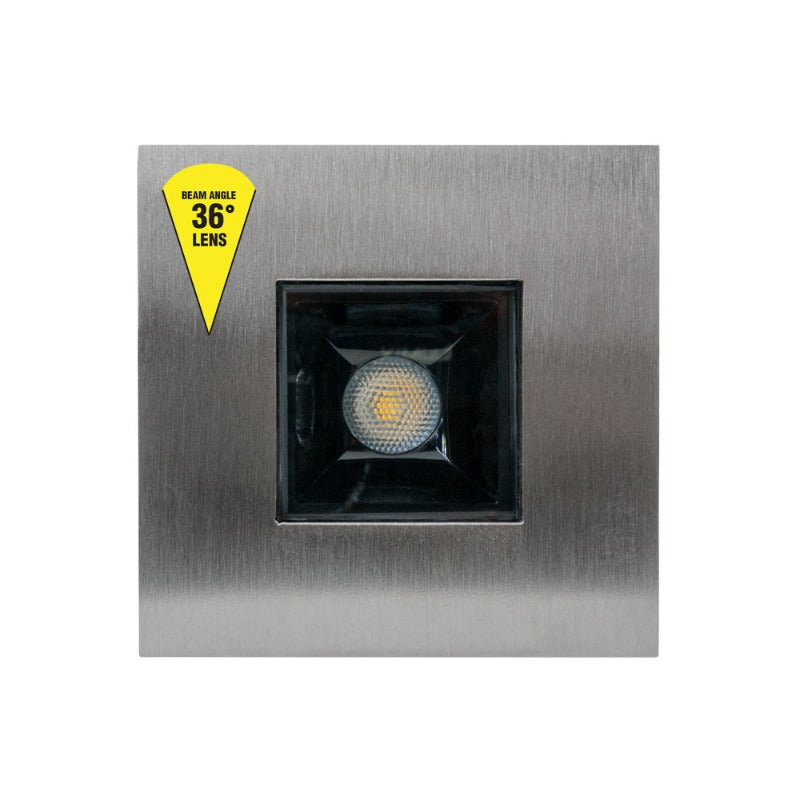

The UL-1020-0500-A features a secondary optics reflector with a narrow beam angle of 36°, providing concentrated illumination for spotlights. This up-light inground fixture seamlessly integrates into a wide variety of outdoor applications, creating a unique ambiance or offering functional illumination for walkways, garden lighting, and other desired applications.

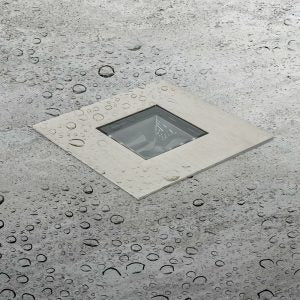

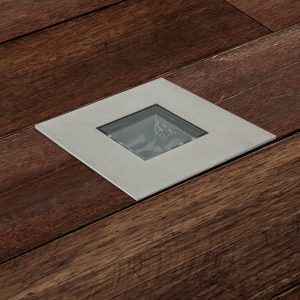

This lighting fixture is certified and meets safety standards, providing you with peace of mind. It comes with a housing, but installation using housing is optional. With its powerful and efficient integrated COB LED bulb, secondary optics reflector, and durable construction, the UL-1020-0500-A is a versatile and functional lighting solution for both residential and commercial outdoor applications. It has maximum flexibility in power options with single or multiple LED light transformers in both dimmable or non-dimmable transformers. These recessed lights have an aesthetic appeal and are popularly installed as LED pathway lights, pool deck lights, and patio lights.
- High-quality 2.5 inch square recessed inground light fixture for outdoor applications
- Integrated COB LED bulb produces warm white (3000K) light with 5W total power consumption
- Sturdy die-cast aluminum body with cap material of 316 stainless steel for durability and longevity
- IP67 rating for all-weather use and resilience to being stepped upon
- Dimmable for adjustable brightness, with cable size of Ø7.5mm (0.29in) and length of 1m (39.3in) and 18AWG
- Secondary optics reflector with narrow 36° beam angle for concentrated illumination
- Certified and meets safety standards, with optional installation using included housing
- Versatile and functional lighting solution for residential and commercial outdoor applications
- Maximum flexibility in power options with single or multiple LED light transformers, in both dimmable and non-dimmable transformers
- Aesthetic appeal popularly installed as LED pathway lights, pool deck lights, and patio lights.
