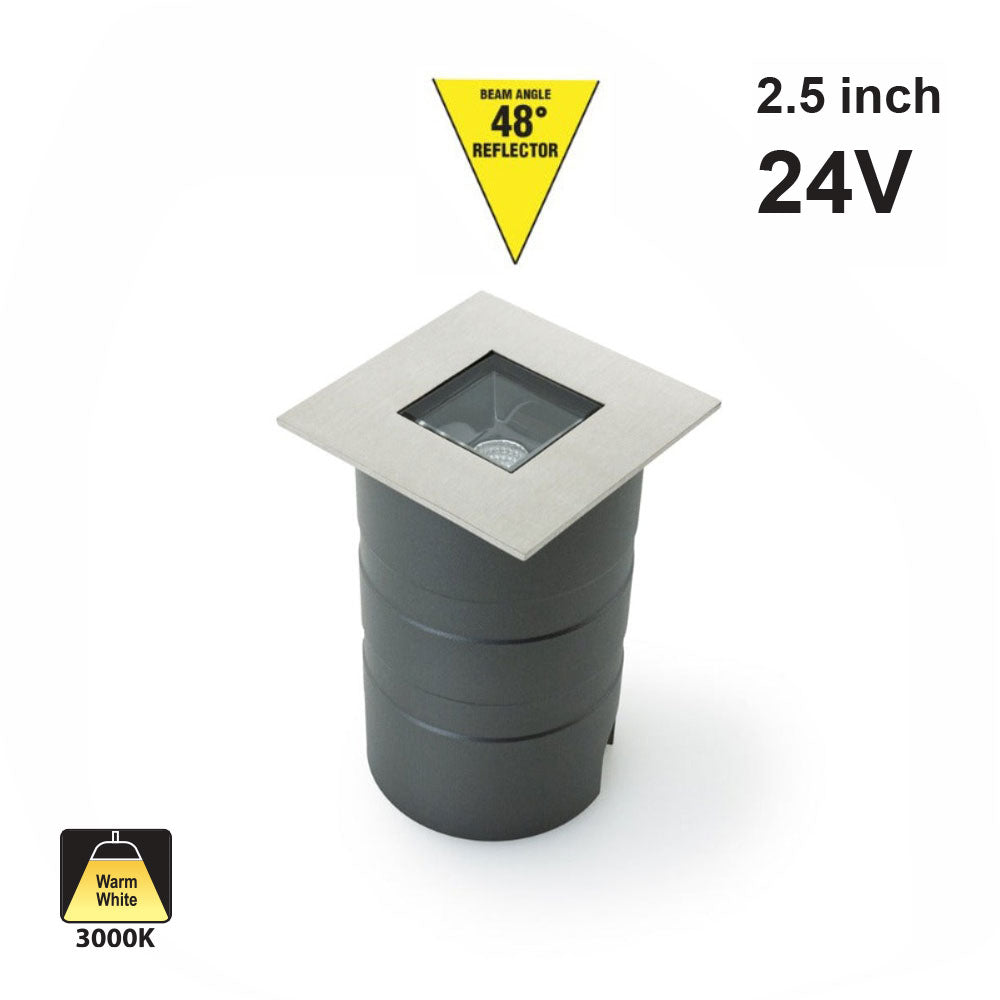

UL-1020-0500-A 2.5Inch Square Inground light, 24V 5W 48° Reflector
Product Description
Model | UL-1020-0500-A |
Operating Voltage | 24V DC |
Light Source | 1 x 5W |
Total Power Consumption | 5W |
Color Temperature | 3000K (Warm White) |
Bulb Type | Integrated COB LED |
Housing Material | Die-cast Aluminum body |
Cap Color Finish |
316 Stainless Steel |
Optics |
Secondary optics (Reflector) |
Beam Angle | 48° Reflector |
IP Rating | IP67 |
Dimmable | Yes |
Cable Size |
Length: 1m (3.2ft) Ø7.5mm (0.29in) 18AWG |
Dimensions with Housing |
Side – 65 mm (2.5 inches) |
Dimensions without Housing |
Side – 65 mm (2.5 inches) |
Certification | ![]() |

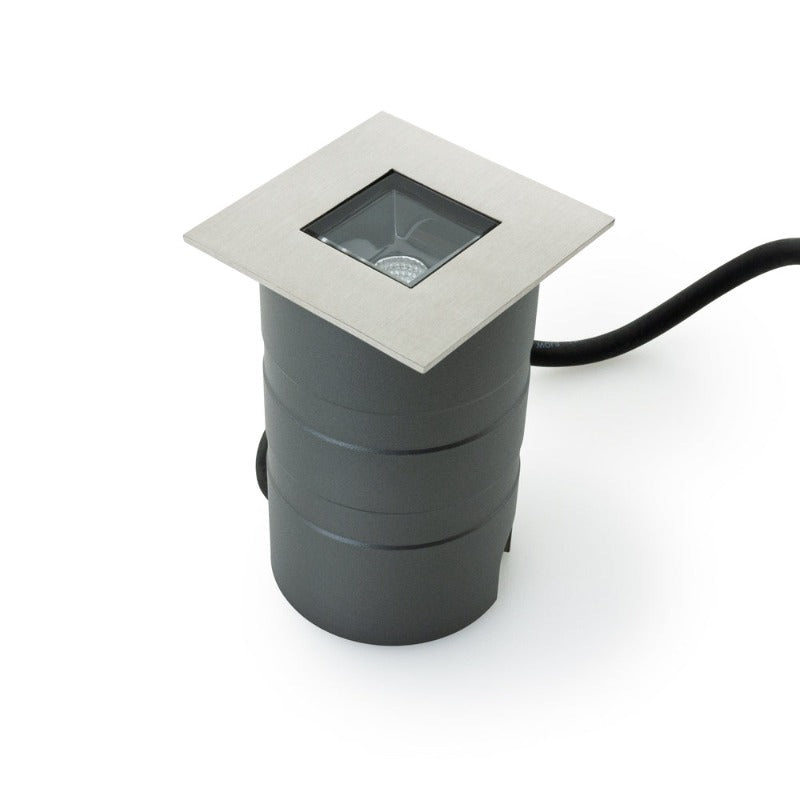

The UL-1020-0500-A is a square-shaped in-ground light designed for outdoor applications. The light features a 5W integrated COB LED bulb with a warm white color temperature of 3000K. The light is powered by a 24V DC operating voltage and has a total power consumption of 5W.

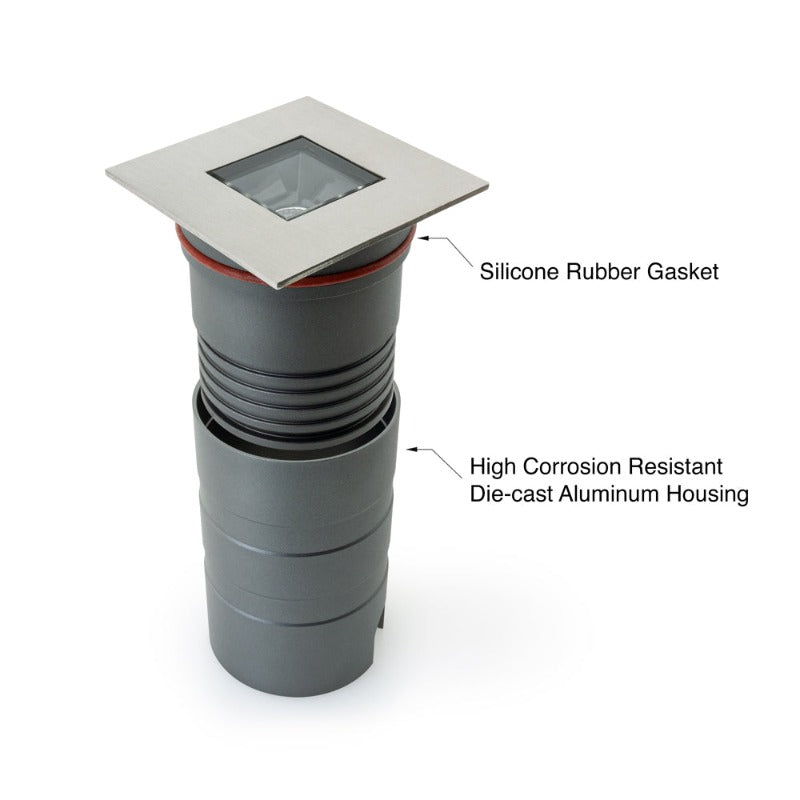

The light is made of a die-cast aluminum body with a 316 stainless steel cap color finish, making it resistant to weather and being stepped upon. It has an IP67 rating, which means it can withstand dust, rain, and other environmental factors. The light is also dimmable, allowing you to adjust the brightness as per your requirements.

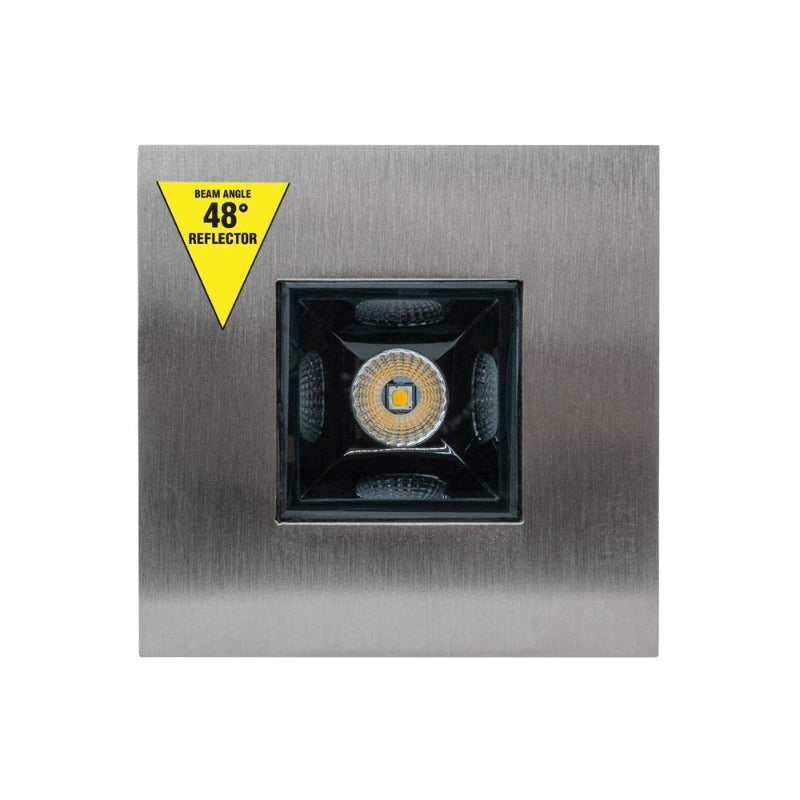

The UL-1020-0500-A comes with a secondary optic (reflector) that has a beam angle of 48°, which helps in scattering more light and creating glare for a spotlight application. The light also comes with a 1m (3.2ft) cable with a diameter of 7.5mm (0.29in) and 18AWG.

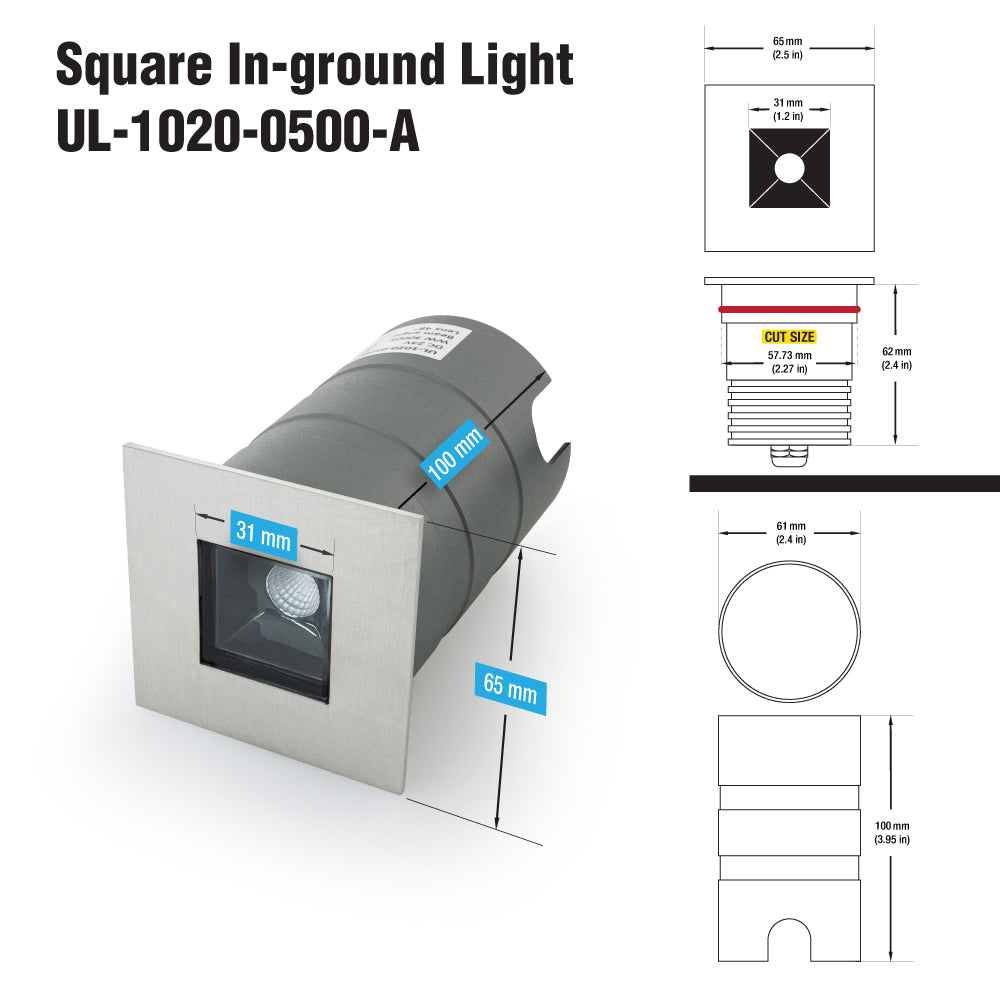

The dimensions of the light with housing are Side – 65 mm (2.5 inches), Height – 100 mm (3.95 inches), and Base Diameter – 61 mm (2.4 inches). Without housing, the dimensions are Side – 65 mm (2.5 inches) and Height – 61mm (2.4 inches).

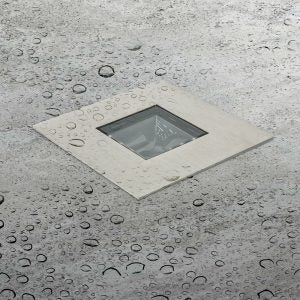

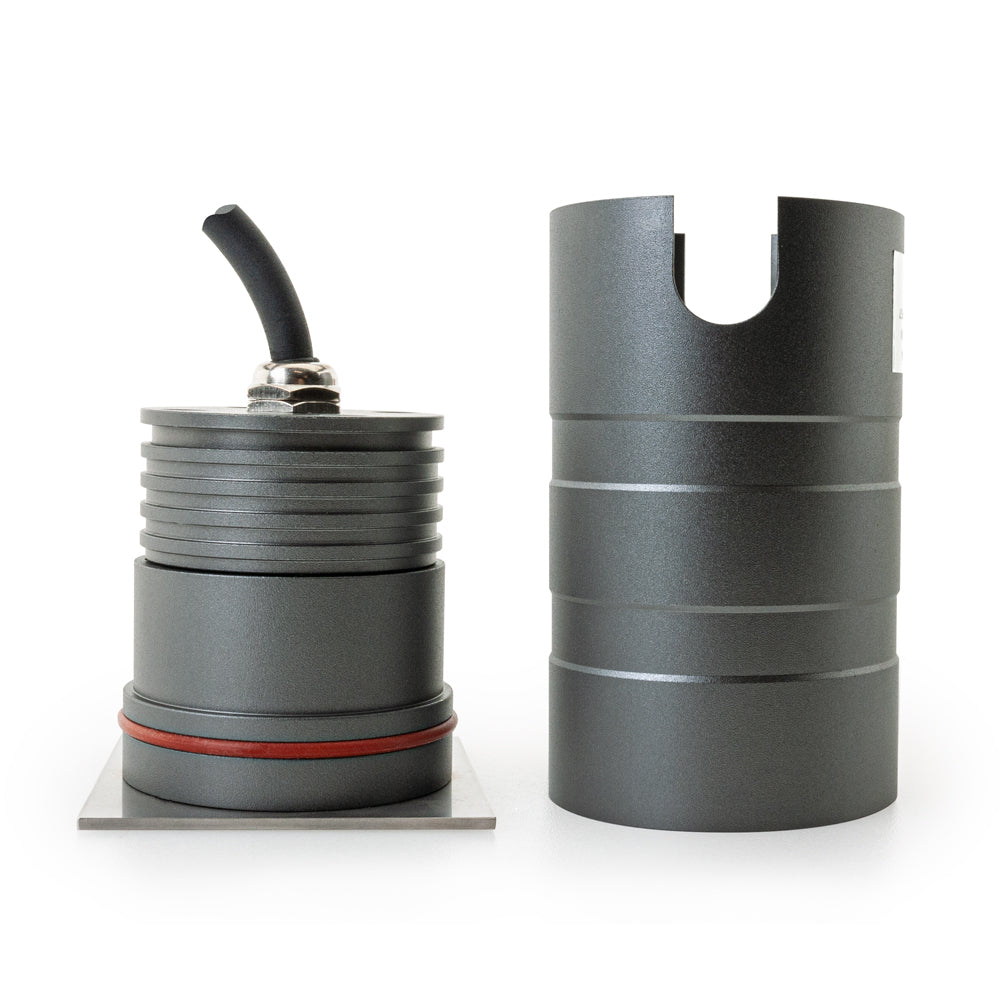

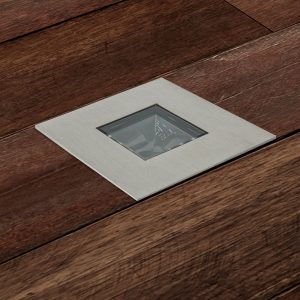

The UL-1020-0500-A is a versatile light that can be used in a wide range of outdoor applications, including walkways, garden lighting, pool deck lights, and patio lights. The light has an aesthetic appeal and is suitable for both residential and commercial buildings. It seamlessly integrates into outdoor settings and creates a unique ambiance or offers functional illumination. The light has maximum flexibility in power options, with single or multiple LED Light transformers in both dimmable or non-dimmable transformers. Installation using housing is optional.
Features:
- Square-shaped in-ground light designed for outdoor applications
- 5W integrated COB LED bulb with a warm white color temperature of 3000K
- Powered by a 24V DC operating voltage and has a total power consumption of 5W
- Made of a die-cast aluminum body with a 316 stainless steel cap color finish
- IP67 rating, making it resistant to weather and being stepped upon
- Dimmable, allowing you to adjust the brightness as per your requirements
- Secondary optic (reflector) with a beam angle of 48° for scattering more light and creating glare for a spotlight application
- Comes with a 1m (3.2ft) cable with a diameter of 7.5mm (0.29in) and 18AWG
- Dimensions with housing: Side – 65 mm (2.5 inches), Height – 100 mm (3.95 inches), Base Diameter – 61 mm (2.4 inches)
- Dimensions without housing: Side – 65 mm (2.5 inches), Height – 61mm (2.4 inches)
- Versatile light suitable for walkways, garden lighting, pool deck lights, and patio lights
- Maximum flexibility in power options, with single or multiple LED Light transformers in both dimmable or non-dimmable transformers
- Optional installation using housing.
