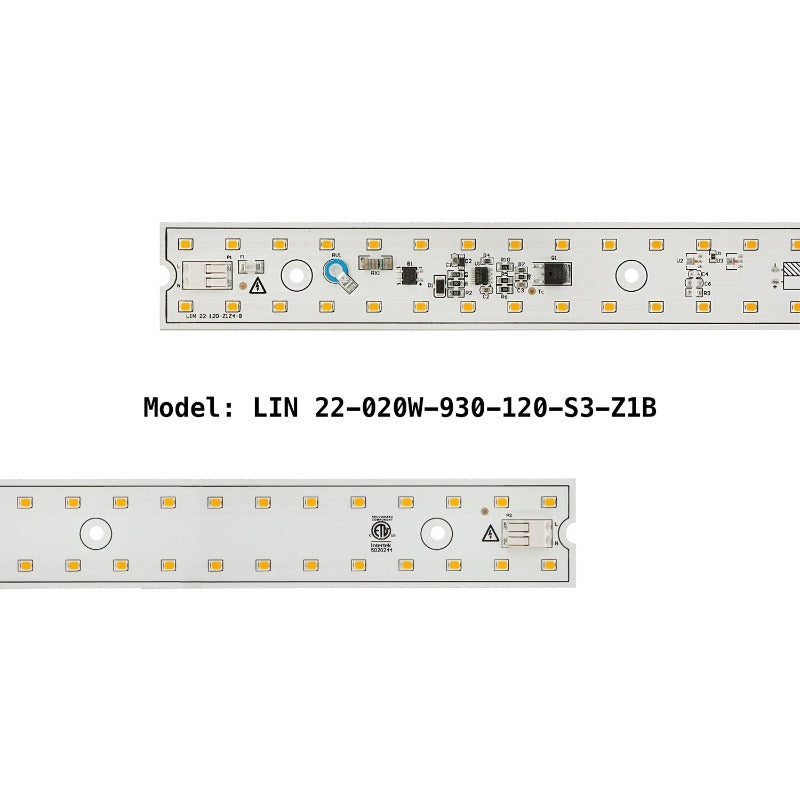

22 inch Linear ZEGA LED Module LIN 22-020W-930-120-S3-Z1B, 120V 20W 3000K(Warm White)
Product Description
Product | LED Module |
Model No | LIN-22-020W-930-120-S3-Z1B |
No of LEDs | 80 |
Wattage | 20W |
Voltage | 120V AC |
Luminous Flux | 1800 lumens |
Color Temperature | 3000K (Warm White) |
Rendering Index | >90 |
Power Source | AC |
Dimmable | Yes |
Base Material | Aluminum |

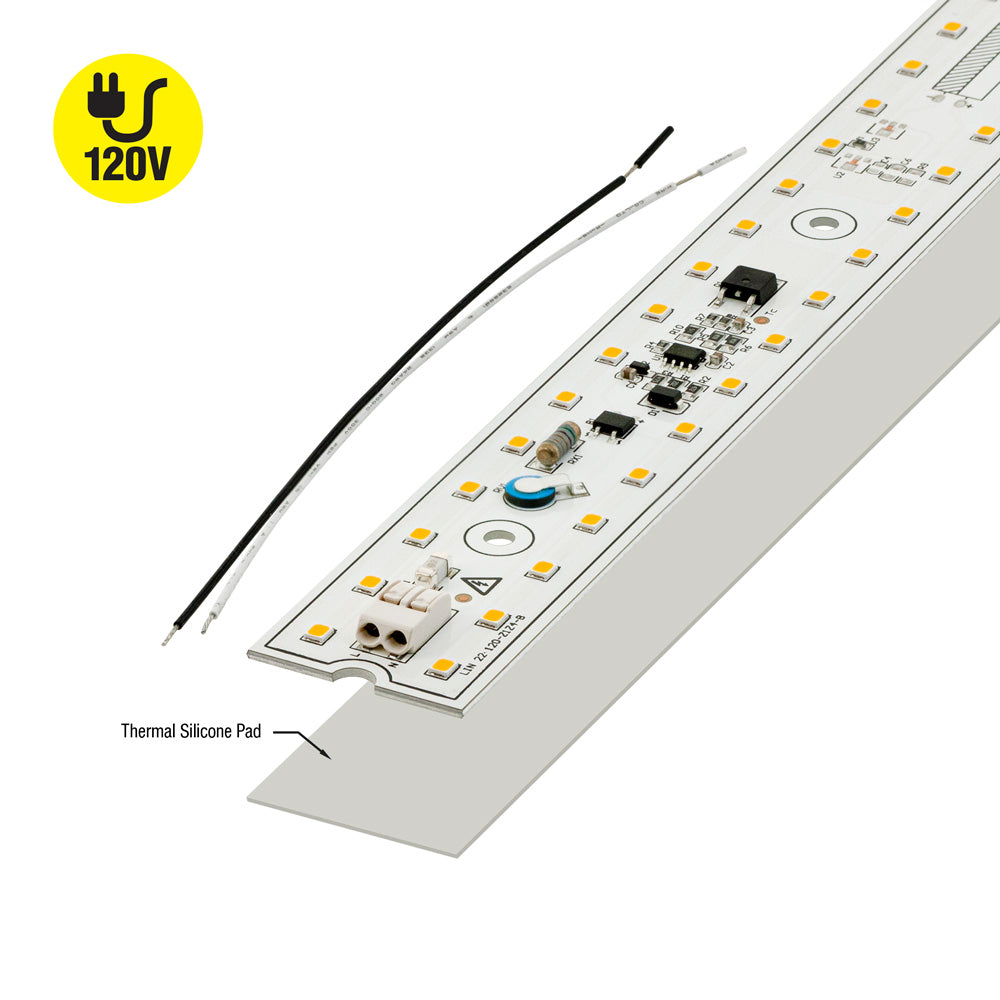

Package Components | LED Module Thermal Silicon Pad 6inch Black and White power feed |

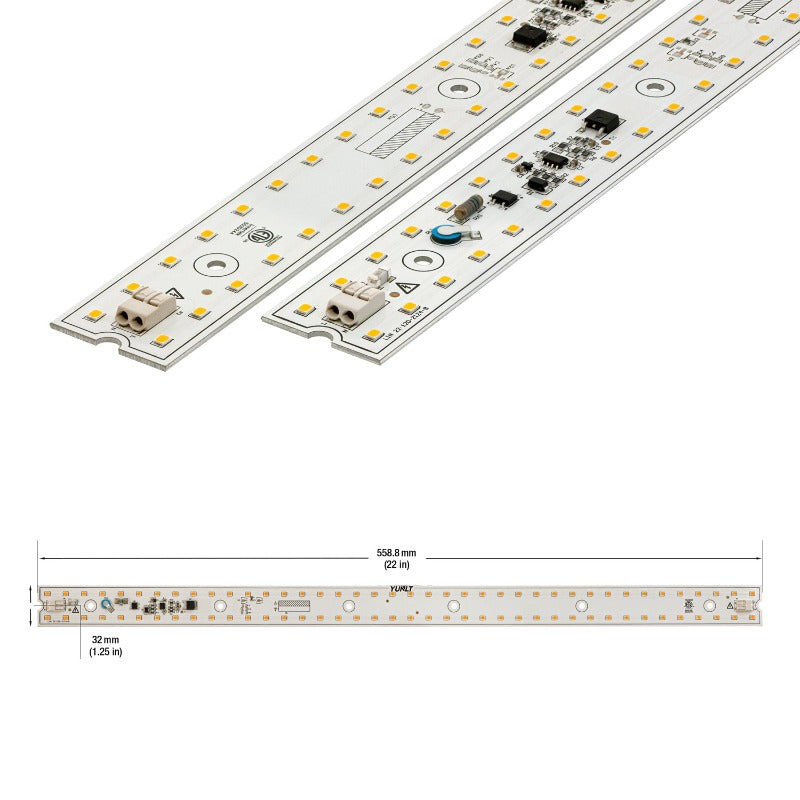

Dimensions | 558.8 x 32 mm (22 x 1.25 in) |
Diameter of the screw hole | 3.9mm (0.15 in) |
Height | 6mm (0.23in) |
Certification |
![]() |
The LIN-22-020W-930-120-S3-Z1B is a 22-inch linear LED module that provides high-quality and energy-efficient lighting suitable for various applications. It contains 80 LEDs and has a wattage of 20W, powered by 120V AC.
The module emits warm white light at a color temperature of 3000K, with a high color rendering index (CRI) of over 90, which means colors appear natural and vibrant. With a luminous flux of 1800 lumens, this LED module provides bright and efficient lighting suitable for various applications such as under-cabinet lighting, task lighting, and display lighting.
The dimensions of the module are 558.8 x 32 mm (22 x 1.25 in), and the diameter of the screw hole is 3.9mm (0.15 in). This LED module is also dimmable and comes with a thermal silicon pad for even heat distribution, which helps to prolong the life of the module.
In addition, the LIN-22-020W-930-120-S3-Z1B comes with a 6-inch black and white power feed for easy installation. It is a high-quality light engine that produces up to 1800 lumens of exceptional light while consuming low power and providing high energy efficiency. It is an excellent DIY product for replacing a ceiling light or bulb source.
It is certified by ETL for safe and reliable use. The LIN-22-020W-930-120-S3-Z1B is an ideal choice for anyone looking for a high-quality, energy-efficient, and long-lasting LED lighting solution in a linear profile.
Features:
- 22-inch linear LED module suitable for various applications
- Contains 80 LEDs and has a wattage of 20W, powered by 120V AC
- Emits warm white light at a color temperature of 3000K with a high color rendering index (CRI) of over 90
- Luminous flux of 1800 lumens provides bright and efficient lighting
- Dimmable and comes with a thermal silicon pad for even heat distribution, prolonging the life of the module
- Dimensions are 558.8 x 32 mm (22 x 1.25 in) with a diameter of the screw hole of 3.9mm (0.15 in)
- Comes with a 6-inch black and white power feed for easy installation
- Certified by ETL for safe and reliable use
- Ideal choice for anyone looking for a high-quality, energy-efficient, and long-lasting LED lighting solution in a linear profile.
- It is a good DIY product for the replacement of a ceiling light/ Bulb source.
- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
