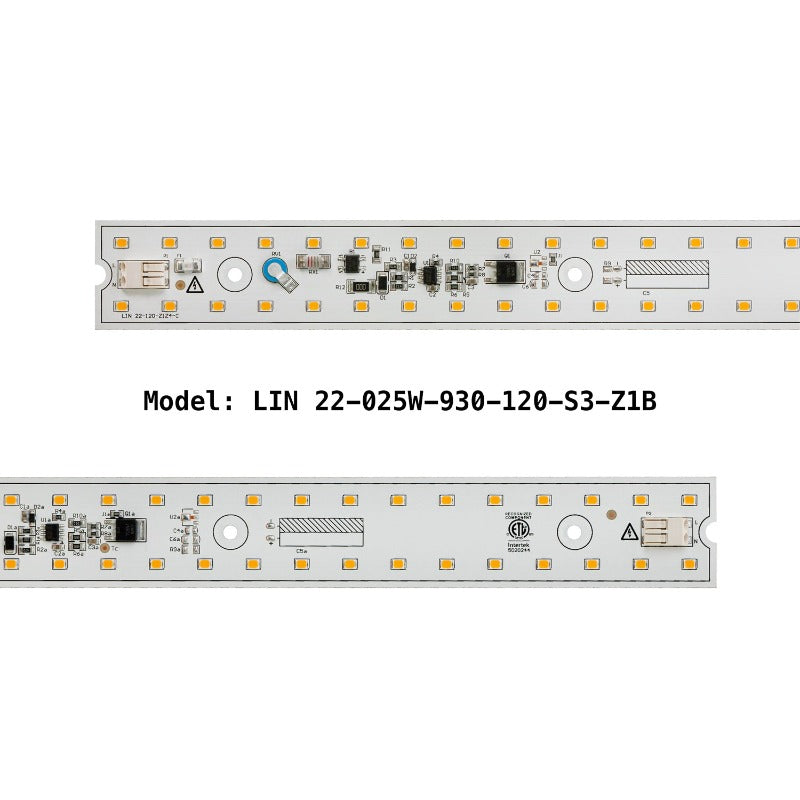

22inch Linear LED Module LIN-22-025W-930-120-S3-Z1B, 120V 25W 3000K(Warm White)
|No of LEDs||80|
|Luminous Flux||2300 lumens|
|Color Temperature||3000K (Warm White)|
|Package Components||LED Module
Thermal Silicon Pad
6inch Black and White power feed
|Dimensions||558.8 x 32 mm (22 x 1.25 in)|
|Diameter of the screw hole||3.9mm (0.15 in)|
The LIN-22-025W-930-120-S3-Z1B is a 22-inch linear LED module that provides high-quality and energy-efficient lighting suitable for various applications. It contains 80 LEDs and has a wattage of 25W, powered by 120V AC.
The module emits warm white light at a color temperature of 3000K, with a high color rendering index (CRI) of over 90, which means colors appear natural and vibrant. With a luminous flux of 2300 lumens, this LED module provides bright and efficient lighting suitable for various applications such as under-cabinet lighting, task lighting, and display lighting.

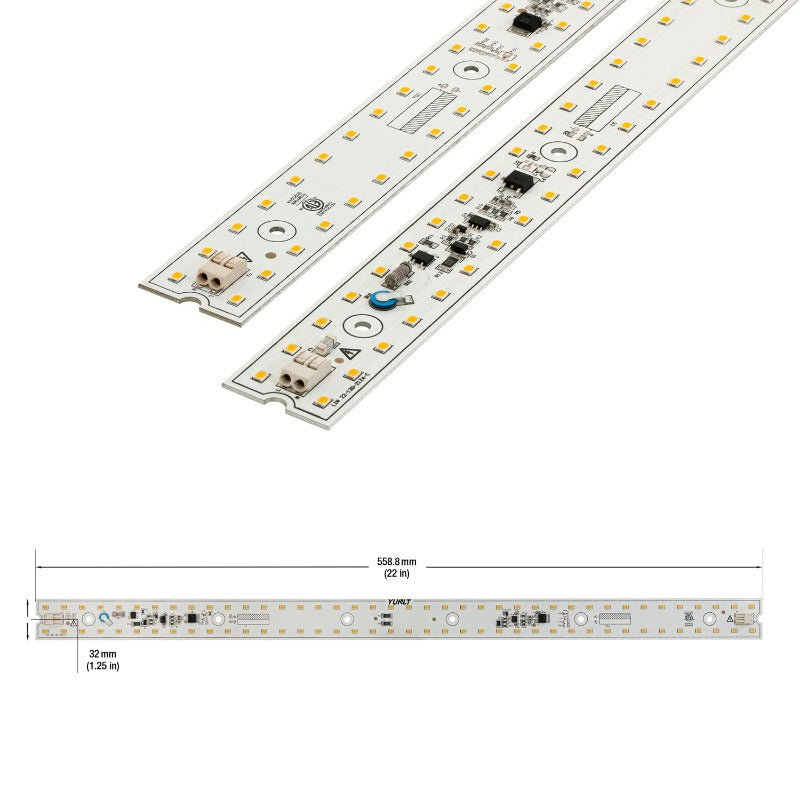

The dimensions of the module are 558.8 x 32 mm (22 x 1.25 in), and the diameter of the screw hole is 3.9mm (0.15 in). This LED module is also dimmable and comes with a thermal silicon pad for even heat distribution, which helps to prolong the life of the module.
In addition, the LIN-22-025W-930-120-S3-Z1B comes with a 6-inch black and white power feed for easy installation. It is a high-quality light engine that produces up to 2300 lumens of exceptional light while consuming low power and providing high energy efficiency. It is an excellent DIY product for replacing a ceiling light or bulb source.
It is certified by ETL for safe and reliable use. The LIN-22-025W-930-120-S3-Z1B is an ideal choice for anyone looking for a high-quality, energy-efficient, and long-lasting LED lighting solution in a linear profile.
- 22-inch linear LED module with 80 LEDs and 25W wattage
- Warm white light at 3000K color temperature with a high CRI of over 90
- Luminous flux of 2300 lumens for bright and efficient lighting

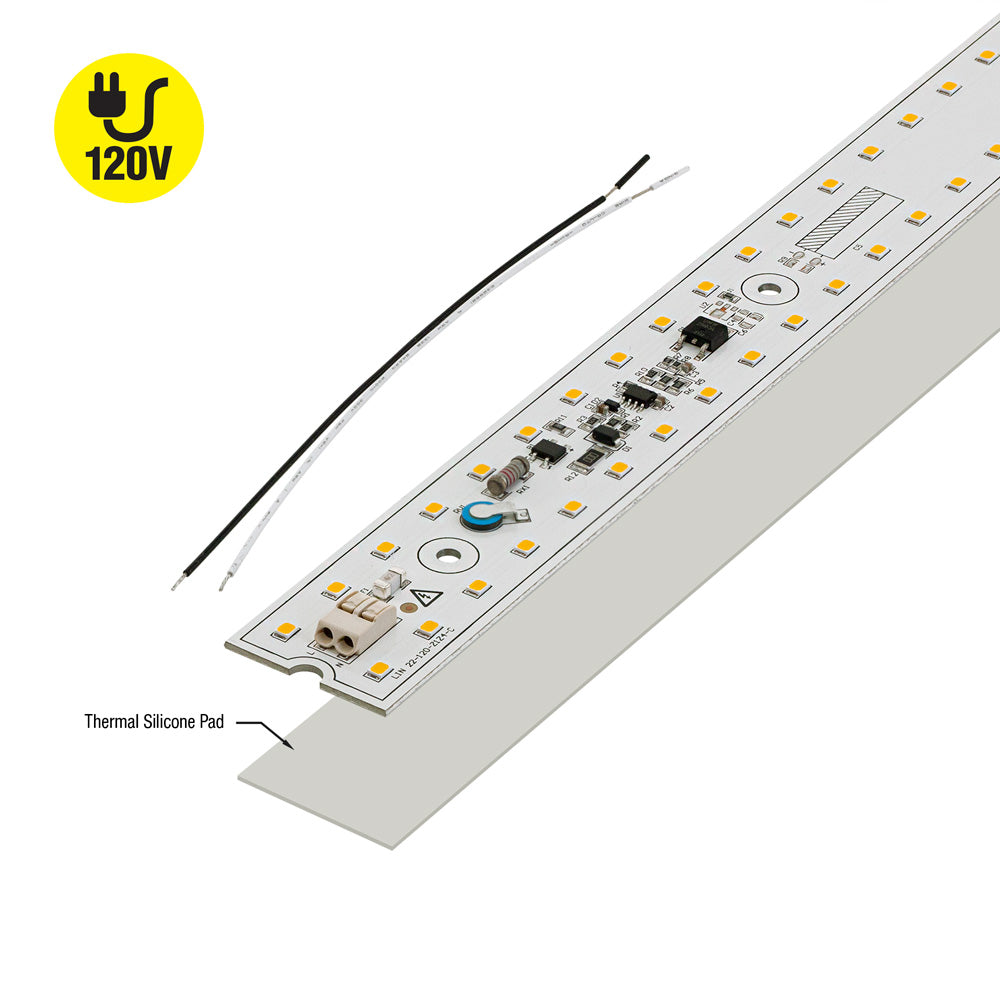

- Comes with a thermal silicon pad for even heat distribution and longer lifespan
- Dimmable and easy to install with 6-inch black and white power feed
- Dimensions of 558.8 x 32 mm (22 x 1.25 in) and diameter of screw hole is 3.9mm (0.15 in)
- ETL certified for safe and reliable use
- Ideal for under-cabinet lighting, task lighting, and display lighting applications
- It is a good DIY product for the replacement of a ceiling light/ Bulb source.
- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
