VBD-024-024DM Triac Dimmable Constant Voltage LED Driver, 24V 1A 24W

  • $54.89 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561415839
Title:
We only have 887 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).




Product Description

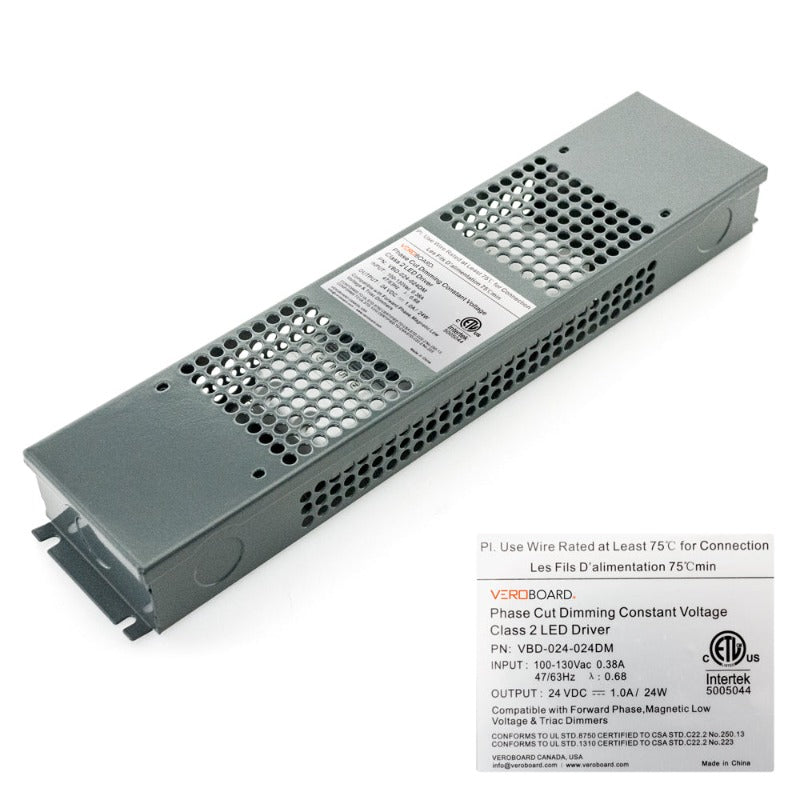

Model VBD-024-024DM
Input Voltage 100-130V AC
Input Current 0.38A
Frequency 47/63Hz
Power Factor 0.68

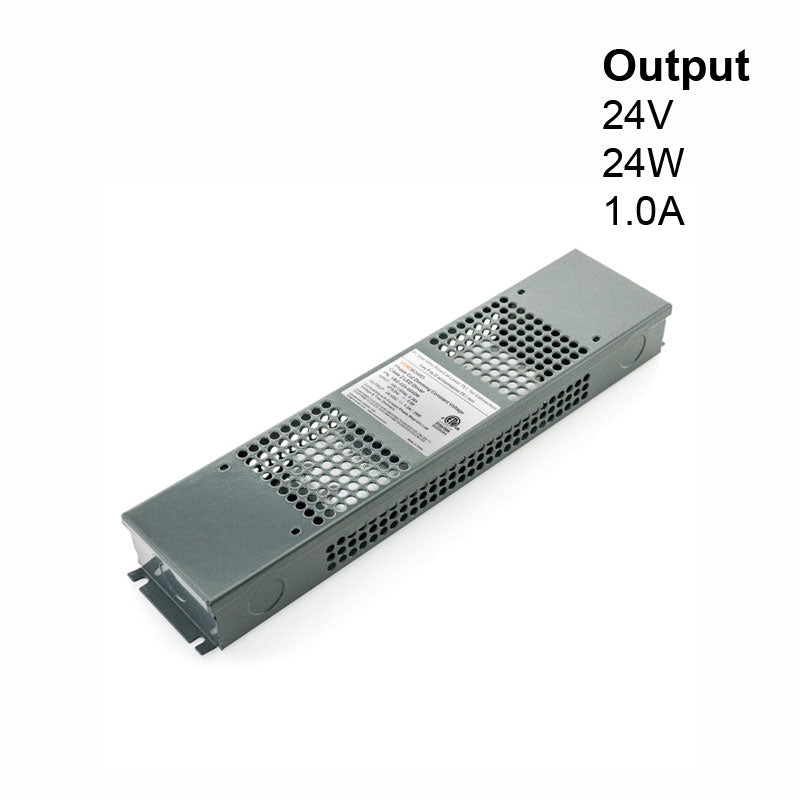

Output Voltage 24V DC
Output regulated current 1.0A
Output Power 24W max
Dimmable Yes (Phase/ Triac/ Magnetic Low Voltage)
IP Rating IP20
Class Certification Class 2/ Class II

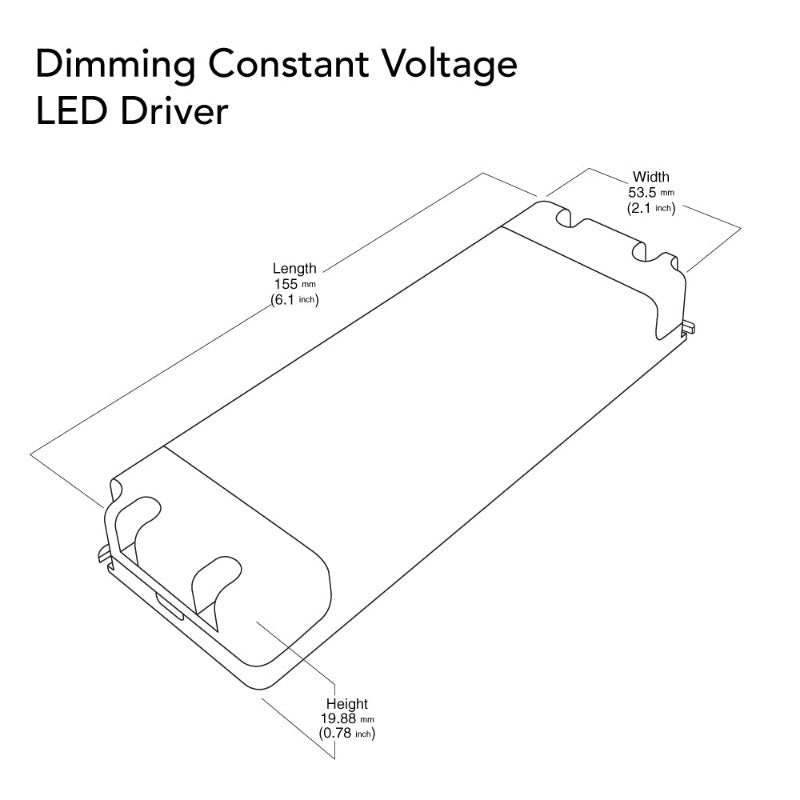

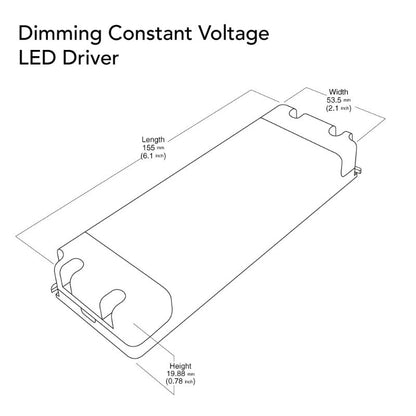

Dimensions (Without Box) 155 x 53.5 x 19.88mm (6.1 x 2.1 x 0.78 in)

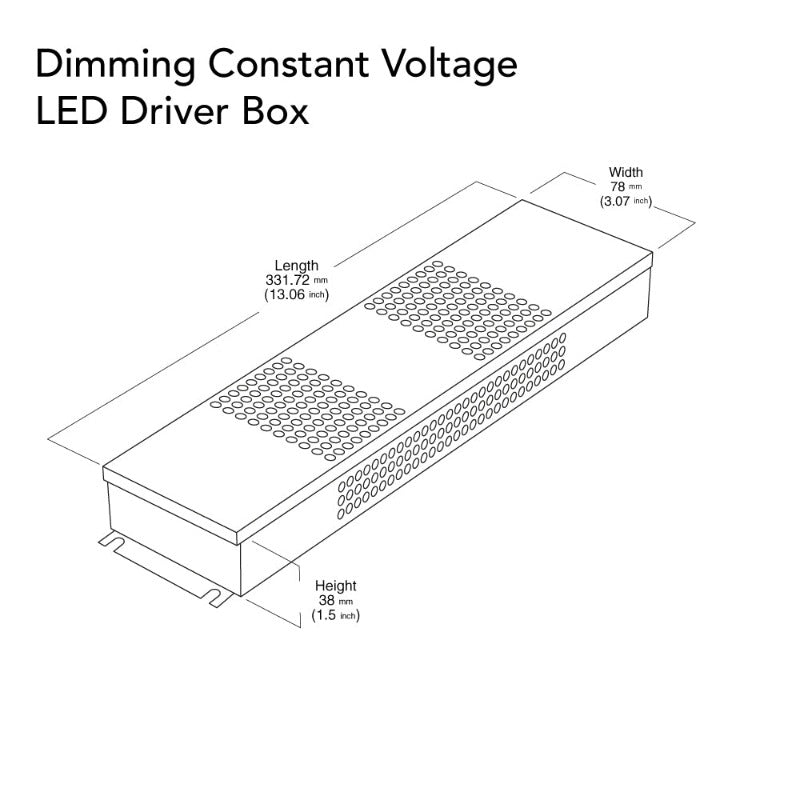

Dimensions (Box) 331.72 x 78 x 38mm (13.06 x 3.07 x 1.5 in)
Certifications
Applicable for Dry and Damp locations
Compatible with Forward-Phase, Magnetic low Voltage & Triac Dimmers



The VBD-024-024DM is a constant voltage LED driver designed to power LED lighting systems. It operates with an input voltage of 100-130V AC and a frequency of 47/63Hz, with an input current of 0.38A and a power factor of 0.68. The driver is capable of delivering an output voltage of 24V DC and a regulated output current of 1A, providing a maximum output power of 24W.

One of the notable features of this driver is its Triac and phase-cut dimming capability, which allows for smooth and seamless dimming of LED lights. It also has an IP20 rating, indicating that it is suitable for use in indoor environments where it is not exposed to moisture and dust.

The driver has dimensions of 155 x 53.5 x 19.88mm (6.1 x 2.1 x 0.78 in) without the box and 331.72 x 78 x 38mm (13.06 x 3.07 x 1.5 in) with the box. It is Class 2/ Class II certified, indicating that it has a low output voltage and is safe to use in applications where electrical shock could be a hazard. It is also ETL certified, ensuring that it meets safety and performance standards for electrical products.

Features:

  • The VBD-024-024DM is a constant voltage LED driver designed to power LED lighting systems.
  • It operates with an input voltage of 100-130V AC and a frequency of 47/63Hz, with an input current of 0.38A and a power factor of 0.68.
  • The driver is capable of delivering an output voltage of 24V DC and a regulated output current of 1A, providing a maximum output power of 24W.
  • It features Triac and phase-cut dimming capability for smooth and seamless dimming of LED lights.
  • The driver has an IP20 rating, making it suitable for indoor environments where it is not exposed to moisture and dust.
  • Its dimensions are 155 x 53.5 x 19.88mm (6.1 x 2.1 x 0.78 in) without the box and 331.72 x 78 x 38mm (13.06 x 3.07 x 1.5 in) with the box.
  • It is Class 2/ Class II certified, indicating that it has a low output voltage and is safe to use in applications where electrical shock could be a hazard.
  • It is ETL certified, ensuring that it meets safety and performance standards for electrical products.
