VBD-024-048DM Triac Dimmable Constant Voltage LED Driver, 24V 2A 48W

Veroboard

  • $76.98 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561415822
We only have 93 left! Get it now before it's completely gone.

FREE Shipping over $49 USD (Canada and US Only)




Product Description

Model VBD-024-048DM
Input Voltage 100-130V AC
Input Current 0.76A
Frequency 47/63Hz
Power factor 0.68

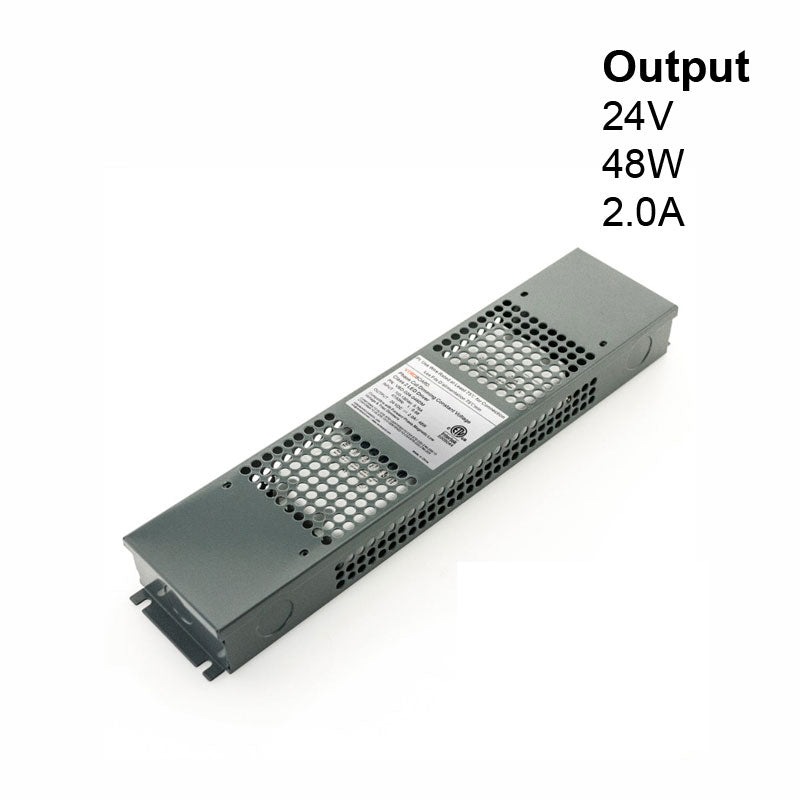

Output Voltage 24V DC
Output regulated Current 2.0A
Output Power 48W max
Dimmable Yes (Phase/ Triac/ Magnetic Low Voltage)
IP Rating IP20
Class Certification Class 2/ Class II

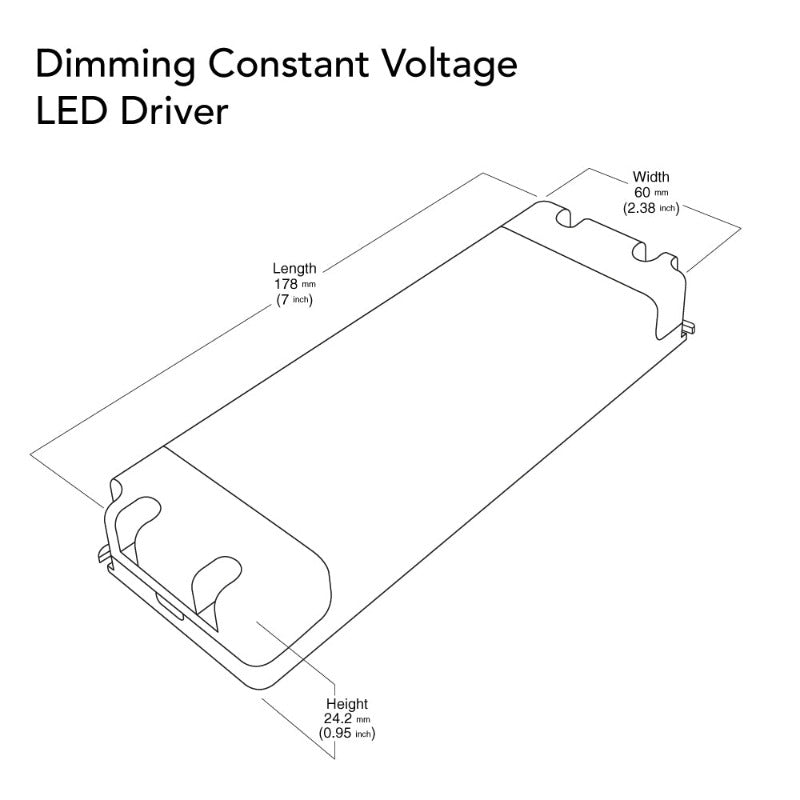

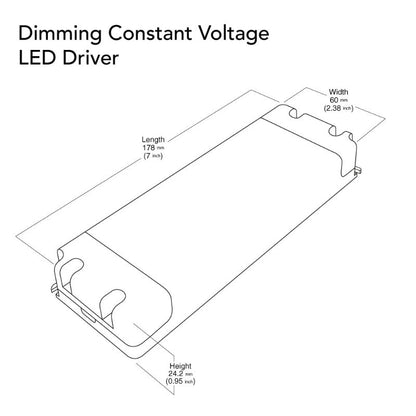

Dimensions (Without Box) 178 x 60 x 24.2mm (7 x 2.38 x 0.95 in)

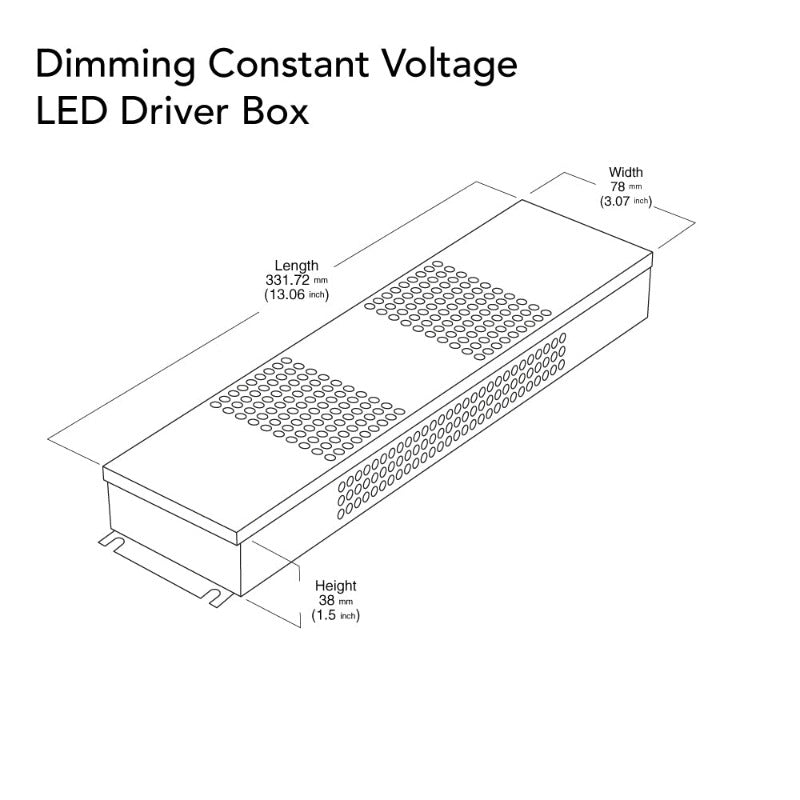

Dimensions (Box) 331.72 x 78 x 38mm (13.06 x 3.07 x 1.5 in)
Certifications
Suitable for Dry and Damp locations
Compatible with Forward-Phase, Magnetic low Voltage & Triac Dimmers

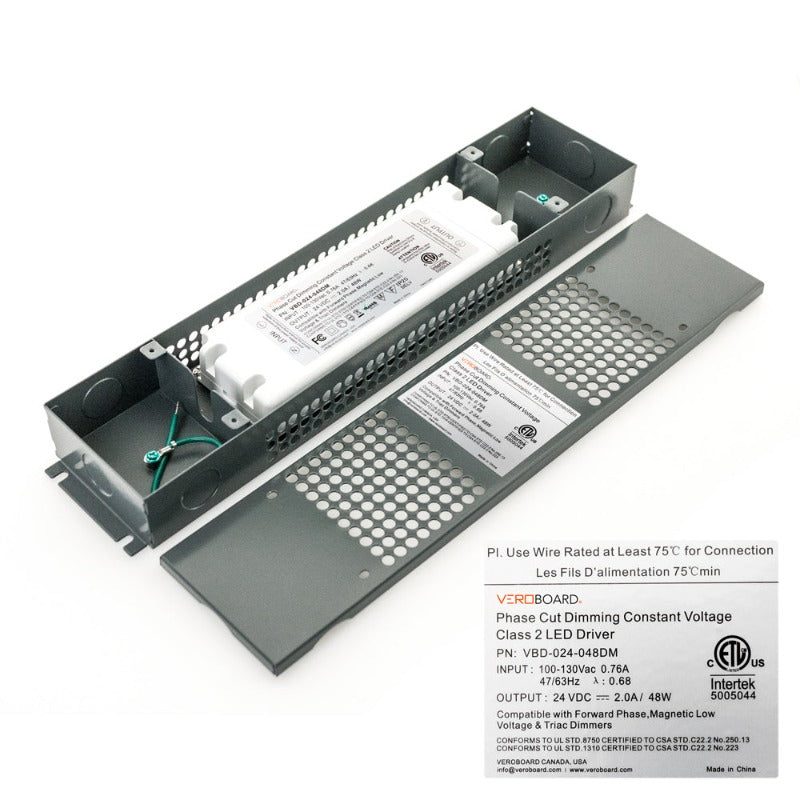

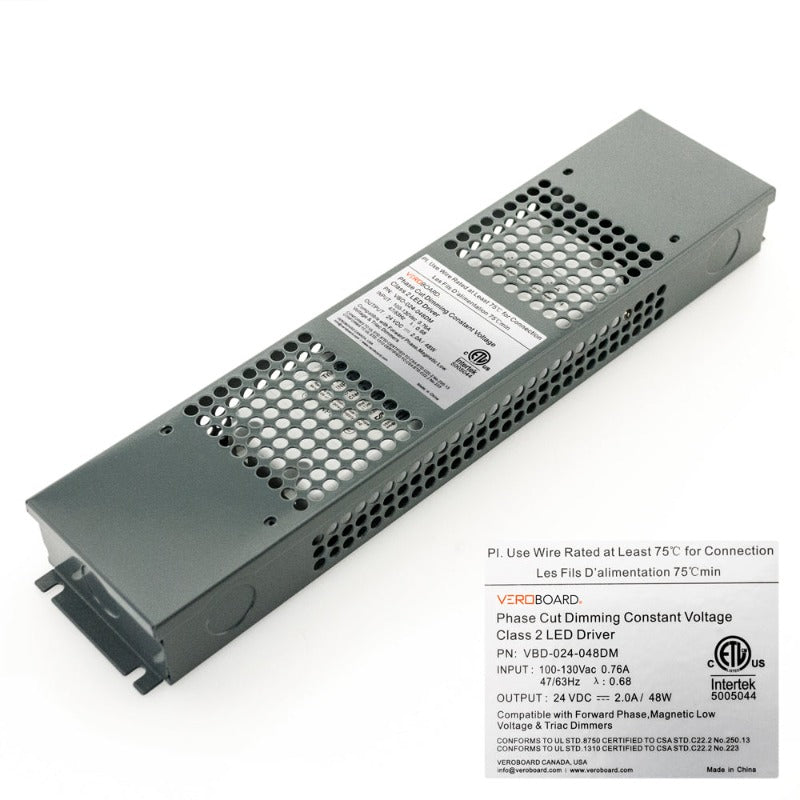

The VBD-024-048DM Triac Dimmable Constant Voltage LED Driver is a power supply designed to power LED lighting systems with a constant output voltage of 24V DC and output current of 2.0A, delivering a maximum output power of 48 watts. This LED Driver is dimmable using both Phase-cut and Triac dimming methods, providing flexibility in lighting control.

The LED Driver operates with an input voltage range of 100-130V AC and an input current of 0.76A. It has a frequency range of 47/63Hz and a power factor of 0.68. The device is designed to regulate output voltage at 24V DC and provide a constant output current of 2.0A, delivering a maximum output power of 48W.

The VBD-024-048DM LED driver is IP20 rated, indicating it is suitable for indoor use. The dimensions of the driver are 178 x 60 x 24.2mm (7 x 2.38 x 0.95 in) without the box and 331.72 x 78 x 38mm (13.06 x 3.07 x 1.5 in) with the box.

The driver is certified by ETL, indicating that it meets safety standards and compliance regulations set by the testing organization. This certification assures users that the driver is safe to use and meets quality standards for electrical devices. The LED Driver is also certified as Class 2 or Class II, which indicates that it has limited power output and is protected against electric shock, making it suitable for use in low-voltage lighting applications.

Features:

  • The VBD-024-048DM Triac Dimmable Constant Voltage LED Driver is designed for LED lighting systems with a constant output voltage of 24V DC and output current of 2.0A, delivering a maximum output power of 48 watts.
  • The LED driver is dimmable using both Phase-cut and Triac dimming methods, providing flexibility in lighting control.
  • It operates with an input voltage range of 100-130V AC and an input current of 0.76A, with a frequency range of 47/63Hz and a power factor of 0.68.
  • The device is designed to regulate output voltage at 24V DC and provide a constant output current of 2.0A, delivering a maximum output power of 48W.
  • The VBD-024-048DM LED driver is IP20 rated, indicating it is suitable for indoor use, with dimensions of 178 x 60 x 24.2mm (7 x 2.38 x 0.95 in) without the box and 331.72 x 78 x 38mm (13.06 x 3.07 x 1.5 in) with the box.
  • It is certified by ETL, indicating that it meets safety standards and compliance regulations set by the testing organization.
  • The LED Driver is also certified as Class 2 or Class II, which indicates that it has limited power output and is protected against electric shock, making it suitable for use in low-voltage lighting applications.
