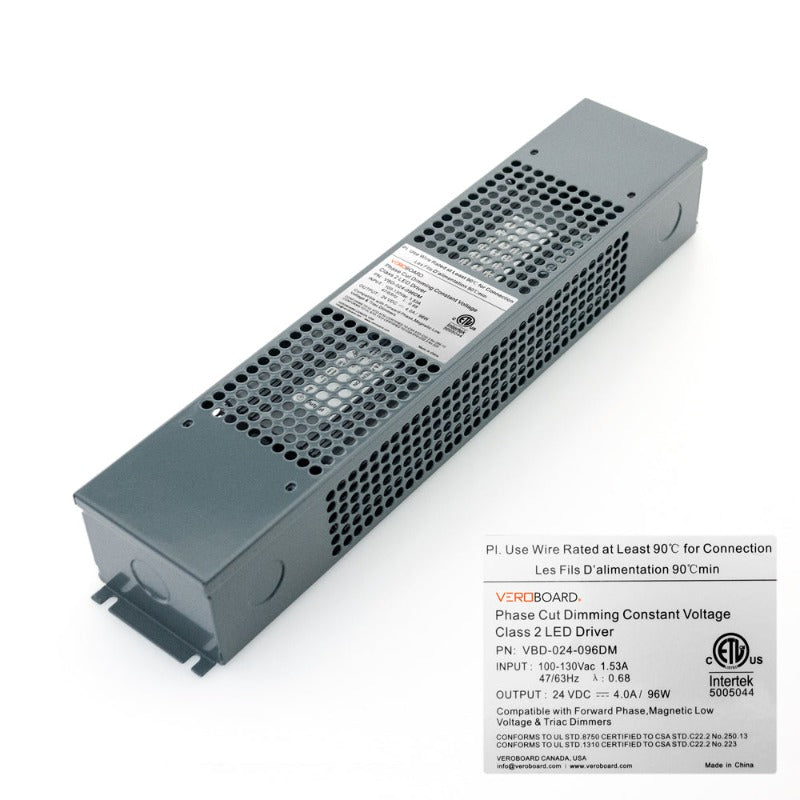

VBD-024-096DM Triac Dimmable Constant Voltage LED Driver, 24V 4A 96W

Product Description

Model	VBD-024-096DM
Input Voltage	100-130V AC
Input Current	1.53A
Frequency	47/63Hz
Power Factor	0.68

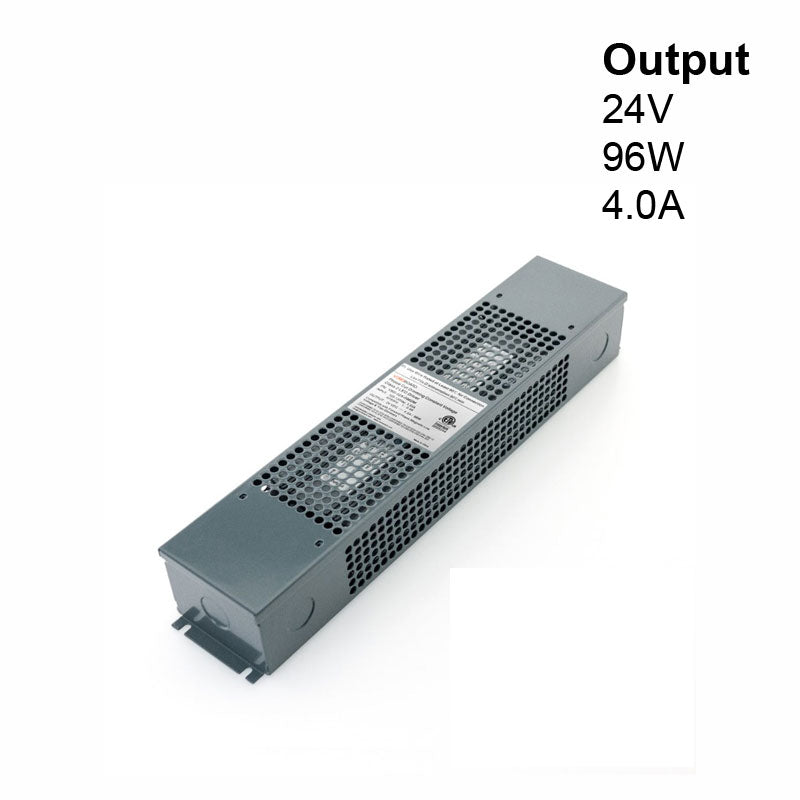

Output Voltage	24V DC
Output regulated Current	4.0A
Output Power	96W max
Dimmable	Yes (Phase/ Triac/ Magnetic Low Voltage)
IP Rating	IP67 (Outdoor rated)
Class Certification	Class 2

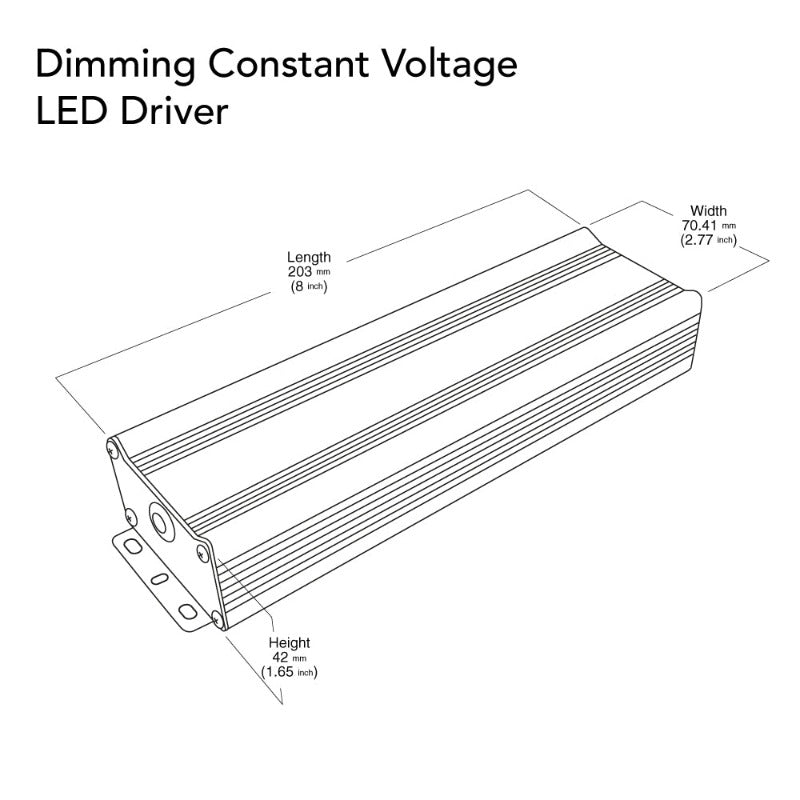

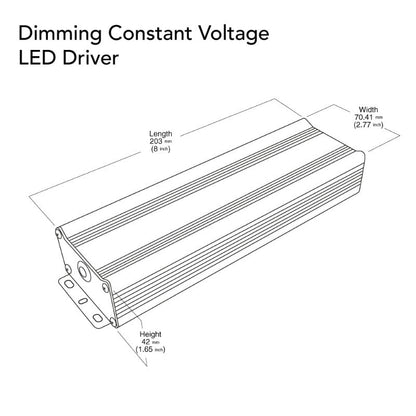

Dimensions (without Box)	203 x 70.41x 42mm (8 x 2.77 x 1.65 in)

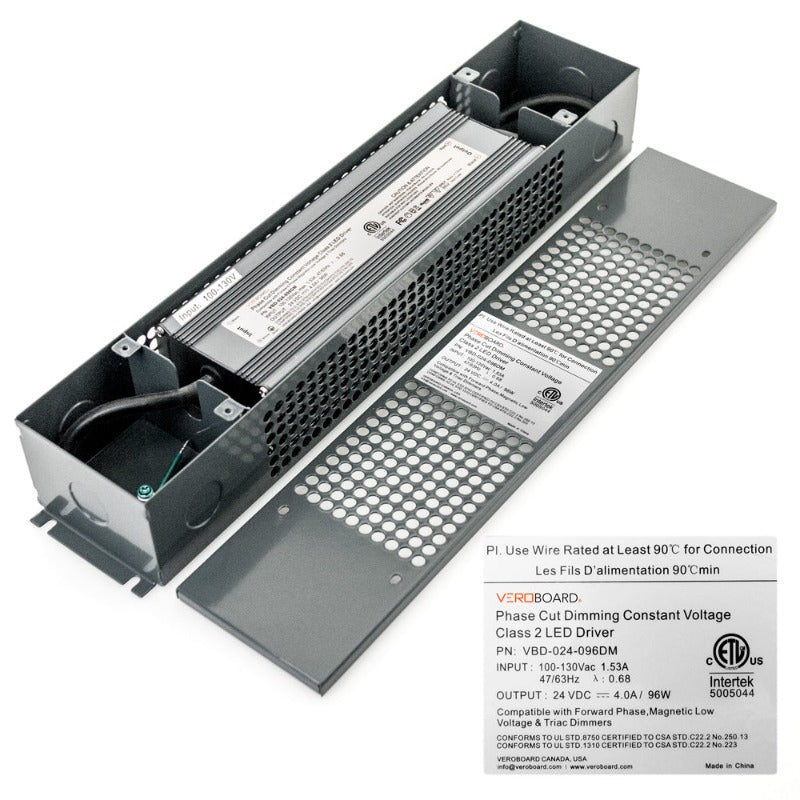

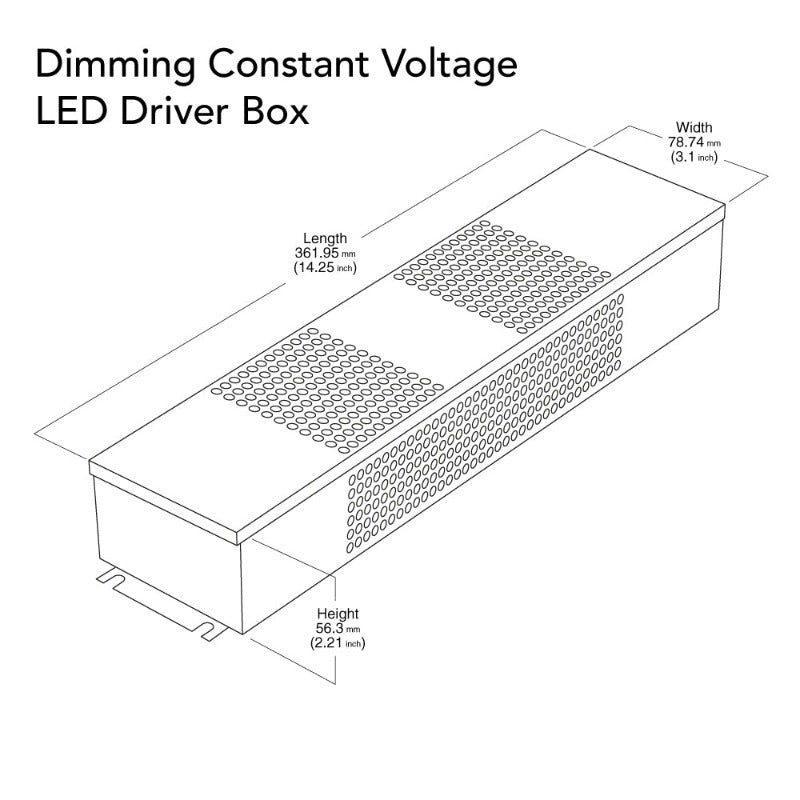

Dimensions (Box)	361.95 x 78.74 x 56.3mm (14.25 x 3.1 x 221 in)
Certifications

The VBD-024-096DM Triac Dimmable Constant Voltage LED Driver Model is a power supply unit designed for use with LED lighting systems. It operates with an input voltage of 100-130V AC and an input current of 1.53A, with a frequency range of 47/63Hz. The power factor of this LED driver is 0.68.

This model provides a regulated output voltage of 24V DC, with a maximum output power of 96W. The output regulated current of this LED driver is 4.0A, making it suitable for powering a variety of LED lights.

One of the notable features of this LED driver is its dimming capability, which allows for both Phase-Cut and Triac Dimming. This allows for greater flexibility in controlling the brightness of LED lights.

The VBD-024-096DM LED driver is designed to be used in outdoor environments, with an IP67 rating. It also has Class 2 certification, which indicates that it has been tested and meets certain safety standards.

The dimensions of this LED driver are 203 x 70.41x 42mm (8 x 2.77 x 1.65 in) without the box, and 361.95 x 78.74 x 56.3mm (14.25 x 3.1 x 221 in) with the box. Additionally, it has ETL certification, which is a safety certification for electrical products in North America.

Features:

• The VBD-024-096DM Triac Dimmable Constant Voltage LED Driver is designed for LED lighting systems and operates with an input voltage of 100-130V AC, with a frequency range of 47/63Hz, and an input current of 1.53A.
• This LED driver provides a regulated output voltage of 24V DC, with a maximum output power of 96W and an output regulated current of 4.0A, suitable for various LED lights.
• The LED driver features both Phase-Cut and Triac Dimming capability, which provides greater flexibility in controlling the brightness of LED lights.
• With an IP67 rating, the VBD-024-096DM LED driver is suitable for outdoor use, and it also has Class 2 certification, indicating that it has been tested and meets certain safety standards.
• The dimensions of this LED driver are 203 x 70.41 x 42mm (8 x 2.77 x 1.65 in) without the box and 361.95 x 78.74 x 56.3mm (14.25 x 3.1 x 221 in) with the box.
• The VBD-024-096DM LED driver is also ETL certified, ensuring that it meets safety and performance standards for electrical products in North America.
