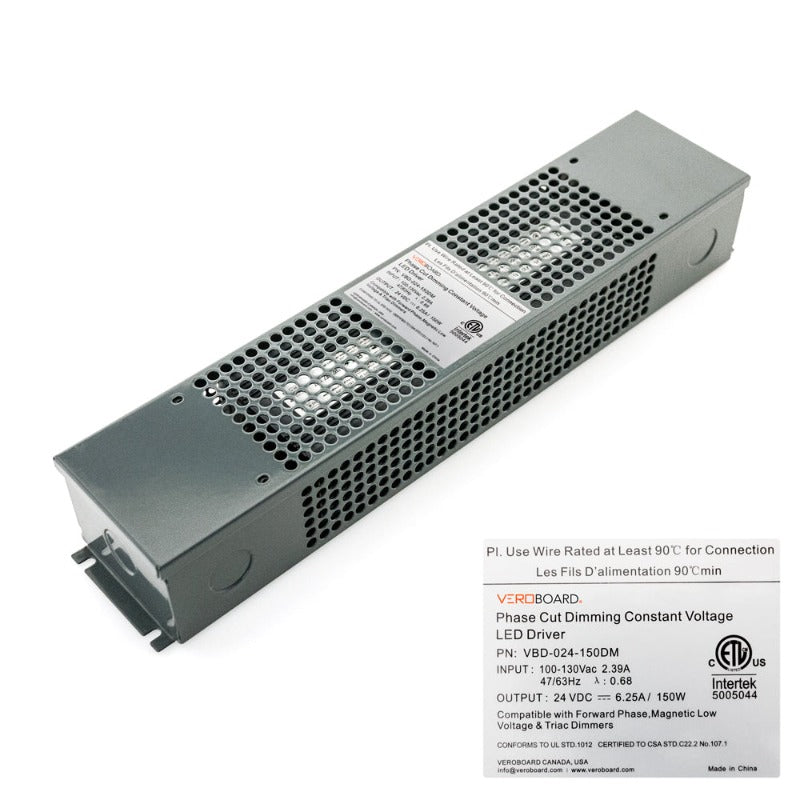

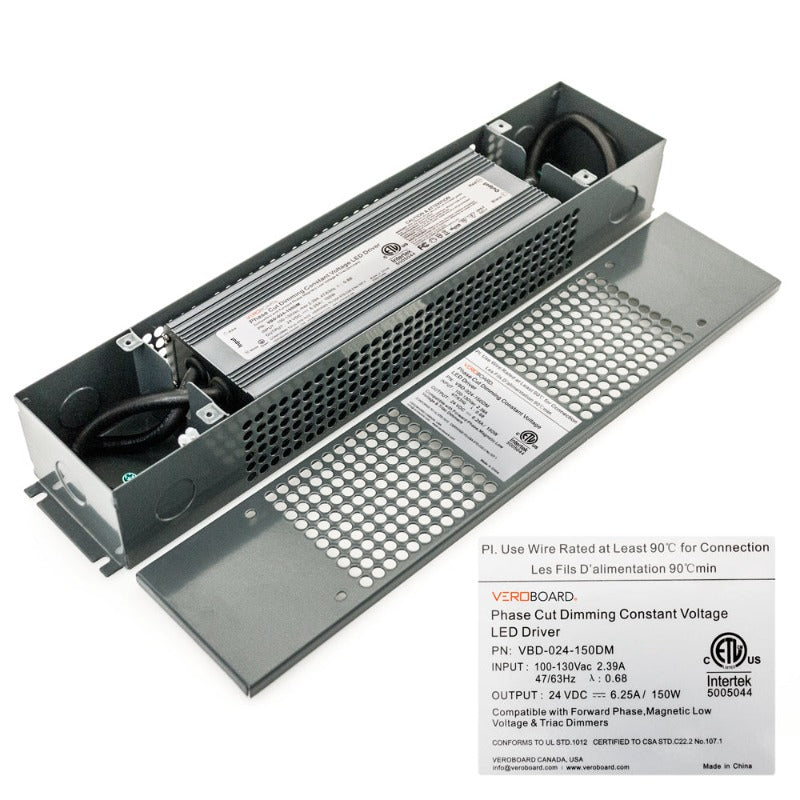

VBD-024-150DM Triac Dimmable Constant Voltage LED Driver, 24V 6.25A 150W

  • $191.95 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561415792
We only have 139 left! Get it now before it's completely gone.

Free shipping on orders over $49 USD (Check availability during checkout).




Product Description

Model VBD-024-150DM
Input Voltage 100-130V AC
Input Current 2.39A
Frequency 47/63Hz
Power Factor 0.68

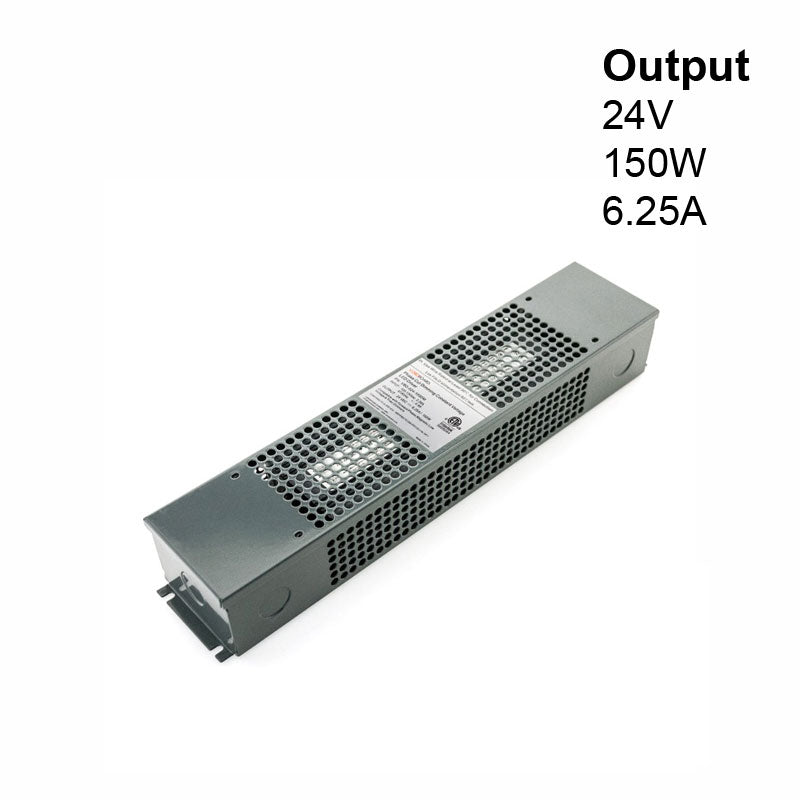

Output Voltage 24V DC
Output regulated Current 6.25A
Output Power 150W max
Dimmable Yes
(Phase/ Triac/ Magnetic Low Voltage)
IP Rating IP67 (Outdoor Rated)

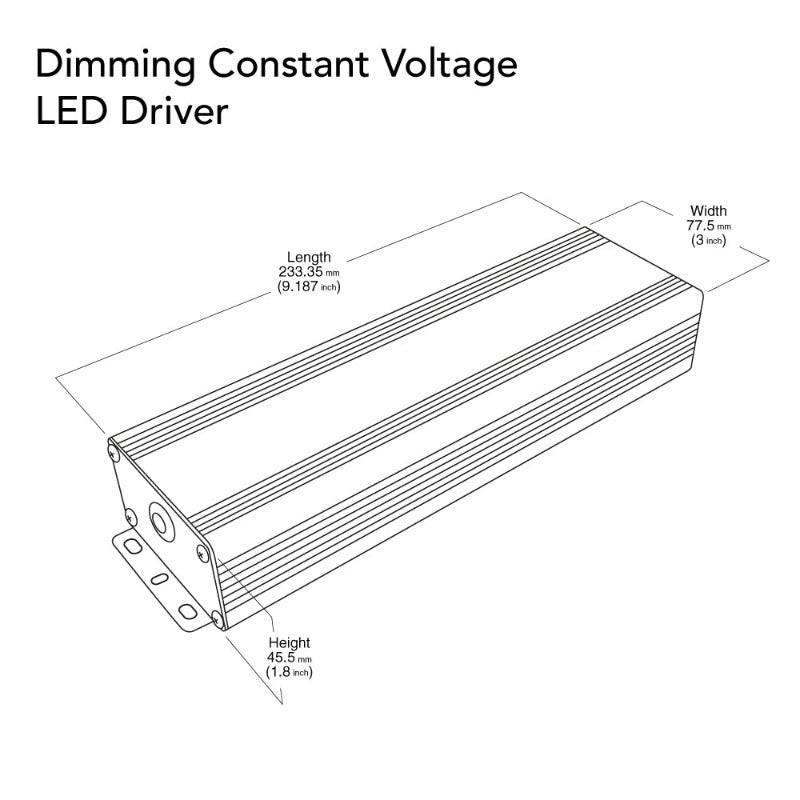

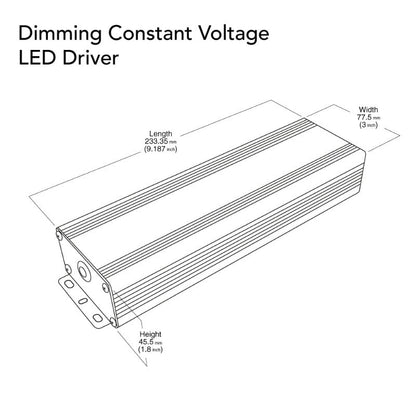

Dimensions (Without Box) 233.35 x 77.5x 45.5mm (9.18 x 3 x 1.5 in)

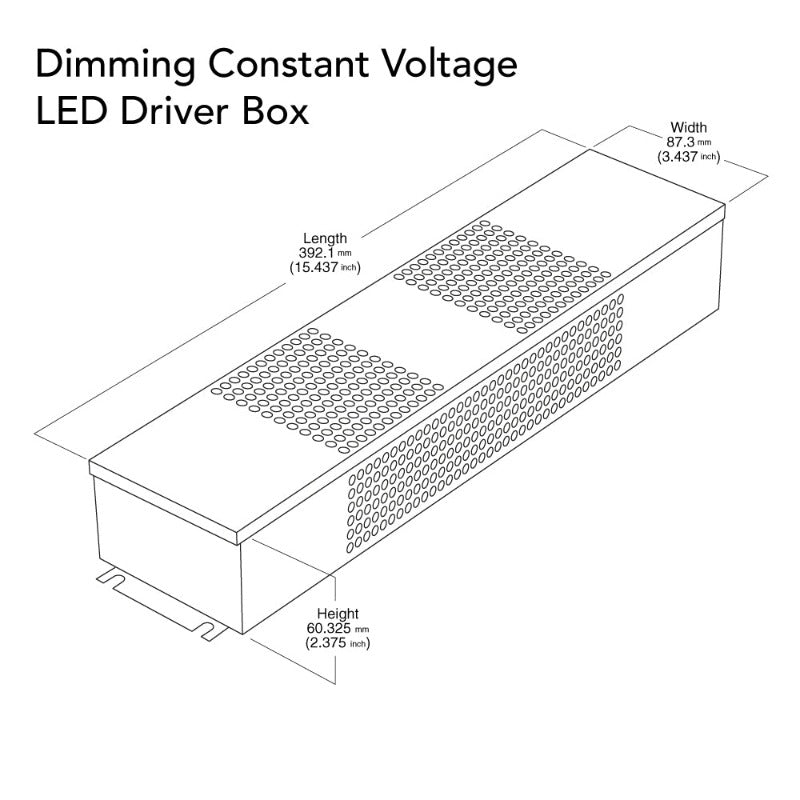

Dimensions (Box) 392.1 x 87.3 x 60.32mm (15.43 x 3.43 x 2.37 in)
Certifications
Applicable for dry, damp, and wet locations
Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers

The VBD-024-150DM Triac Dimmable Constant Voltage LED Driver Model is a power supply unit designed for use with LED lighting systems. It operates with an input voltage of 100-130V AC and an input current of 2.39A, with a frequency range of 47/63Hz. The power factor of this LED driver is 0.68.

This model provides a regulated output voltage of 24V DC, with a maximum output power of 150W. The output regulated current of this LED driver is 6.25A, making it suitable for powering a variety of LED lights.

One of the notable features of this LED driver is its dimming capability, which allows for both Phase-Cut and Triac Dimming. This allows for greater flexibility in controlling the brightness of LED lights.

The VBD-024-150DM LED driver is designed to be used in outdoor environments, with an IP67 rating. This makes it suitable for use in locations where it may be exposed to moisture, dust, or other outdoor elements.

The dimensions of this LED driver are 233.35 x 77.5x 45.5mm (9.18 x 3 x 1.5 in) without the box, and 392.1 x 87.3 x 60.32mm (15.43 x 3.43 x 2.37 in) with the box. Additionally, it has ETL certification, which is a safety certification for electrical products in North America.

Features:

  • The VBD-024-150DM is a Triac Dimmable Constant Voltage LED Driver Model designed for use with LED lighting systems.
  • It operates with an input voltage of 100-130V AC and an input current of 2.39A, with a frequency range of 47/63Hz.
  • The power factor of this LED driver is 0.68.
  • It provides a regulated output voltage of 24V DC, with a maximum output power of 150W.
  • The output regulated current of this LED driver is 6.25A, making it suitable for powering a variety of LED lights.
  • This LED driver has a dimming capability, allowing for both Phase-Cut and Triac Dimming for greater flexibility in controlling the brightness of LED lights.
  • It is designed for use in outdoor environments, with an IP67 rating.
  • The dimensions of this LED driver are 233.35 x 77.5 x 45.5mm (9.18 x 3 x 1.5 in) without the box, and 392.1 x 87.3 x 60.32mm (15.43 x 3.43 x 2.37 in) with the box.
  • It also has ETL certification, which is a safety certification for electrical products in North America.
