Product Description
| Model | VBD-024-200DM |
| Input Voltage | 100-130V AC |
| Input Current | 3.18A |
| Frequency | 47/63 Hz |
| Power Factor | 0.68 |

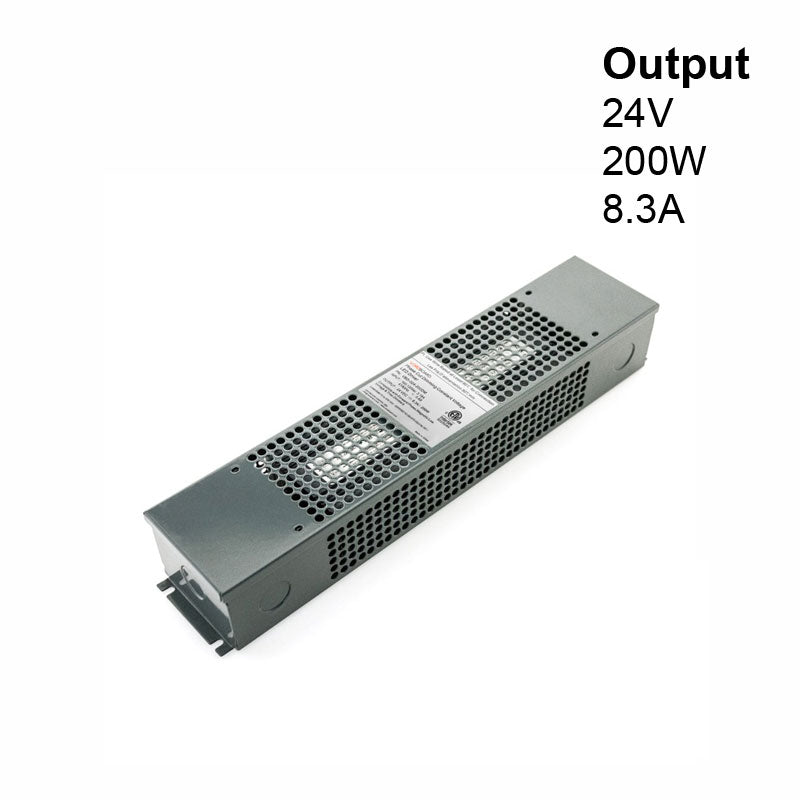

| Output Voltage | 24V DC |
| Output regulated Current | 8.3A |
| Output Power | 200W max |
| Dimmable |
Yes (Phase/ Triac/ Magnetic Low Voltage) |
| IP Rating | IP67 (outdoor rated) |

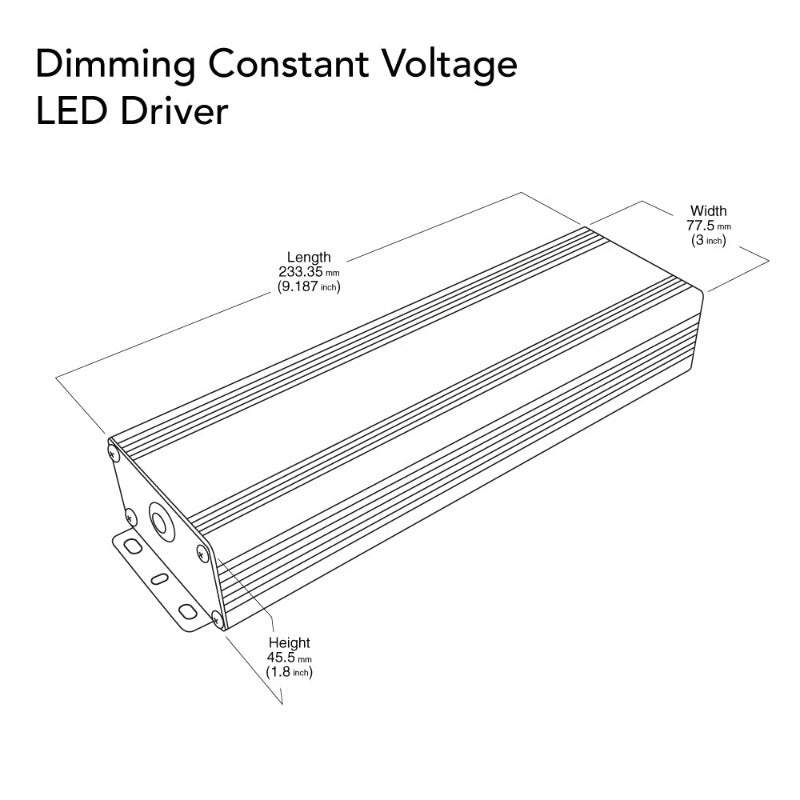

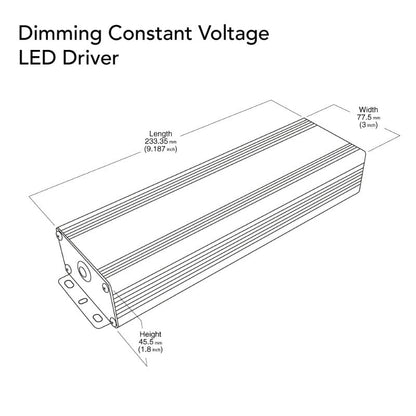

| Dimensions (Without Box) | 233.35 x 77.5x 45.5mm (9.18 x 3 x 1.5 in) |

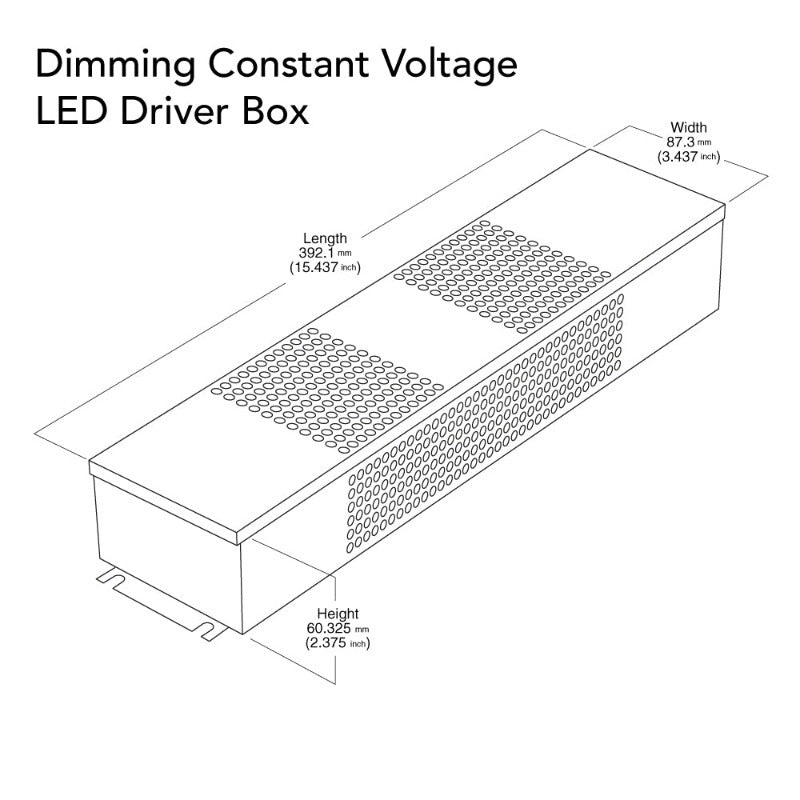

| Dimensions (Box) | 393.1 x 87.3 x 60.32mm (15.43 x 3.43 x 2.37 in) |
| Certifications |    |
| Applicable for dry, damp, and wet locations |
| Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers |

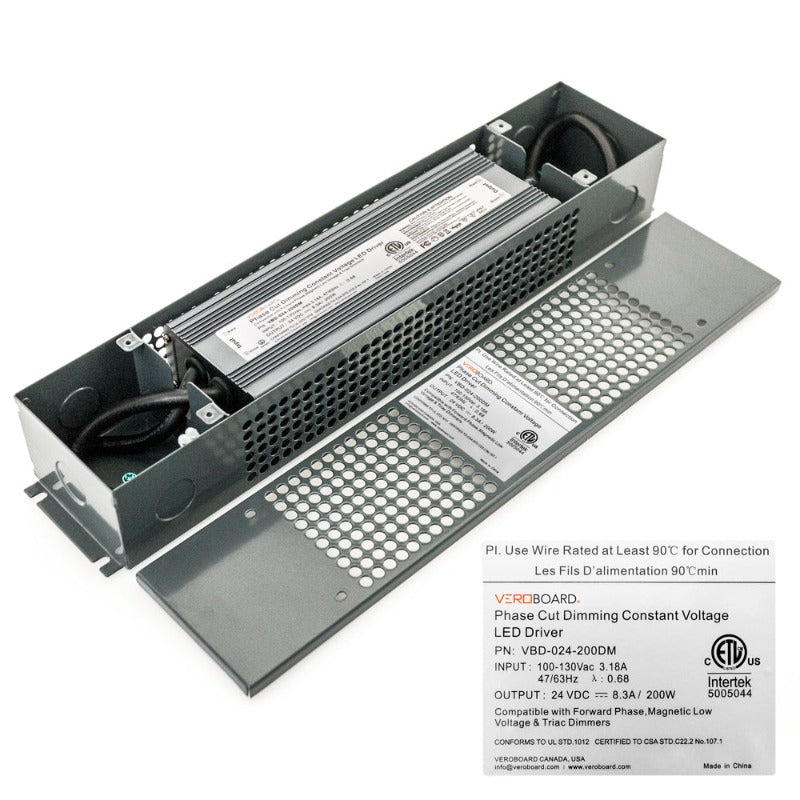

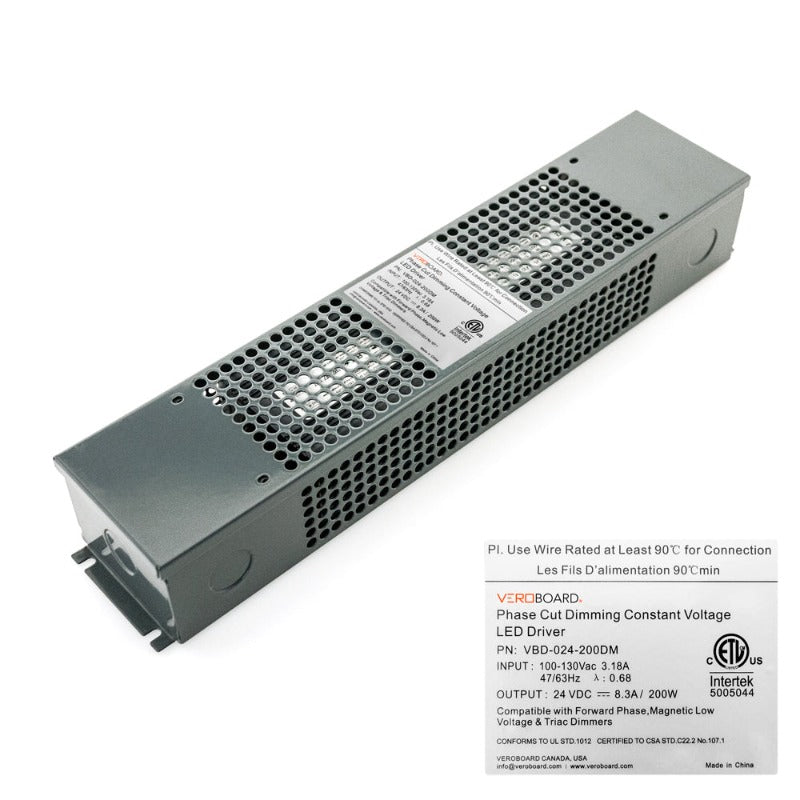

The VEROBOARD VBD-024-200DM is a dimmable constant voltage LED driver designed to power LED lighting systems. It has a model number of VBD-024-200DM and an input voltage range of 100-130V AC, with an input current of 3.18A and a frequency of 47/63 Hz.
The power factor of the VEROBOARD VBD-024-200DM is 0.68, which means that it consumes less power while providing a more efficient output. It has an output voltage of 24V DC, with a regulated output current of 8.3A and a maximum output power of 200W.
This driver is dimmable, allowing for greater control over the brightness of the connected LED lighting system. It is compatible with Phase, Triac, and Magnetic Low Voltage dimmers.
The driver is certified by ETL, ensuring its safety and reliability in use.
Features:
- The VEROBOARD VBD-024-200DM is a dimmable constant voltage LED driver designed to power LED lighting systems.
- It has a model number of VBD-024-200DM and an input voltage range of 100-130V AC, with an input current of 3.18A and a frequency of 47/63 Hz.
- The power factor of the VEROBOARD VBD-024-200DM is 0.68, which means that it consumes less power while providing a more efficient output.
- It has an output voltage of 24V DC, with a regulated output current of 8.3A and a maximum output power of 200W.
- The driver is dimmable, allowing for greater control over the brightness of the connected LED lighting system.
- It is compatible with Phase, Triac, and Magnetic Low Voltage dimmers.
- The VEROBOARD VBD-024-200DM has an IP67 rating, which means that it is outdoor rated and resistant to dust and water ingress.
- Its dimensions without the box are 233.35 x 77.5x 45.5mm (9.18 x 3 x 1.5 in), and with the box, they are 393.1 x 87.3 x 60.32mm (15.43 x 3.43 x 2.37 in).
- The driver is certified by ETL, ensuring its safety and reliability in use.
