XB2CFR0157 3.75 inch Outdoor Round Adjustable Beam Direction Up light, Inground Light, 24V 2.6W

  • $189.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561414900
Title:
We only have 126 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).




Product Description

Product Inground Light
Model XB2CFR0157
Operating Voltage 24V DC
Lens type Clear
Light Source 1x2W LED
Total Power Consumption 2.5W
Color Temperature 3000K (Warm White)
LED Type Integrated COB LED
Housing Material Die-cast Aluminum body

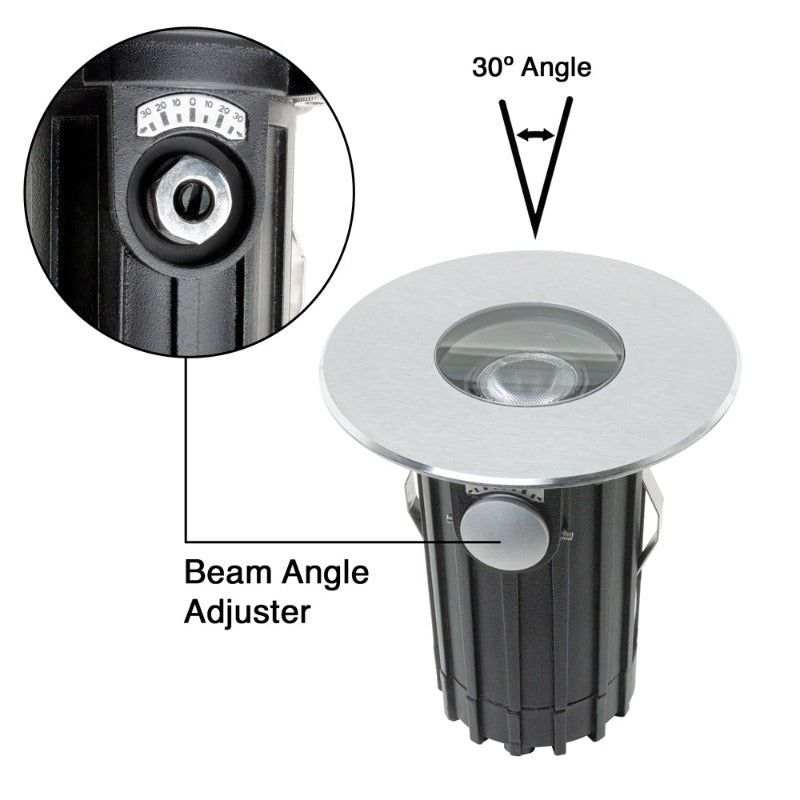

Beam Angle ±30° (Adjustable beam direction)
Cap Material
Stainless Steel
IP Rating IP67
IK Rating IK09
Dimmable No
Cable Size Length: 50cm(19.6in)
Ø7mm (0.27in)

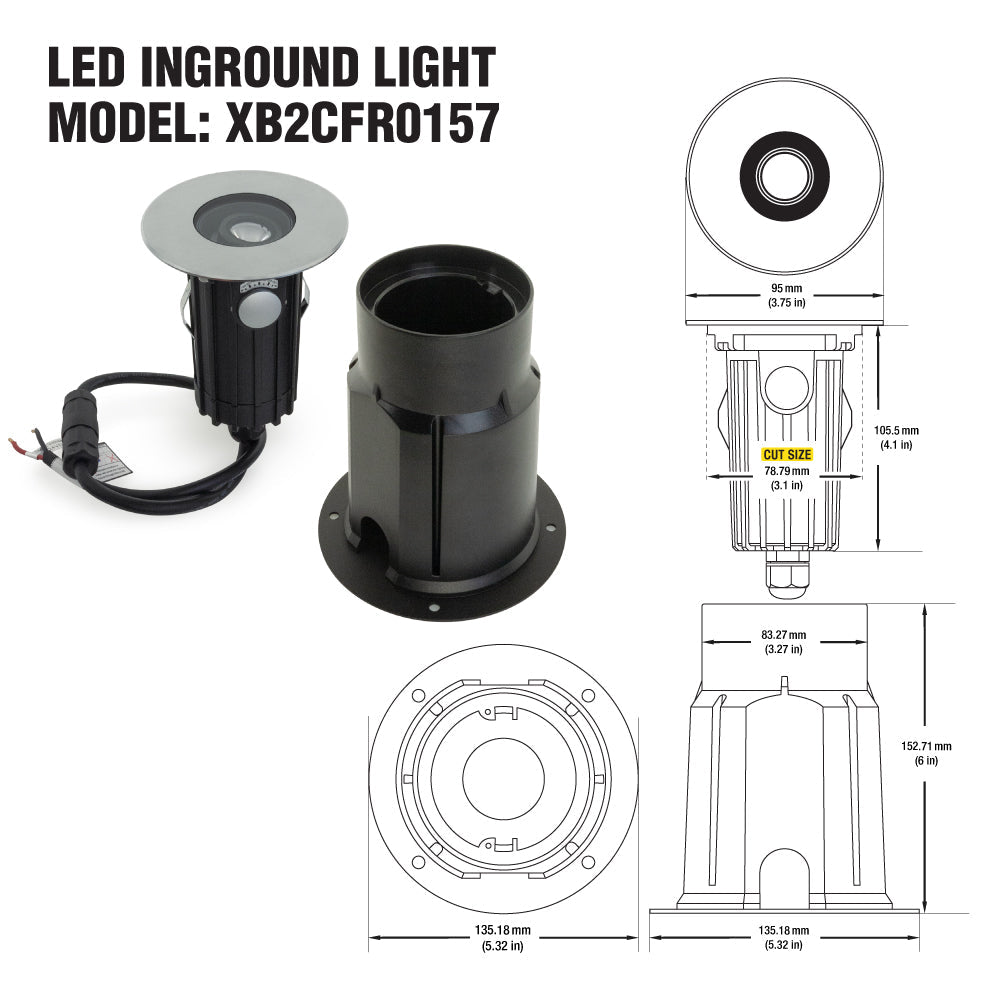

Dimensions with Housing



Diameter – 95 mm (3.75 inches)
Height – 148.5 mm (5.8 inches)
Base Diameter – 106.80 mm (4.2 inches)

Dimensions without Housing

Diameter – 95mm (3.75 inches)
Height – 105 mm(4.1 inches)

Certification



The XB2CFR0157 is a 3.75-inch round adjustable beam direction up-light, designed for outdoor applications. It operates on 24 V DC and has a total power consumption of 2.5W, powered by a single 2W LED. The light source is an integrated COB LED with a warm white color temperature of 3000K, and a clear lens type.

The housing material of this up-light is made of die-cast aluminum body with a cap color finish of 316 stainless steel. The beam angle is adjustable up to ±30°, allowing you to direct the light where needed. The dimensions of the unit with housing are 95mm in diameter, 148.5mm in height, and 106.80mm in base diameter, while without the housing, the height is reduced to 105mm.

This up-light is rated at IP67 and IK09, making it suitable for all weather conditions and resilient to being stepped upon. It is not dimmable, and it comes with a 50cm (19.6in) cable size. The unit is certified for quality assurance and offers various design possibilities in architectural illumination, creating a unique ambiance and offering functional illumination for walkways, garden lighting, and other desired applications.

Features:

  • 3.75-inch round adjustable beam direction up-light, designed for outdoor applications
  • Operates on 24 V DC with a total power consumption of 2.5W, powered by a single 2W LED
  • Integrated COB LED with a warm white color temperature of 3000K and clear lens type
  • Die-cast aluminum body with a cap color finish of 316 stainless steel
  • Adjustable beam angle up to ±30° for precise direction of light
  • Dimensions with housing: 95mm in diameter, 148.5mm in height, and 106.80mm in base diameter
  • Dimensions without housing: 95mm in diameter and 105mm in height
  • Rated IP67 and IK09 for resilience to all weather conditions and being stepped upon
  • Non-dimmable with a 50cm (19.6in) cable size
  • Certified for quality assurance and offers various design possibilities in architectural illumination, suitable for walkways, garden lighting, and other desired applications
