3 SMD Module 2.5W 12V With 6 inch Wire CCT(2.4K, 2.7K, 3K, 3.5K, 4K, 5K)

  • $9.90 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561430214
Color Temperature:
We only have 100 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).


Product Description


Constant Voltage LED Module
Voltage 12V
Wattage 2.5W
Current 0.2A
Luminous Flux 250-270 lumens
LED Type 5630
Dimmable No

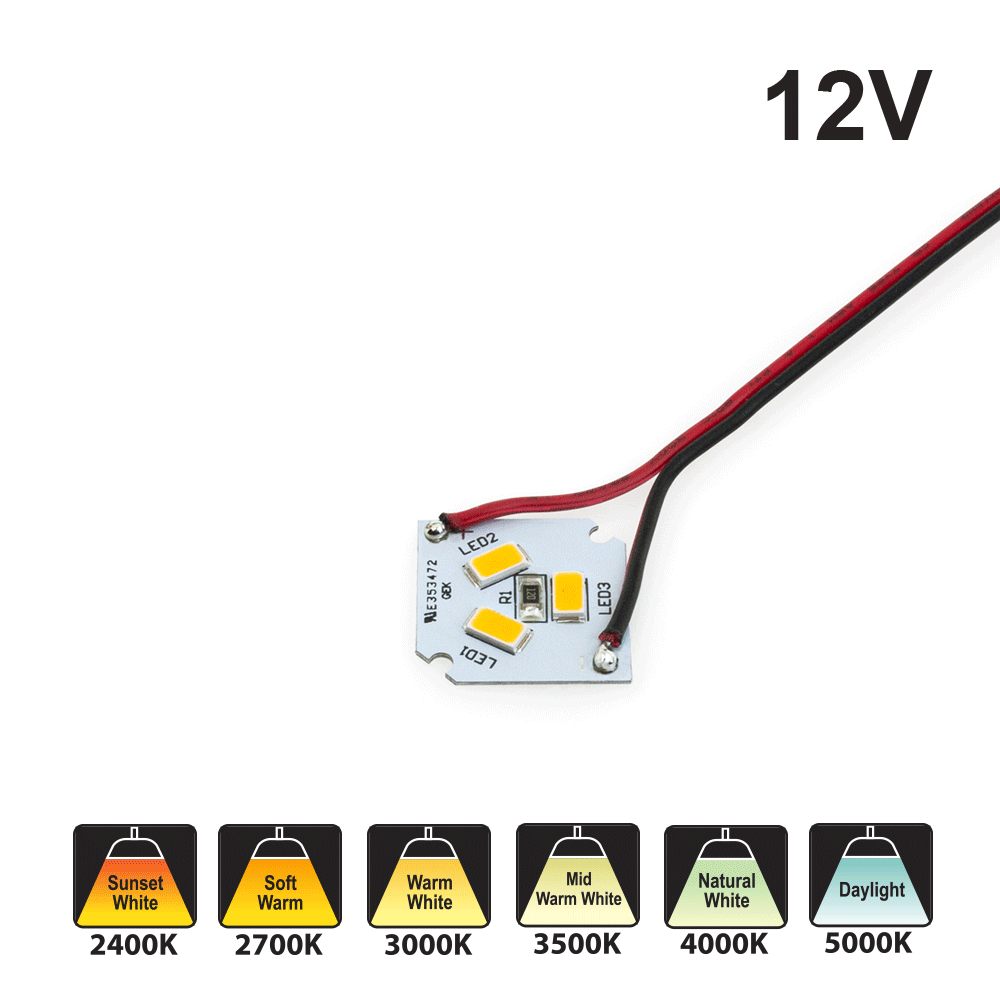

Available Color Temperature 2400K (Sunset White)
2700K (Soft White)
3000K (Warm White)
3500K (Mid-Warm White)
4000K (Natural White)
5000K (Daylight)
Material Aluminum (Metallic base)

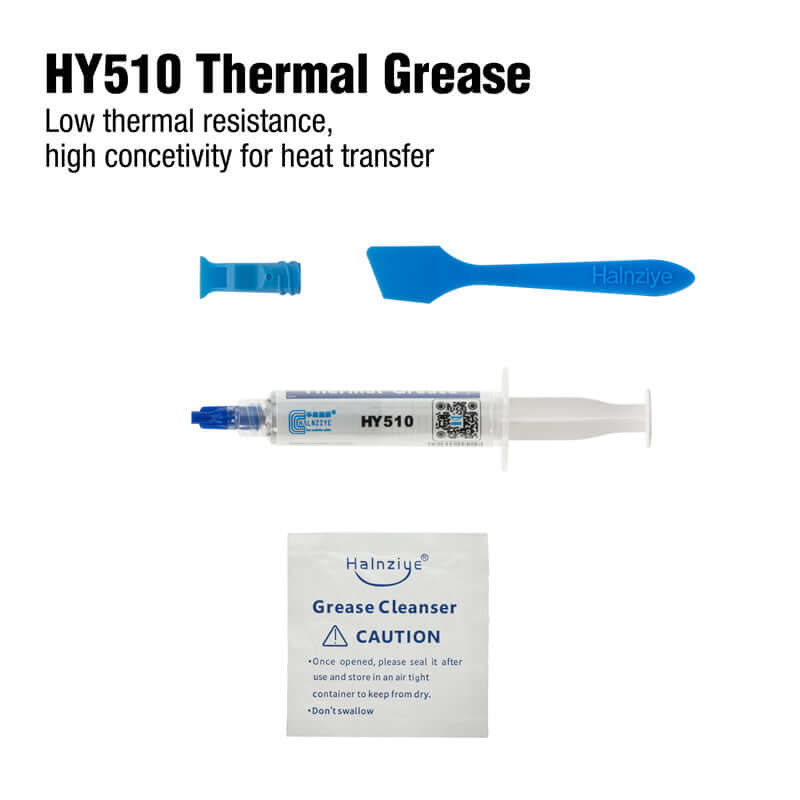

Thermal Grease We will include thermal grease to cover the quantity of LED modules ordered.

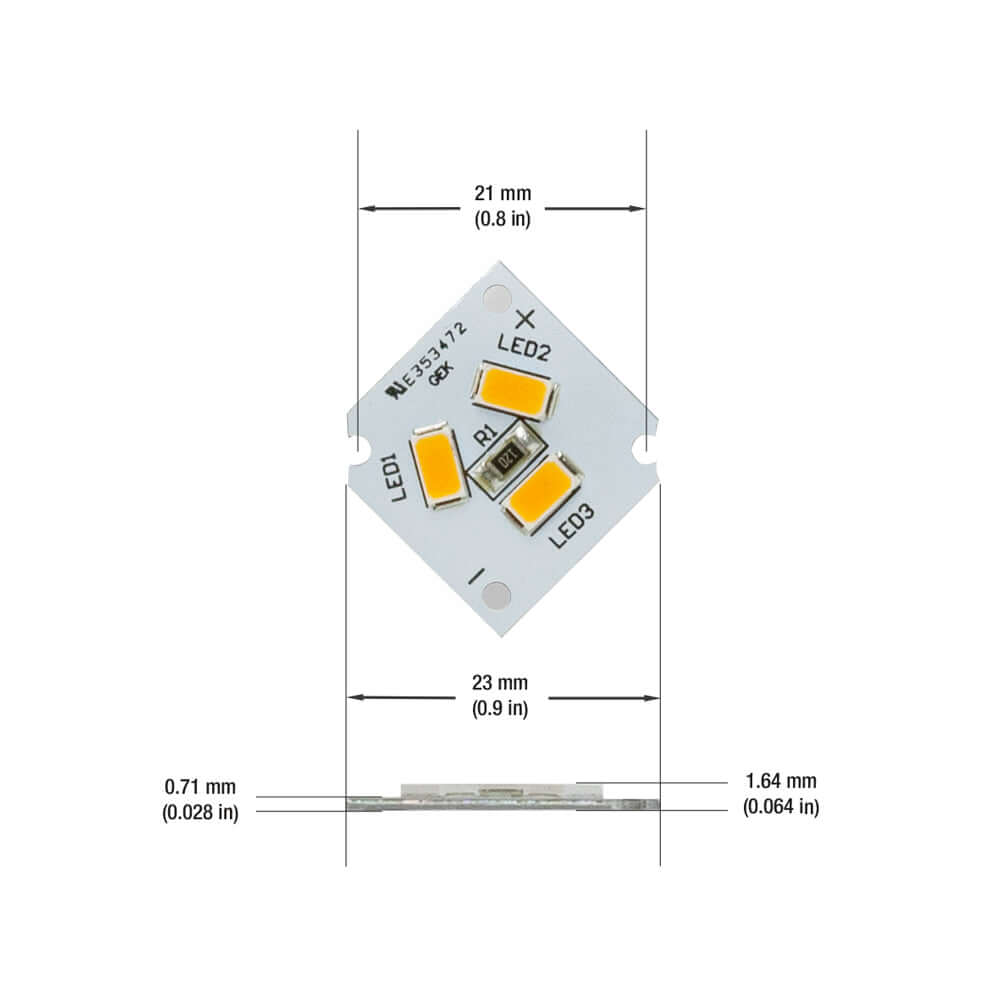

Dimensions 23 x 23 x 1.6mm (0.9 x 0.9 x 0.06inches)
Certification

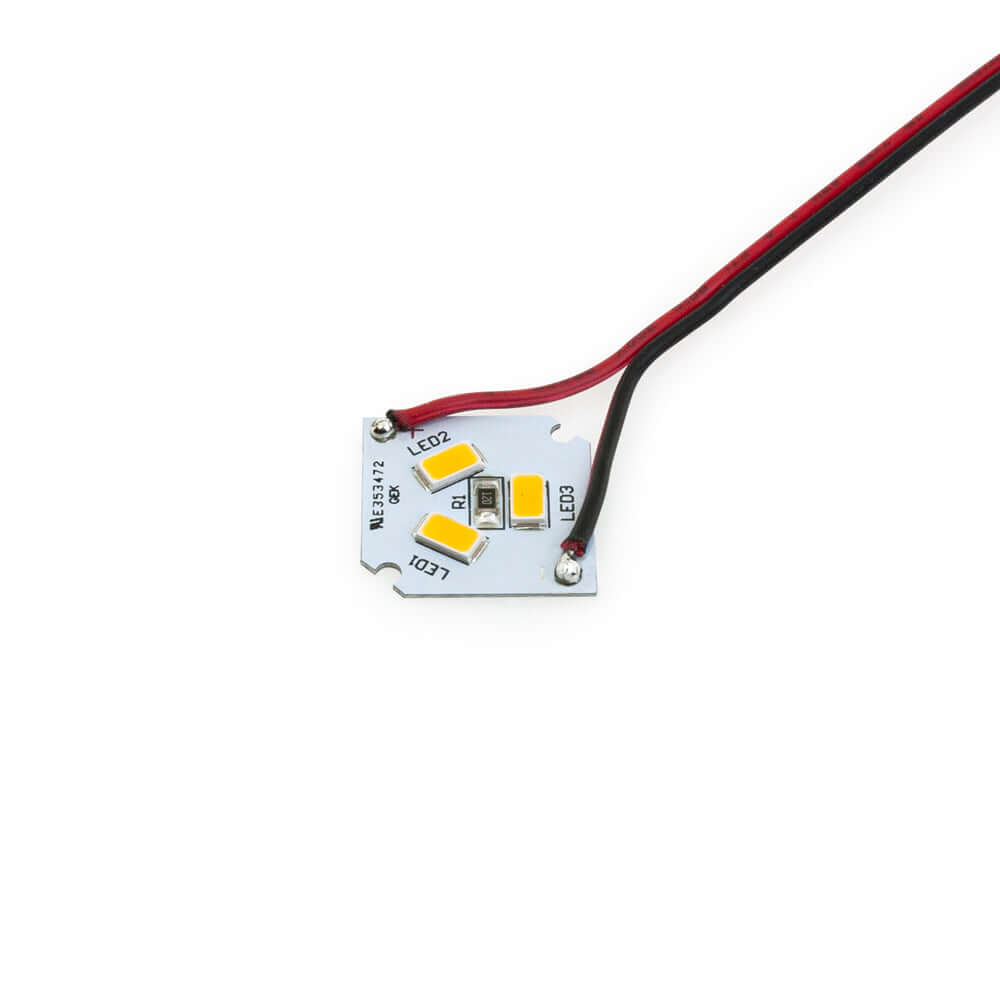

The 3 SMD Module 2.5W 12V with 6 inch Wire and CCT options (2.4K, 2.7K, 3K, 3.5K, 4K, 5K) is a compact and efficient LED module. It operates at a voltage of 12V, a wattage of 2.5W, and a current of 0.2A. The LED type used is 5630, and it provides a luminous flux of 250-270 lumens. This LED module is not dimmable.

This module comes with six available color temperature options ranging from 2400K (Sunset White) to 5000K (Daylight), allowing you to choose the perfect lighting for your space. The module is made of aluminum with a metallic base and has a small PCB size of 23 x 23mm (0.9 x 0.9inches). The package includes the LED module and thermal grease HY510 (5gr).

The 3 SMD Module 2.5W 12V is a low power consumption and energy-efficient lighting solution. It is a great DIY product that can replace damaged LEDs in fixtures with the same voltage and wattage. The ETL certification ensures that this LED module is safe and reliable to use.


Feature:

  • Compact and efficient LED module with 3 SMDs
  • Operating voltage of 12V, wattage of 2.5W, and current of 0.2A
  • LED type used is 5630, providing a luminous flux of 250-270 lumens
  • Available in six color temperature options ranging from 2400K to 5000K
  • Made of aluminum with a metallic base and small PCB size of 23 x 23mm (0.9 x 0.9inches)
  • Package includes the LED module and thermal grease HY510 (5gr)
  • Low power consumption and energy-efficient lighting solution
  • Great DIY product for replacing damaged LEDs in fixtures with the same voltage and wattage
  • ETL certification ensures safety and reliability of the LED module.
  • Use Thermal Grease or Thermal Pad for installation.
