Product Description
| Model | LED-S9W-1224V-5CCTKWH |
| Input Voltage | 12V~36V DC |
| Power | 9W |
| Brightness | 550Lm |

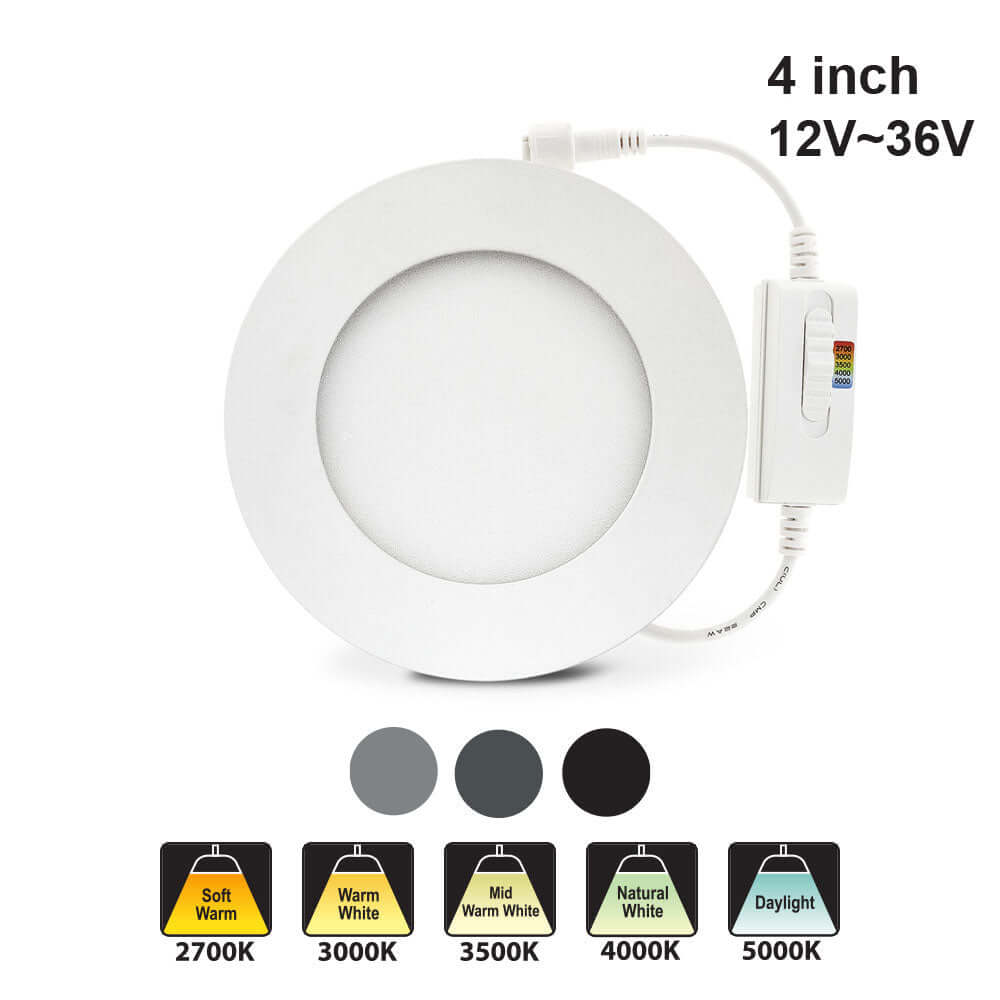

| Color Temperature | 2700K (Soft White) 3000K (Warm White) 3500K (Mid-Warm White) 4000K (Natural White) 5000K (Daylight) |
| Beam Angle | 120° |
| Rendering Index | CRI>90 |
| Dimmable | Yes |

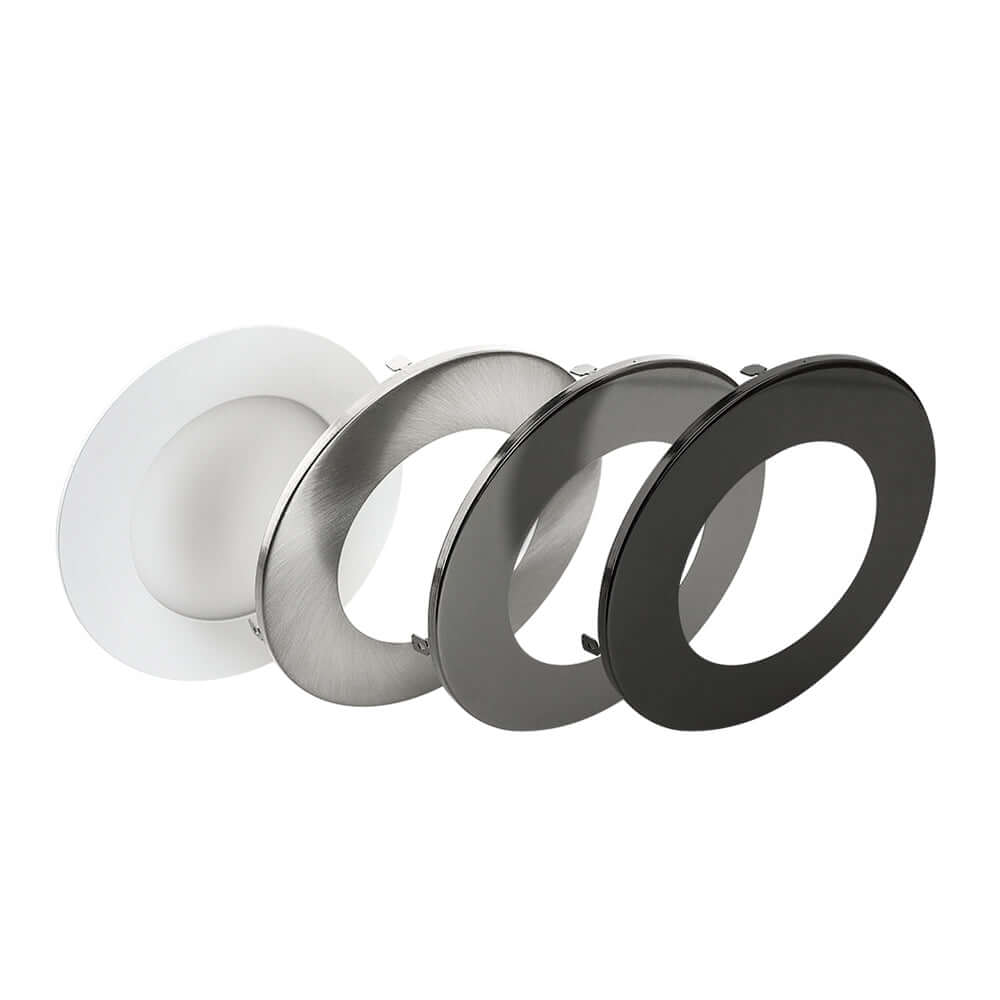

| Available Trim Colors | Black, Brush Nickel, Black Nickel (Sold Separately) |
| Weight | 0.5 kg |
| Mounting Plate (Sold Separately) |
MP-UNV-346 SKU: 666561433796 MP4 SKU: 666561433789 |

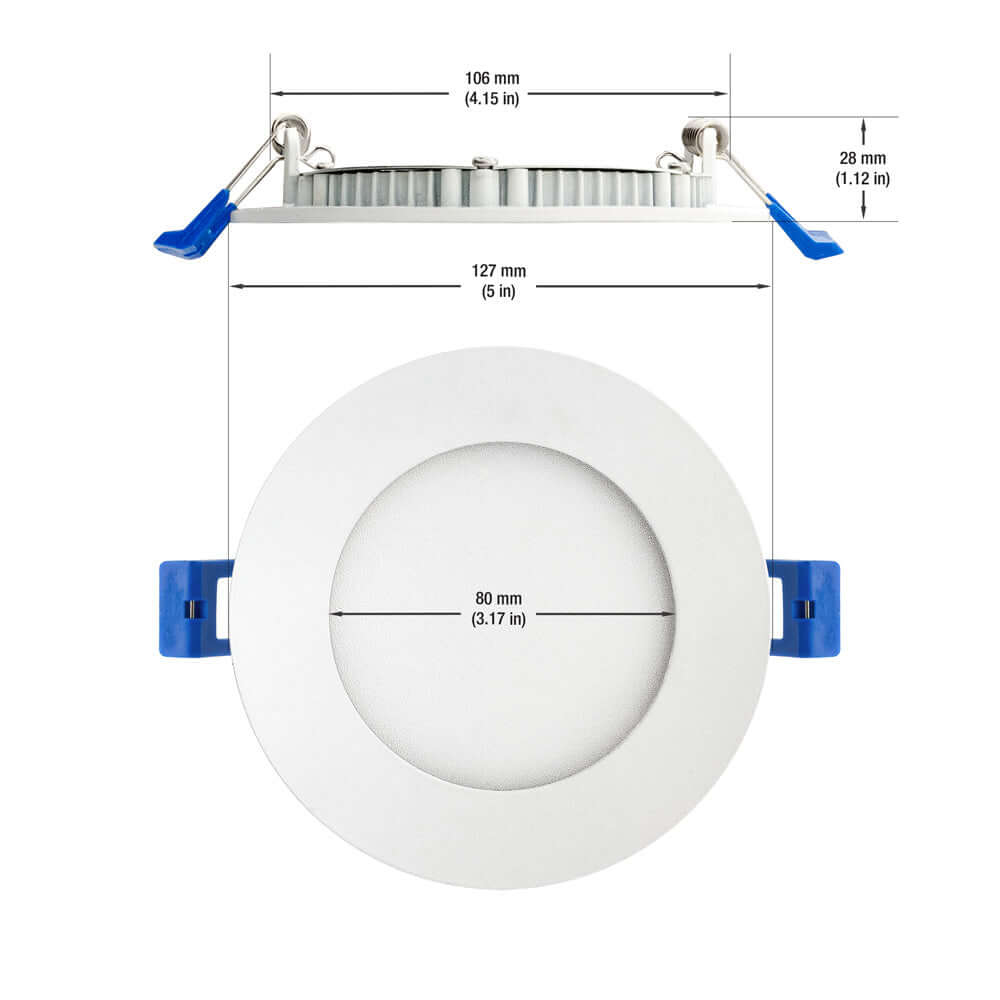

| Dimensions (Panel) |
Outer Diameter- 127 mm (5 inches) Overall Depth – 28 mm (1.1 inches) Cut Size – 107 mm (4.2 inches) |

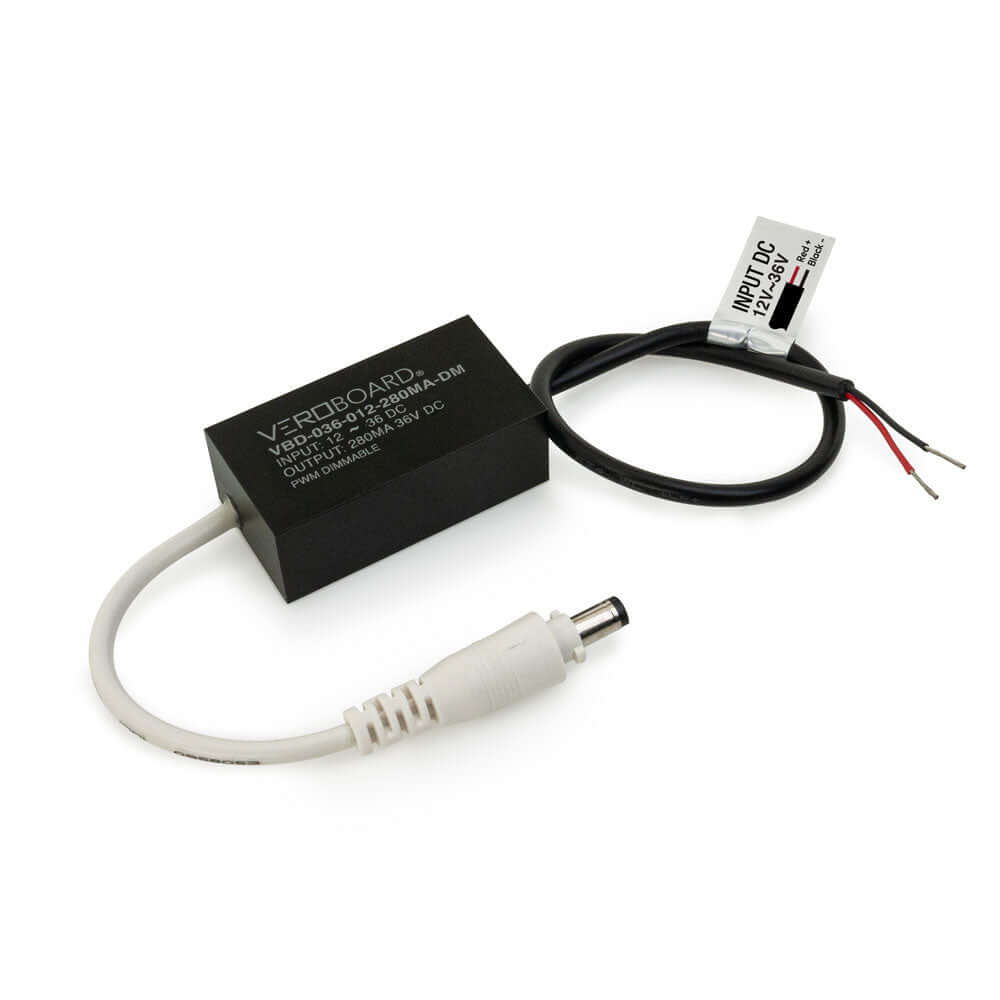

| Dimensions (Driver Box) | Length – 52.35mm (2.06 inches) Width – 27.54 mm (1.08 inches) Depth – 18.76mm (0.73 inch) |
| Wire Size | 400mm (15.7 in) 22AWG |
| Certifications |

|
Feature:

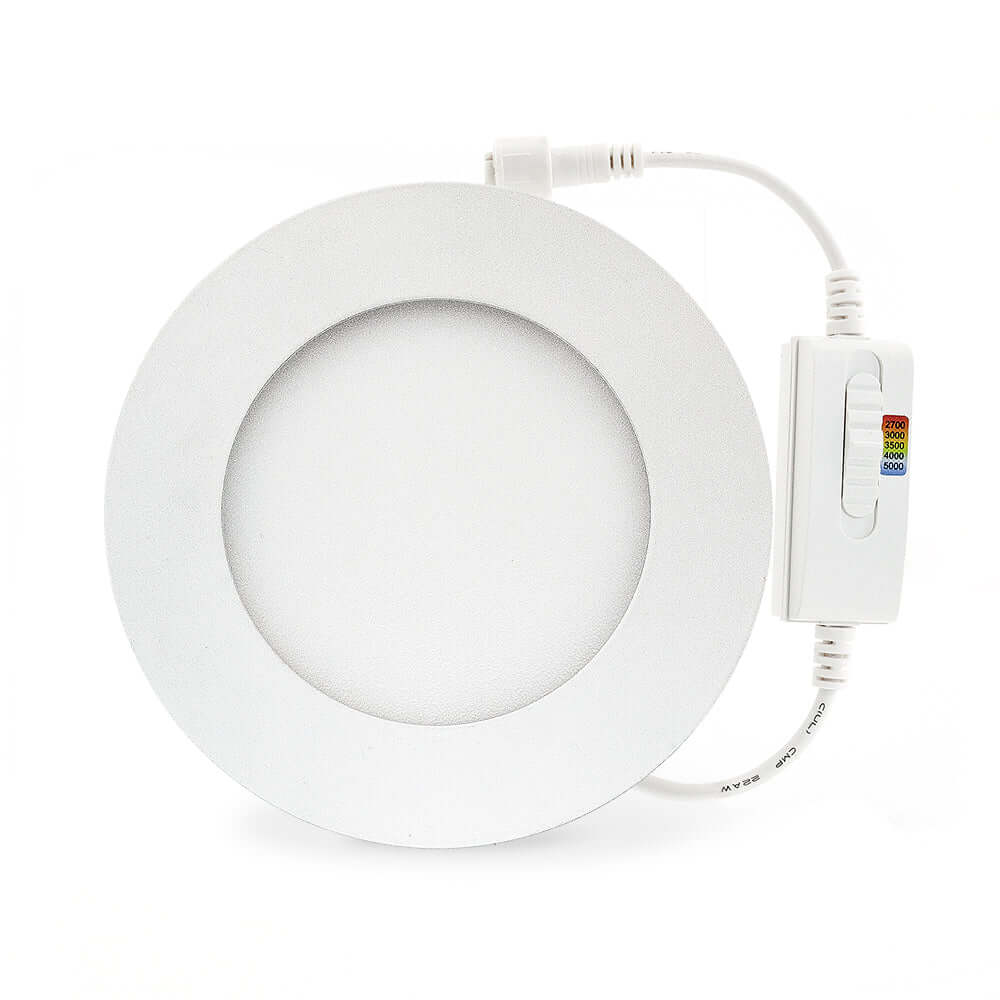

- Ultrathin and low profile panel with a flush mount/ recessed light.
- Has a high-quality reflector that acts as a good anti-glare.

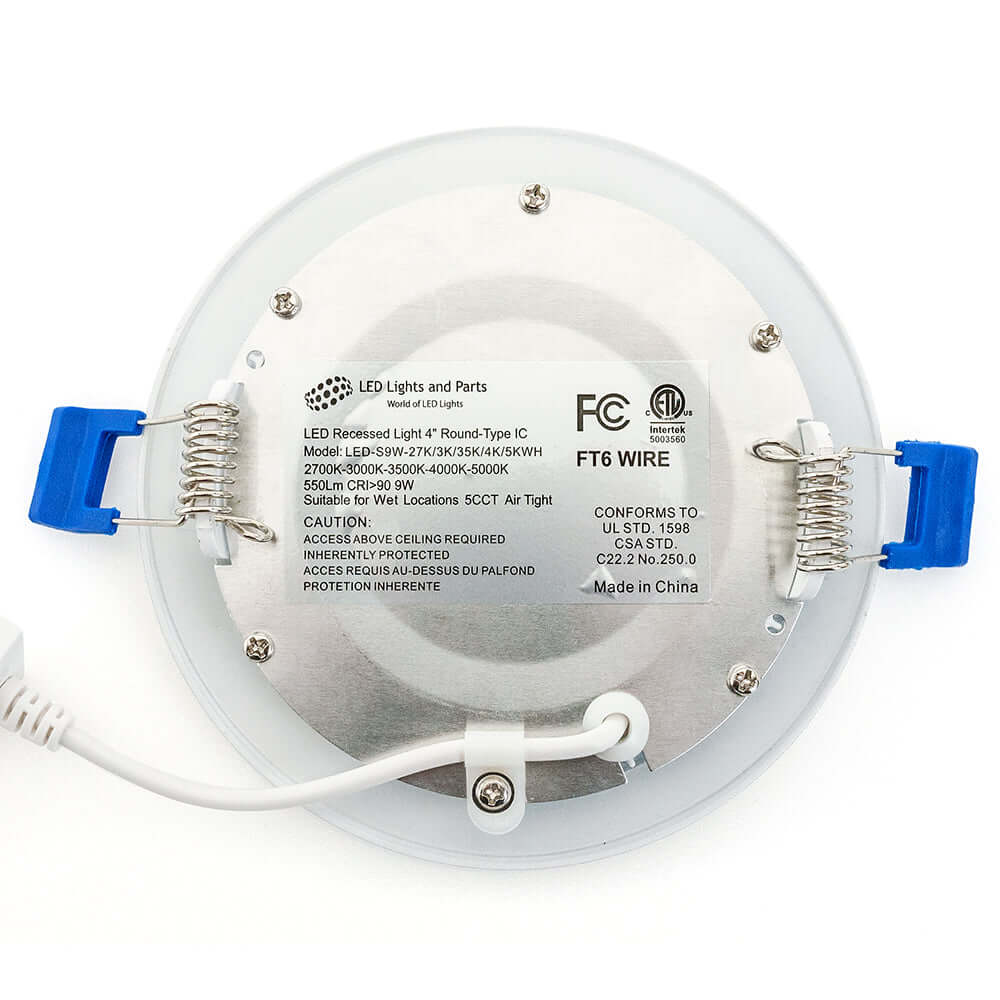

- The push springs help in the easy installation of lights.

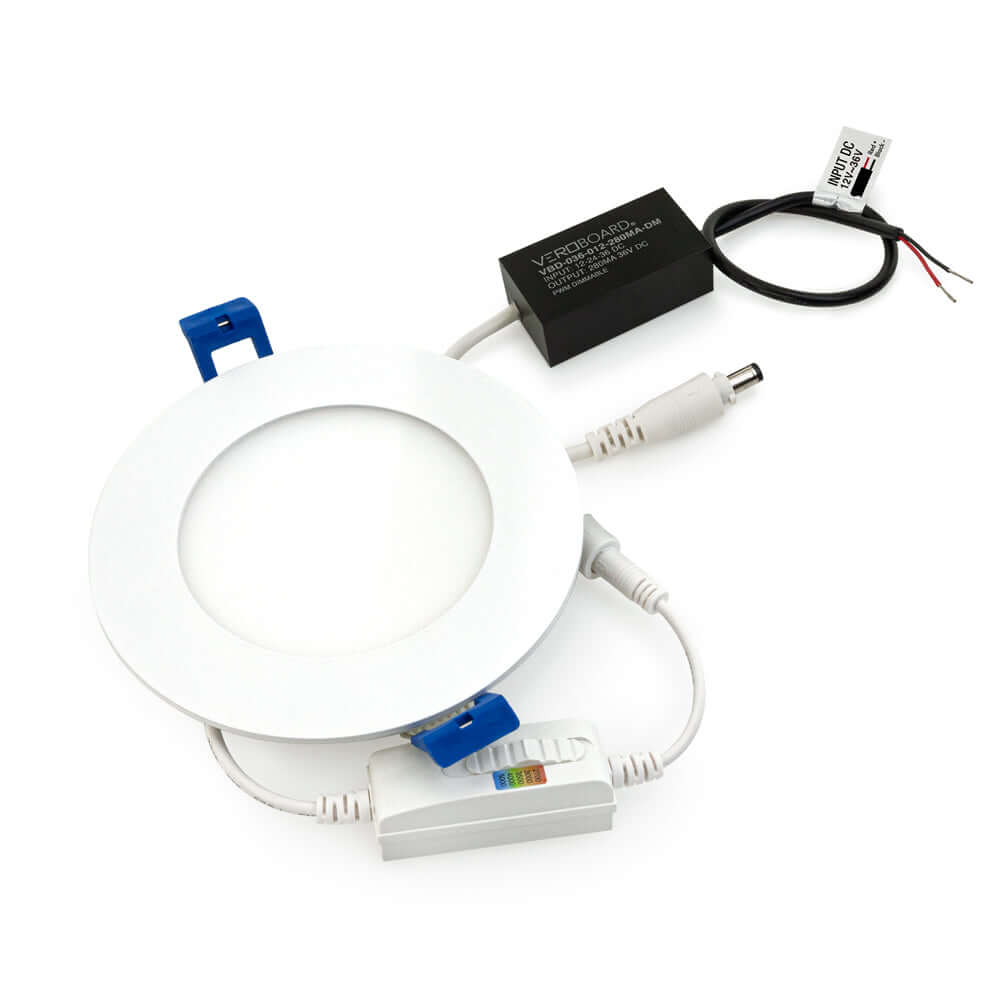

- The color temperature can be adjusted from the cable wire that connects with the driver box.

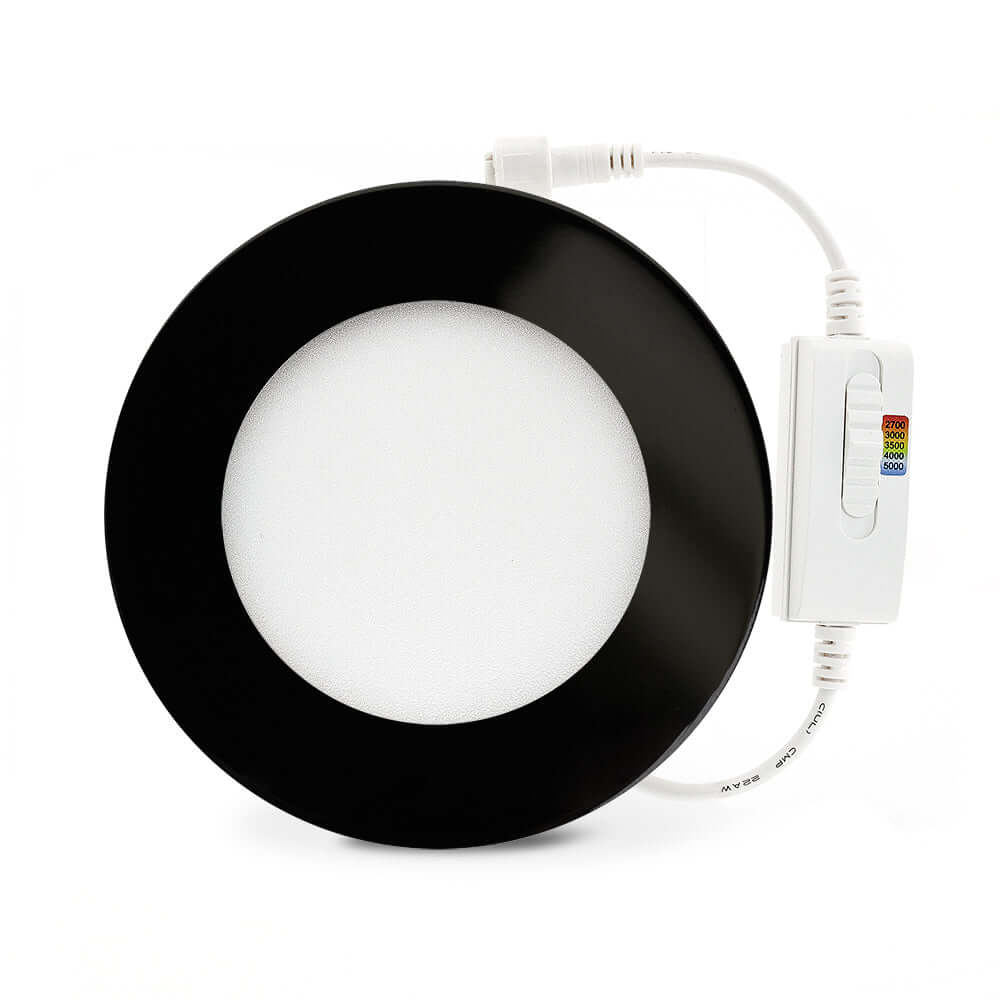

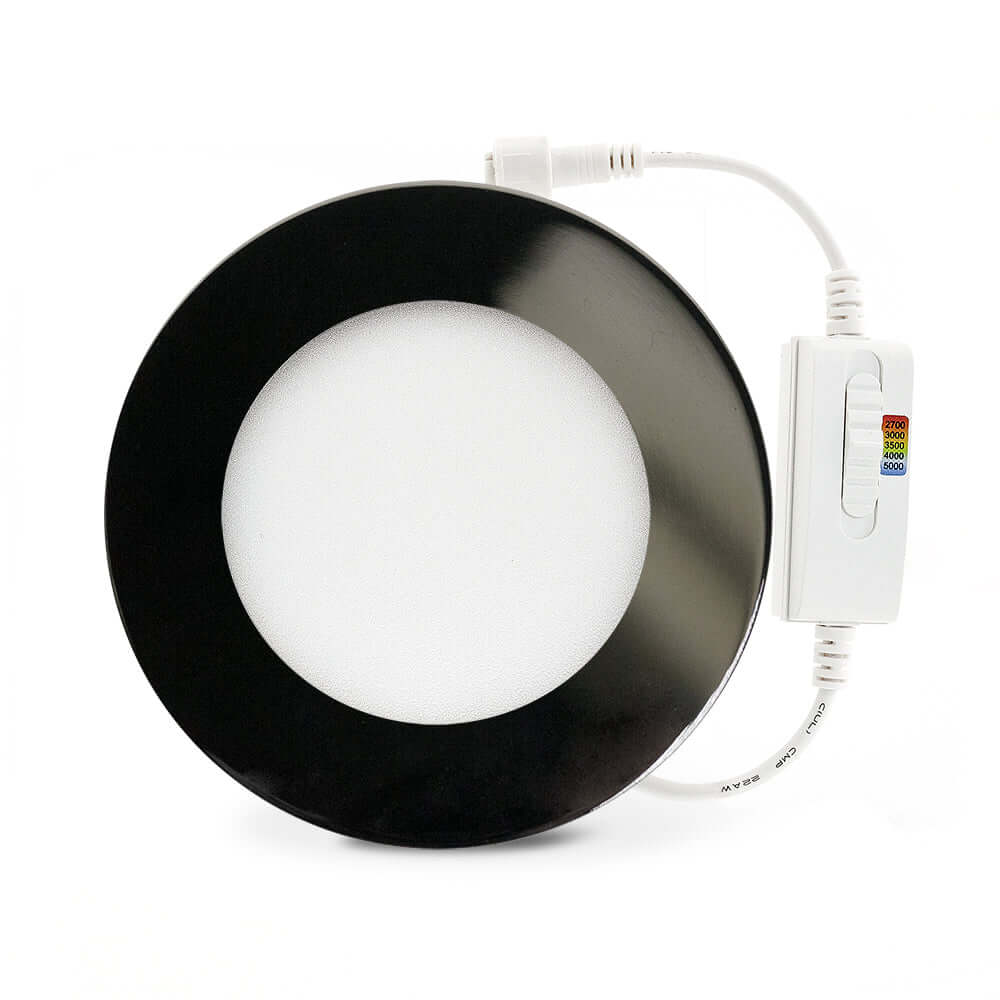

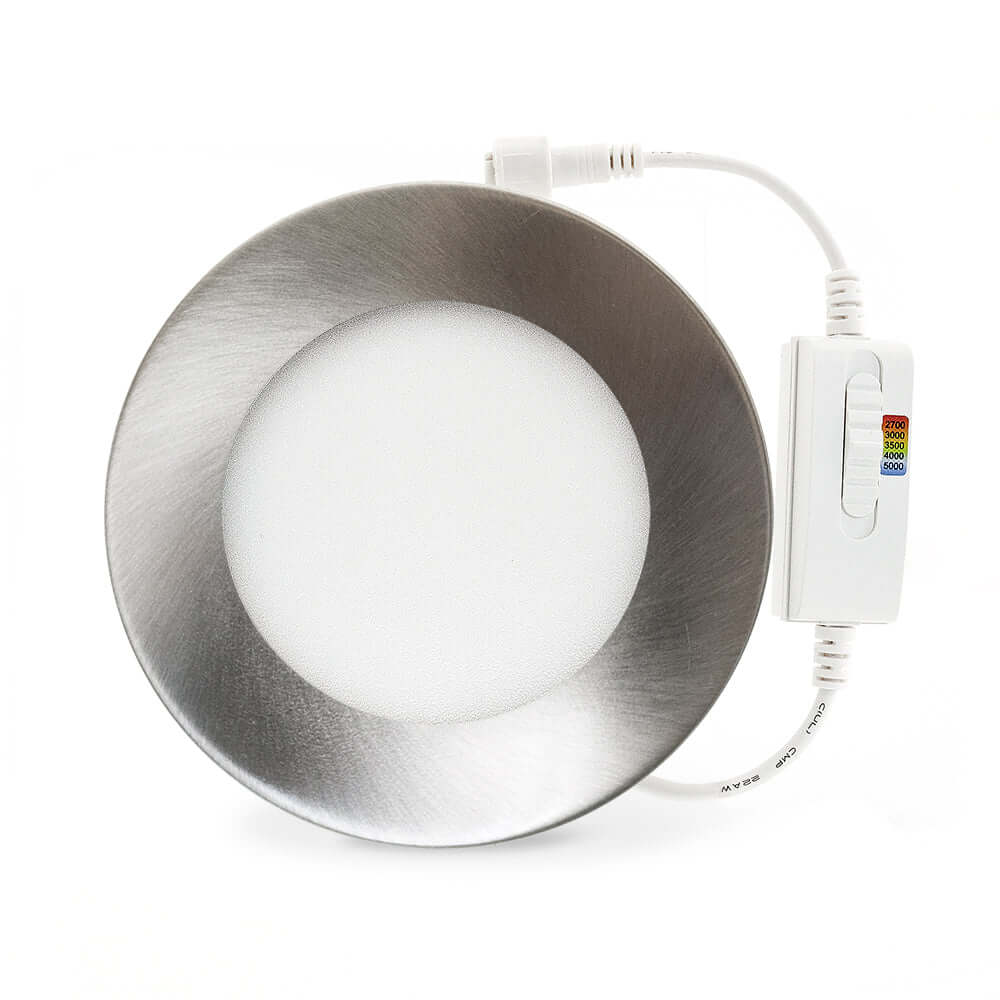

- It also comes in Black, Brush Nickel, and Black Nickel trim other than white color.
- The LEDs are integrated at the sides within the fixture which provides even light distribution without flicker.
- 4 inch flat Round Panel light 12V 24V 36V 9W
- We also carry in a square shape with round cut sizes in both 4-inch and 6-inch.
- low voltage LED downlight designed for RV, camper, trailer, yacht, and boat lighting applications
- Provides bright, energy-efficient LED light for marine cabins, RV ceilings, and camper interiors
- Durable housing, vibration-resistant for rough roads and marine conditions on boats and motorhomes
