Product Description
| Model | LED-S12W-1224V-5CCTKWH-SQ |
| Input Voltage | 12~36V DC |
| Power | 12W |
| Brightness | 800Lm |

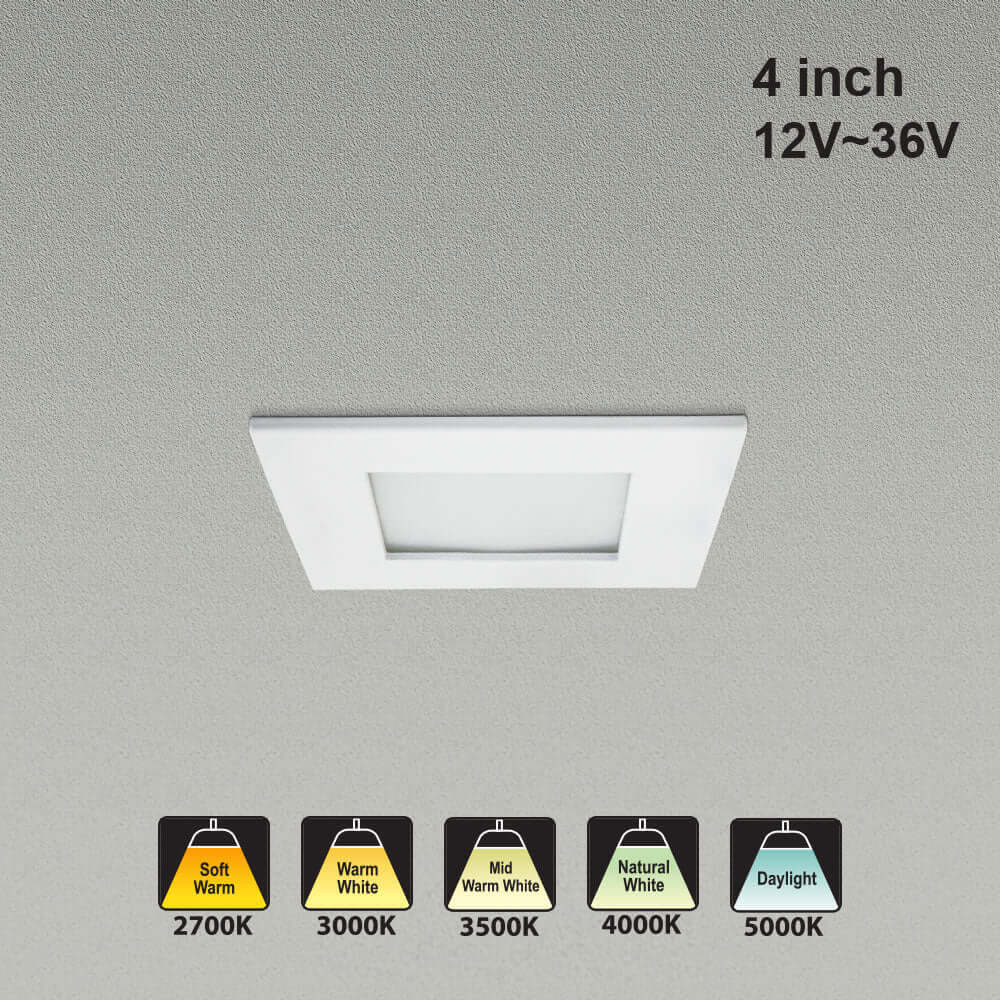

| Color Temperature | 2700K (Soft White) 3000K (Warm White) 3500K (Mid-Warm White) 4000K (Natural White) 5000K (Daylight) |
| Beam Angle | 110° |
| Rendering Index | CRI>90 |
| Dimmable | Yes |
| Available Trim Colors | Black, Brush Nickel, Black Nickel (Sold Separately) |
| IP Rating | IP20 (Suitable for dry and Damp Locations) |
| Wire Length | 30cm (11.8in) 22AWG |
| Weight | 0.6 kg |

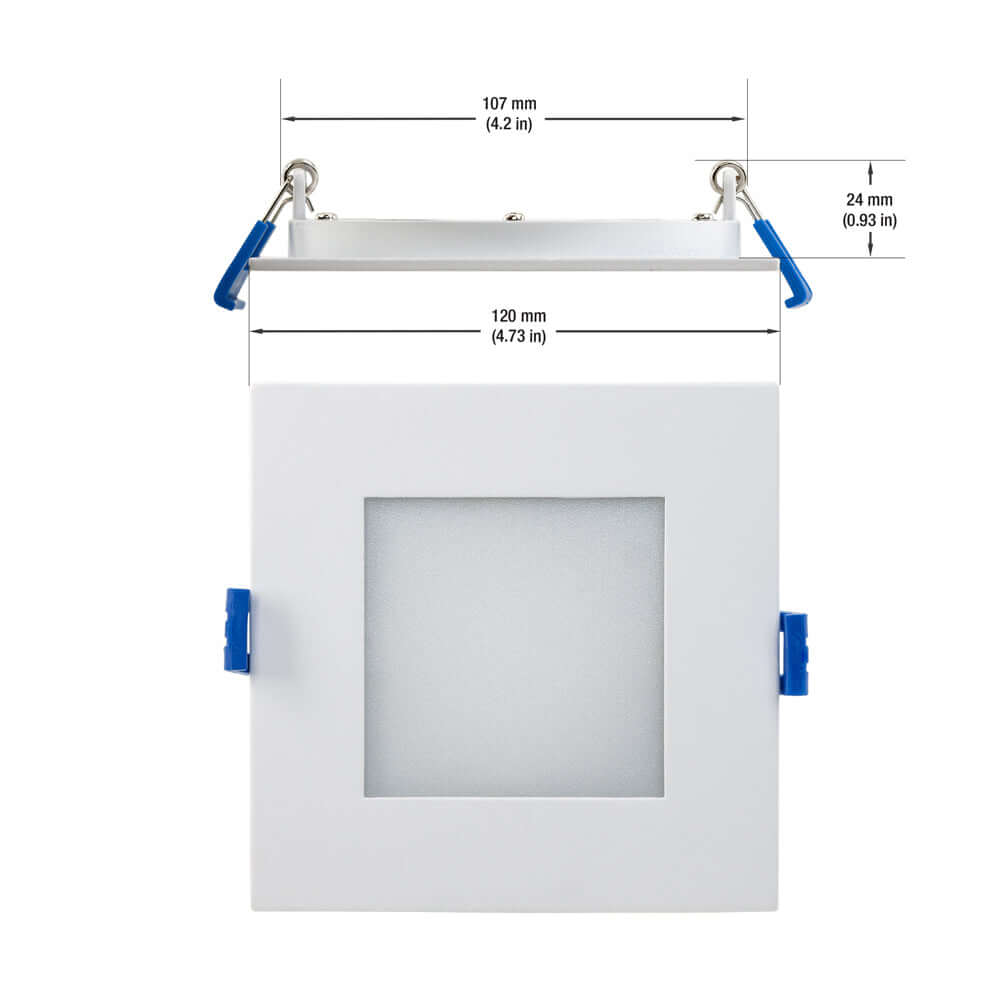

| Dimensions (Panel) |
Length- 120 x 120mm (4.7 x 4.7 inches) Depth – 32mm (1.25inches) Cut Size – 111 x 111mm (4.3 x 4.3inches) |

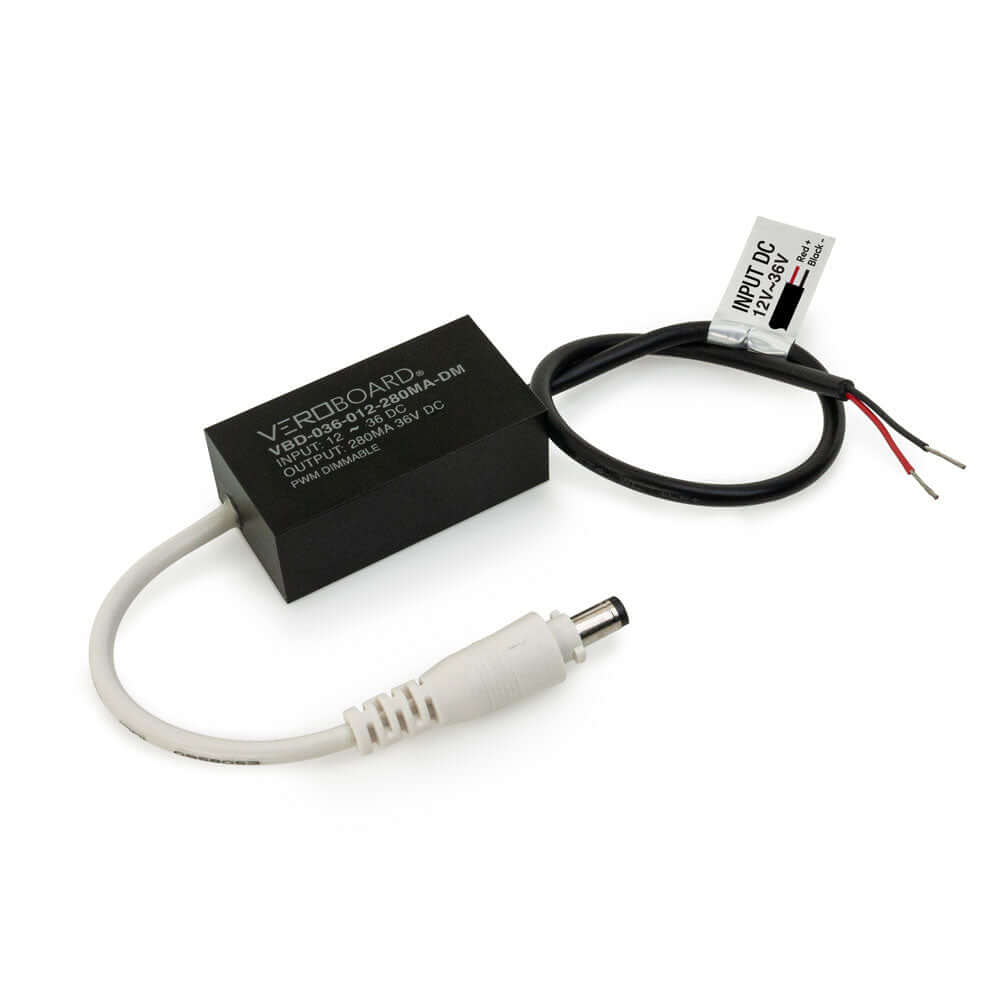

| Dimensions (Driver Box) | Length – 52.35mm (2.06 inches) Width – 27.54 mm (1.08 inches) Depth – 18.76mm (0.73 inch) |
| Certifications |

|
Feature:
- Ultraslim and low profile panel with a flush mount/ recessed light.
- Has a high-quality reflector that acts as a good anti-glare.

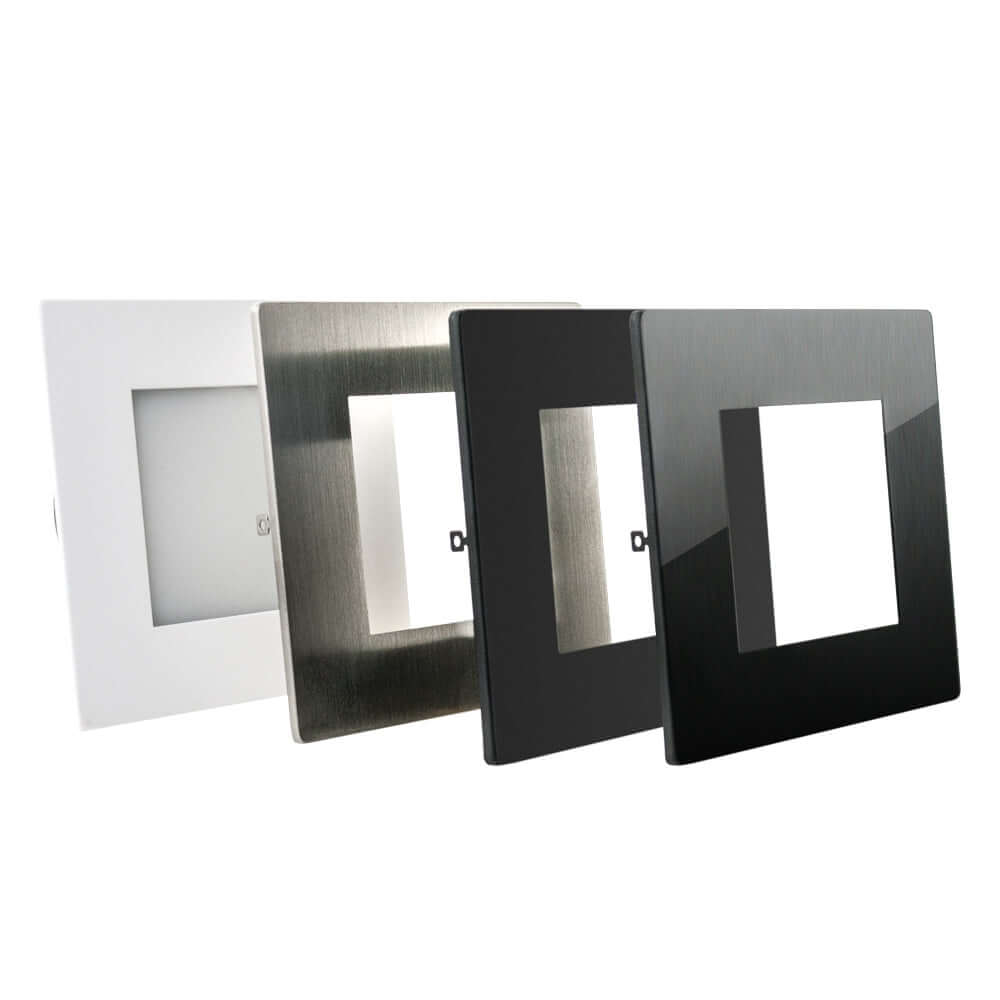

- It also comes in Black, Brush Nickel, and Black Nickel trim other than white color.

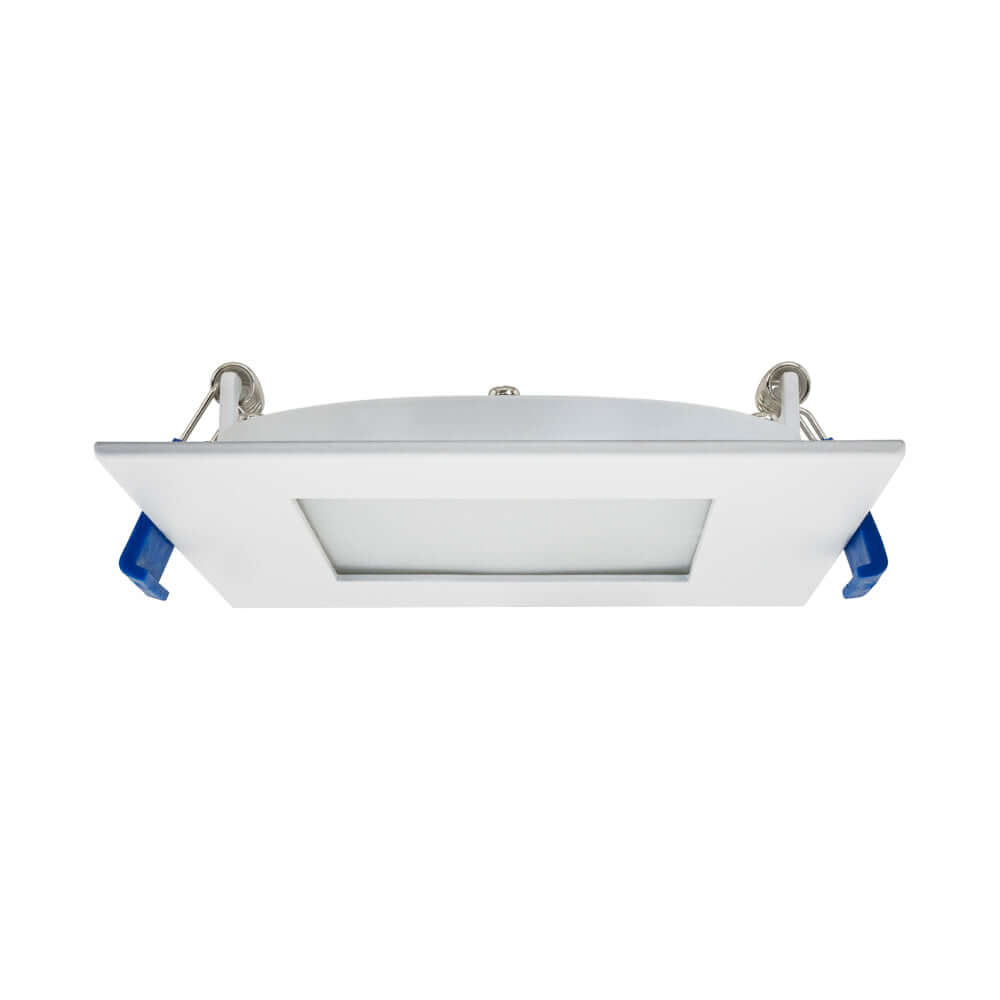

- The push springs make the installation of the lights quick and easy.

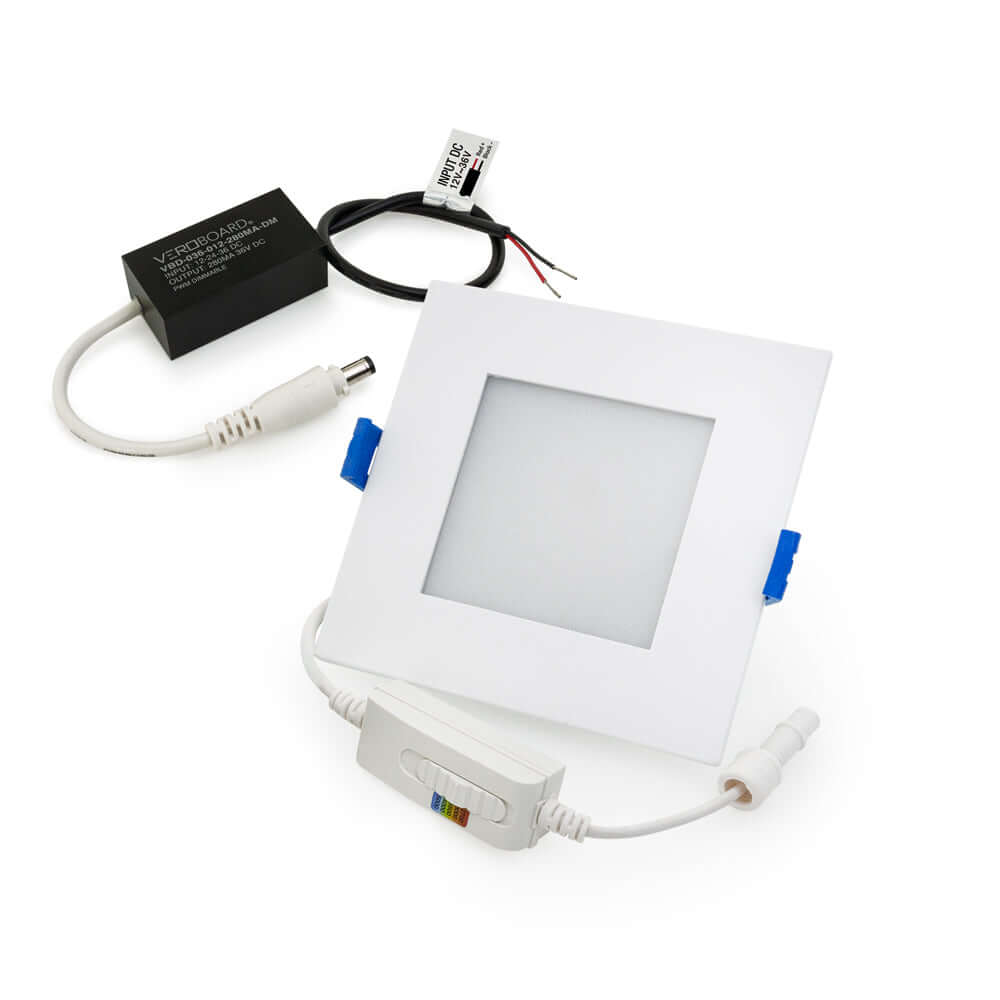

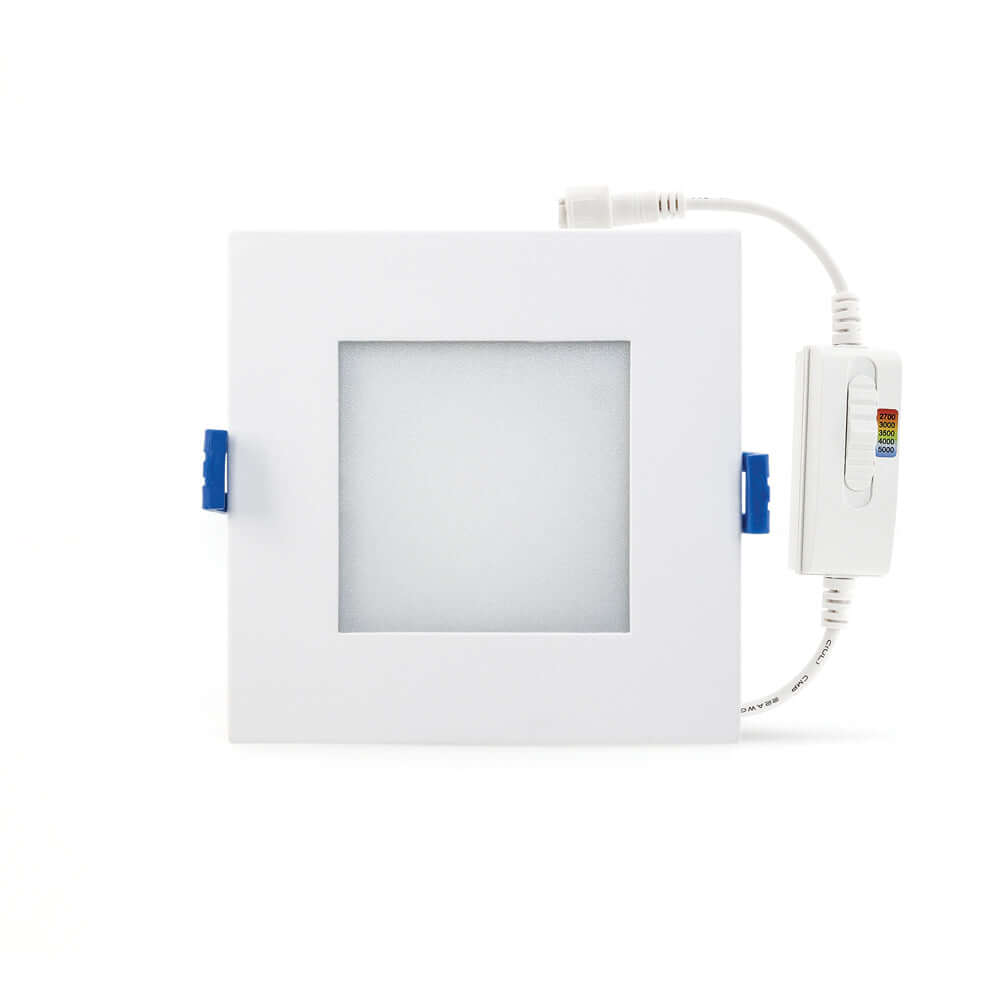

- The color temperature of the lights can be adjusted using the cable wire connected to the LED Driver Box.
- In addition to white, the lights are also available in Black, Black Nickel, and Brushed Nickel trim options.
- The LEDs are integrated at the sides within the fixture, ensuring even light distribution without flickering.
- We also offer these lights in 6-inch size for a larger lighting solution.
- low voltage LED downlight designed for RV, camper, trailer, yacht, and boat lighting applications
- 4 inch Square Flat Panel light with FT6 rated wire 12-36V
