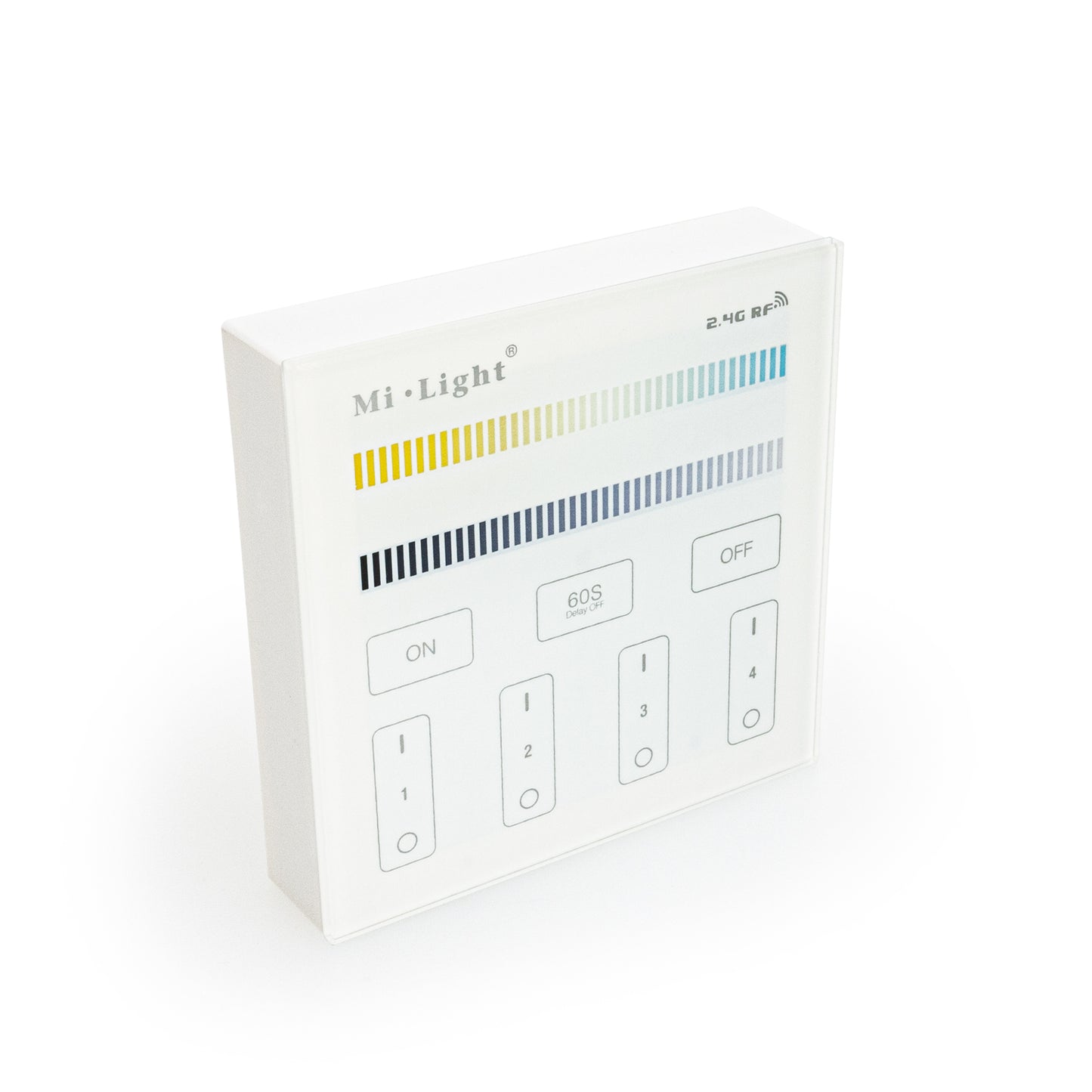

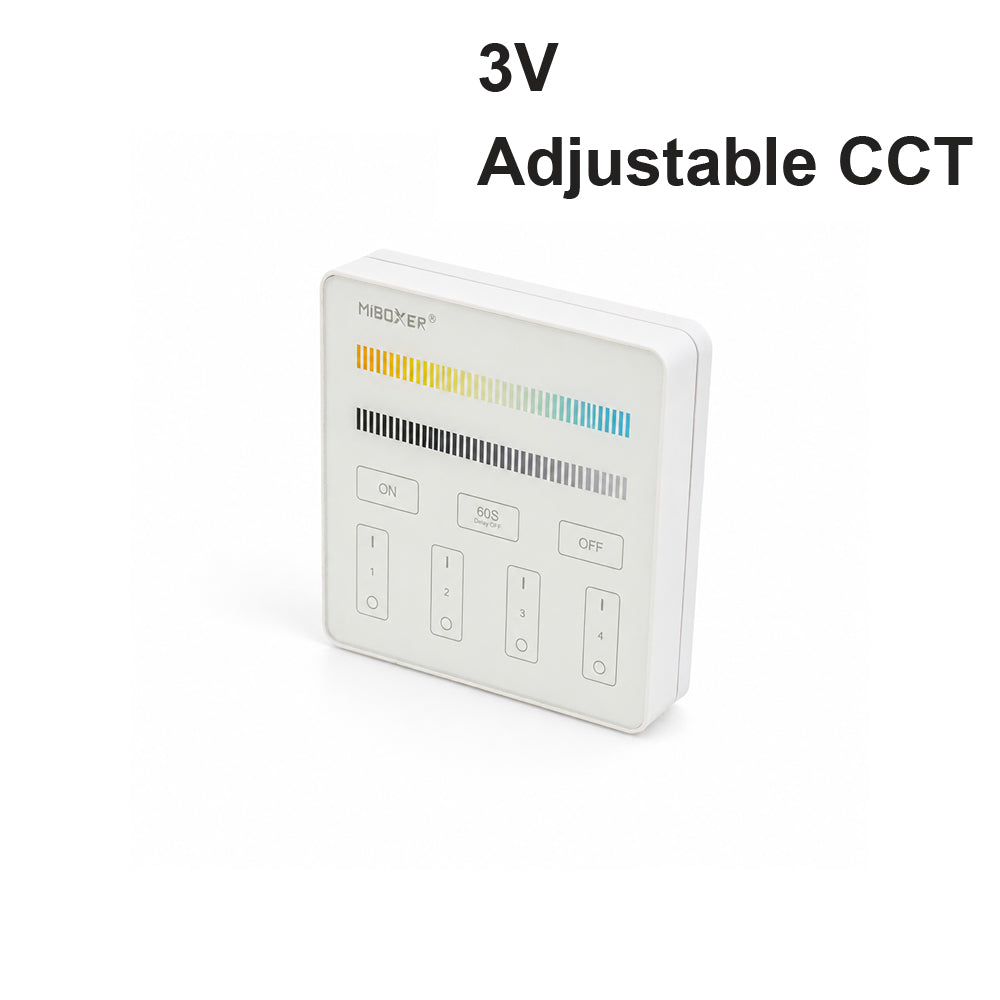

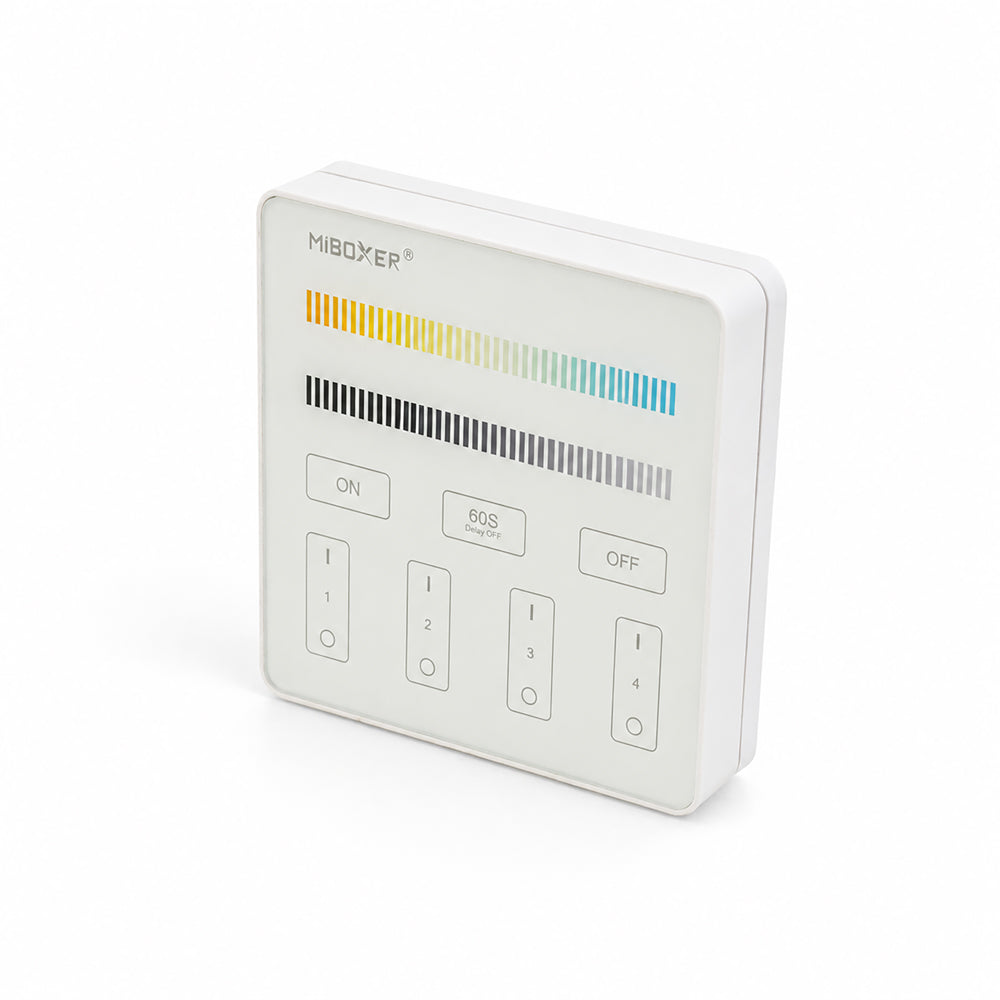

Mi-Light B2 4-Zone Adjustable Color Temperature Panel Remote Controller, works with FUT035
Downloadable MiBoxer B series User Manual
Downloadable linking and Unlinking Instructions Manual
Adjustable color temperature, Dual white from 2700K-6500K, Brightness, Wireless Wall Mounted Smart Glass Panel Remote Controller that controls 4 different zones

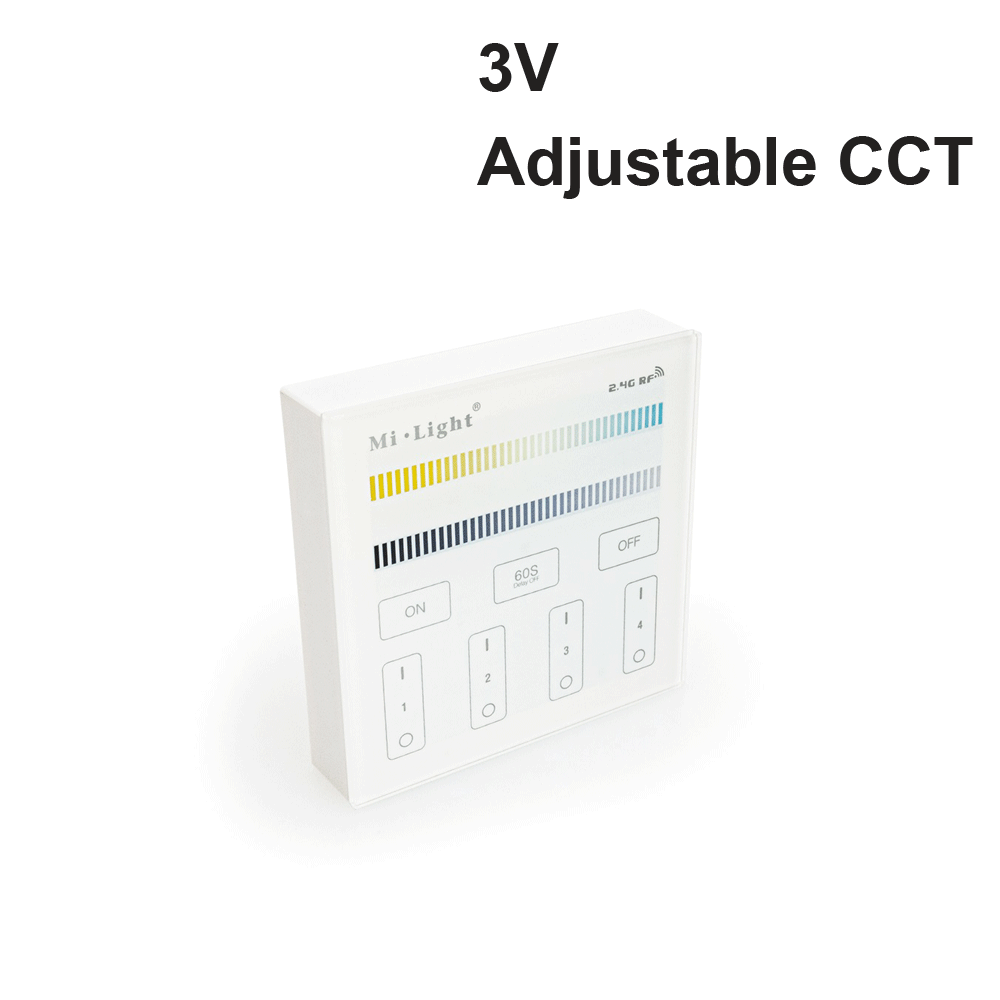

||3V (2*AAA Battery)|
|Transmission Frequency||2.4 GHz|
|Transmitting Power||6 dBm|

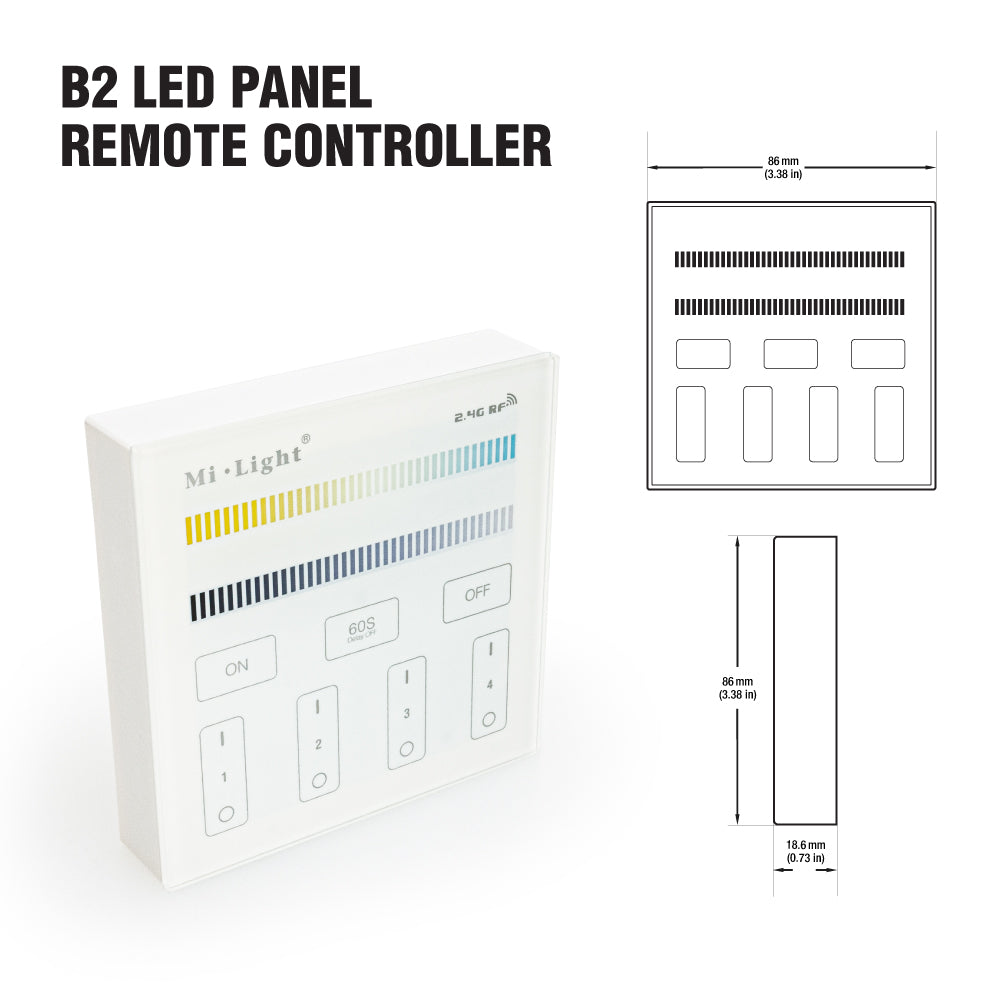

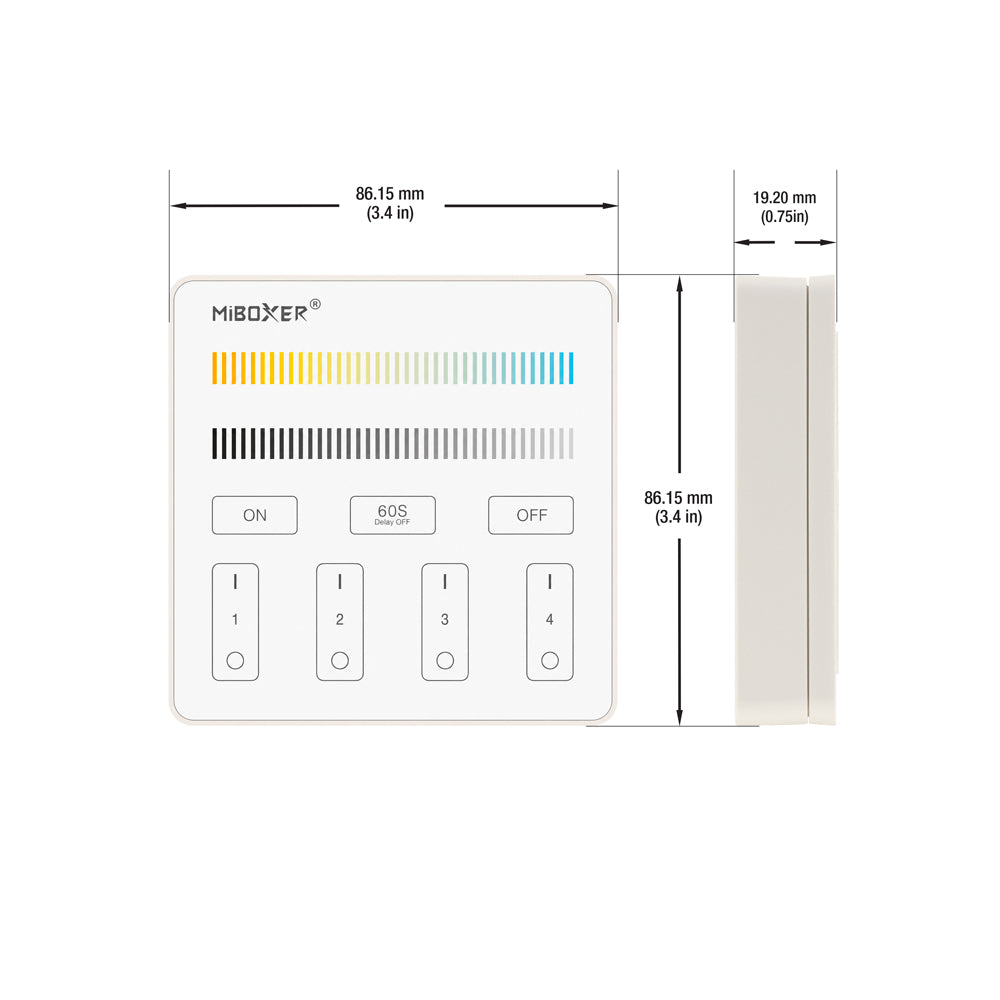

|Dimensions||86mm (3.38 in) x 86mm (3.38in) x 19mm (0.73in)|
- Each zone needs one Mi-Light controller for transmitting signals from the lights to the wireless panel controller.

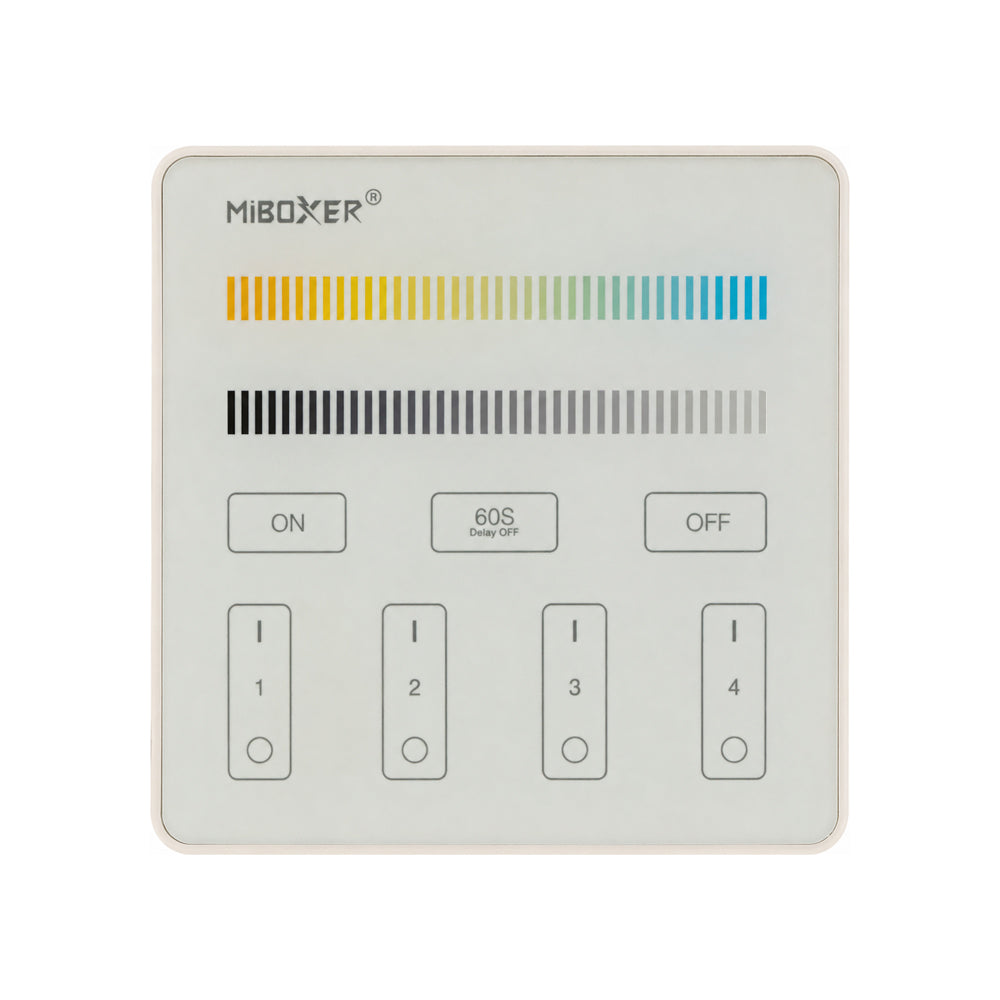

- The panel looks aesthetically appealing with its tempered glass panel and touch screen IC.
- The panel has a high-precision touch screen and can be used in both residential and commercial applications like big/small businesses, hotels, stores, restaurants, etc.

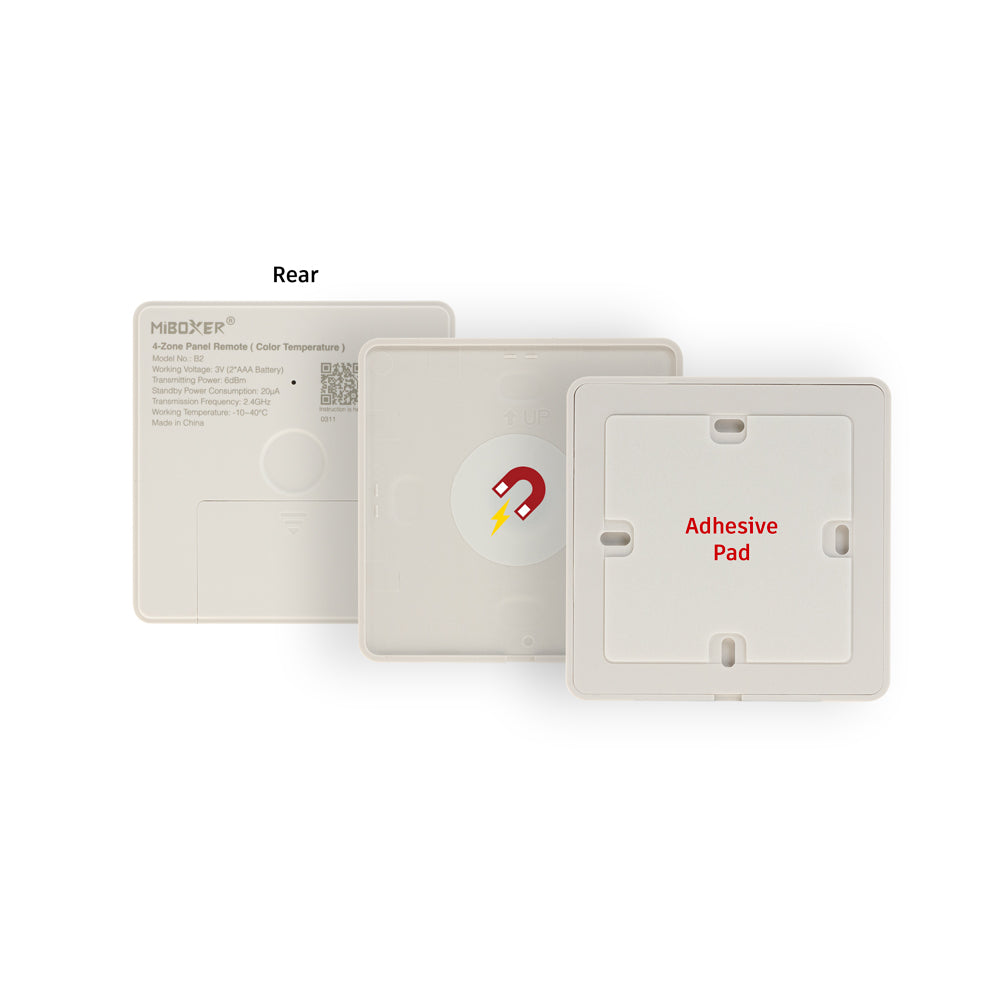

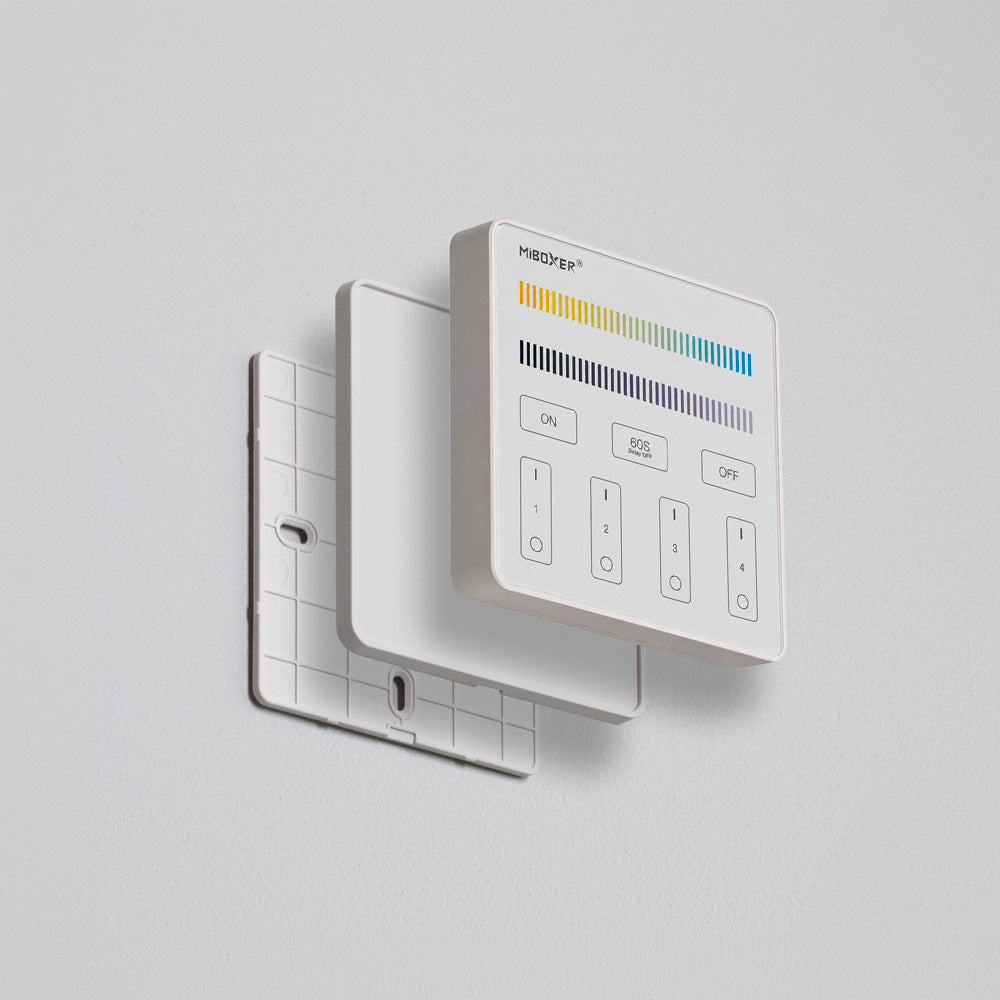

- The control panel allows you to touch for setting the intensity and the color of white light. It is easy to use, and the expressive marking makes a good check. The panel can be easily attached to the wall. Thereby gaining elegance
- The panel brings different white shades (2700K-6500K) and eliminates the need of crowding different color temperature LEDs
- It easily adapts to hybrid (Warm White to Cool White) dimmable LED lights or the dual white LED strips of 12V – 24V.
- Having this type of controller allows you to manage four separate zones. Each zone needs one FUT035 receiver for transmitting signals from the lights to the wireless panel controller.
- Mi-Light 4-Zone dual white B2 Panel Remote Controller is an innovative product, which is used to control dual white LED lighting in a wide temperature range.
- The Mi-light saves really large sums of money. Precise management allows the use of only the specific points of light needed at the time. The controller operates over a distance of thirty meters.
Link: Turn off the power, then turn on again 5 seconds, press ”I” 3 times within 3 seconds. The Led light blinks 3 times slowly when it is done.
Unlink: Turn off the power, then turn on again after 5 seconds, press “I” 5 times within 3 seconds. The Led light blinks 10 times swiftly when it is done.
