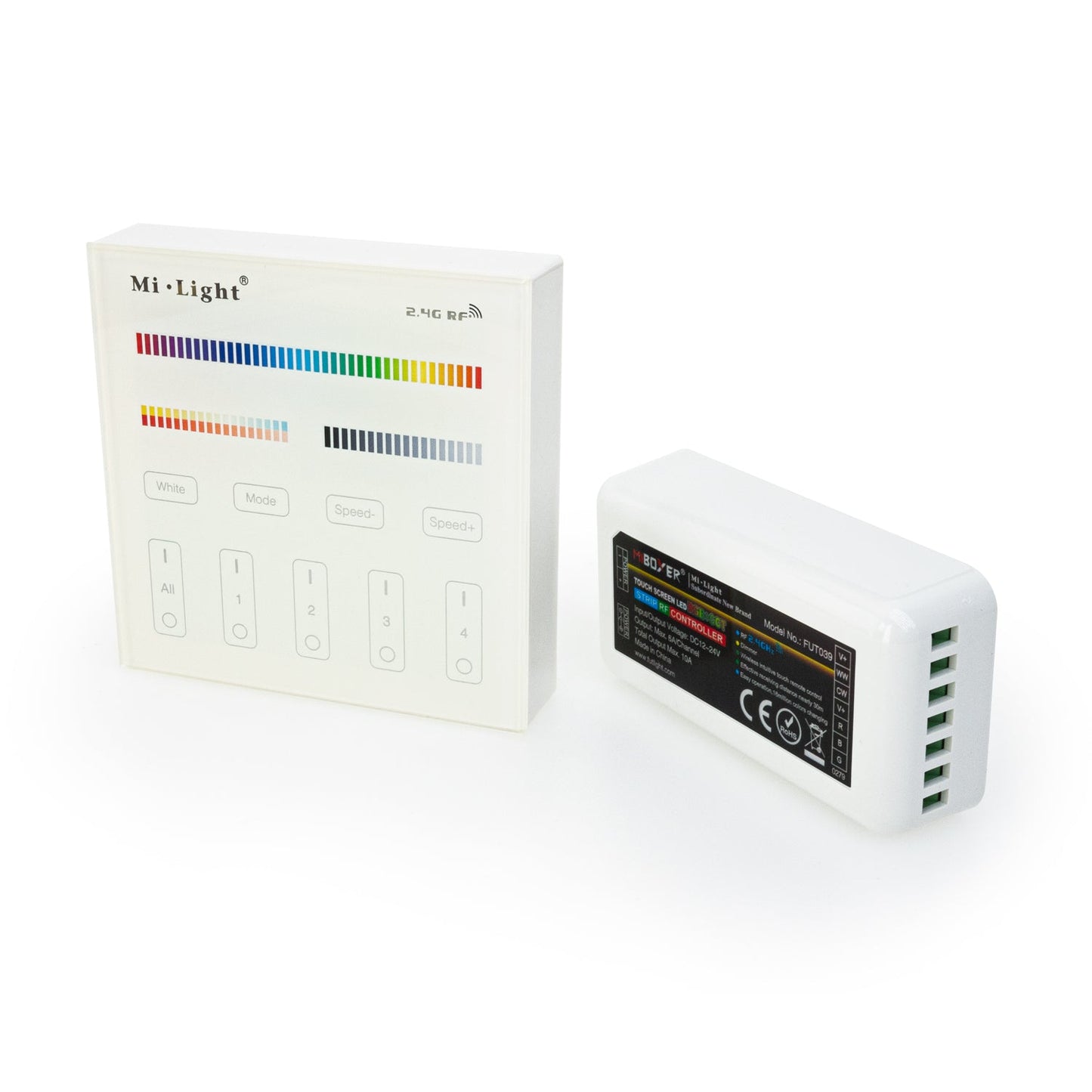

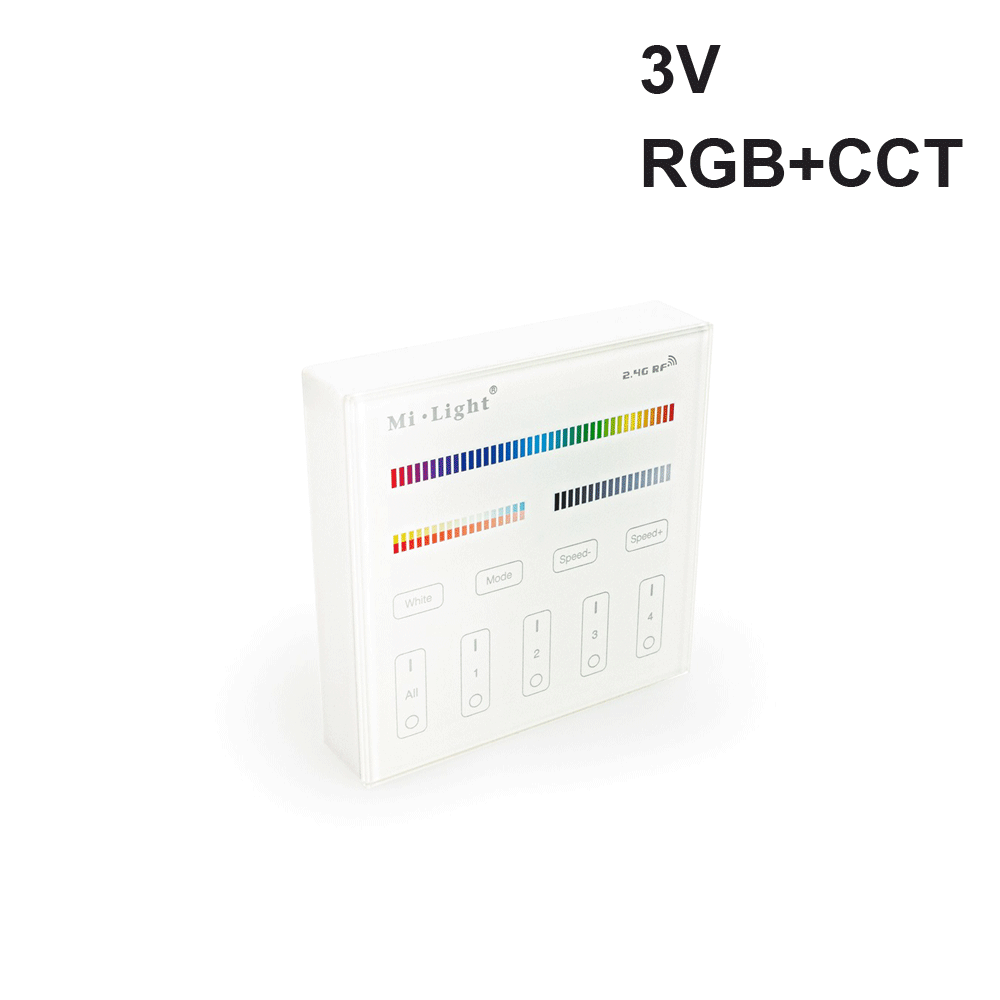

Mi-Light B4 4-Zone RGB+CCT Smart Touch Panel Remote Controller, works with FUT039

Mi Light

  • $65.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561412920
We only have 147 left! Get it now before it's completely gone.

FREE Shipping over $70 USD


Downloadable MiBoxer B series  User Manual

Downloadable linking and Unlinking Instructions Manual

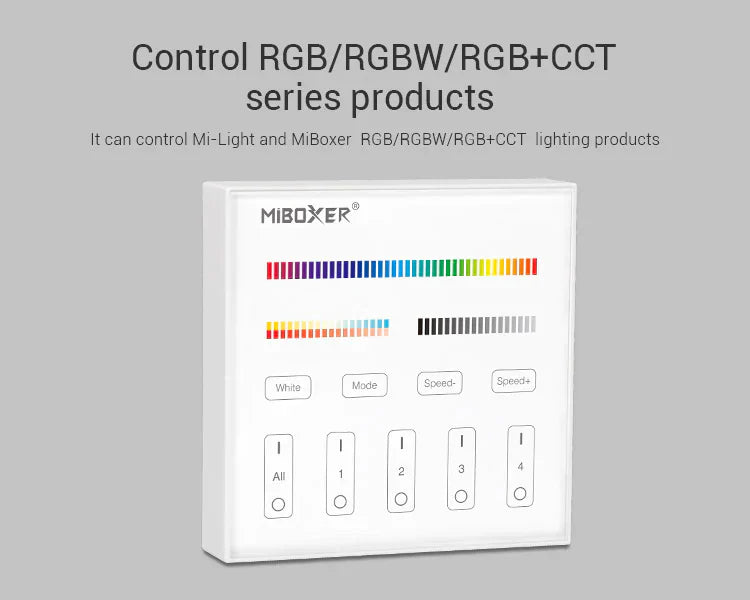

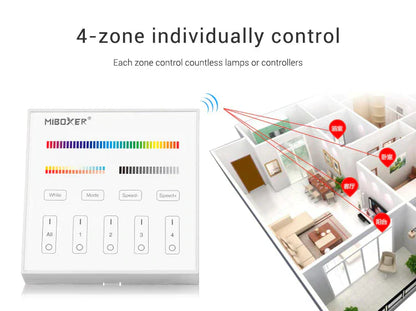

RGB+CCT Color changing, Adjustable Brightness, 9 Color Changing Modes, Speed Wireless Wall Mounted Smart Glass Panel Remote Controller that controls 4 different zones

Product Description

Model
B4
Voltage
3V (2*AAA Battery)
Transmission Frequency 2.4 GHz
Transmitting Power 6 dBm
Control Distance 30m
Working Temperature -20~60°C
Standby Power 20uA

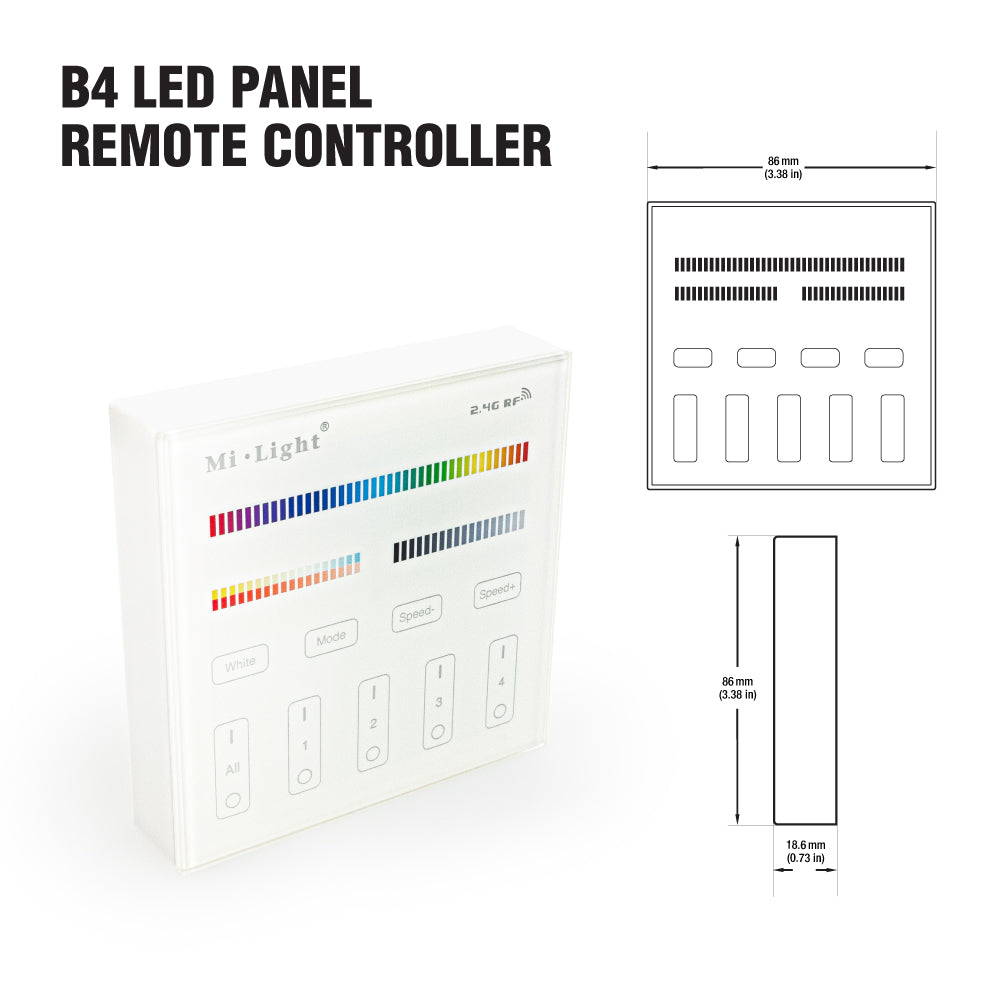

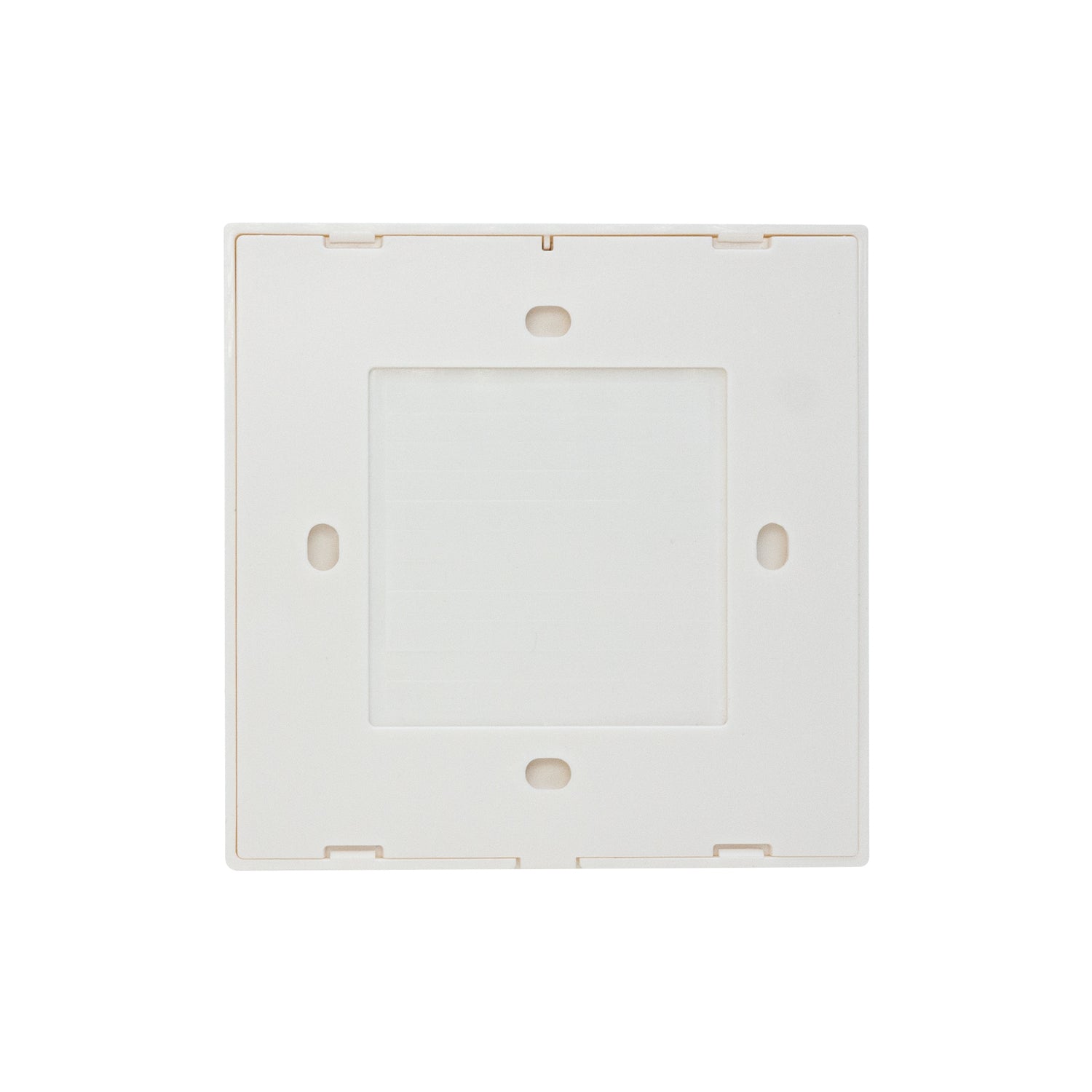

Dimensions 86mm (3.38 in) x 86mm (3.38in) x 19mm (0.73in)






Features:

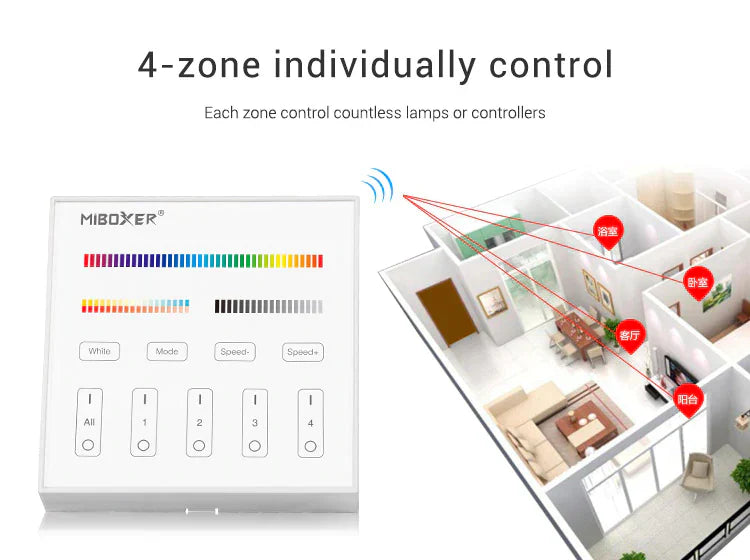

  • Each zone needs one FUT038 (RGBW) or FUT039 (RGB+CCT) receiver for transmitting signals from the lights to the wireless panel controller.

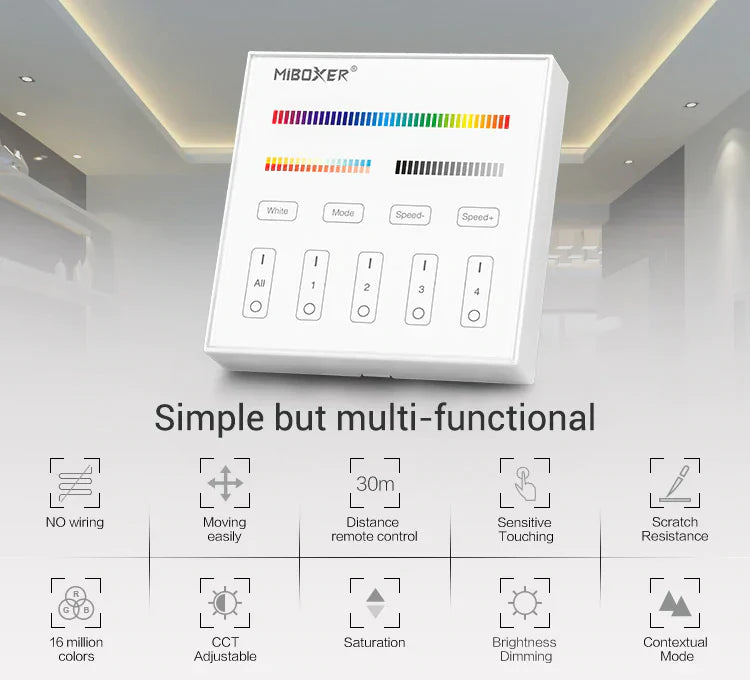

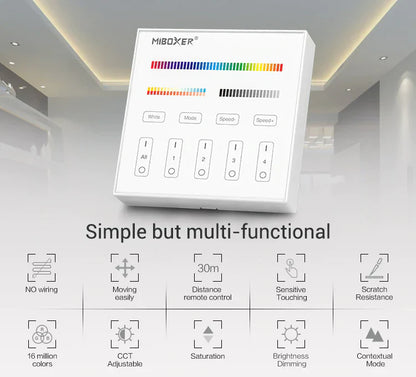

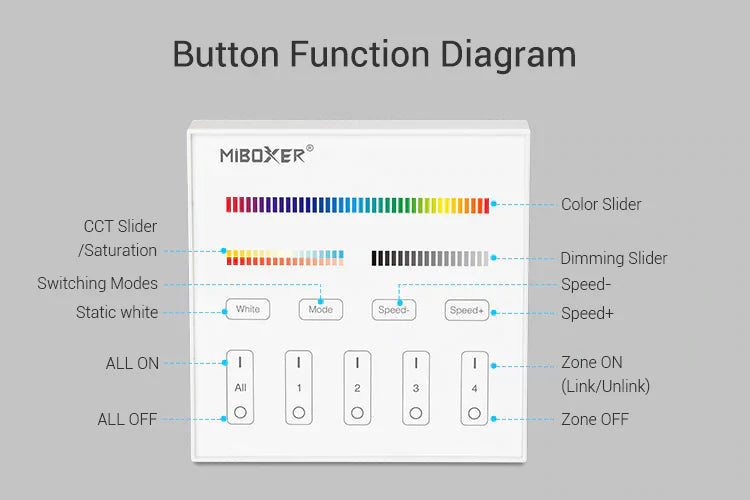

  • MiBoxer B4 panel remote controller allows you to change all light settings. The result is a stunning look and the ability to change color on request.

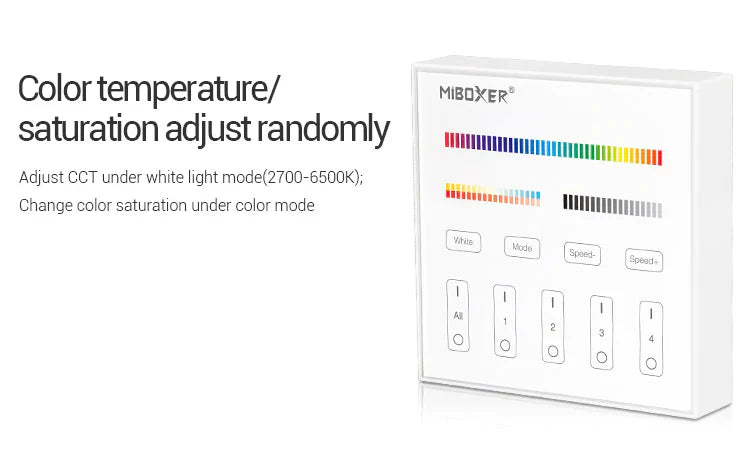

  • It has the feature of choosing different range colors (16 million secondary colors including the adjustable white color temperature (CCT) in addition to the brightness dimming and switching lights at different zone.
  • Each zone needs one FUT039 (RGB+CCT) receiver for transmitting signals from the lights to the wireless panel controller.
  • This delicate glass panel looks aesthetically appealing with its tempered glass panel and touch screen IC.
  • This panel has a high-precision, sensitive touch screen and can be used in both residential and commercial applications like big/small businesses, hotels, stores, restaurants, etc.
  • This panel remote controller is the best solution to switch on/off all different lights through 1 switch with its undivided four-zone group lighting separately. Particularly, with regard to children’s room or staircase lighting.
  • Easily saves energy and decreases power consumption. This solution is ecological and economical, suitable for the growing needs and business opportunities.
  • The panel can be kept at a distance of 30 meters apart from the lighting location with its 2.4GHz wireless control.

Link: Turn off the power, then turn on again 5 seconds, press ”I” 3 times within 3 seconds. The Led light blinks 3 times slowly when it is done.
Unlink: Turn off the power, then turn on again after 5 seconds, press “I” 5 times within 3 seconds. The Led light blinks 10 times swiftly when it is done.
