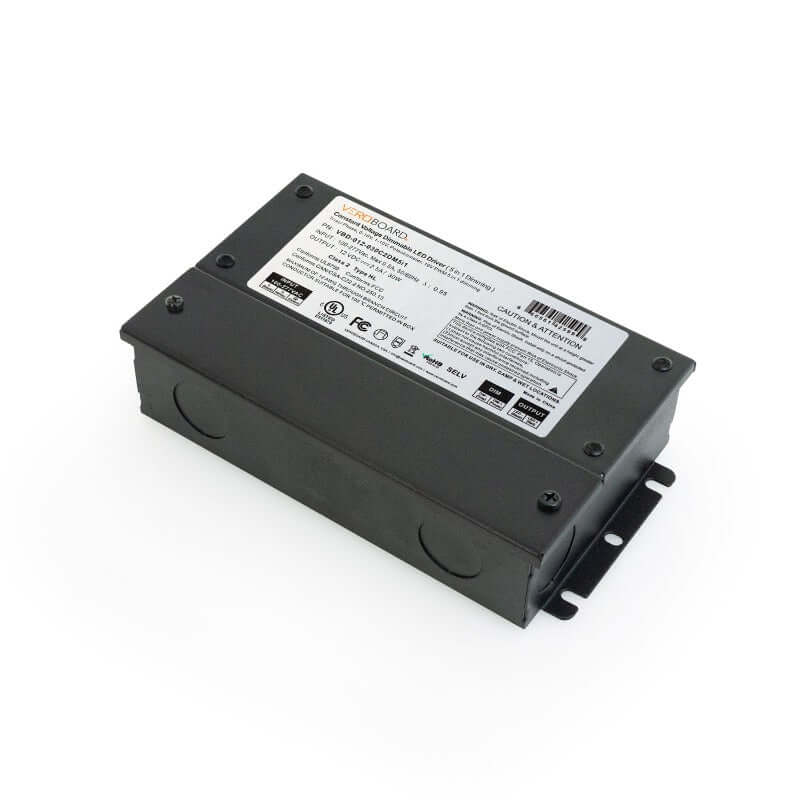

5 in 1 Dimming Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM, LED Driver VBD-012-030C2DM5i1(Class 2)
Product Description
| Model | VBD-012-030C2DM5i1 |
| Input Voltage | 100-277V AC |
| Input Current | 0.5A |
| Frequency | 50-60 Hz |
| Power Factor | >0.95 |

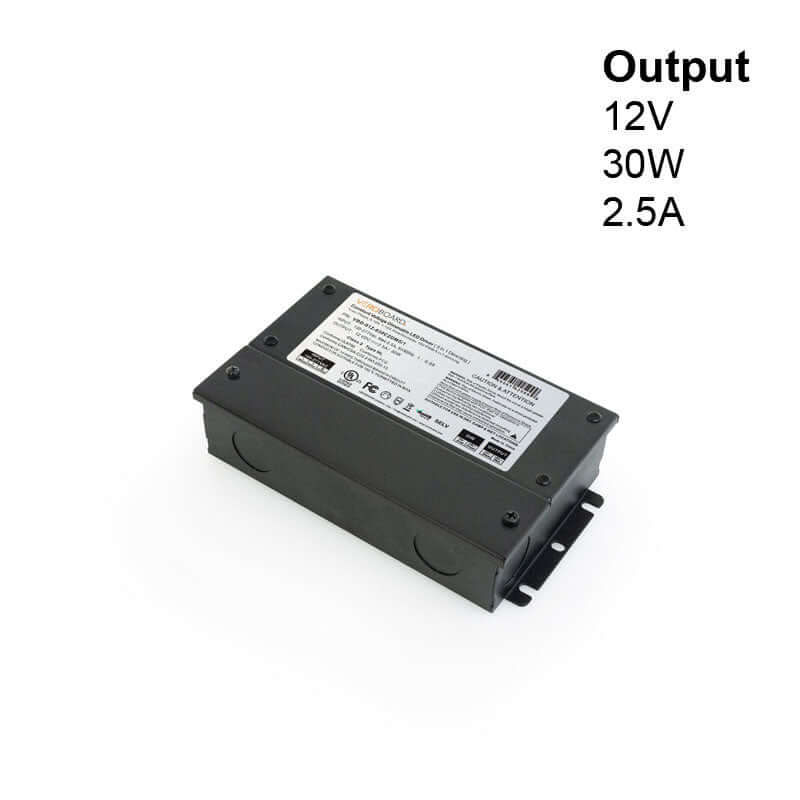

| Output Voltage | 12V DC |
| Output regulated Current | 2.5A |
| Output Power | 30W max |
| Dimmable | Yes (Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM) |
| IP Rating | IP67 (Dry, Damp and Wet Locations) |

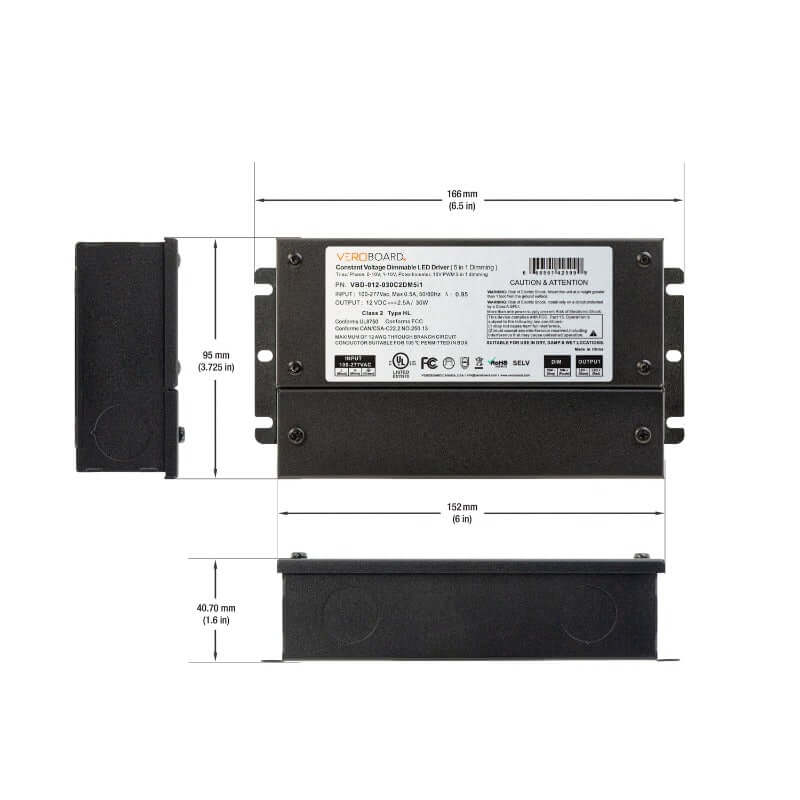

| Dimensions | 166mm x 95mm x 40.70mm (6.5in x 3.75in x 1.6 in) |
| Class Certification | Class2 |
| Certifications: |    |
| Applicable for dry, damp, and wet locations |
|

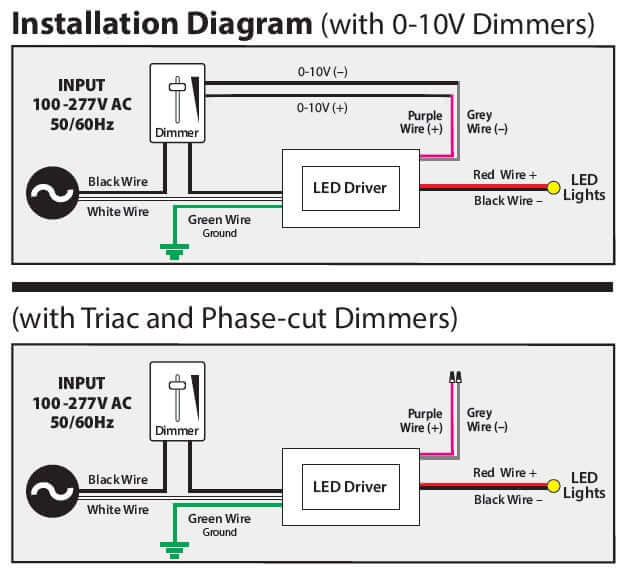

Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers |
The VBD-012-030C2DM5i1 is a 5 in 1 dimming LED driver that allows for dimming via Triac, Phase, MLV, ELV, 0-10V, Potentiometer, and 10V PWM signals. It has an input voltage range of 100-277V AC, input current of 0.5A, and operates at a frequency of 50-60 Hz. The power factor is greater than 0.95, ensuring efficient power usage. The output voltage is 12V DC, with a regulated output current of 2.5A and maximum output power of 30W. This LED driver is dimmable and can be used with dry, damp, and wet locations due to its IP67 rating. The dimensions are 166mm x 95mm x 40.70mm (6.5in x 3.75in x 1.6 in), and it has a Class 2 certification, as well as UL and FCC certifications.
Features:
- 5-in-1 dimming LED driver with support for Triac, Phase, MLV, ELV, 0-10V, Potentiometer, and 10V PWM dimming signals
- Input voltage range of 100-277V AC, input current of 0.5A, and frequency range of 50-60 Hz
- Power factor greater than 0.95 for efficient power usage
- Output voltage of 12V DC, regulated output current of 2.5A, and maximum output power of 30W
- Dimmable driver suitable for use in dry, damp, and wet locations with IP67 rating
- Dimensions of 166mm x 95mm x 40.70mm (6.5in x 3.75in x 1.6 in)
- Class 2 certified and UL and FCC certified for safety and electromagnetic interference standards
