Product Description
| Model | VBD-024-030C2DM5i1 |
| Input Voltage | 100-277V AC |
| Input Current | 0.5A |
| Frequency | 50-60 Hz |
| Power Factor | >0.95 |
| Output Voltage | 24V DC |
| Output regulated Current | 1.25A |
| Output Power | 30W max |
| Dimmable | Yes (Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM) |
| IP Rating | IP67 (Dry, Damp and Wet Locations) |

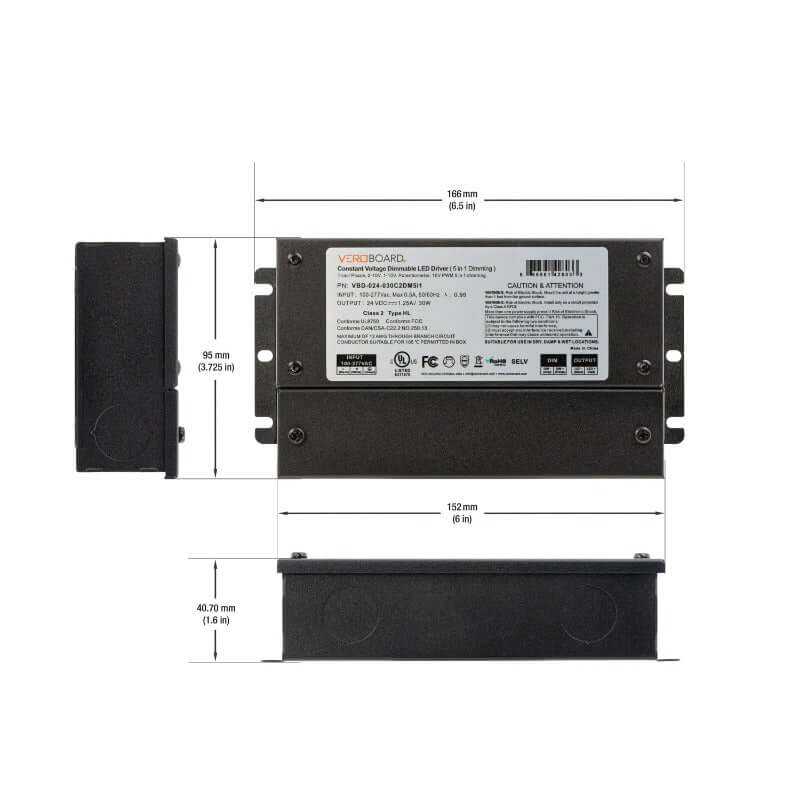

| Dimensions | 166mm x 95mm x 40.70mm (6.5in x 3.75in x 1.6 in) |
| Class Certification | Class 2 |
| Certifications: |    |
| Applicable for dry, damp, and wet locations |
|
Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers |

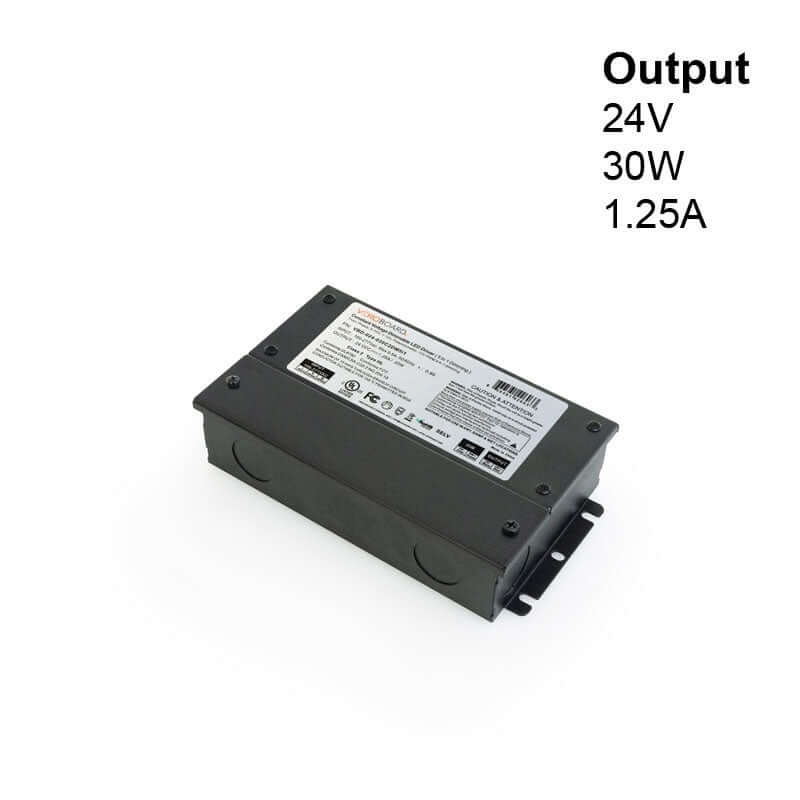

The VBD-024-030C2DM5i1 LED Driver is a 5-in-1 dimming driver that is designed to be versatile and compatible with multiple dimming methods. It has an input voltage of 100-277V AC and an input current of 0.5A, with a frequency range of 50-60Hz and a high power factor of >0.95.
The output voltage is 24V DC, with a regulated output current of 1.25A and a maximum output power of 30W. It is dimmable with Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM methods, providing flexibility in dimming options.
This LED Driver is rated IP67, making it suitable for dry, damp, and wet locations. It has a Class 2 certification and is certified by UL and FCC. The dimensions of the driver are 166mm x 95mm x 40.70mm (6.5in x 3.75in x 1.6 in).
Features:
- The LED driver has an input voltage of 100-277V AC and input current of 0.5A, with a frequency range of 50-60Hz and a high power factor of >0.95.
- It has a regulated output voltage of 24V DC, with an output current of 1.25A and a maximum output power of 30W.
- The driver is compatible with multiple dimming methods including Triac, Phase, MLV, ELV, 0-10V, Potentiometer, and 10V PWM, providing flexibility in dimming options.
- The driver is rated IP67, making it suitable for dry, damp, and wet locations.
- It has a Class 2 certification and is certified by UL and FCC.
- The dimensions of the driver are 166mm x 95mm x 40.70mm (6.5in x 3.75in x 1.6 in).
