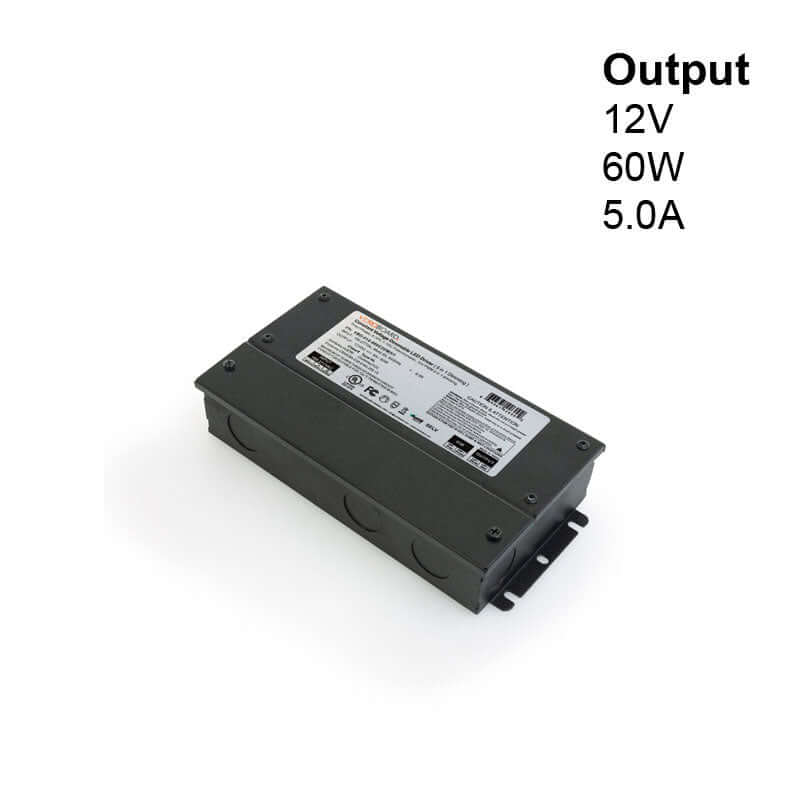

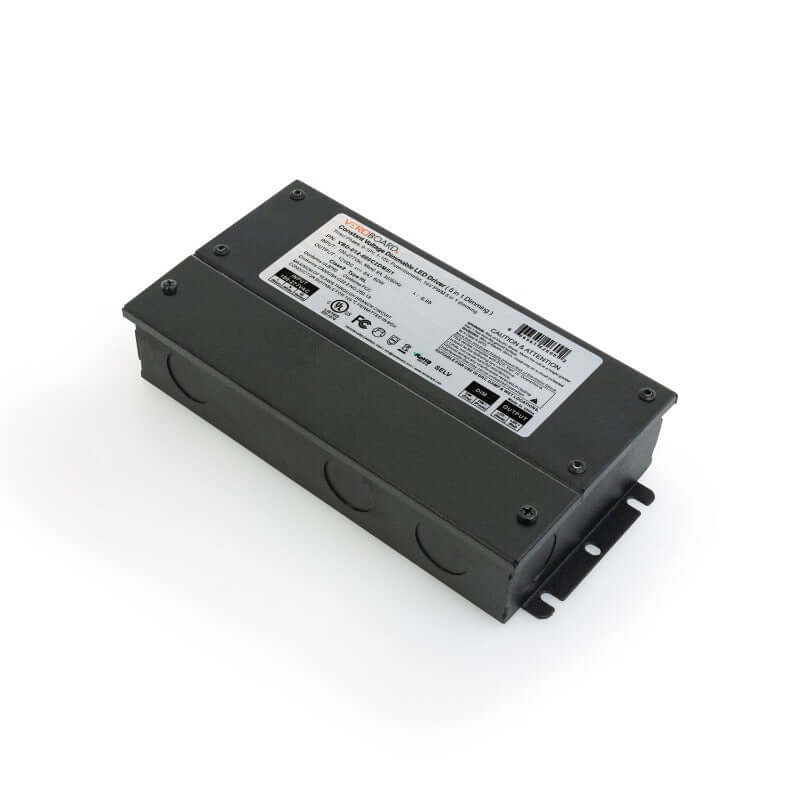

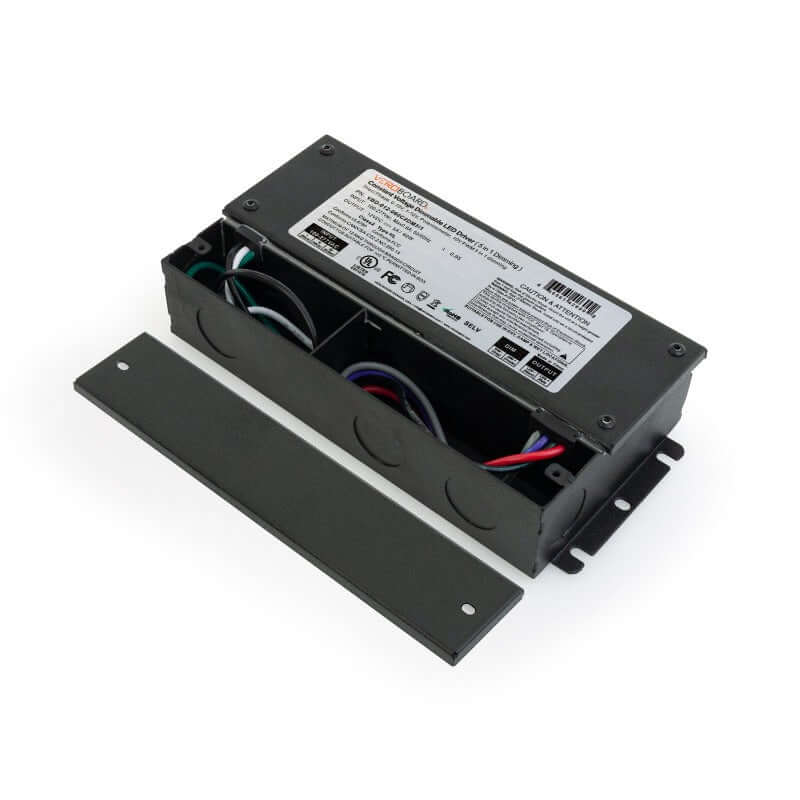

VBD-012-060C2DM5i1(Class 2) 5 in 1 Dimming Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM LED Driver, 12V 60W
VBD-012-060C2DM5i1(Class 2) 5 in 1 Dimming Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM LED Driver, 12V 60W
SKU: SKU:666561426002
Free Shipping
Free Shipping
- Get free shipping on purchases over $99!
Available Discounts
Available Discounts
- 10% off for a minimum qty of 10
- 15% off on purchases over $200
Shipping & Return Policy
Shipping & Return Policy
- 30 Days Return Policy
How do we ship our product?
GekPower will ship via the most reliable and time-efficient courier available depending on the location of the delivery.
Customers may provide GekPower with their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at the time of checkout.
How do we calculate the shipping cost?
Our prices are based on US dollars and are as follows:
Free Shipping
For orders totalling $99 USD or above.
Free shipping is Not available for specific products; please check availability during checkout.
Why is there a shipping cost, even after exceeding the flat rate for a few products?
Product shipping costs are charged based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.
When do we ship our products?
All orders are shipped through different couriers based on the priority you selected at checkout. All orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Any orders placed on Saturday or Sunday will be shipped the following week.
What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.
How does our Return or Exchange Policy work?
- All returned products must be in new, resellable condition and in original packaging to be accepted as a valid return or exchange.
- The customer is responsible for return shipping fees.
- Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
- A 15% restocking fee will apply.
- Two week processing time.
- To Return any product, make sure to use USPS for the United States, Other shipping companies are NOT acceptable.
- To submit a request for a return or exchange, please email sales@gekpower.com
Return Duty Charge:
- The customer is responsible for any duty charges incurred on a returned product by the carrier, if applicable.
Undelivered Orders:
- If an order is undelivered due to refusal, no mailbox, or customs issues, return shipping costs will be deducted from your refund.
Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25
Product Description
| Model | VBD-012-060C2DM5i1 |
| Input Voltage | 100-277V AC |
| Input Current | 0.9A |
| Frequency | 50-60 Hz |
| Power Factor | >0.95 |
| Output Voltage | 12V DC |
| Output regulated Current | 5A |
| Output Power | 60W max |
| Dimmable | Yes (Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM) |
| IP Rating | IP67 (Dry, Damp and Wet Locations) |

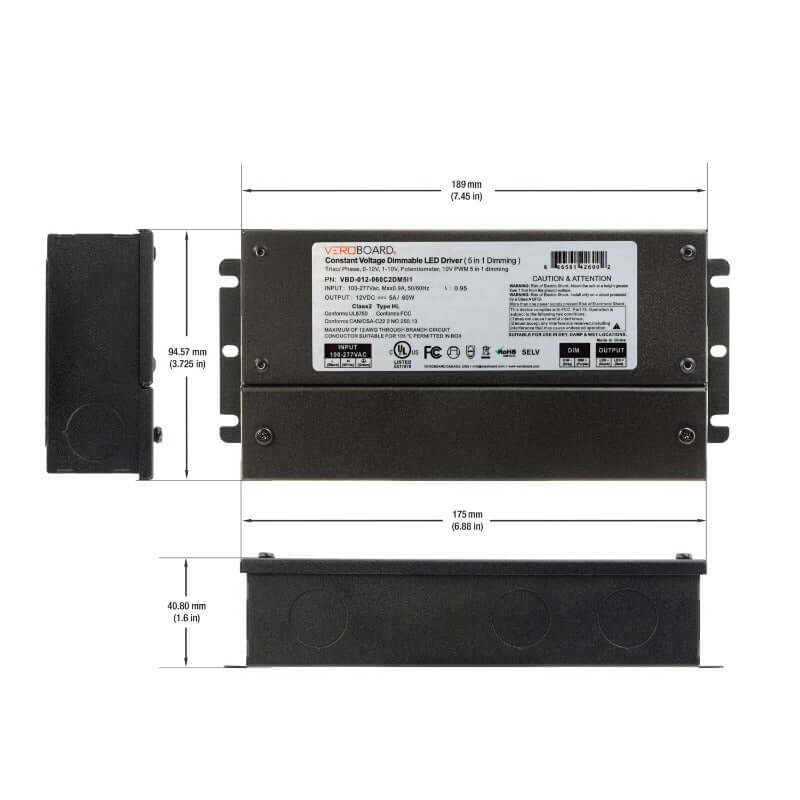

| Dimensions | 189mm x 94.57mm x 40.80mm (7.45in x 3.75in x 1.6 in) |
| Class Certification | Class 2 |
| Certifications: |    |
| Applicable for dry, damp, and wet locations |
|
Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers |
The VBD-012-060C2DM5i1 LED Driver is a Class 2, 5 in 1 dimming driver that supports Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM dimming methods. It has an input voltage range of 100-277V AC with an input current of 0.9A and a frequency range of 50-60 Hz. The power factor is greater than 0.95. The output voltage is 12V DC with a regulated output current of 5A, and the maximum output power is 60W. The driver is dimmable and has an IP rating of IP67, making it suitable for use in dry, damp, and wet locations. The dimensions of the driver are 189mm x 94.57mm x 40.80mm (7.45in x 3.75in x 1.6 in). It is certified by UL and FCC.
Features:
- The LED driver is a Class 2 and supports Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM dimming methods.
- It has an input voltage range of 100-277V AC, an input current of 0.9A, and a frequency range of 50-60Hz. The power factor is greater than 0.95.
- The output voltage is 12V DC, with a regulated output current of 5A and a maximum output power of 60W.
- The driver has an IP rating of IP67, making it suitable for use in dry, damp, and wet locations.
- The dimensions of the driver are 189mm x 94.57mm x 40.80mm (7.45in x 3.75in x 1.6 in).
- The driver is certified by UL and FCC.
