Product Description
| Model | VBD-012-300C2DM5i1 |
| Input Voltage | 100-277V AC |
| Input Current | 3.6A |
| Frequency | 50-60 Hz |
| Power Factor | >0.95 |
| Output Voltage | 12V DC |
| Output regulated Current | 5 X 5A |
| Output Power | 300W max (5 x 60W) |
| Dimmable | Yes (Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM) |
| IP Rating | IP67 (Dry, Damp and Wet Locations) |

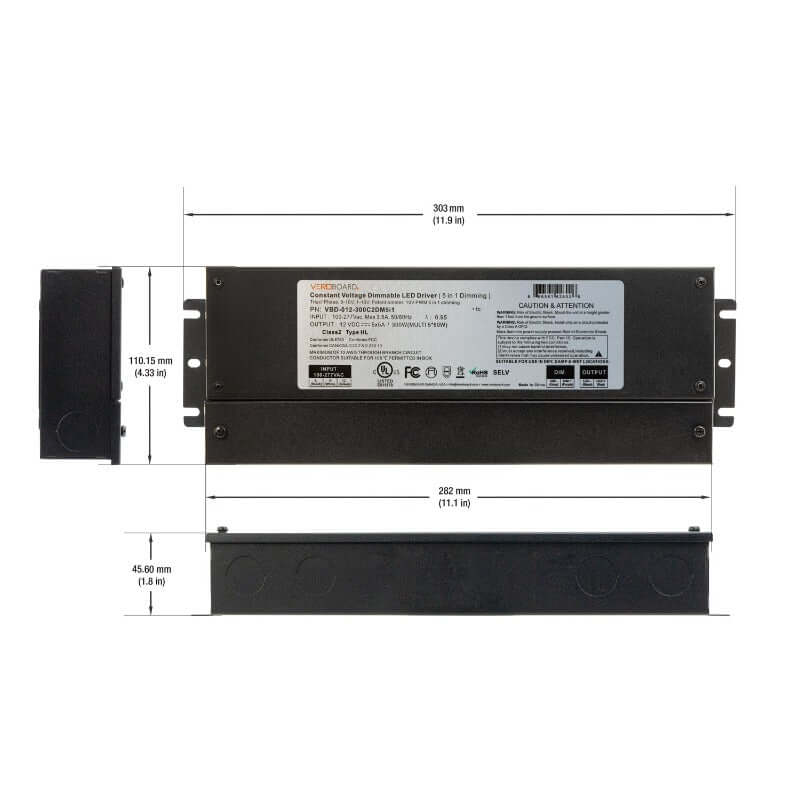

| Dimensions | 303mm x 110.15mm x 45.60mm (11.9in x 4.3in x 1.8in) |
| Class Certification | Class 2 |
| Certifications: |    |
| Applicable for dry, damp, and wet locations |
|
Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers |
The VBD-012-300C2DM5i1 LED Driver is a 5 in 1 dimming driver designed to power and control LED lighting systems. It is capable of accepting input voltages between 100-277V AC and has a power factor of >0.95. The output voltage is regulated at 12V DC and can supply a maximum output power of 300W, which is split between 5 regulated current outputs of 5A each. The maximum power per output is 60W.
This LED driver is dimmable using multiple methods, including Triac, Phase, MLV, ELV, 0-10V, Potentiometer, and 10V PWM, making it compatible with most dimming systems. It also has an IP67 rating, making it suitable for use in dry, damp, and wet locations.
The dimensions of the driver are 303mm x 110.15mm x 45.60mm (11.9in x 4.3in x 1.8in), and it is Class 2 certified, which means it meets certain safety standards for low voltage applications. Additionally, it has UL and FCC certifications, indicating that it has been tested and meets the safety and performance requirements of those organizations.
Features:
- Input voltage range: The driver can accept input voltages between 100-277V AC, making it suitable for use in a variety of locations and applications.
- Output voltage regulation: The output voltage is regulated at 12V DC, ensuring a stable and consistent supply of power to the connected LED lighting systems.
- Maximum output power: The driver can supply a maximum output power of 300W, which is split between 5 regulated current outputs of 5A each. The maximum power per output is 60W.
- Dimming compatibility: The driver is dimmable using multiple methods, including Triac, Phase, MLV, ELV, 0-10V, Potentiometer, and 10V PWM, making it compatible with most dimming systems.
- IP67 rating: The driver has an IP67 rating, which means it is dust-tight and can withstand immersion in water up to a depth of 1 meter for up to 30 minutes. This makes it suitable for use in dry, damp, and wet locations.
- Class 2 certified: The driver is Class 2 certified, which means it meets certain safety standards for low voltage applications.
- UL and FCC certified: The driver has UL and FCC certifications, indicating that it has been tested and meets the safety and performance requirements of those organizations.
- Dimensions: The dimensions of the driver are 303mm x 110.15mm x 45.60mm (11.9in x 4.3in x 1.8in), making it compact and easy to install.
